AVMATRIX PKC3000 IP And Serial PTZ Camera Controller

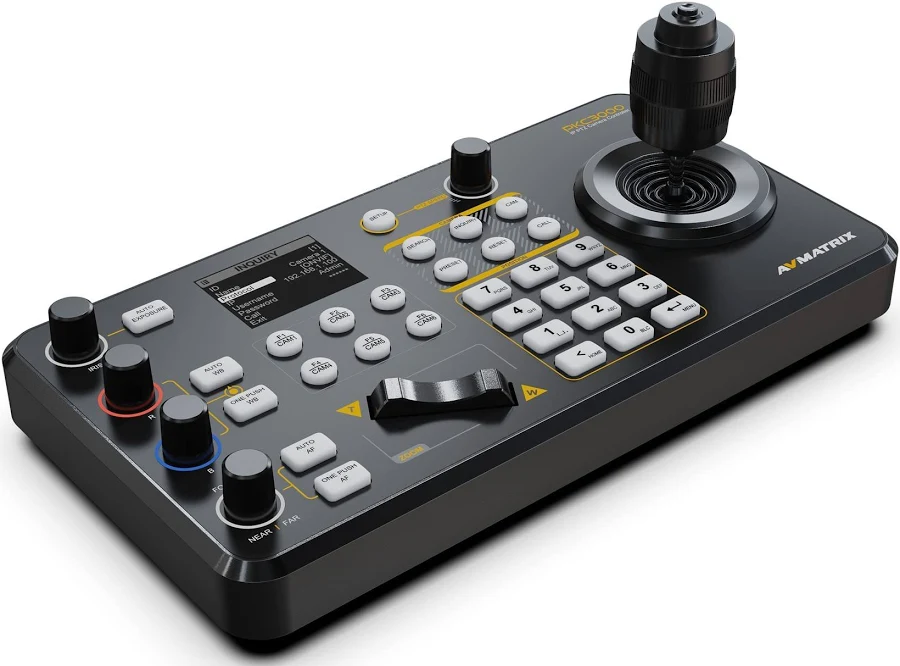

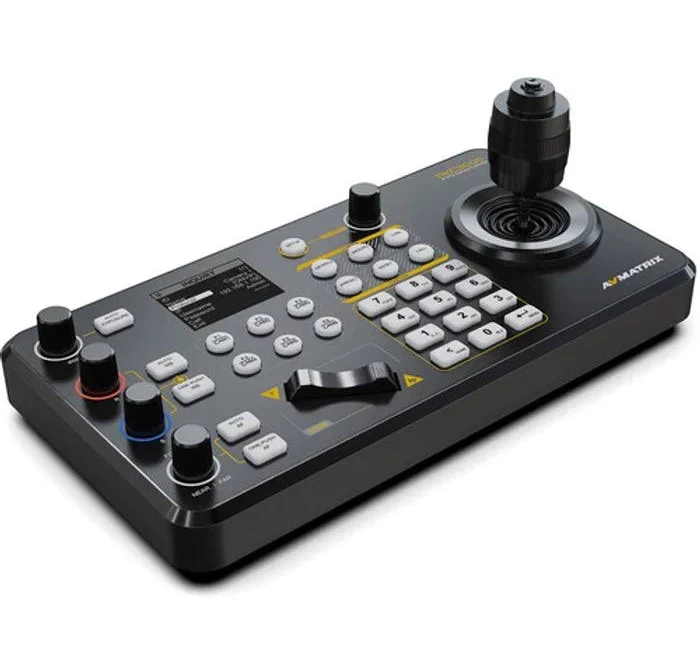

AVMATRIX PKC3000 is a joystick controller for compatible PTZ cameras over IP and supported serial interfaces. It gives an operator dedicated access to camera movement, zoom, focus and image controls in a planned production system.

Why Choose AVMATRIX PKC3000?

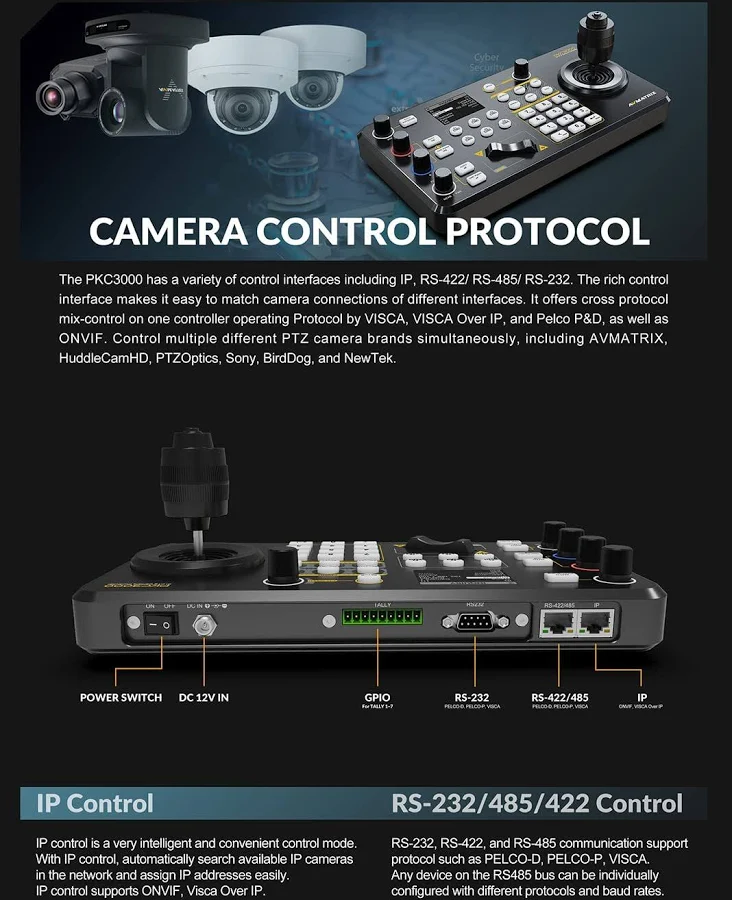

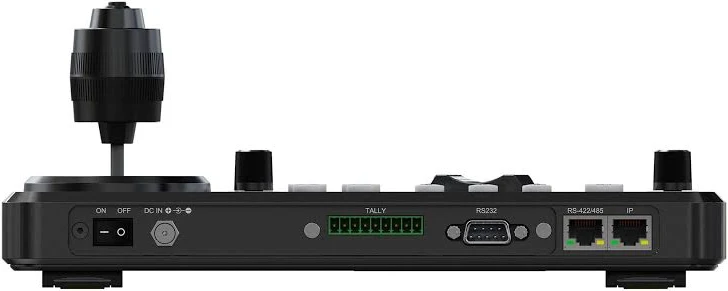

The manufacturer’s PKC3000 manual documents IP, RS-232, RS-422 and RS-485 control, with support for up to 255 camera addresses in the intended configuration. The compact LCD, camera shortcut keys and rotary controls support practical operation at a desk or production station. Confirm each camera’s protocol and command compatibility before adding it. The controller does not include a PTZ camera and does not itself replace a video switcher or capture device.

Key Features

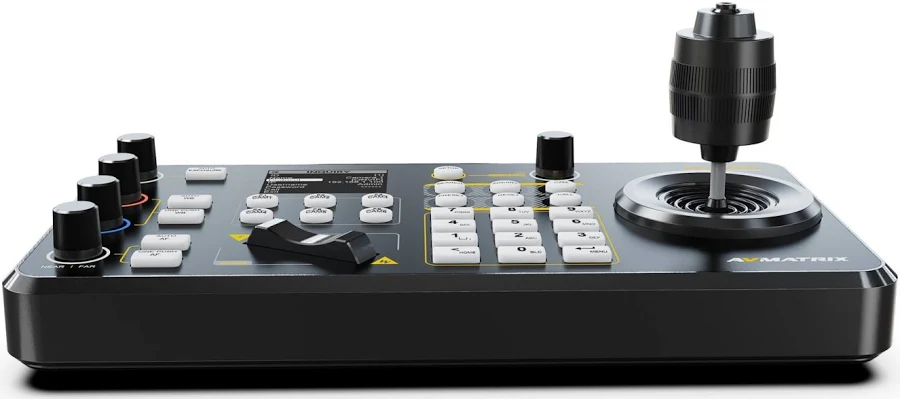

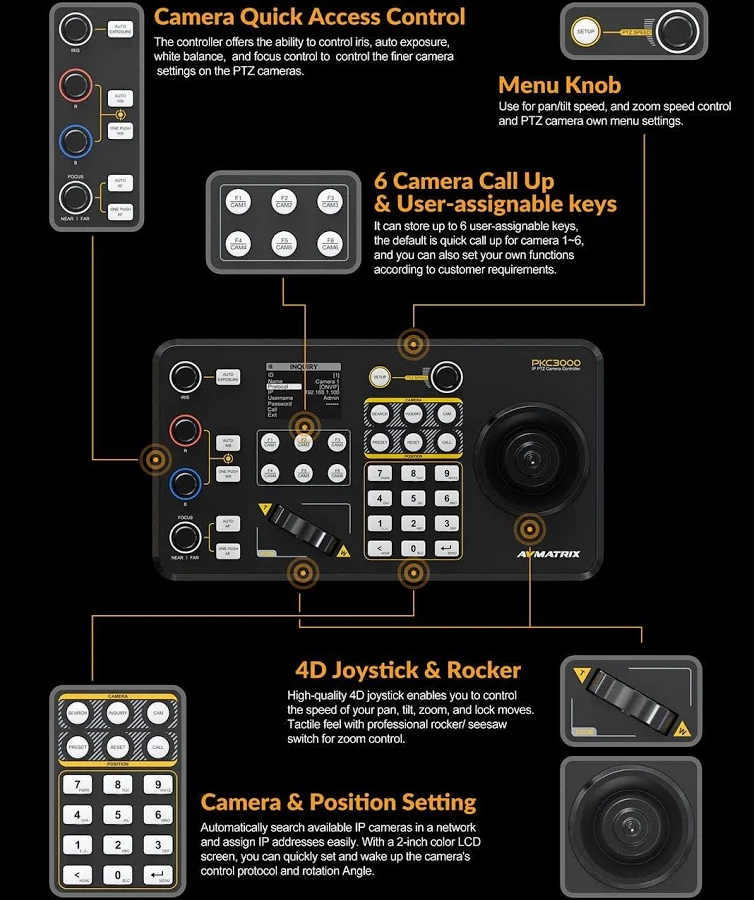

• Joystick operation: hands-on pan, tilt and zoom control.

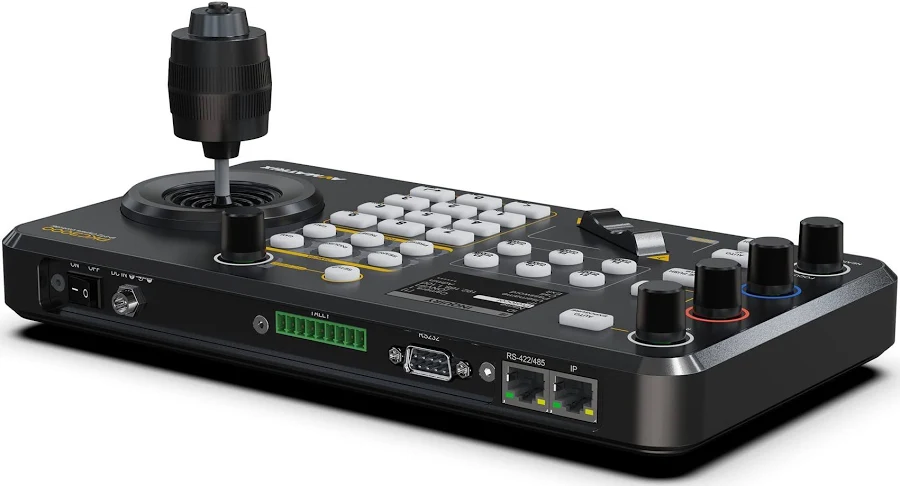

• Multiple control routes: IP and documented serial interfaces.

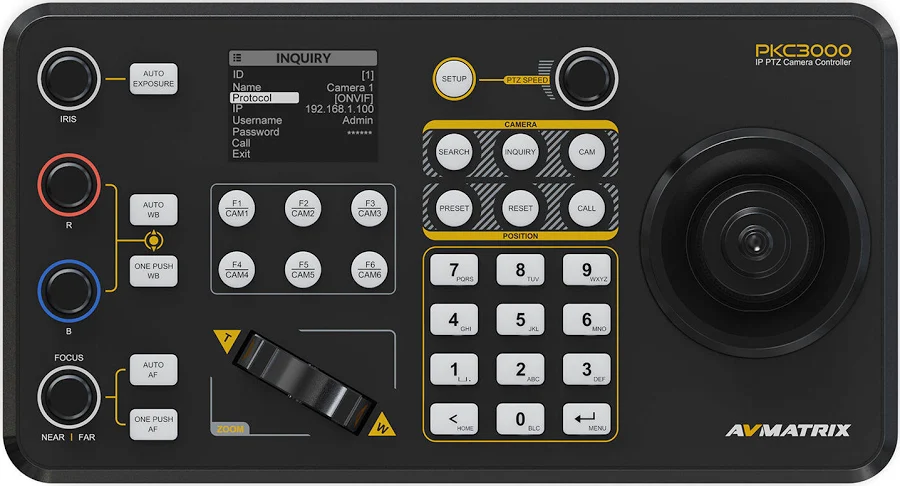

• Camera selection: shortcut keys for an organised setup.
• Image controls: supported focus, exposure and white-balance adjustment.

Best Suited For

Multi-camera lessons, conference rooms, houses of worship and live-production systems using compatible PTZ cameras. Dedicated controls help an operator adjust framing and recall positions without relying only on each camera’s web page. The controller handles camera commands; video switching, recording and streaming require their own equipment or software.

Setup and Connection Guide

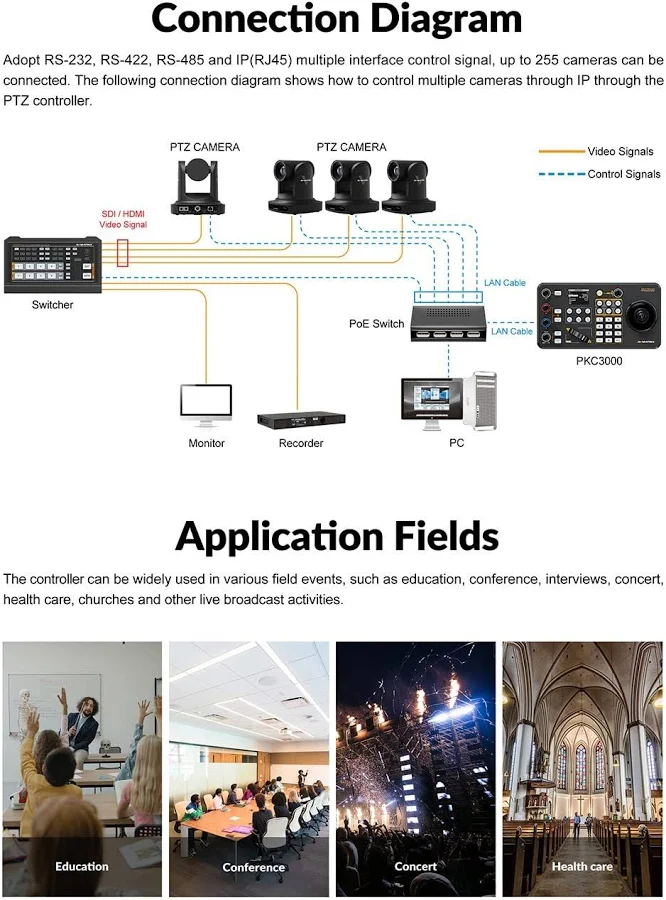

Choose a supported IP or serial connection and use the camera and controller documentation for wiring and protocol selection. Give network devices unique addresses in the intended network and match serial addresses and baud rates where that route is used. Add one camera first, test pan, tilt, zoom and focus, then save and recall representative presets. Expand the camera list after that route works. Check operator speed, framing and the separate video path during a rehearsal before a live event.

Frequently Asked Questions

Can PKC3000 control cameras from another manufacturer?

It supports documented standard control protocols, but the camera must support the chosen protocol and commands. Verify the required movement, presets and image controls with the exact camera before planning the installation.

Does camera-control compatibility guarantee that every feature is available?

No. The camera must support the selected protocol and command set. Confirm the controls you actually need, including presets and image adjustments, rather than assuming all functions work on every third-party model.

Is a PTZ controller also a video switcher?

A controller sends camera commands. Selecting the picture shown to viewers is a separate switching or software task. A preview screen on a controller does not by itself replace the complete production video workflow.

Technical Specifications
