Behringer U-PHORIA UMC22 USB Audio Interface

Behringer U-PHORIA UMC22 USB Audio Interface

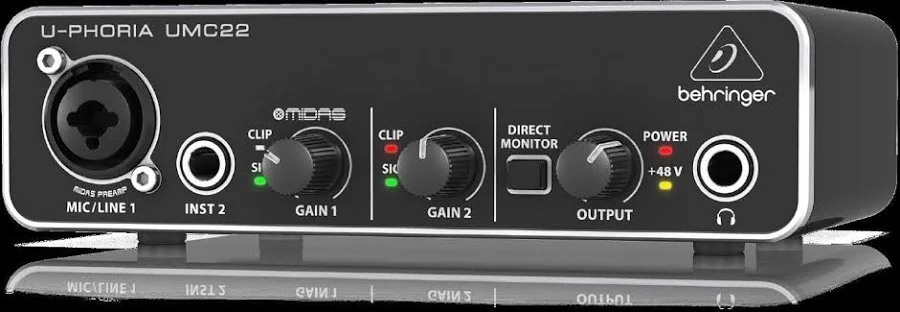

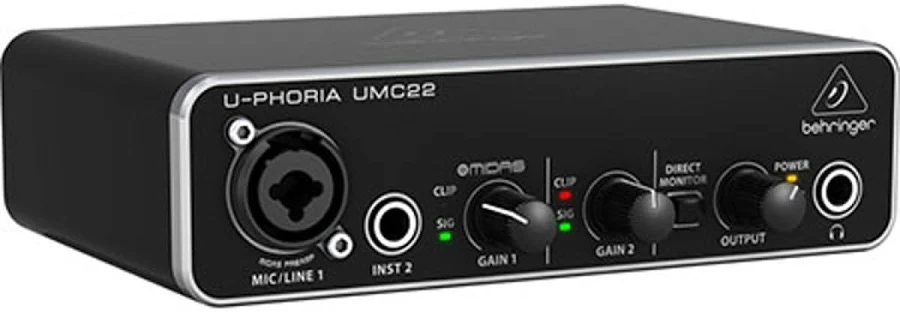

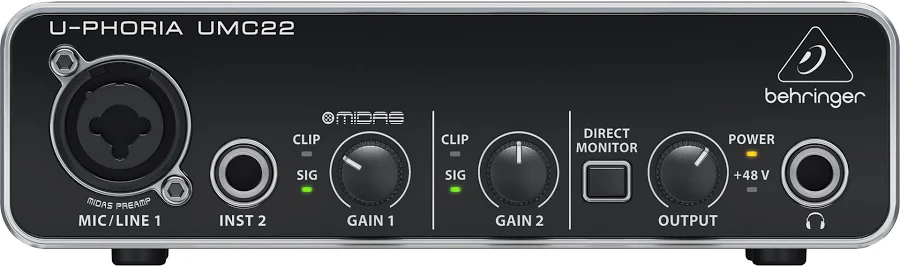

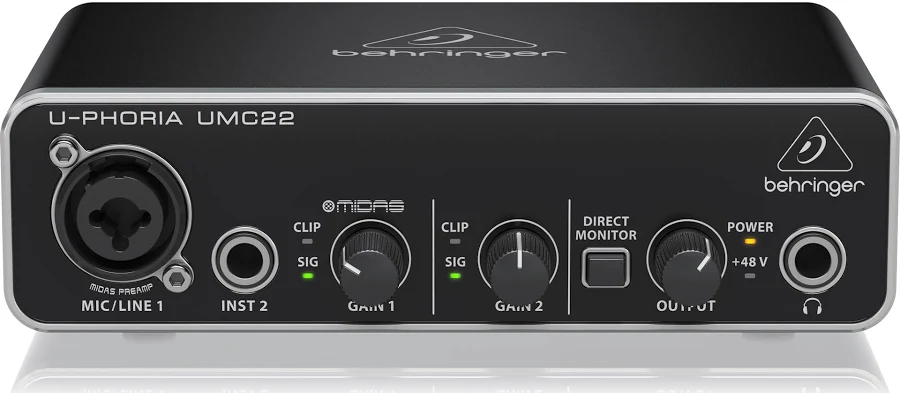

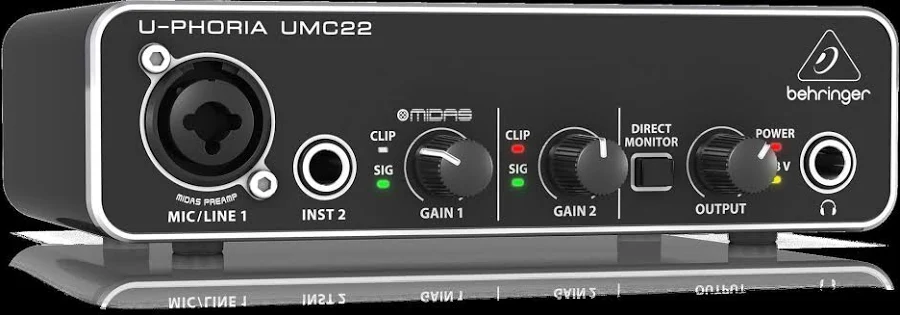

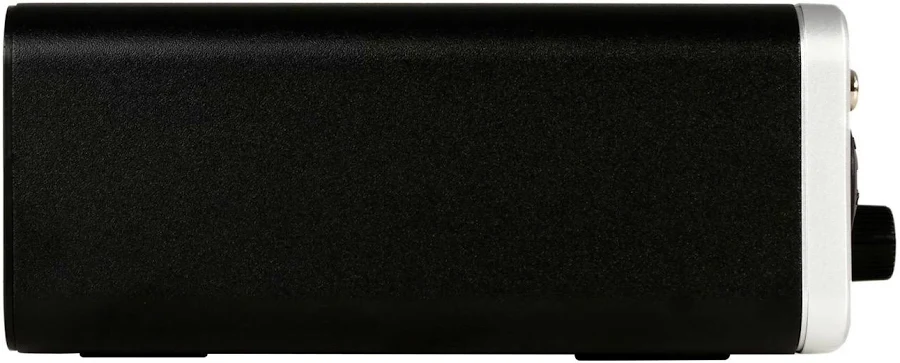

Behringer U-PHORIA UMC22 is a compact two-input, two-output USB audio interface for compatible computer recording. It combines one Midas-designed microphone preamp with a separate instrument input.

Why Choose Behringer U-PHORIA UMC22?

The microphone/line combination input accepts the appropriate vocal or line source, while the additional quarter-inch instrument input supports a separate guitar or similar source. USB supplies power and computer audio connection, and the Direct Monitor switch offers a supported live-input monitoring route. A headphone output and two main outputs handle listening. The UMC22 specification is a 48kHz platform; do not transfer the higher advertised formats of UMC HD models to it. Match driver and application support to the actual operating system before a recording session.

Key Features

• Two-input recording: microphone/line plus instrument route.
• Midas-designed preamp: supported microphone gain.
• Direct monitoring: documented live-input listening switch.
• USB connection: computer audio and operating power.

Best Suited For

Home studios, voice production and music recording with a supported computer. Plan the number of simultaneous sources before choosing an interface: a microphone preamp, an instrument socket and a digital expansion port have different jobs. Match the monitoring arrangement to the session so the performer can hear a useful balance of the live source and playback.

Setup and Connection Guide

Install the appropriate manufacturer driver and control software for the operating system, then select the interface in the recording application. Connect each source to its intended input type and enable phantom power only for equipment that requires it. Perform the loudest expected passage while setting gain, leaving room below overload. Start headphone and monitor levels low. Choose direct or software monitoring deliberately to avoid hearing doubled audio, and make a short test recording before a full session.

Frequently Asked Questions

Does the 2×2 specification mean UMC22 has two microphone preamps?

No. It has one microphone preamp on the combination input and a separate instrument input. Choose an interface with two documented mic preamps if two XLR microphones must be recorded at the same time.

Can the line outputs power passive speakers?

Line outputs provide an audio signal rather than loudspeaker-driving power. Use powered monitors or a suitable separate power amplifier for passive speakers. Headphone sockets and monitor outputs also serve different loads.

Does the advertised channel count equal the number of microphone sockets?

Check the physical analogue inputs separately. Total channel counts can include digital expansion, line outputs and headphone routes. External preamps and suitable digital connections may be needed to reach the maximum advertised configuration.

Technical Specifications
