Atlantic Technology IC-6SLM Slim In-ceiling Speaker

Atlantic Technology IC-6SLM Slim In-Ceiling Speaker

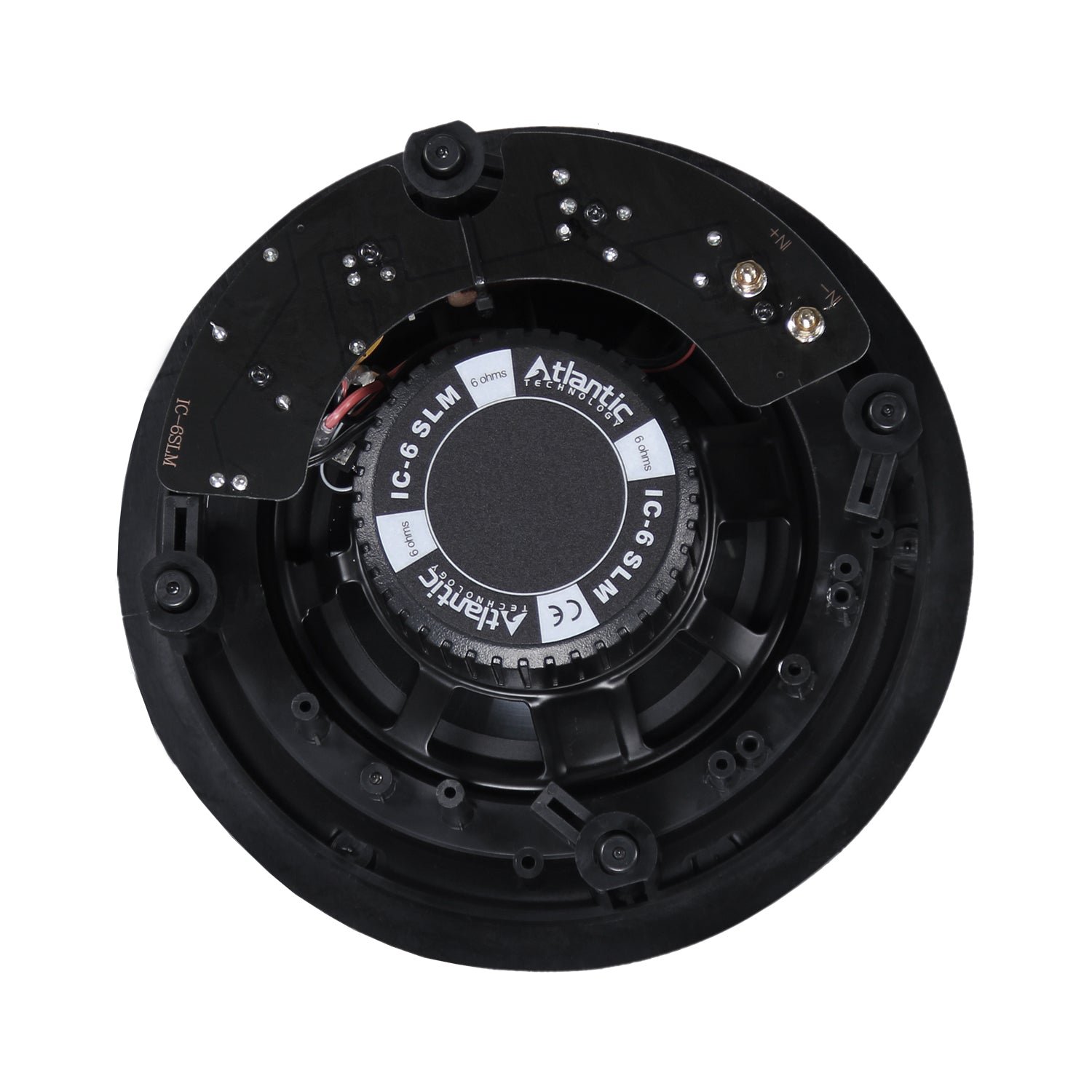

Atlantic Technology IC-6SLM is a passive slim-depth ceiling speaker with a 6.5-inch woofer and 1-inch tweeter. Its approximately 70mm mounting depth suits installations with less cavity space than a conventional deeper recessed speaker.

Why Choose Atlantic Technology IC-6SLM?

Use IC-6SLM where available ceiling depth is the deciding factor. The thin bezel and magnetic paintable grille support a discreet finish, while suitable external amplification supplies the audio power. Measure the whole usable cavity, including wiring access, before selection. A shallow speaker still needs the correct cut-out, secure mounting and an amplifier that supports its 6-ohm load.

Key Features

• Slim mounting depth: approximately 70mm on the documented model.
• Two-way sound: 6.5-inch woofer and 1-inch tweeter.
• Magnetic grille: supports a discreet installed finish.
• Passive connection: integrates with a suitable amplifier or receiver.

Best Suited For

Discreet installed music and home-theatre layouts where recessed speakers suit the room design. Decide the channel role and listening positions before selecting mounting locations. Speaker size, angle and usable cavity depth matter independently; a physically similar grille does not establish identical installation requirements.

Setup and Connection Guide

Check the manual’s cut-out, mounting depth and ceiling requirements before making an opening. Allow space for cables and connectors, confirm the supporting structure and use an appropriate installation method. With the amplifier off, connect suitable speaker cable with consistent polarity and check that the amplifier supports the resulting load. Test sound and channel routing before closing the installation. Adjust aiming where supported and verify coverage from the seats where music or film sound will be heard.

Frequently Asked Questions

Does a 70mm depth guarantee it will fit any shallow ceiling?

Check the cut-out, mounting surface and space for cables as well as speaker depth. The documented mounting depth alone does not account for every obstruction or connector position.

Can these passive ceiling speakers stream music by themselves?

A passive loudspeaker requires suitable amplification and a source. Recessed mounting does not add Bluetooth, Wi-Fi or a music player. Choose the upstream equipment for the desired streaming and control functions.

Can I cut the ceiling using only the outside grille diameter?

No. The cut-out and mounting depth are separate dimensions. Check the exact model’s template and usable cavity, including cables, before cutting; a grille measurement is not an installation template.

Technical Specifications
