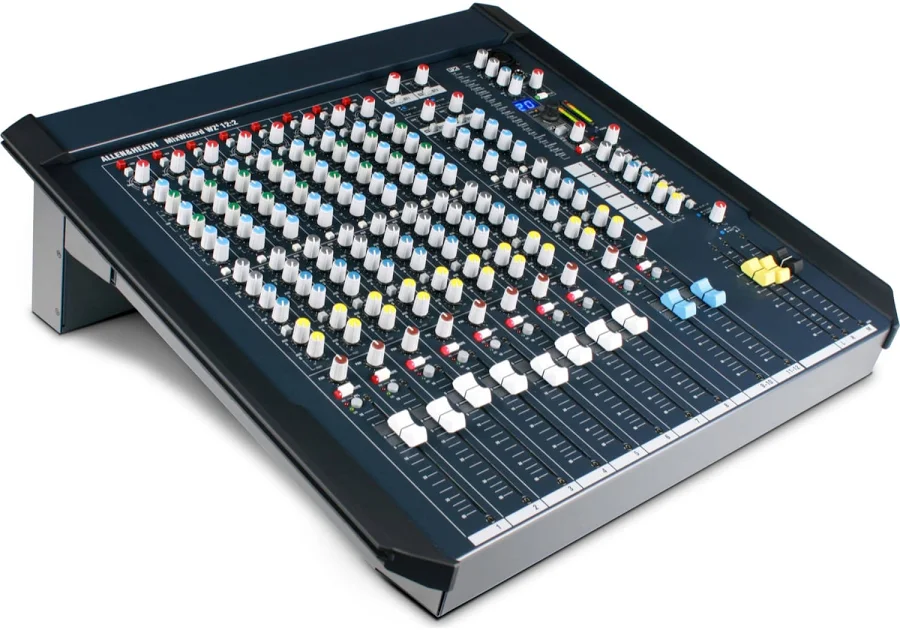

Allen & Heath MixWizard WZ4 12:2 Analogue Mixer
SKU ALLEN-HEATH-MIXWIZARD-WZ4
Original price was: ₹88,000.₹79,200Current price is: ₹79,200. Save ₹8,800 (10%)
- Price includes GST, invoice provided
- Dispatched the same day
- Cash on delivery up to ₹45,000
- Money-back if it arrives damaged
Allen & Heath MixWizard WZ4 12:2 is a compact analogue mixing console for live sound, installations and hands-on studio work. Physical channel controls, six auxiliary sends and two stereo effects engines make it useful when immediate access matters more than menu-based operation.
Currently out of stock
Tap to send us a WhatsApp message. We’ll reply as soon as it’s back in stock, and can suggest a similar model in the meantime.

Product highlights
- Mono input channels8 x mic/line with balanced XLR and TRS jack, insert and direct output
- Stereo input channels2 dual stereo inputs with independent gain and on switches
- Auxiliary sends6 (2 pre-fade, 2 switched, 2 post-fade, reconfigurable)
- Mono channel EQ4-band with two swept mids
- EffectsTwin stereo FX engines, 20 factory presets
- Faders100 mm
Description
The Allen & Heath MixWizard WZ4 12:2 is a compact analogue mixing console for live sound, installations and hands-on studio work. Eight mic/line channels with the acclaimed MixWizard preamp design sit alongside two dual-stereo channels, giving a 12-channel desk that still fits on a tabletop. Six auxiliary sends, two stereo effects engines and a repositionable connector panel make it useful wherever immediate, physical access to the mix matters more than menu-based operation.
Why Choose the Allen & Heath MixWizard WZ4 12:2?

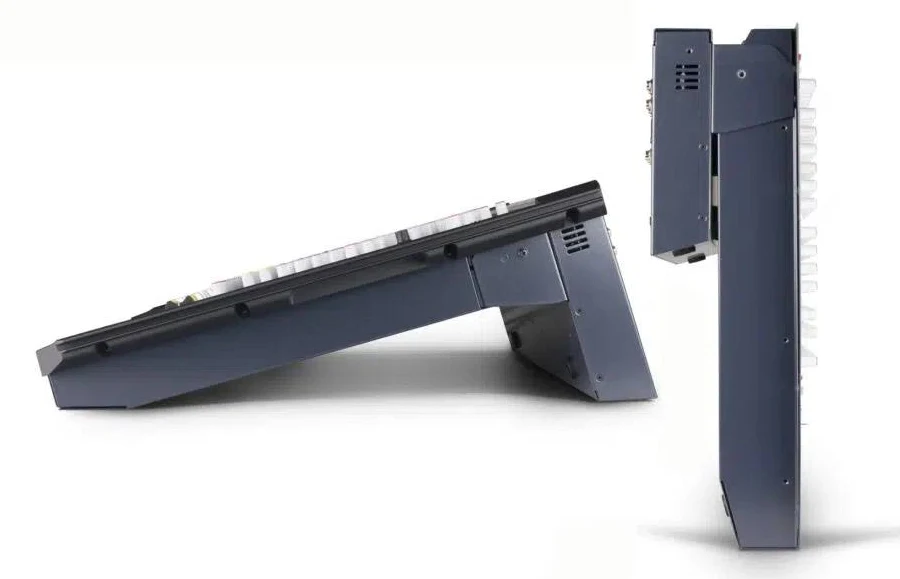

The WZ4 12:2 gives you a full professional channel strip on every mic input — balanced XLR and TRS jacks, 48 V phantom power, a -20 dB pad, 4-band EQ with two swept mids, six aux sends and a direct output. The twin digital FX engines offer 20 studio-quality presets with tap tempo, so vocals and instruments get polished reverb and delay. And the unique QCC connector system lets the connector panel be repositioned for desktop, rack or flightcase mounting, so the same desk adapts to the room or the road case.
Key Features
- 8 mic/line inputs: balanced XLR/TRS jacks with insert and direct output, 48 V phantom power and -20 dB pad.

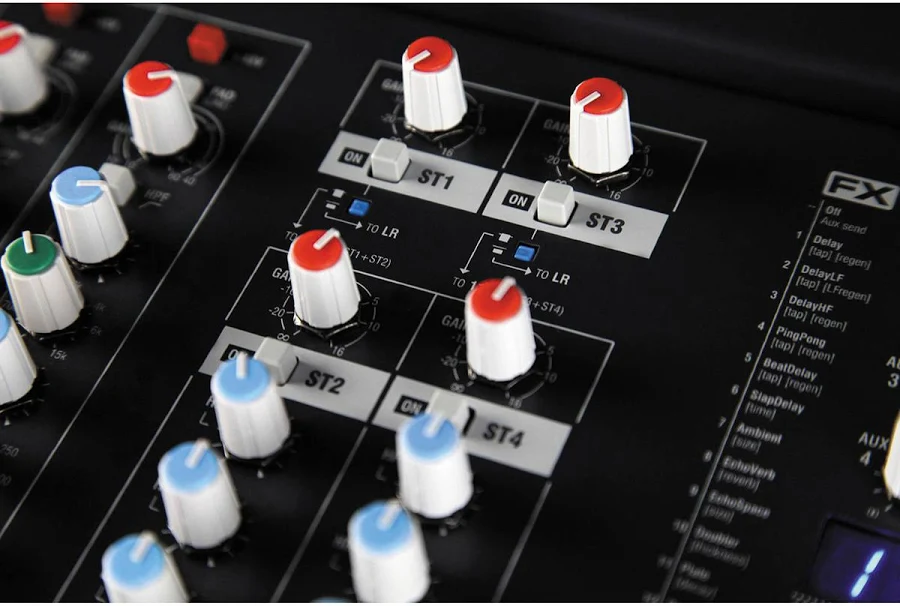

- 2 dual-stereo inputs: separate gain and on-switches, for stereo playback, keyboards and other stereo sources.

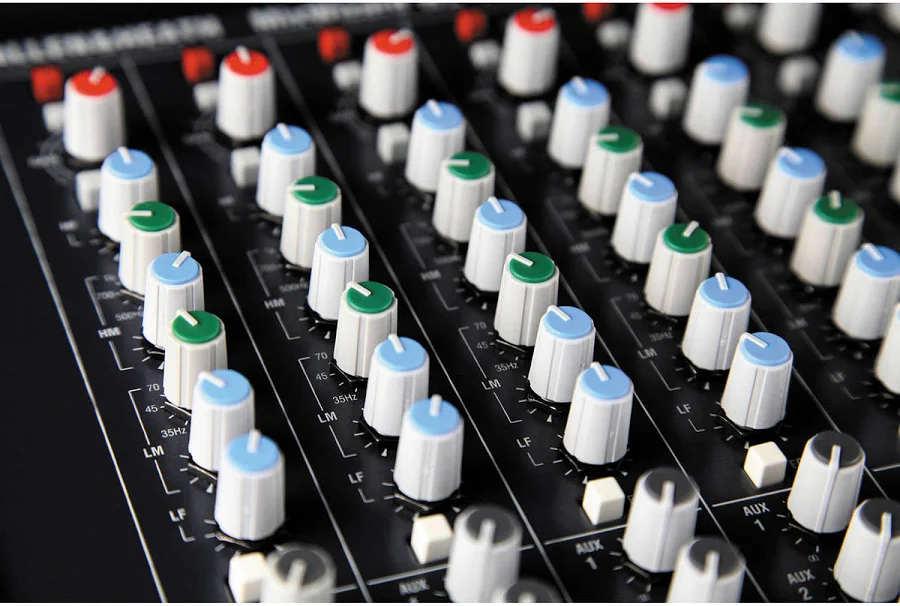

- 4-band EQ with 2 swept mids: full tonal control on every mono channel, with EQ in/out switching.

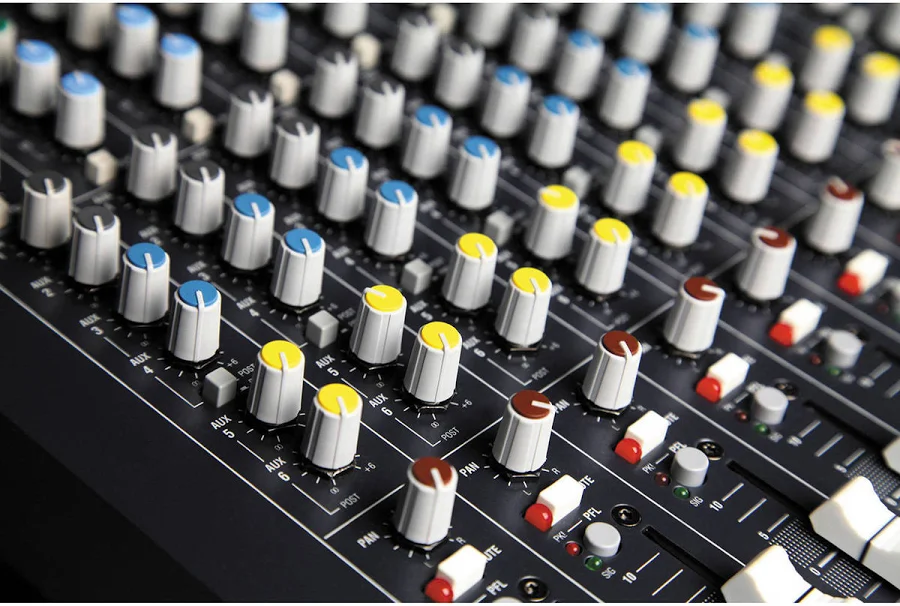

- 6 auxiliary sends: 2 pre-fade, 2 switched and 2 post-fade, for monitors, effects and additional feeds.
- Twin FX engines: two digital effects engines with 20 studio-quality presets, tap tempo and parameter control.
- 100 mm faders: high-quality long-throw faders with 12-segment bargraph metering.
Best Suited For
The WZ4 12:2 suits live bands, rehearsal systems, houses of worship, schools and installed venues that need a compact analogue console with real aux and effects capacity. It is also a strong choice for hands-on studio work and for engineers who prefer a dedicated control for every function over a screen.
Setup and Connection Guide
Write the input list first, then patch microphones to the eight mono channels and stereo sources to the dual-stereo channels. Set each preamp from the loudest expected source, engage the 80 Hz high-pass filter on vocals to cut rumble, and use auxes 1 and 2 for monitor mixes and the post-fade auxes for the internal effects. Connect the main stereo outputs to powered speakers or an amplifier, and use the dedicated mono output for a centre speaker, fill or sub-bass feed. If multitrack recording is needed, the optional USB interface card (fitted by a qualified engineer) sends 16 channels to a computer at up to 96 kHz / 24-bit.
Frequently Asked Questions
Does every unit include USB multitrack recording?
No. The USB interface is an optional card that must be fitted to the mixer — confirm whether it is installed in the supplied unit before assuming computer recording is available. Without it, the desk is purely analogue.
How many microphones can I connect?
Eight, on the balanced XLR mic/line inputs, each with its own 48 V phantom power, pad, EQ and direct output. The two dual-stereo channels take line-level stereo sources such as keyboards and playback.
Can I use condenser microphones?
Yes. Each mic/line channel provides 48 V phantom power. Check that connected equipment is safe to receive phantom power before switching it on, and lower monitor levels during connection changes.
Technical Specifications
| Specification | Detail |
|---|---|
| Mixing format | Analogue stereo console, 12 channels |
| Mic/line inputs | 8 (balanced XLR/TRS, insert and direct output) |
| Stereo inputs | 2 dual-stereo channels with separate gain and on-switches |
| EQ | 4-band with 2 swept mids, EQ in/out switching |
| Auxiliary sends | 6 (2 pre-fade, 2 switched, 2 post-fade) |
| Effects | 2 stereo digital FX engines, 20 presets, tap tempo |
| Phantom power | +48 V per mic/line channel |
| High-pass filter | 80 Hz, 12 dB/octave |

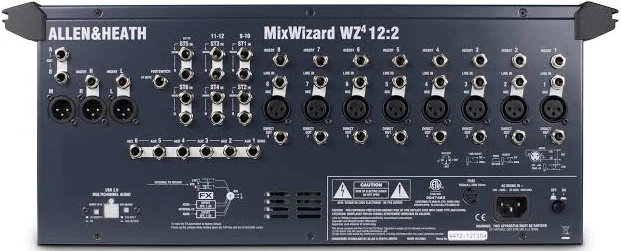

| Outputs | Stereo master, mono master, stereo monitor, headphone, AB out |
| USB interface | Optional card; 16 channels to computer, up to 96 kHz / 24-bit |
| Dimensions (W x D x H) | 507 x 530 x 194 mm |
| Weight | 11 kg |
Complete your setup: Pair the Allen & Heath MixWizard WZ4 12:2 Analogue Mixer with the Shure SM58-LC Cardioid Vocal Microphone Without Cable and the FBT X-Lite 12A Powered Speaker.
Explore Related Products
If you need more microphone channels, step up to the Allen & Heath MixWizard WZ4 16:2 Analogue Mixer.
Buying guide: Best Audio Mixer in India
Additional Information
Specifications
| Mono input channels | 8 x mic/line with balanced XLR and TRS jack, insert and direct output |
|---|---|
| Stereo input channels | 2 dual stereo inputs with independent gain and on switches |
| Auxiliary sends | 6 (2 pre-fade, 2 switched, 2 post-fade, reconfigurable) |
| Mono channel EQ | 4-band with two swept mids |
| Effects | Twin stereo FX engines, 20 factory presets |
| Faders | 100 mm |
| Brand | Allen & Heath |
| Model | MixWizard WZ4 12:2 |
| Form factor | 19-inch rack mountable (10U with underside connectors) or desktop |
| Phantom power | 48 V per mono channel |
| High pass filter | 80 Hz, 12 dB per octave on mono channels |
| Frequency response | 10 Hz to 30 kHz (plus/minus 0.5 dB) |
| Microphone EIN | -127 dB |
| Maximum output level | 26 dBu into 600 ohms (XLR) |
| USB recording | Optional USB multitrack recording interface (not fitted as standard) |
| Power supply | Internal 100 to 240 V auto-sensing, 45 W maximum |
| Weight | 11 kg (unpacked) |
| Model / SKU | ALLEN-HEATH-MIXWIZARD-WZ4 |
| Category | Audio Mixer |
| Condition | Brand new, sealed box |
| Warranty | Official manufacturer warranty (India) |
| GST invoice | Yes, input credit available |
