Ambient QP5130-CCM Carbon-Fibre Boom Pole with Coiled Cable

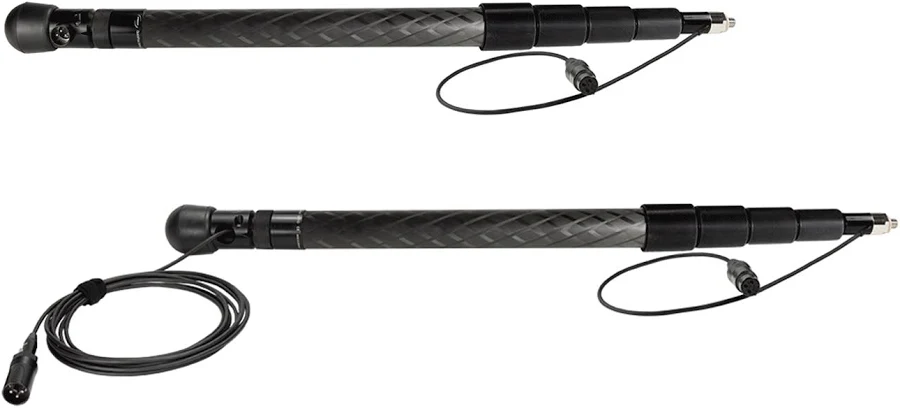

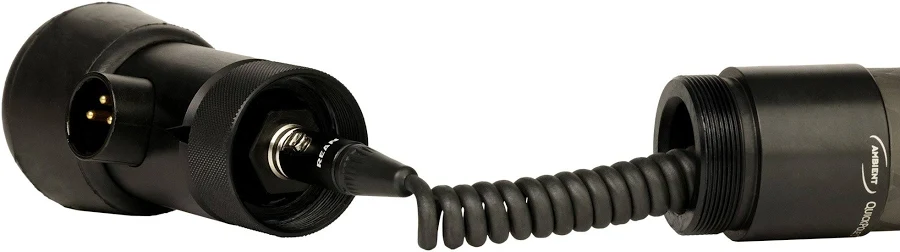

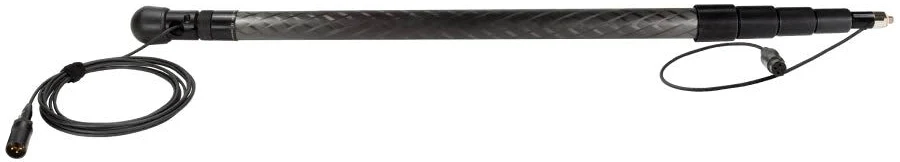

Ambient QP5130-CCM is a five-section carbon-fibre boom pole for positioning a production microphone above dialogue or other sound sources. The QP5130 platform extends from approximately 1.34 m to 5.32 m, providing substantial reach for location sound work. Why Choose Ambient QP5130-CCM? The CCM listing identifies an internally coiled cable configuration, useful when managing a microphone connection along an extending pole. Confirm the supplied connector arrangement and pin count for your microphone. The pole needs a compatible microphone mount and does not capture or record sound by itself. Key Features – Five telescoping sections: adjust reach for different scenes. – Carbon-fibre construction: provides a professional location-sound pole format. – Internal coiled cable configuration: manages the audio connection along the pole. – QuickPole Series 5 design: suits production dialogue workflows. Best Suited For
Location dialogue, film production and other microphone-placement tasks requiring reach without putting a stand in the scene. Select the pole length around the framing and operator position. The microphone, shock mount, windshield and cable all contribute to the complete working weight and handling behaviour. Setup and Connection Guide
Fit a compatible microphone mount, secure the microphone cable and test the audio path before extending the pole. Open the sections only as far as needed, secure each lock and avoid using force to over-tighten it. Practise movements with the full microphone assembly so cable and handling noise can be checked in headphones during rehearsal. Frequently Asked Questions
Does the quoted uncabled pole weight include the CCM cable? No. A weight quoted for an uncabled QP5130 should not be treated as the complete CCM assembly weight. Check the supplied cable, connectors and mount when comparing the working load. Is the microphone included with the pole? Do not assume inclusion unless the package states it. A boom pole positions the microphone; it still needs the appropriate microphone, mount, recording connection and any required wind protection. Can full extension be used for every shot? Use the shortest practical extension for the frame and source position. Longer reach changes balance and handling effort, especially once the microphone and accessories are fitted. Technical Specifications Specification
Detail Series
QuickPole 5 Model
QP5130-CCM Sections
5 Collapsed length
Approximately 1.34 m Extended length
Approximately 5.32 m Cable
Internal coiled configuration; confirm connectors
