AKG CGN521 STS Tabletop Gooseneck Microphone

AKG CGN521 STS Tabletop Gooseneck Microphone

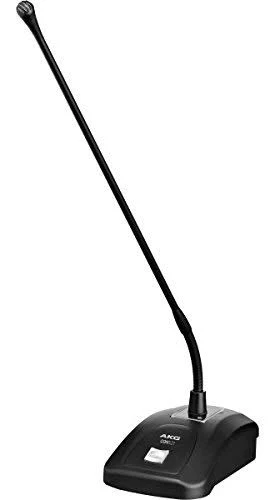

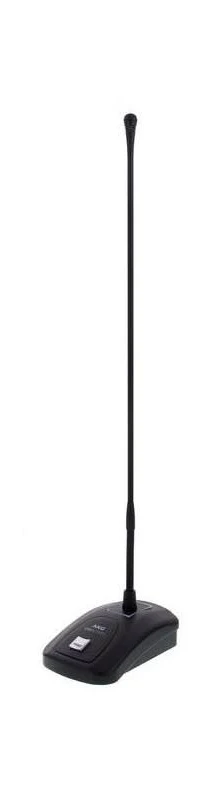

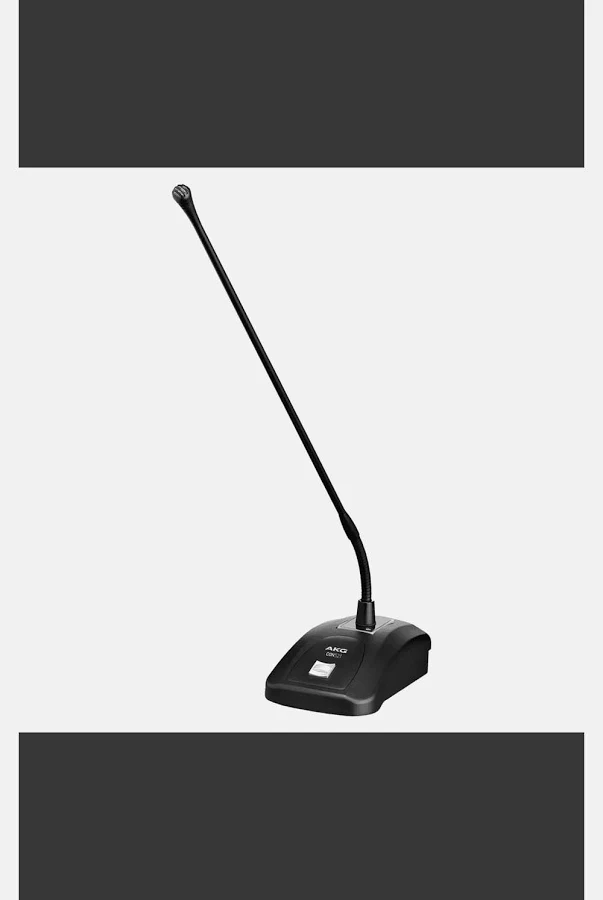

The AKG CGN521 STS is a professional tabletop microphone set for meetings, worship, courtrooms and lecterns. A condenser gooseneck microphone on a slim 50 cm stem sits in a heavy-duty table stand whose weight keeps it firmly planted and absorbs shocks from the table surface. The capsule has a cardioid pattern with a wide 120 degree pickup angle, chosen for speakers who move, lean and turn while they talk. A programmable switch and an LED status square make the microphone easy to operate correctly, even for people who have never used one.

Key features

• 50 cm slim gooseneck on a heavy-duty tabletop base
• Cardioid condenser capsule with 120 degree pickup angle
• Programmable switch: push-to-talk, push-to-mute, on/off, low cut
• LED status square shows when the microphone is live
• Switch rated for more than 25,000 switching cycles
• Gold-plated 3-pin XLR output
• Runs on 9 to 52 V phantom power
• W30 windscreen included

Made for speakers, not engineers

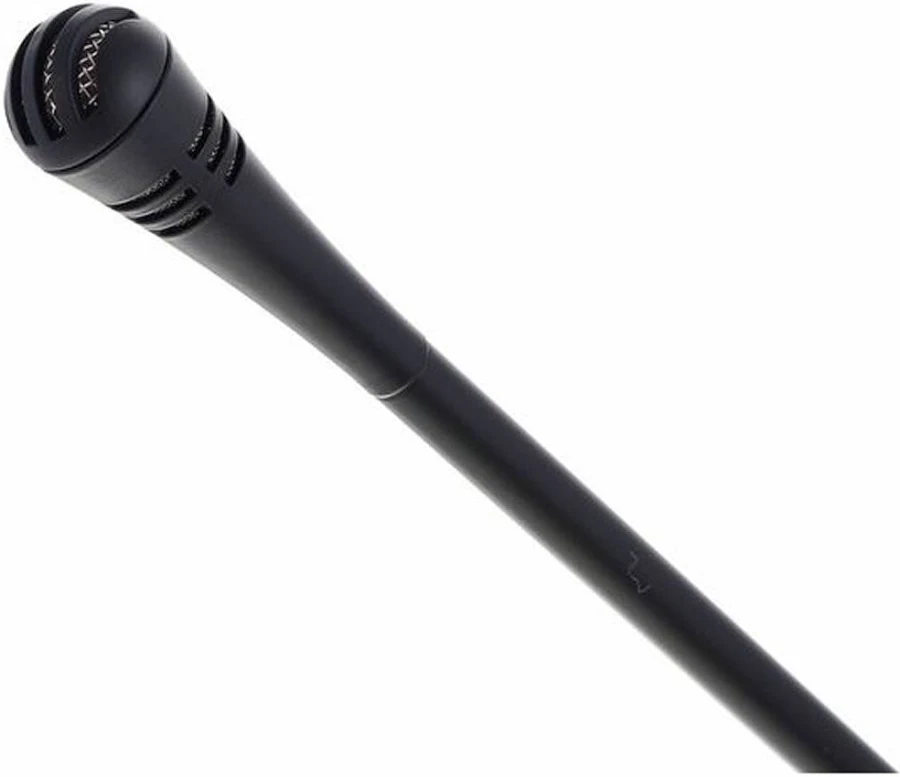

Most gooseneck microphones are used by people who did not choose them and will not read a manual: meeting participants, panellists, lecturers and officials. The CGN521 STS is designed around that reality. The wide 120 degree pickup angle tolerates a speaker who talks from varying angles and distances, so voices stay intelligible without constant repositioning. The frequency range of 70 Hz to 18 kHz is tailored to speech, and maximum sound pressure handling of 125 dB at 1 percent distortion means raised voices and emphatic delivery at close range will not overload the capsule. The equivalent noise level is under 21 dB-A, with a signal to noise ratio above 73 dB A-weighted, keeping quiet speakers clear.

The base and the switch

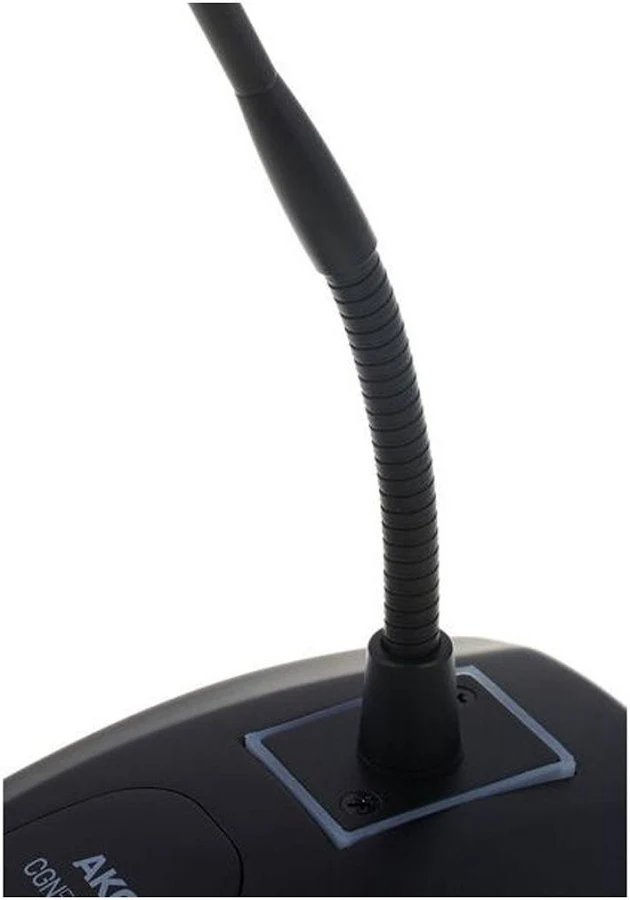

The heavy table stand does two jobs. Its mass holds the 50 cm gooseneck steady where it is aimed, and its shock-absorbing design reduces the thumps and bumps that travel through a conference table when papers, laptops and water bottles move around. The switch in the base is engineered for more than 25,000 cycles and can be programmed at installation for the behaviour the room needs: push-to-talk for chaired meetings, push-to-mute for coughs and side conversations, push on/off latching, or low cut on/off for controlling rumble. The LED square shows the microphone status at a glance, so a chairperson can see across the table who is live. Internal cabling is well isolated against electromagnetic interference, including mobile phone frequencies.

Connection and powering

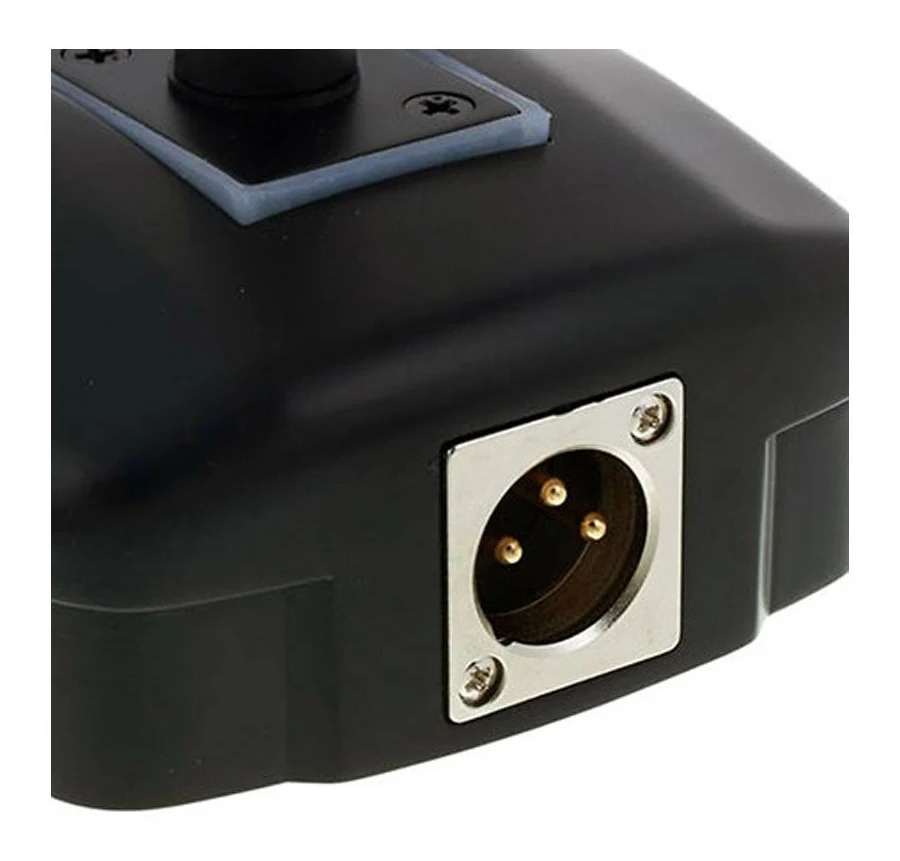

The set connects through a gold-plated 3-pin XLR output with an impedance of 600 ohms or less, feeding any mixer, conferencing processor or PA input that provides phantom power between 9 and 52 V to IEC 61938, drawing under 3 mA. Recommended load impedance is 2,000 ohms or more, which standard microphone inputs meet comfortably. The finish is matte black, discreet on a table and on camera, and the complete set weighs 1010 g net. A W30 windscreen is included for plosive and breath-noise control.

Where it belongs

Boardrooms and council chambers, houses of worship, courtrooms, lecture halls and presentation desks share the same requirement: a microphone that stays where it is put, behaves predictably for untrained users, and delivers speech clearly to the room system, the recording and the remote participants. Installed once and programmed once, the CGN521 STS then asks nothing of the people who use it.

Choose the CGN521 STS if a fixed speaking position needs a microphone that is stable, discreet and forgiving of inexperienced speakers. The long gooseneck, wide pickup angle and programmable base switch solve the practical problems of tabletop speech, and the AKG condenser capsule handles the sound.
