JBL Stage 280C In-Ceiling Speaker

JBL Stage 280C In-Ceiling Speaker

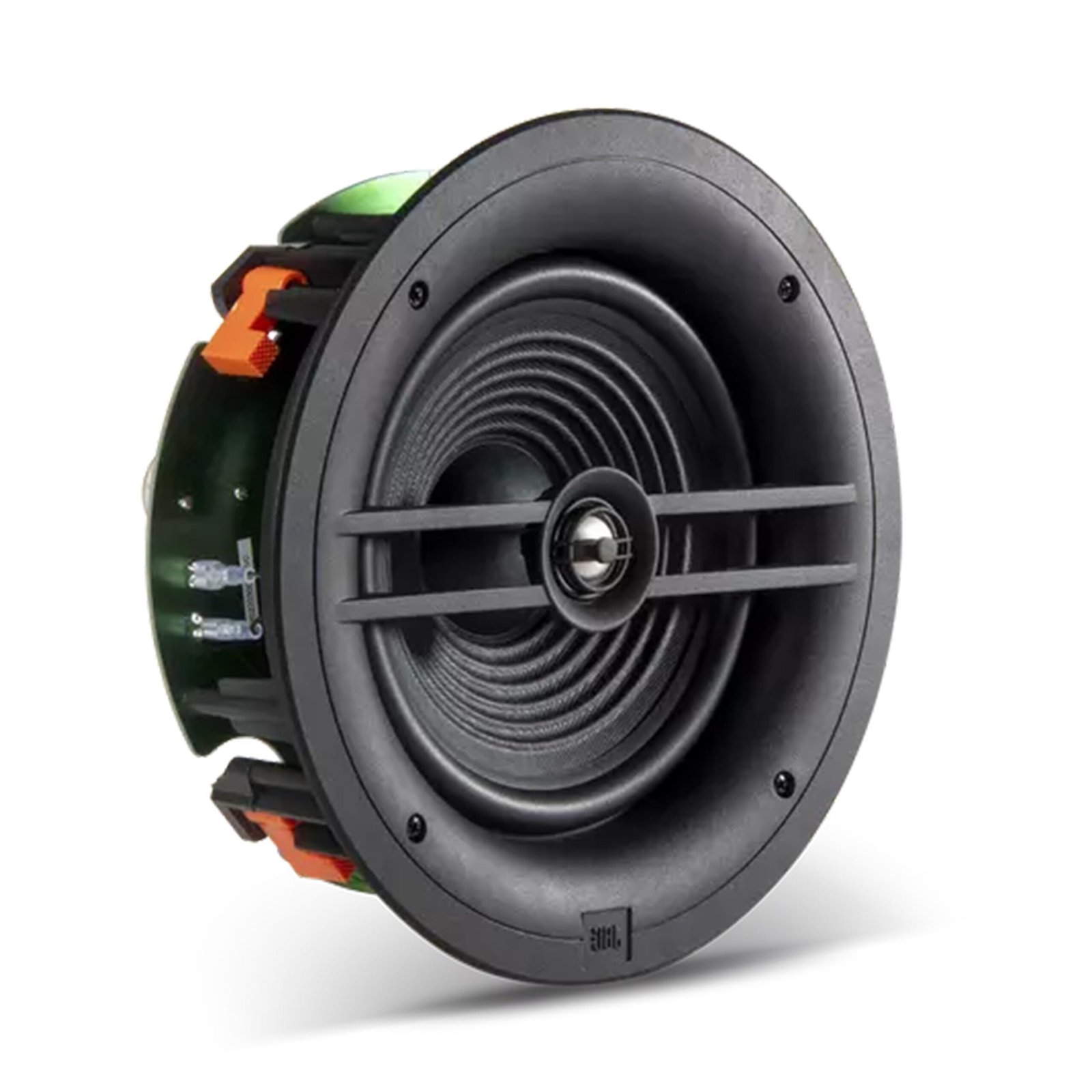

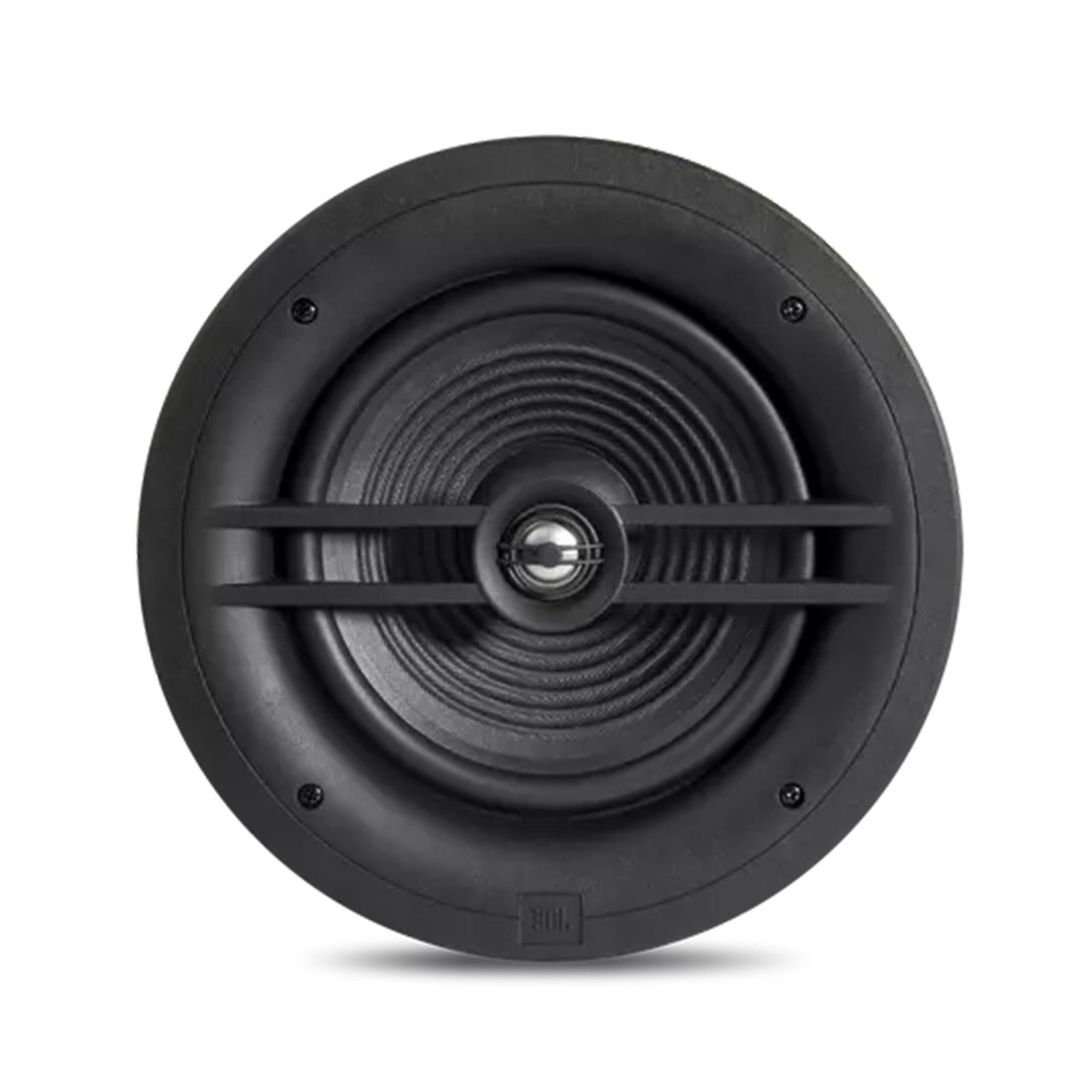

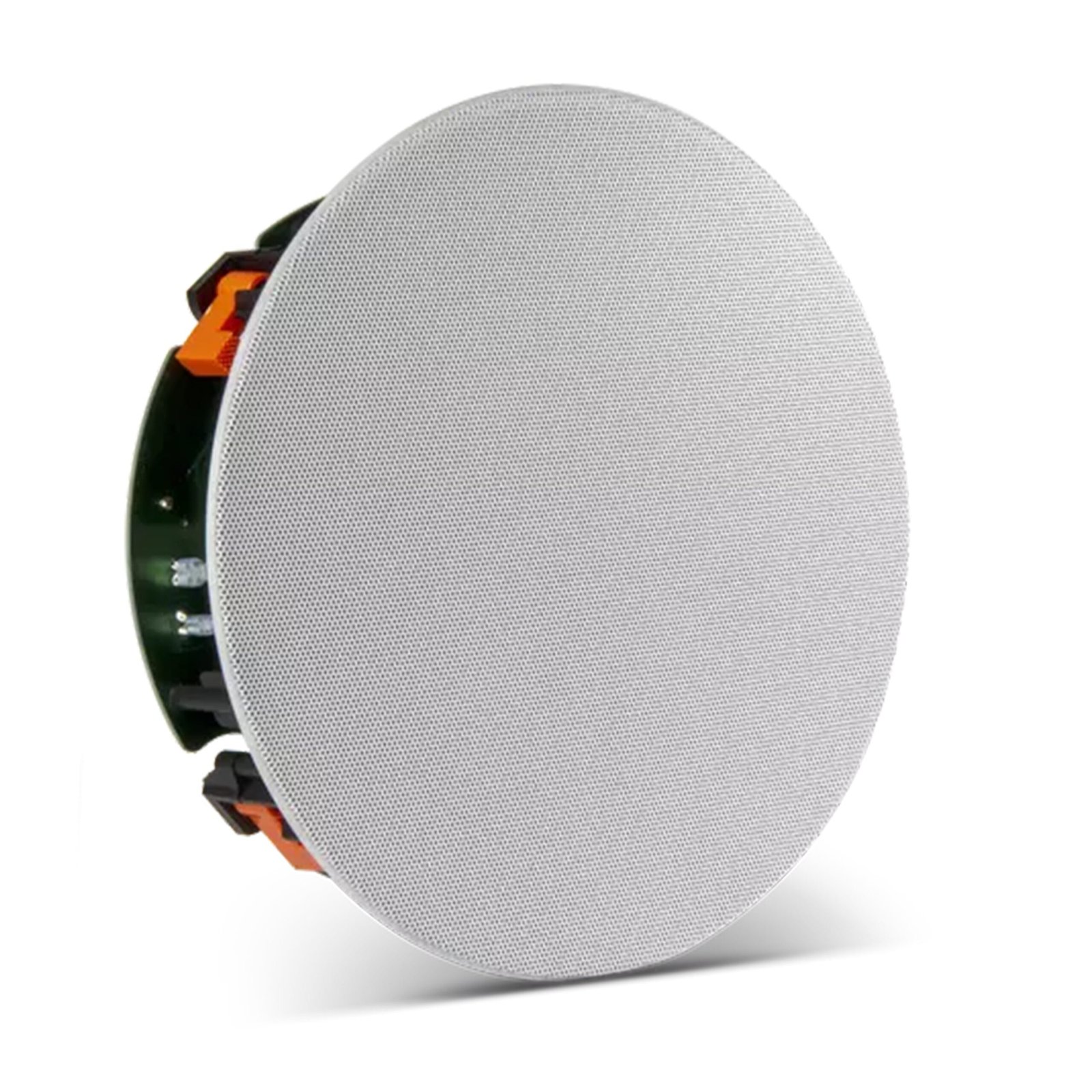

The JBL Stage 280C is the largest model in JBL’s Stage architectural in-ceiling range, built around an 8-inch (200 mm) polycellulose cone woofer that gives it the bass weight and output headroom smaller ceiling speakers cannot match. It is designed for rooms where the music or film soundtrack matters but visible loudspeakers do not: living rooms, media rooms, kitchens, dining spaces and commercial interiors where the loudspeaker should be heard rather than seen. Once installed, only the round zero-bezel grille remains visible, and that grille can be painted to match the ceiling finish.

High frequencies come from a 1-inch (25 mm) aluminium dome tweeter working through an acoustic lens waveguide, which spreads treble evenly across the listening area instead of beaming it at a single seat. The rated response runs from 42 Hz to 25 kHz, sensitivity is 90 dB and the nominal impedance is 8 ohms, so the 280C is an easy load for the multi-zone amplifiers and AV receivers it will typically partner. JBL specifies recommended amplifier power of 20 to 120 watts RMS per speaker.

Key features

• 8-inch (200 mm) polycellulose cone woofer for full, authoritative low frequencies
• 1-inch aluminium dome tweeter with acoustic lens waveguide for wide, even treble dispersion
• Frequency response of 42 Hz to 25 kHz (minus 6 dB, on-axis)
• 90 dB sensitivity and 8-ohm nominal impedance for easy amplifier matching
• Recommended amplifier power of 20 to 120 W RMS
• Zero-bezel magnetic grille that can be painted to match the ceiling
• XL-2 mounting system fits ceiling material up to 50 mm thick
• Premium crossover with air-core inductors and mylar capacitors, crossing over at 3.4 kHz

Driver Design and Crossover

Polycellulose gives the 8-inch cone a useful balance of stiffness and damping: it stays controlled at higher excursion, which keeps bass and lower midrange clean when the speaker is asked to fill a large room. The crossover, built with air-core inductors and mylar capacitors rather than the electrolytic parts found in budget architectural speakers, hands over to the tweeter at 3.4 kHz. That careful division of labour is part of why the Stage series follows Harman’s target-curve tuning, aiming for a smooth, neutral balance over a wide listening window rather than a peaky response in one measurement position.

Installation in Real Ceilings

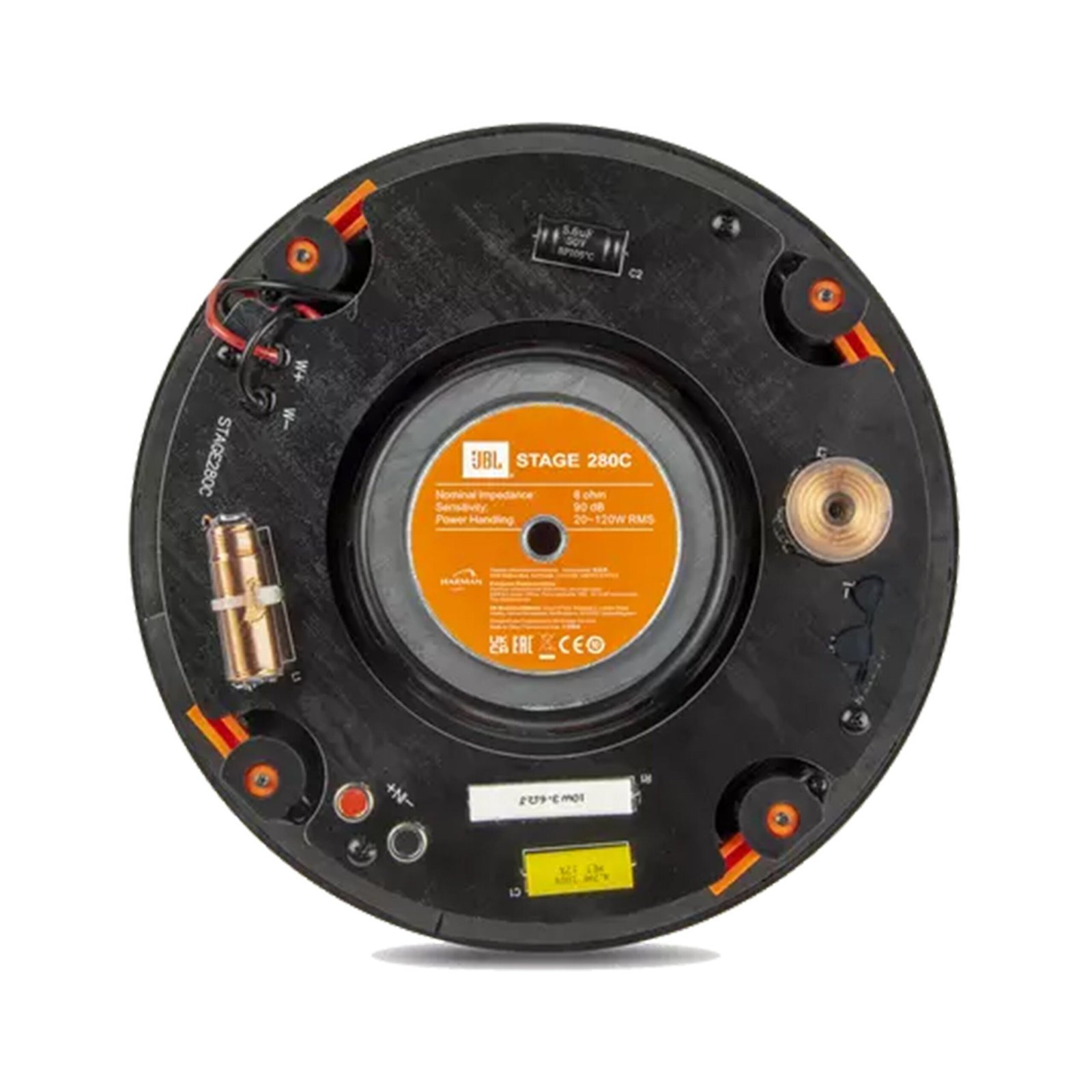

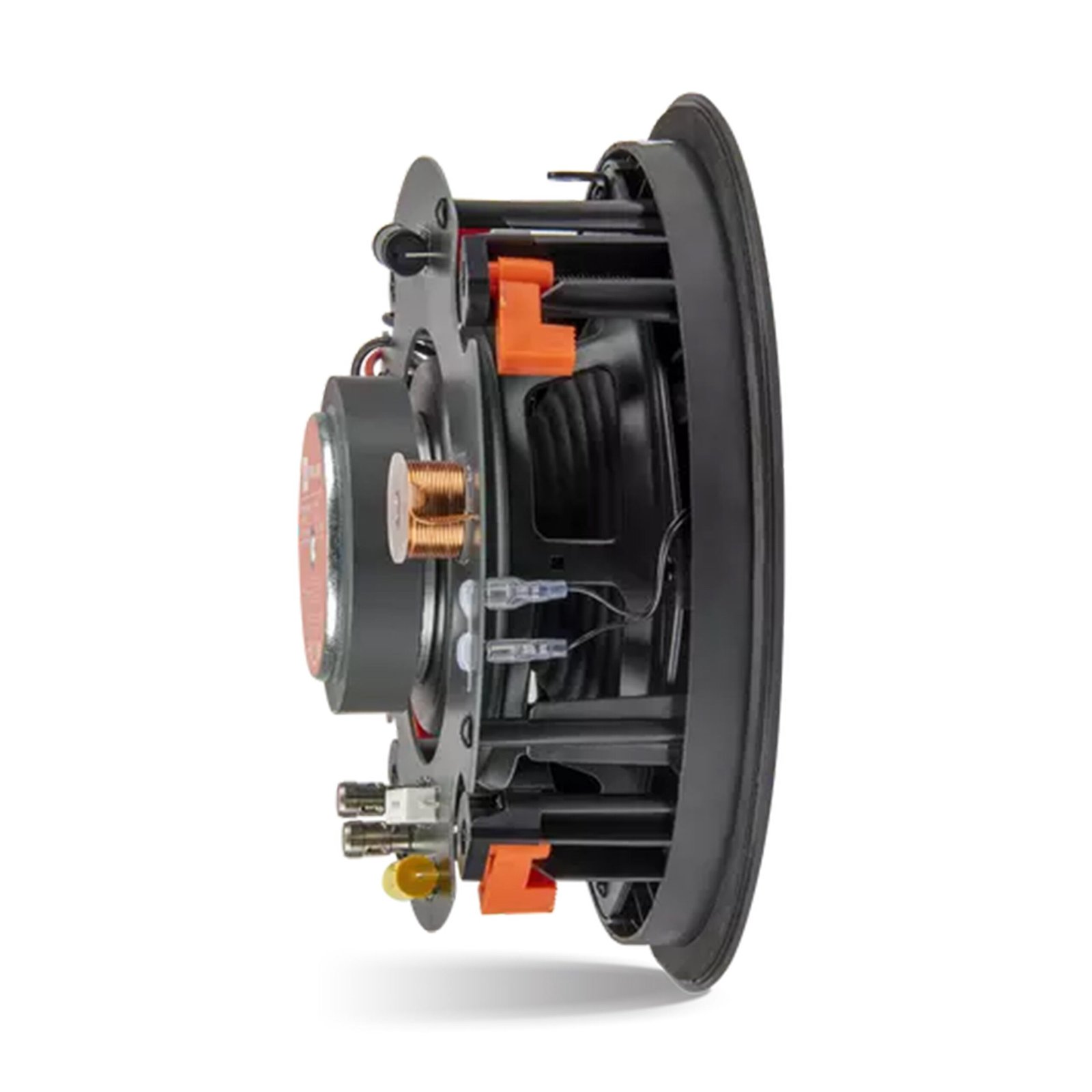

The 280C needs a 244 mm cutout and 108 mm of mounting depth, dimensions that fit typical ceiling voids in homes and commercial buildings. JBL’s XL-2 fixing system clamps securely into ceiling material up to 50 mm thick, which covers everything from standard plasterboard to doubled boards and solid surfaces. Nickel-plated spring-loaded connectors accept the speaker cable without tools and resist corrosion over the long life expected of an installed speaker. The rigid baffle design helps keep the mounted speaker free of rattles and resonances at higher playback levels.

Where the 280C Works Best

In a home theatre, pairs of 280C speakers serve as Dolby Atmos height channels or as discreet surrounds, delivering effects overhead without boxes on the walls. For music, a stereo pair covers a living or dining room evenly, and multiples can be distributed through open-plan spaces, restaurants and retail floors. The speaker is sold individually, so systems can be built as a single mono zone speaker, a stereo pair, or a larger array matched to the room. Full technical specifications are listed in the Additional Information section.
