Absen LED Wall P2.5MM Indoor Display

Absen LED Wall P2.5MM Indoor Display

The Absen LED Wall P2.5MM Indoor Display is an indoor LED video wall built with a 2.5 mm pixel pitch. Pixel pitch is the distance from the centre of one LED pixel to the centre of the next, and at 2.5 mm the pixels are packed closely enough for detailed images, text and video to remain clear at relatively short indoor viewing distances. Absen is a specialist manufacturer of LED display systems, and its indoor panels are built as modular cabinets that lock together without bezels, so a wall can be assembled to the size and shape a room requires rather than being limited to a single fixed screen dimension.

Key features

• 2.5 mm pixel pitch for fine-pitch indoor viewing
• Modular, bezel-free construction that scales to different wall sizes
• Pixel density of 160,000 pixels per square metre at P2.5 pitch
• Direct-view LED image with no projector and no screen bezel lines
• Designed for indoor installations such as corporate, retail and auditorium spaces
• Built from individual panels that can be serviced as modules

What P2.5 means in practice

At a 2.5 mm pitch there are 400 pixels along each metre of wall width and 400 pixels along each metre of height, giving 160,000 pixels in every square metre. That density is the reason fine-pitch indoor walls can show presentation text, dashboards, video and close-up product imagery without the visible pixel structure associated with coarser outdoor pitches. As a general rule for LED walls, the closest comfortable viewing distance in metres is close to the pitch figure in millimetres, so a P2.5 wall is normally planned for audiences viewing from roughly two and a half metres and beyond. The final resolution of any installation depends on the overall wall dimensions chosen, because resolution is the pitch applied across the full width and height of the assembled wall.

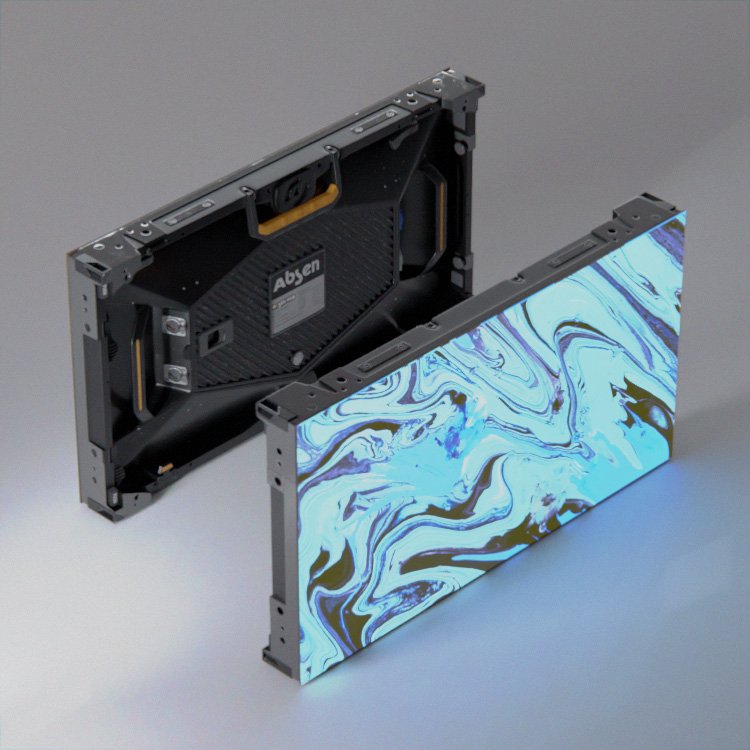

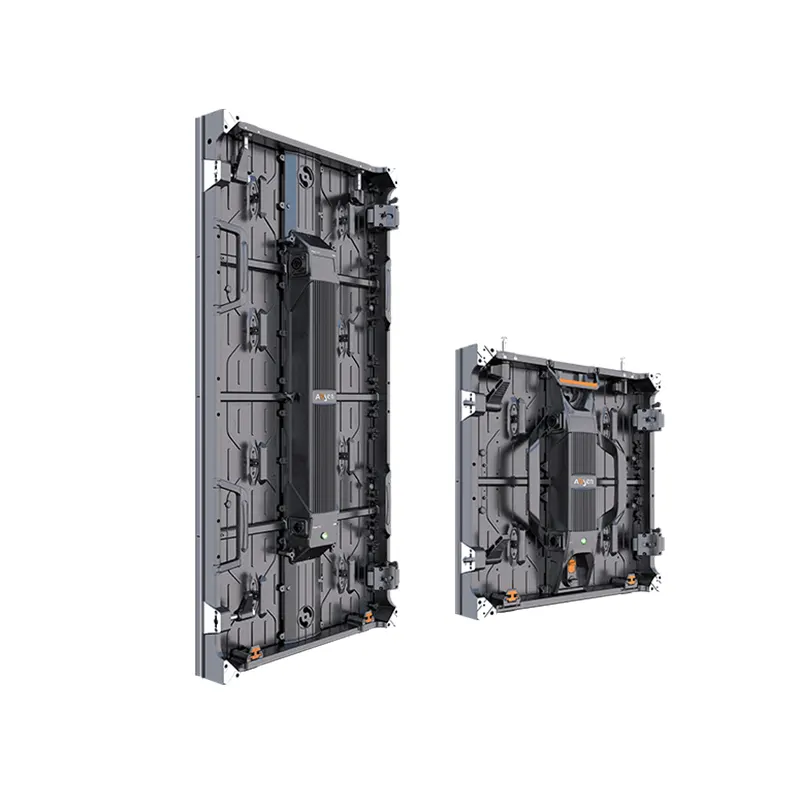

Modular wall construction

An LED wall is not a single panel. It is assembled from cabinets that join seamlessly, which is what allows the same product family to cover a small reception display or a large auditorium backdrop. The absence of bezels is a practical difference from a video wall made of LCD monitors, where a frame line crosses the image at every screen boundary. With a direct-view LED wall the image is continuous across the full surface. Installations can be wall mounted, hung or ground stacked depending on the structure available, and the supporting structure, power distribution and signal processing are planned for the specific site as part of the installation design.

Applications for an indoor P2.5 wall

Fine-pitch indoor LED is commonly specified where a large, bright, continuous image is needed in a lit room. Typical settings include corporate reception areas and boardrooms, retail and showroom displays, houses of worship, auditoriums and event spaces, and control or monitoring rooms where several sources need to be visible at once. Content is fed to the wall through an LED controller and sending system matched to the wall’s resolution, and the wall itself is normally operated through that control chain rather than connected as a simple single monitor.

Specification note for this listing

This listing identifies the product by manufacturer, display type and pixel pitch: an Absen indoor LED wall at P2.5. Absen produces several distinct indoor series at a 2.5 mm pitch, and figures such as brightness, refresh rate, cabinet dimensions, weight and contrast differ between those series. Those series-specific figures are therefore not stated here, because applying one series’ numbers to an unspecified listing would misdescribe the product. Buyers planning a project should confirm the exact Absen series, cabinet size, total wall dimensions, controller and installation method for this listing before purchase, so that resolution, power and structural requirements can be calculated for the actual wall being supplied.
