JCALLY JM12 USB-C to 3.5mm DAC Audio Adapter

JCALLY JM12 USB-C to 3.5mm DAC Audio Adapter

The JCALLY JM12 is a compact USB-C DAC dongle that gives phones, tablets and laptops without a headphone socket a proper 3.5mm output for wired earphones and headphones. It is an active adapter, not a passive pass-through: inside it sits a dedicated KT02H20 DAC chip, published by JCALLY for this model, which performs the digital-to-analogue conversion itself. JCALLY’s published specification for the JM12 covers PCM playback up to 32-bit/384kHz and DSD128, with a signal-to-noise ratio of 112dB, dynamic range of 113dB and output power of 27.5mW into 32 ohms, figures aimed at driving in-ear monitors and portable headphones cleanly from a pocketable adapter about 110mm long and around 6 grams in weight.

Key features

• USB-C input to 3.5mm headphone output in one small dongle
• Dedicated KT02H20 DAC chip performs the conversion in the adapter
• PCM support up to 32-bit/384kHz and DSD128 per JCALLY’s specification
• Signal-to-noise ratio 112dB and dynamic range 113dB
• Output power 27.5mW at 32 ohms for IEMs and portable headphones

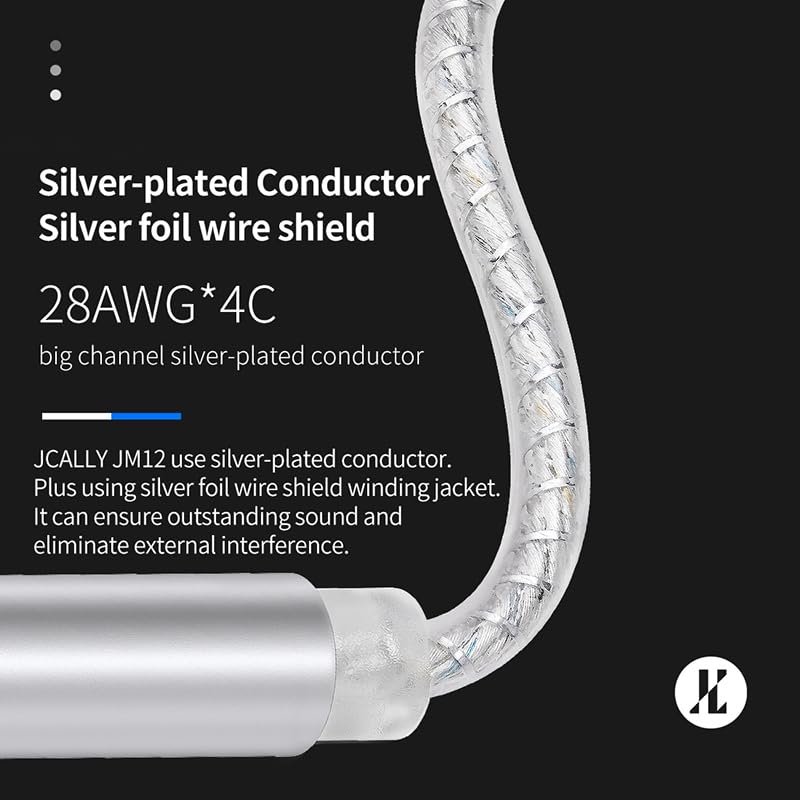

• Silver-plated conductor with silver foil shielding, silver finish
• Supports inline microphone and controls on connected headsets
• Plug and play, powered from the host device, no battery or charging

Why a DAC dongle rather than a passive adapter

A USB-C port carries digital audio, and something has to convert it to the analogue signal a headphone plays. A passive adapter relies on the phone doing that conversion internally and passing analogue audio through the port, which many devices do not support at all, and those that do vary in quality. The JM12 removes the uncertainty by carrying its own DAC: the conversion happens in the dongle, to a published specification, and the same output stage then travels with you from phone to tablet to laptop. For listeners with a high-resolution library, the format support matters as well, since PCM up to 32-bit/384kHz and DSD128 cover files that a phone’s basic audio path may downsample or refuse.

Driving power and suitable headphones

The published output of 27.5mW into 32 ohms is the right scale for the earphones and headphones this adapter is built for: in-ear monitors, which are typically sensitive and low impedance, and efficient portable headphones. Those loads reach full, clean volume well within the dongle’s capability, and the 112dB signal-to-noise ratio keeps the background quiet between tracks, which sensitive IEMs reveal mercilessly when an output is noisy. Large, high-impedance studio headphones are a different load class and belong on a bigger amplifier; the JM12’s job is the portable pairing, and its specification is honestly matched to it.

Everyday use

There is nothing to configure. Plug the USB-C end into the host device, plug the earphones into the 3.5mm socket, and the device routes audio through the dongle, with volume controlled from the host as usual and inline microphone and control support carried through for calls and voice chat. At roughly 110mm and about 6 grams, the JM12 can stay attached to the headphone cable or live in the earphone case, which is how dongles survive in real life: the one that is always with the earphones is the one that gets used. It also keeps a favourite wired pair in service after a phone upgrade removes the headphone jack, instead of forcing a move to wireless.

For wired listeners on USB-C devices, the JM12 is the complete small answer: a real DAC with published figures, hi-res format support, and a headphone output that works the same on every device you plug it into.
