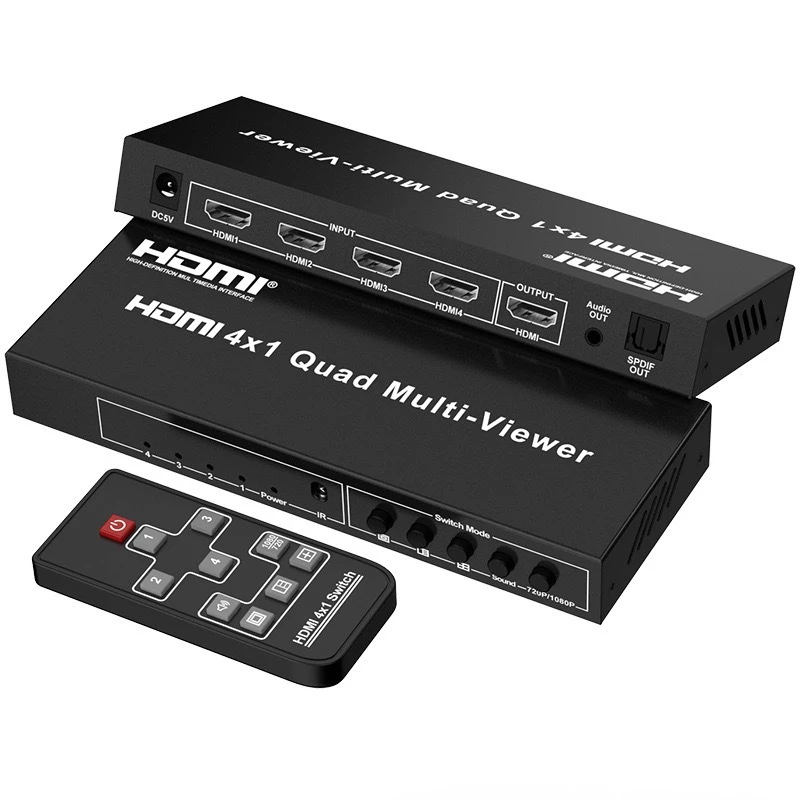

HDMI 4×1 Quad Viewer

The HDMI 4×1 Quad Viewer is a multiviewer switch that displays up to four HDMI sources on a single screen at the same time. Instead of switching one display between a CCTV recorder, a media player, a computer and a presentation source, the operator sees all four feeds together in a quad layout, and can switch any source to full screen when detail matters. It is built for control rooms, security monitoring desks, broadcast and AV monitoring, digital signage supervision and presentation environments where several HDMI feeds must be watched at once.

Key features

• Four HDMI inputs and one HDMI output
• Displays up to four sources simultaneously on one screen
• Quad, dual and full-screen display modes
• Seamless switching between sources and layouts
• Real-time signal processing with no monitoring delay build-up
• 1080p high-resolution output as stated for this unit
• HDCP 1.3 support
• Audio embedding support
• Compact metal housing, approx. 180 x 110 x 25 mm

Multiview display modes

The defining function of this unit is the quad view: the screen is divided so that all four connected HDMI sources remain visible together, which is the layout monitoring work depends on. When one feed needs closer attention, the display can be switched to a dual view or to a full-screen view of a selected source, then returned to quad view when general supervision resumes. Switching between sources and layouts is seamless, so changing the view does not interrupt the feeds being watched or recorded downstream. Real-time signal processing keeps the displayed pictures current, which matters when the four feeds are live cameras, live programme outputs or live data screens rather than static images.

Connections and signal handling

Four HDMI inputs accept the sources, and a single HDMI output feeds the monitor, television or projector. The unit supports HDCP 1.3, so protected sources that require HDCP can be shown through the multiviewer, and the stated output resolution is 1080p high definition, matching the Full HD monitors used on most monitoring desks. Audio embedding support means the audio path is handled as part of the HDMI signal chain rather than left to a separate workaround. Because every connection is standard HDMI, the sources can be mixed freely: a DVR or NVR with HDMI output, a computer, a media player, a camera controller or a set-top box can share the same screen.

Where a quad viewer earns its place

Security and facilities teams use a quad viewer to keep four camera or recorder feeds on one desk monitor instead of buying and powering four displays. AV and event teams use one to preview programme, presentation, confidence and playback feeds side by side. In meeting and signage environments, it allows several content sources to be compared or supervised from a single screen, and in home and studio setups it consolidates games consoles, computers and media boxes onto one display with instant full-screen selection. In every case the benefit is the same: fewer screens, one point of control and no feed left unwatched because it was switched away.

Housing and installation

The metal housing measures approximately 180 mm wide, 110 mm deep and 25 mm high and weighs around 450 g, so the unit sits on a monitoring desk, mounts behind a display or drops into an equipment rack shelf without structural work. Installation is a matter of connecting the four HDMI sources, one HDMI output cable to the display and power, after which the layout controls handle daily operation. This is an unbranded unit, specified here by its connections and display functions. For any setup where four HDMI feeds need to share one screen with fast, seamless layout switching, the HDMI 4×1 Quad Viewer does that job in a single compact box.
