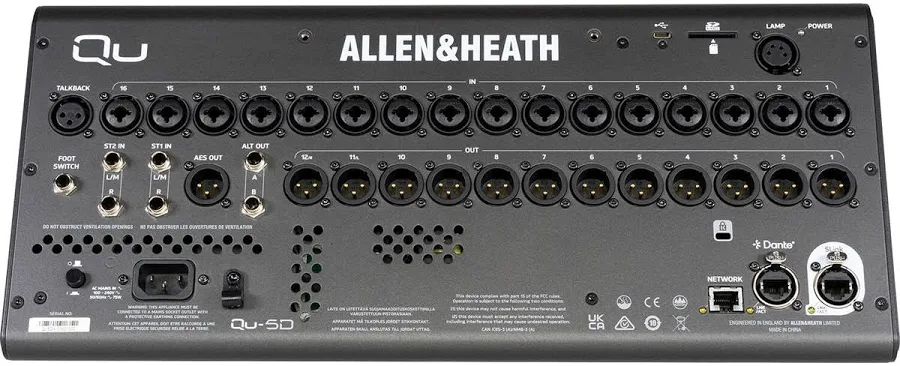

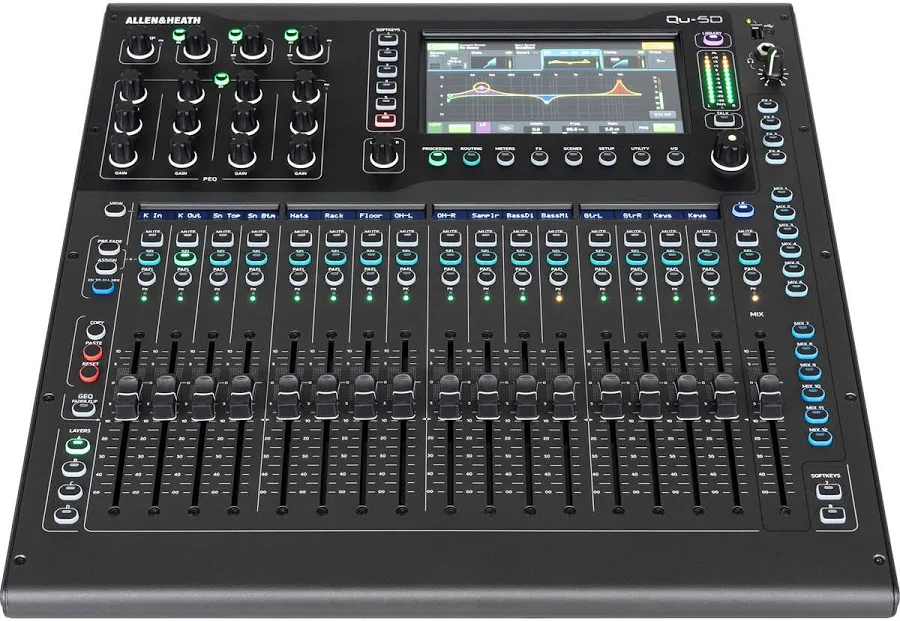

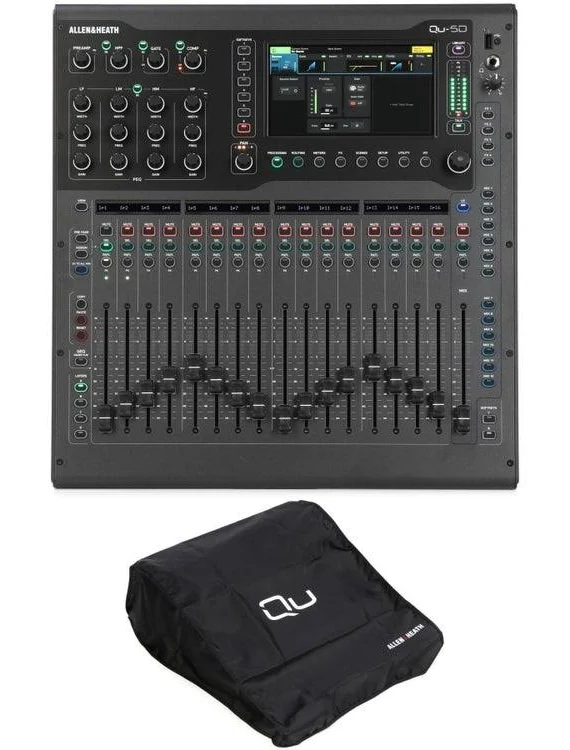

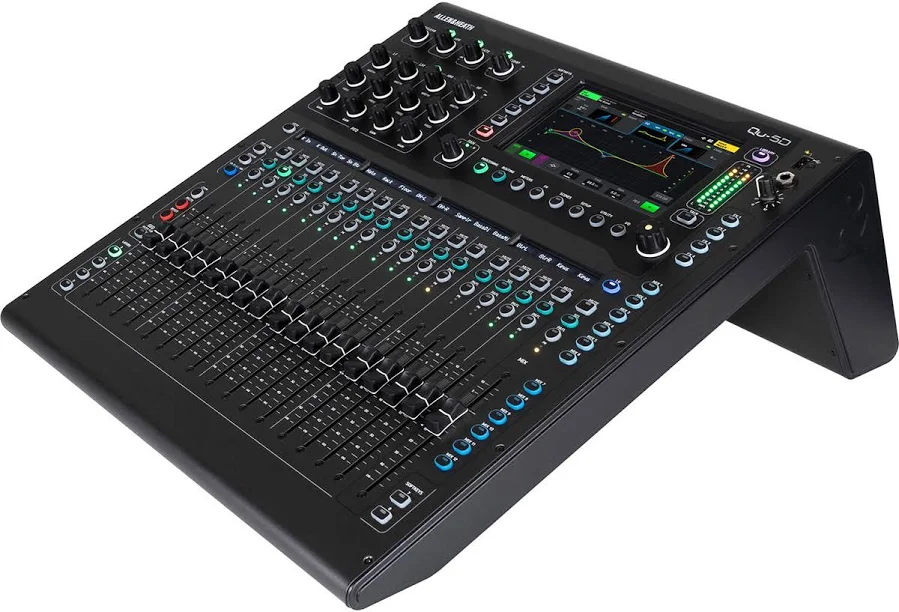

Allen & Heath Qu-5 is a compact 96 kHz digital mixer with 32 mono input channels plus three stereo channels in its mix architecture. Its surface includes 16 local mic/line sockets, 17 motorised faders and SLink expansion for compatible remote audio.
Allen & Heath Qu-5 96 kHz Digital Mixer
Allen & Heath Qu-5 is a compact 96 kHz digital mixer with 32 mono input channels plus three stereo channels in its mix architecture. Its surface includes 16 local mic/line sockets, 17 motorised faders and SLink expansion for compatible remote audio. Why Choose Allen & Heath Qu-5? Mix-channel capacity is not the same as the number of microphone sockets on the chassis. The Qu-5 provides 16 local mic/line inputs, with further sources accessed through its supported connections. The standard Qu-5 also differs from the Qu-5D, which is the Dante-equipped version. Key Features – 96 kHz XCVI processing: provides the current Qu mixing architecture. – 17 motorised faders: keep the control surface compact. – SLink port: connects compatible remote I/O. – USB-C and SD recording: offer computer and direct-recording approaches. Best Suited For
Live performances, installed sound and engineers who need processing, routing and repeatable show setups. Setup and Connection Guide
Prepare a channel list and patch local sockets, remote inputs and playback sources deliberately. Store a known starting scene and review what scene recall will change. Set preamp gain at performance level, leave headroom and test monitor mixes separately. Confirm firmware, computer-driver and remote-I/O compatibility when building a recording or expansion system. Frequently Asked Questions
Does Qu-5 have 32 microphone sockets? No. It has 16 local mic/line sockets. The 32-mono-channel figure describes its mixing capacity; additional physical inputs require a suitable source or compatible expansion hardware. Does a larger channel count mean more local sockets? Not necessarily. Digital processing channels, physical microphone inputs and USB channels are separate counts. Check all three against the intended stage and recording setup. Does the mixer power passive speakers? No. Its line-level outputs normally feed powered loudspeakers, amplifiers or suitable processors. Match output level, cabling and the rest of the PA rather than treating the console as a speaker amplifier. Technical Specifications Specification
Detail Mix architecture
32 mono/linkable plus 3 stereo channels Local mic/line sockets
16 Motorised faders
17 Display
7-inch touchscreen USB interface
32×32 Dante
Qu-5D version only Explore Related Equipment
Compare the features and connection requirements of Allen & Heath SQ-5 48-Channel Digital Mixer when planning your setup.
Additional Information
Specifications
Processing Core
96 kHz XCVI
Inputs to Mix
38 (32 mono/linkable, 3 stereo)
Local Mic Line Inputs
16 XLR/jack combi sockets
Motorised Faders
17 x 100 mm
SLink Port
128 x 128 intelligent SLink for Everything I/O expansion and system connections
6 multi-FX engines with dedicated stereo returns, DEEP processing ready
Outputs
12 XLR, 2 TRS, 1 AES3 stereo digital output
Stereo Line Inputs
2 (each 2 x TRS)
Display
7 inch capacitive touchscreen
SD Card Recording
16 x 16 at 96 kHz, 32 x 32 at 48 kHz
Remote Control
Free remote apps for Windows, macOS, iOS and Android
Dimensions
440 x 476 x 213 mm (W x D x H)
Weight
10 kg
Model / SKU
ALLEN-HEATH-QU-5
Category
Audio Mixer
Condition
Brand new, sealed box
Warranty
Official manufacturer warranty (India)
GST invoice
Yes, input credit available
