Yamaha MG06X/E Mixer

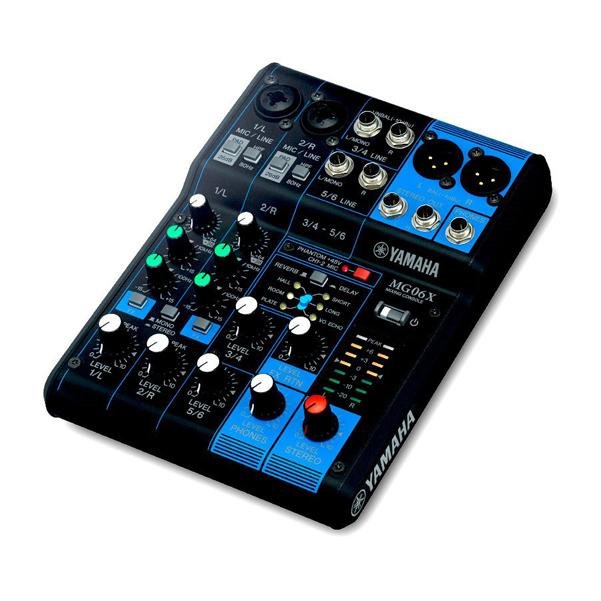

Yamaha MG06X Mixer

The Yamaha MG06X is a compact 6-channel analogue mixing console for solo performers, small ensembles, presenters and home recordists who need proper microphone preamps and a touch of polish in a box that fits in a gig bag. It provides two mono mic and line channels plus two stereo line channels, built around Yamaha’s D-PRE microphone preamps, and adds a built-in SPX effects processor so vocals and instruments can carry reverb or delay without any external gear.

The MG06X is the effects version of the MG06: the X denotes the onboard SPX processor with six programs. Despite the small footprint, the signal path follows Yamaha’s professional MG series practice, with balanced XLR main outputs, switchable phantom power for condenser microphones, and a metal chassis built for regular transport.

Key features

• 6-channel analogue mixer: 2 mono mic/line plus 2 stereo line channels
• Two D-PRE mic preamps with inverted Darlington circuit
• Built-in SPX effects with 6 programs including reverbs and delays
• 1-knob compressors on the mono channels
• Plus 48V phantom power for condenser microphones
• 2-band EQ and 80 Hz high-pass filter on mono channels
• Balanced XLR stereo outputs
• Rugged metal chassis, only 0.9 kg

D-PRE preamps: the sound starts here

The microphone preamp decides how clean a mix can be, and the MG06X uses Yamaha’s D-PRE design, a discrete Class A circuit based on an inverted Darlington configuration. In practice it delivers low noise and a natural, detailed sound from dynamic and condenser microphones alike, with enough gain for quiet vocalists. A 26 dB PAD switch on each mono input handles hot sources such as loud amplifiers or close-miked drums, and the 80 Hz high-pass filter removes stage rumble, handling noise and room boom before they reach the mix.

SPX effects and 1-knob compression

The onboard SPX processor offers six programs covering hall, room and plate style reverbs, short and long delays and a vocal echo, so a singer can sound finished through a PA without carrying a rack. Each mono channel also has Yamaha’s 1-knob compressor: one control that applies sensible compression to even out a voice or tame peaks on an instrument, giving the control of a studio tool without the parameter learning curve. Channel EQ is a musical 2-band design, with shelving high at 10 kHz and low at 100 Hz, each offering 15 dB of boost or cut.

Connections and monitoring

Mono channels accept microphones or line sources on combo XLR and TRS sockets, and the two stereo channels take line-level playback from keyboards, media players and laptops. The main stereo output is on balanced XLR connectors for clean runs to powered speakers or a power amplifier, and a phones output with its own level control covers monitoring for practice and recording checks. A 7-segment LED meter shows the output level so gain staging stays honest.

Built for small rigs that move

The metal chassis measures 149 x 62 x 202 mm and weighs 0.9 kg, so the MG06X travels in a laptop bag and sits happily on a keyboard stand, a small table or beside a laptop for streaming and recording. It runs from the supplied AC adaptor at 12 W consumption. Typical homes for this mixer include solo gigs, acoustic duos, school and house-of-worship speech, podcast and video setups with two microphones, and rehearsal rooms that need playback and voices in one small console.

For small-format mixing where Yamaha preamp quality and built-in effects matter more than channel count, the MG06X remains the compact reference in the MG series.
