Behringer MX-882 Xlr Splitter

Behringer ULTRALINK PRO MX882 Splitter Mixer

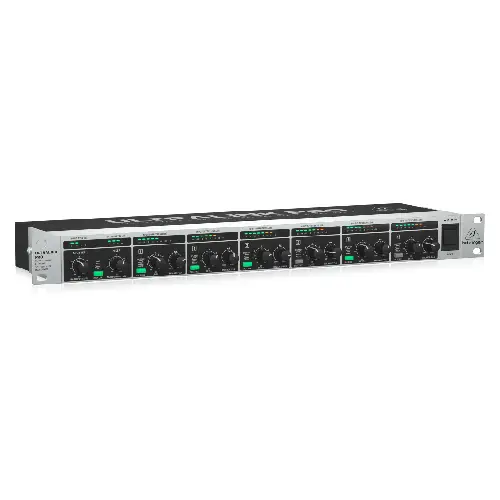

The Behringer ULTRALINK PRO MX882 is a 1U rackmount unit that works as an 8-channel line mixer, a 2-in/8-out line splitter, or both at once. Six mono channels can each be switched independently between mixer and splitter mode, so one rack space can mix keyboards while distributing a programme signal to several destinations. It also converts levels between consumer -10 dBV and professional +4 dBu equipment, which makes it as much a level-matching toolbox as a mixer.

Key features

• 8 in/2 out line mixer and 2 in/8 out line splitter in 1U
• Each of the six mono channels switches independently between split and mix mode
• Converts levels between -10 dBV and +4 dBu
• Can serve as a 6 in/6 out level-matching amplifier or DI box
• Frequency response of 5 Hz to 200 kHz

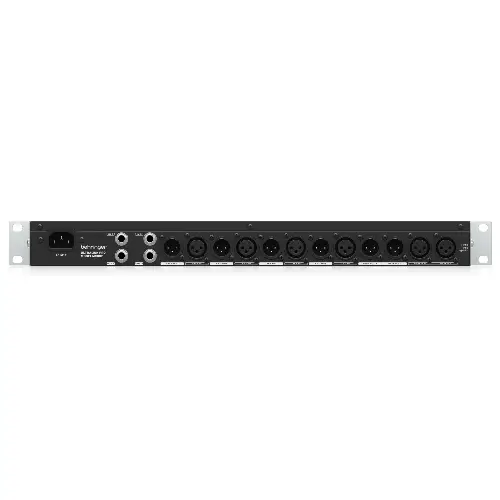

• Servo-balanced XLR and 6.35 mm TRS inputs and outputs
• LED level metering on every channel and the main section
• Ultra-low noise design, signal to noise ratio over 95 dBu

One box, two jobs at once

In splitter mode, the stereo main input is distributed to any channel set to split, each with its own level control, for feeding several destinations at individually correct levels. In mixer mode, channels sum their inputs toward the main output, with a balance and pan control placing each source in the stereo field. Because the mode is chosen per channel, the MX882 does not force an either/or decision for the whole unit, and a main link switch can tie the main input directly to the main output when a straight distribution path is what the job needs.

Level matching between worlds

Mixed systems constantly join equipment that speaks different level languages: a consumer player or laptop output at -10 dBV feeding a professional desk that expects +4 dBu, or a hot console feed that would overload a recorder input. Each MX882 channel provides gain from full attenuation up to +15 dB, converting in either direction while adding impedance-correct, balanced connections. Input impedance is 50 kohms balanced and 25 kohms unbalanced, output impedance is 60 ohms balanced and 30 ohms unbalanced, maximum input level is +21 dBu and maximum output level is +22 dBu, so the unit sits comfortably inside professional headroom limits.

A clean signal path

The audio path is specified for transparency rather than character. Frequency response runs from 5 Hz to 200 kHz within 3 dB, the signal to noise ratio is better than 95 dBu unweighted across 22 Hz to 22 kHz, and total harmonic distortion is a typical 0.002 percent at +4 dBu and 1 kHz at unity gain. Inputs are RF filtered and servo-balanced to reject interference and hum on long cable runs, and the servo-balanced outputs drive balanced or unbalanced loads without level loss. Common mode rejection is better than 55 dB at 1 kHz.

Metering, control and the rack

Every channel has an 8-segment LED meter covering -24 to +18 dB, and the main input and output sections have their own 4-segment displays, so gain staging is visible at a glance across the whole unit. The chassis is a standard 19 inch, 1U rackmount at 483 x 44.5 x 217 mm and about 2.38 kg, connecting to mains through a standard IEC receptacle. Typical homes include keyboard submixing, installed-sound distribution, broadcast splits and monitor paths.

Choose the MX882 if your system keeps growing extra destinations or extra sources and the cabling is turning into a collection of adapters and compromises. One rack space of split, mix and level conversion, done with balanced connections and proper metering, tidies the whole signal chain.
