Yamaha MG16XU Mixer

Yamaha MG16XU

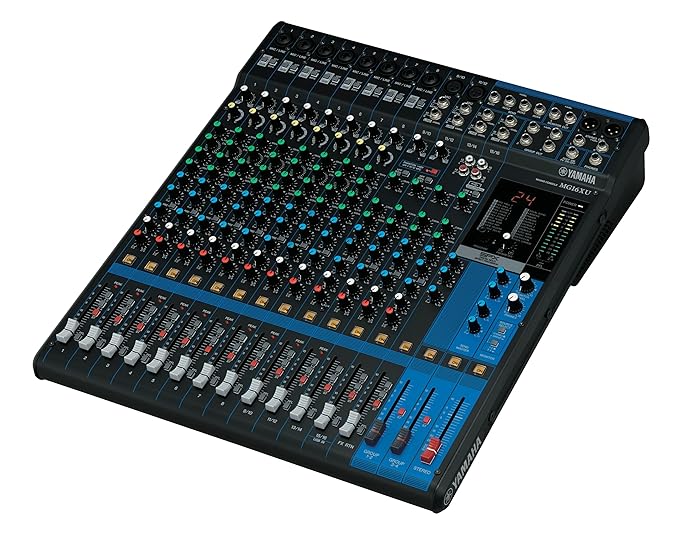

The MG16XU is the 16-channel member of Yamaha’s MG mixer family: an analogue console built around the same D-PRE discrete Class-A microphone preamps found in Yamaha’s studio interfaces, with built-in SPX effects and a 24-bit/192kHz USB audio interface that turns the mixer into a recording front end. It takes up to 10 microphones and 16 line inputs, routes through four group buses and four aux sends, and is sized for small bands, houses of worship, school halls and serious home studios.

Yamaha’s design philosophy for the MG series is transparency: the D-PRE preamps use an inverted Darlington circuit to deliver wide, flat response with low distortion, so what comes out is the source, not the mixer.

Key Features

• 16 inputs: 8 mono mic/line, 2 mono/stereo mic/line, 2 stereo line
• 10 D-PRE Class-A mic preamps with +48V phantom power and 26dB pads
• 1-knob compressors on channels 1-8 – one control, musically set attack and ratio
• SPX effects engine with 24 programs and a dedicated FX aux
• 4 GROUP buses for submixing drums or backing vocals to a single fader
• USB 2-in/2-out at 24-bit/192kHz for recording your stereo mix, with Cubase AI included
• 3-band EQ with sweepable midrange and 80Hz high-pass filters
• Metal chassis and included rack-mount kit

One-Knob Compression, Explained

Compressors even out level differences – a singer who moves around the microphone, a bass that jumps on certain notes. A full compressor has four or more controls that interact, which is slow to set live. Yamaha’s 1-knob design folds threshold, ratio and makeup into a single control voiced for vocals and instruments: turn it up until the peaks behave. On the MG16XU the first eight channels carry it, which is exactly where voices and direct instruments usually sit.

Groups and Recording

Four group buses let you collect channels – a full drum kit, for example – onto grouped faders before the main mix, so one hand controls the kit balance while the other rides vocals. The USB interface records the finished stereo mix at up to 192kHz and returns computer audio to a stereo channel for backing tracks, streaming and virtual soundcheck playback; it also works with an iPad for field recording.

Where the MG16XU Fits

Live sound for small bands, installed systems in auditoriums and places of worship, podcast and streaming studios that want hardware control, and rehearsal spaces that double as demo studios. Full technical specifications are in the Additional Information table on this page.
