Ahuja AWM-495V2 Dual VHF Wireless Mic, 2 Handhelds And Receiver

Ahuja AWM-495V2 Dual VHF Wireless Mic System

The Ahuja AWM-495V2 is a dual-channel VHF wireless microphone system for public address work, supplied with two handheld transmitters and one tabletop receiver. Each handheld uses a dynamic cardioid microphone element and transmits on its own frequency, so two speakers, singers or presenters can work at the same time without passing a microphone between them or trailing cables across the floor.

The system operates on quartz-crystal-locked VHF high-band frequencies for stable reception. The receiver carries two telescopic antennas, separate level controls for each channel, and both individual and mixed outputs, which makes it straightforward to connect to a PA amplifier or mixer and balance two voices independently.

Key features

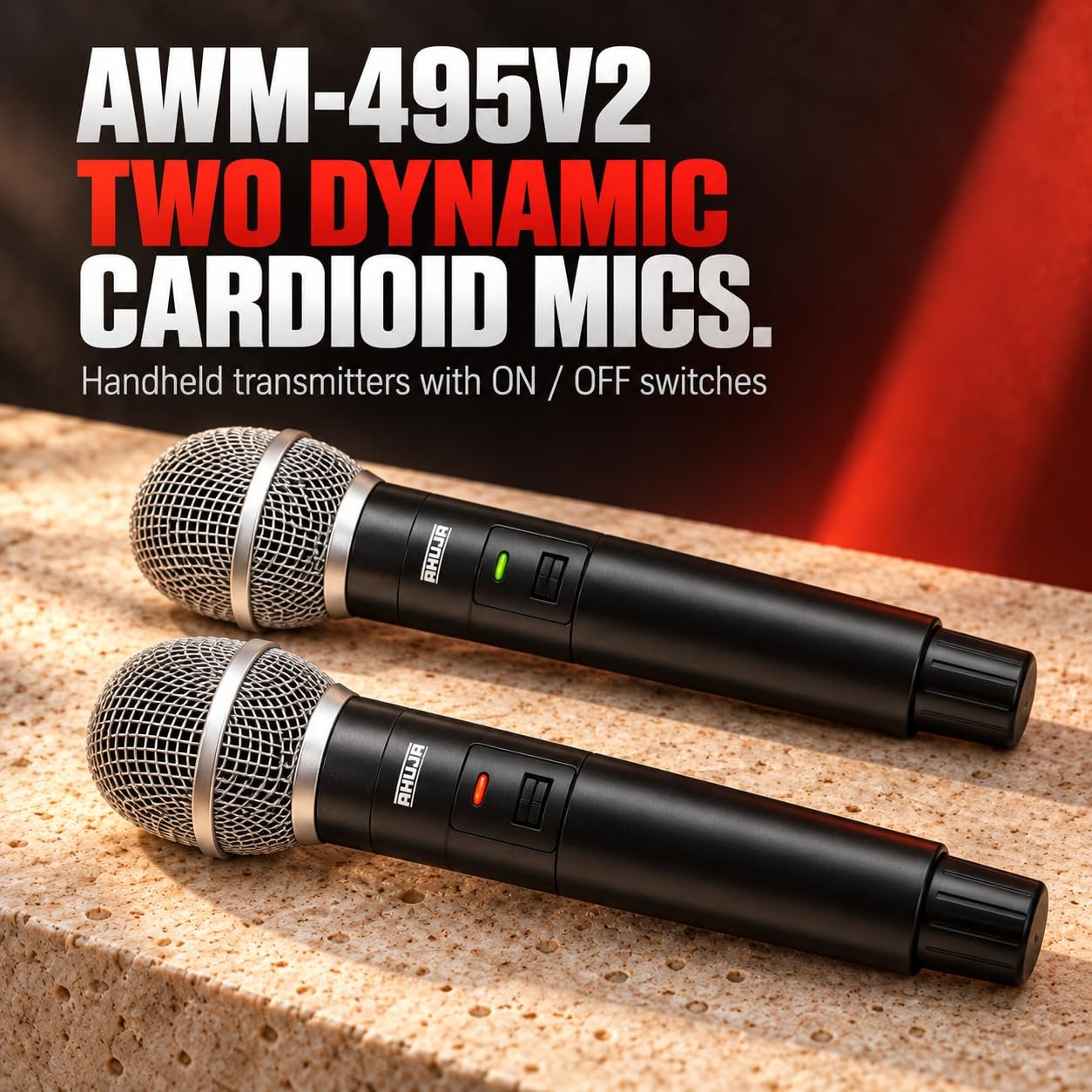

• Two handheld wireless transmitters with dynamic cardioid elements
• Dual-channel receiver with the transmitters on separate frequencies
• Quartz-crystal-locked VHF high-band operation

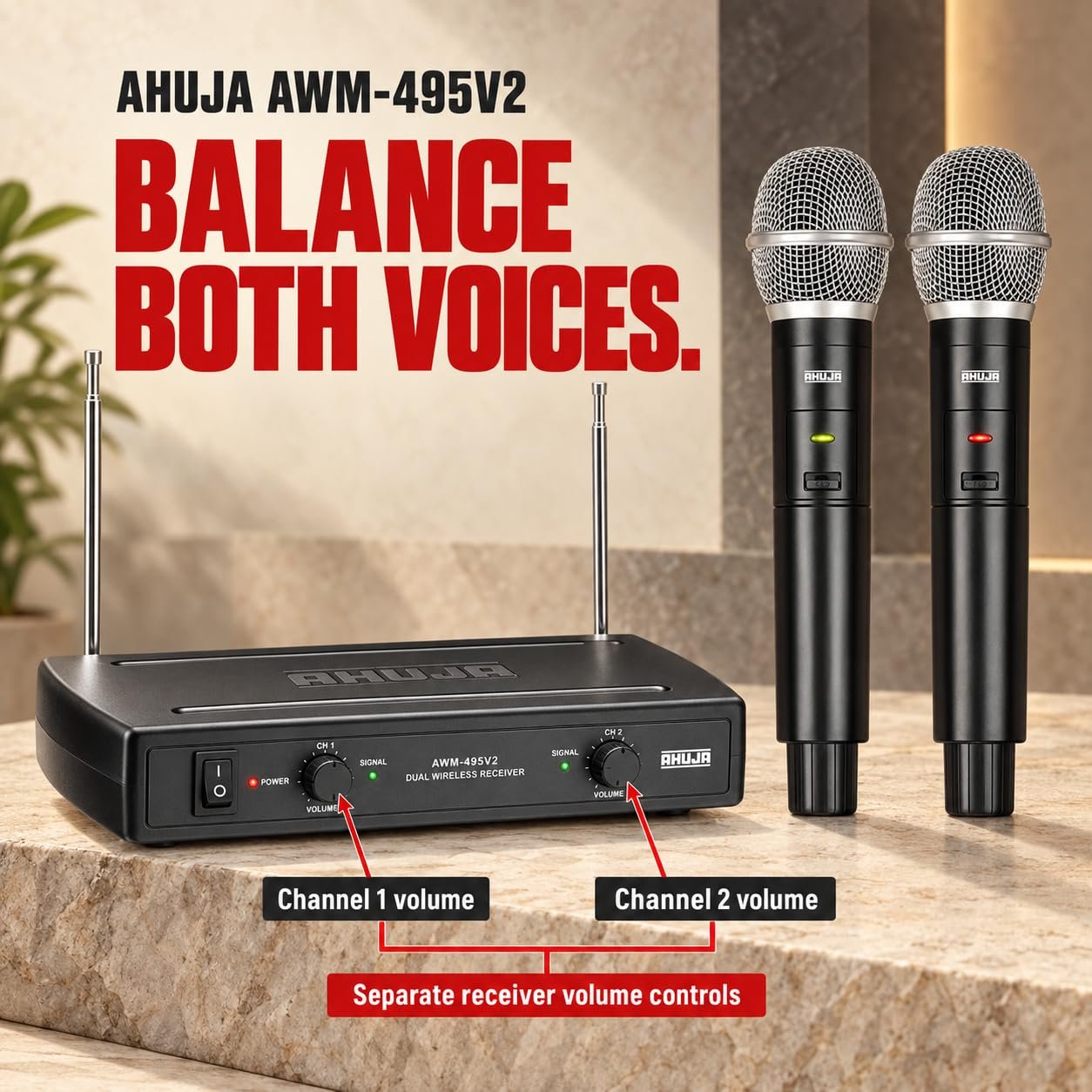

• Separate volume controls for Channel 1 and Channel 2
• Individual outputs for each channel plus a mixed Channel 1 and 2 output
• Receiver audio output of 0 to 55 mV into 1 kohm, 50 Hz to 15,000 Hz response

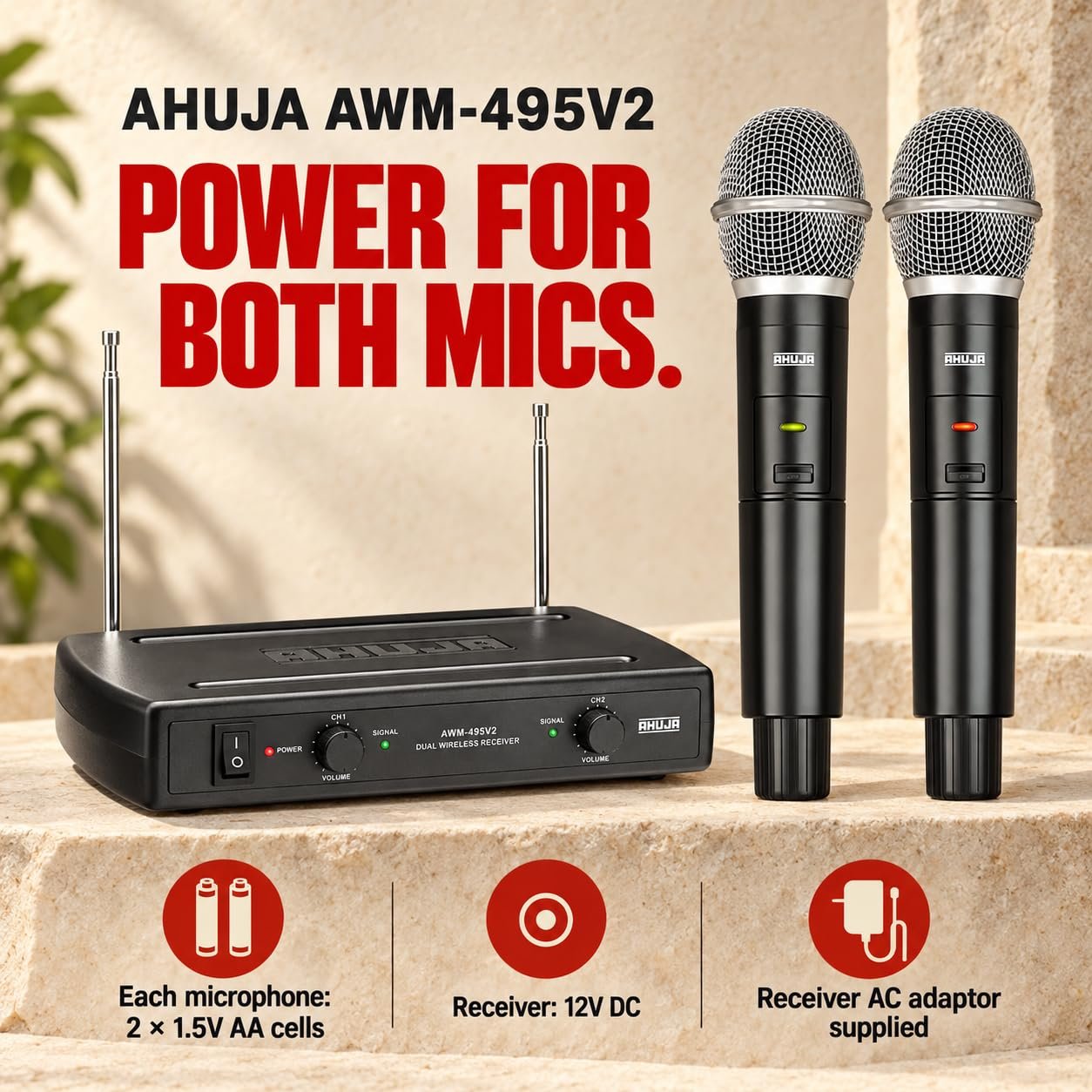

• Each handheld runs on two 1.5 V AA cells; the receiver uses the supplied AC adaptor

Two voices, independently controlled

Because each channel has its own level control and its own output socket, the person running the sound can set one microphone for a loud presenter and the other for a quieter speaker without compromise. Using the individual outputs keeps the channels separate at the mixer, while the mixed output sends both microphones down one cable when spare mixer inputs are limited. That flexibility covers everything from two anchors on a stage to a teacher and a student answering questions.

Reception and setup

Quartz locking holds each transmitter on its assigned VHF frequency, and the twin telescopic antennas on the receiver should be raised and angled for the clearest path to the handhelds. Placing the receiver in open view of the performance area, away from large metal obstructions, reduces dropouts. Fresh AA cells in each handheld before an event, spares in the kit bag, and a walk of the full coverage area during soundcheck are the habits that keep a wireless system uneventful.

Everyday PA use

The handheld format needs no bodypack, belt clip or headset fitting, so the microphones can be handed to whoever is speaking with no preparation. That suits schools, religious and community programmes, training sessions, event hosting and small stage programmes where different people speak in turn and the operator wants a system that simply switches on and works.

Before you connect it

The receiver feeds a line-level input on an amplifier or mixer; it does not power loudspeakers by itself. Check the operating frequencies of this set against any other wireless systems used in the same venue so channels do not clash.

For two-person presentations and general PA work, the AWM-495V2 combines separate-frequency handhelds, independent level control and flexible outputs in one tabletop system.
