Akg Professional C151 Small Diaphragm Condenser Microphone

Akg Professional C151 Small Diaphragm Condenser Microphone

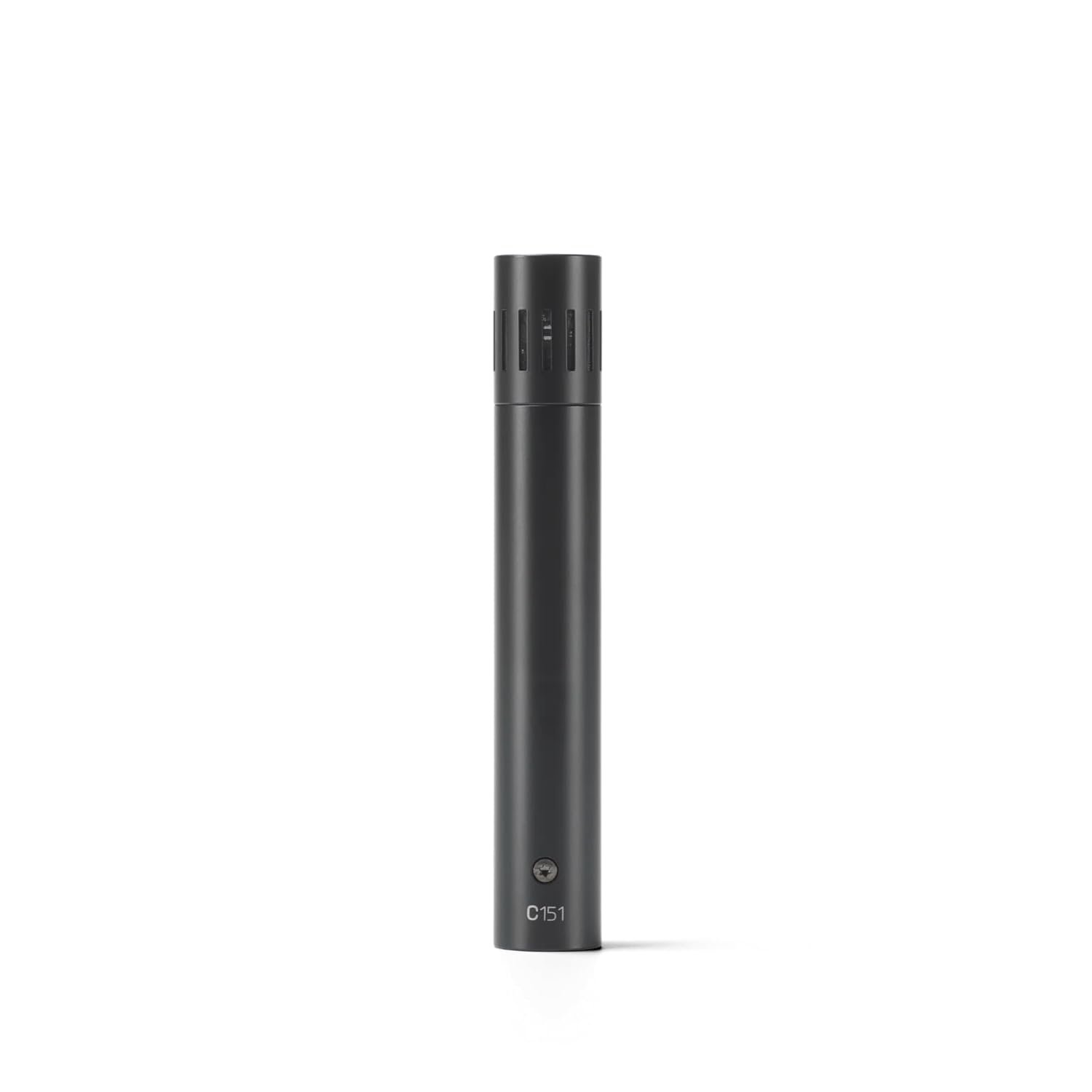

The AKG C151 is a small-diaphragm cardioid condenser microphone in AKG’s C-Series, positioned as a reference instrument microphone for studio and stage. It is built around a custom-engineered 16 mm electret condenser capsule in a compact stick format, 22 mm in diameter and 140 mm long, so it can be placed close to an instrument, inside a tight kit setup or on a crowded stage without getting in the way. AKG optimised the design for musical instruments and ambient soundscapes, where fast transients, fine harmonic detail and a consistent pickup pattern matter more than colouration. A transformerless FET circuit keeps the signal path clean, and operation is deliberately simple: connect the microphone, apply phantom power and start recording.

Key features

• 16 mm electret condenser capsule in a small-diaphragm stick design
• Cardioid polar pattern for focused pickup and rejection of sound from the rear
• Frequency response of 20 Hz to 20 kHz covering the full audible range
• Maximum SPL of 143 dB for 0.5% THD, for loud sources and close placement
• Self-noise of 21 dB(A) and a signal-to-noise ratio of 73 dB
• Sensitivity of 11 mV/Pa (-39 dBV) with electrical impedance of 200 ohms or less
• Standard 48 V phantom powering and a 3-pin XLR connector

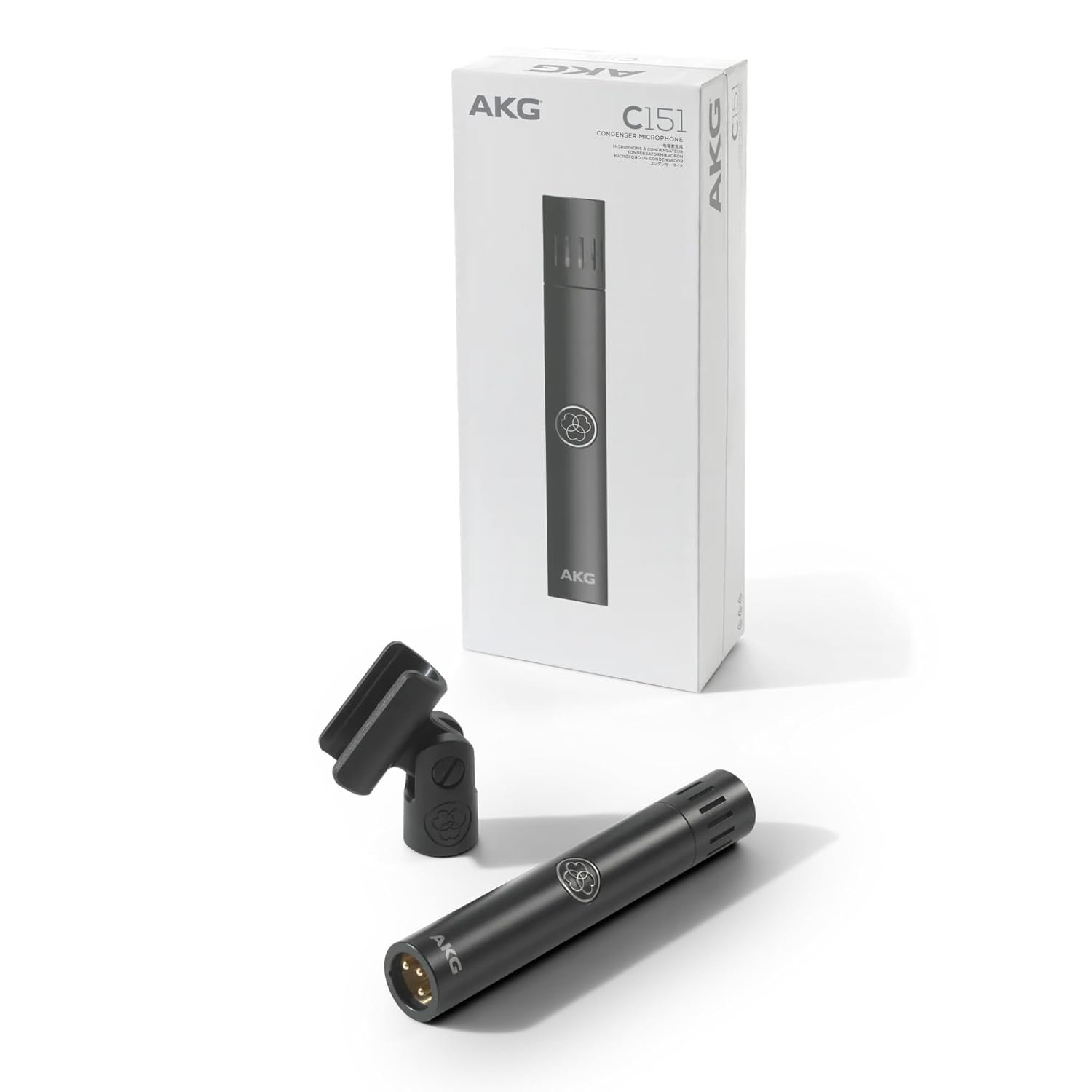

• Body made from 100% recycled PIR metals and alloys, supplied with an H82 microphone clip

Small-diaphragm accuracy for instruments

A small diaphragm reacts quickly to changes in air pressure, which is why this class of microphone is the usual choice for instruments with a sharp attack and a complex decay. On acoustic guitar, the C151 captures string attack, fret detail and body resonance in balance, whether the part is fingerpicked or strummed. On strings and woodwinds it preserves bow texture, breath and the upper harmonics that define the instrument, without adding a hyped top end. The cardioid pattern stays consistent across the 20 Hz to 20 kHz response, so the tone does not change character when an instrument moves slightly off axis, and sound arriving from behind the microphone is reduced, which helps isolation in multi-instrument sessions.

Dynamic range, headroom and noise

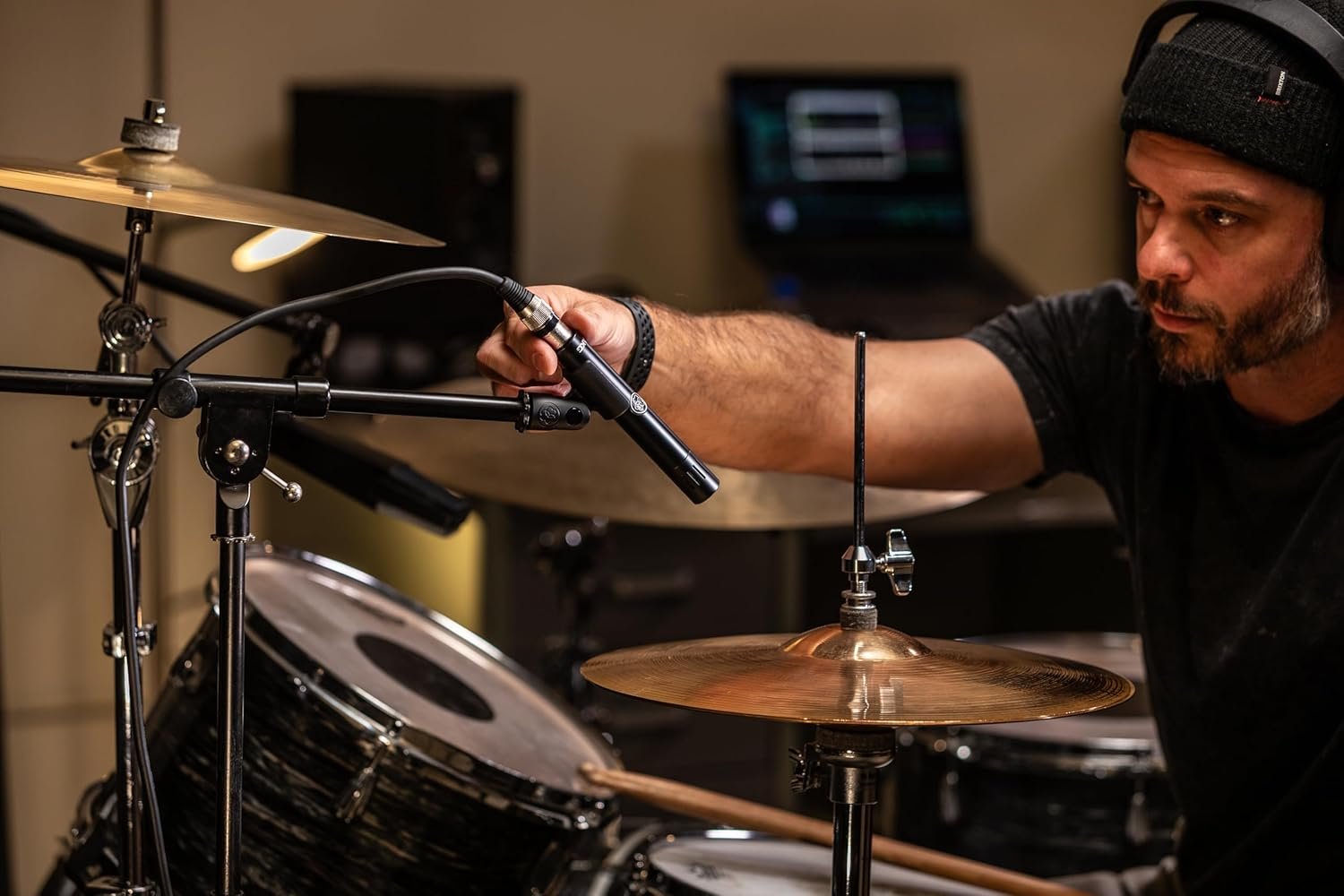

The figures that define how the C151 handles quiet and loud sources are a self-noise level of 21 dB(A), a signal-to-noise ratio of 73 dB referenced to 1 Pa, and a maximum sound pressure level of 143 dB at 0.5% THD. Together they give a wide usable dynamic range: quiet passages on strings, woodwinds or a softly played guitar sit clearly above the noise floor, while loud sources can be recorded at close distance without the capsule or circuit distorting. That headroom is particularly relevant on drum overheads and percussion, where peak levels are high and brief, and on amplified instruments placed near the source. Sensitivity of 11 mV/Pa (-39 dBV) is a typical level for a microphone of this type and pairs normally with the microphone inputs of interfaces and mixers.

On stage and in the studio

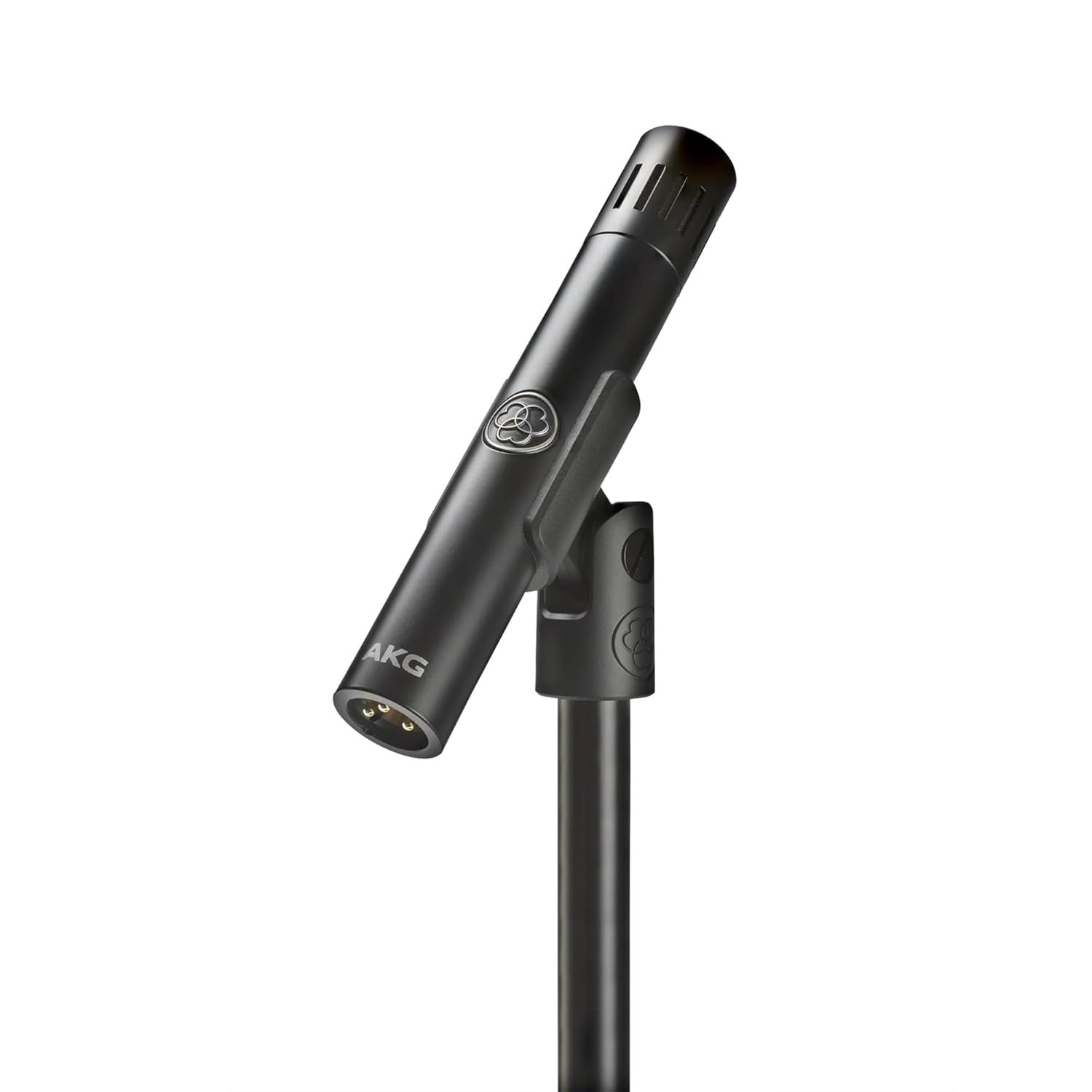

AKG positions the C151 for acoustic guitar, strings, woodwinds, drum overheads and percussion, and that list describes both studio and live work. In the studio, a single C151 works for close instrument recording, and a matched-position pair covers stereo overheads, ensemble pickup and room ambience. On stage, the compact 147 g body and the supplied H82 clip make placement quick, and the cardioid pattern helps keep neighbouring instruments and monitor spill out of the signal. The operating temperature range of -5 to 50 degrees Celsius reflects use outside a controlled studio environment as well as inside one. The same microphone can therefore move between session recording, live instrument reinforcement and broadcast or content-production work without a change in setup approach.

Build, powering and handling

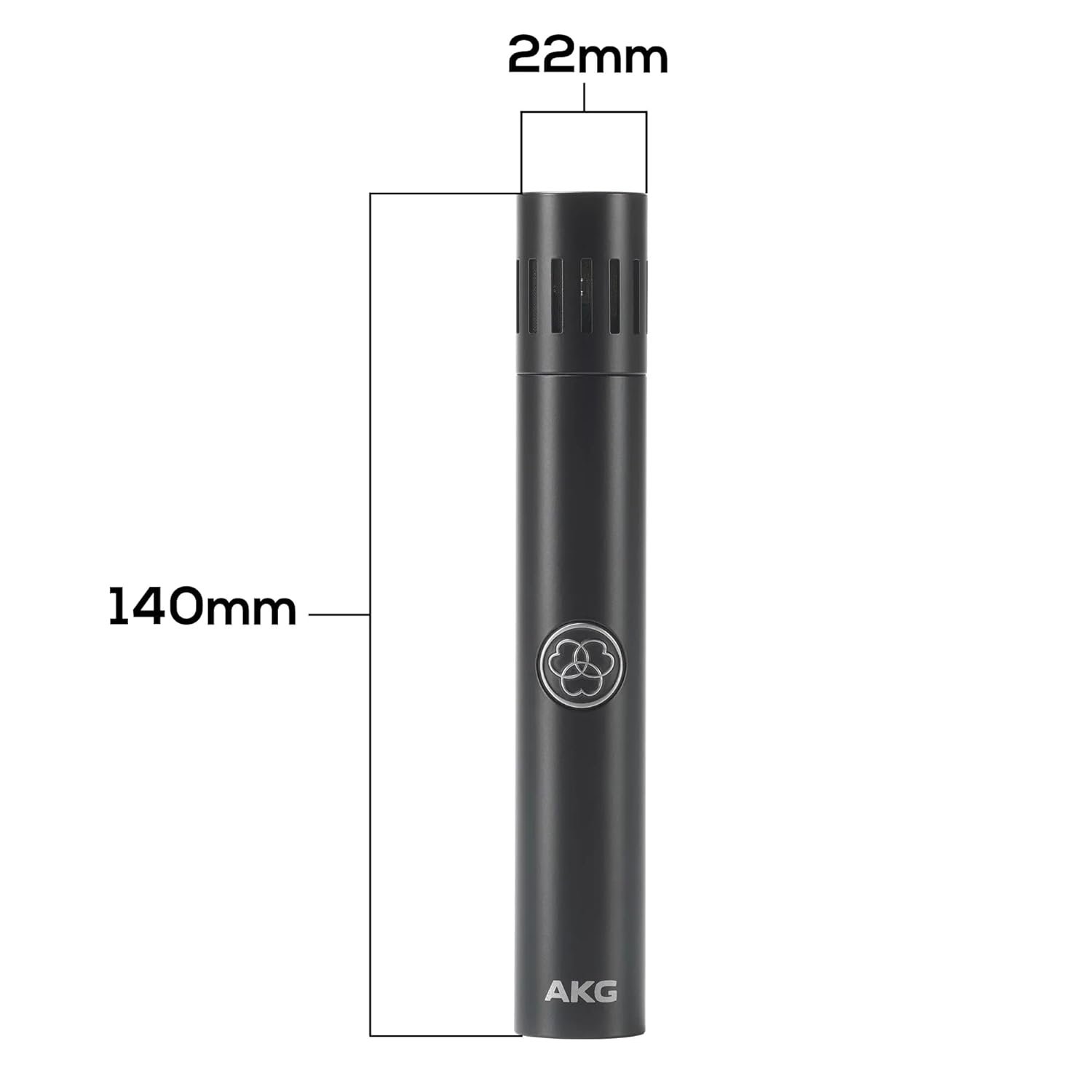

The body is made from 100% recycled PIR metals and alloys, and the packaging is fully recyclable, which is part of the C-Series design rather than an accessory claim. The microphone requires 48 V phantom power, plus or minus 4 V to IEC 61938, draws 5 mA or less, and connects through a standard 3-pin XLR with pin 2 hot. Recommended load impedance is 1000 ohms or more, which standard microphone preamplifier inputs meet. At 22 mm by 140 mm and 147 g, it fits standard clips and stands, sits unobtrusively in camera frame when a performance is filmed, and adds little weight to a boom or overhead stand.

For engineers and musicians who need one accurate instrument microphone rather than a collection of specialised ones, the C151 covers the core brief: a small-diaphragm cardioid condenser with a full 20 Hz to 20 kHz response, 143 dB of headroom, a 21 dB(A) noise floor and a compact, sustainable build, supplied ready to mount with its H82 clip.
