Neumann TLM 107 – Five Polar Patterns of Pure Studio Excellence

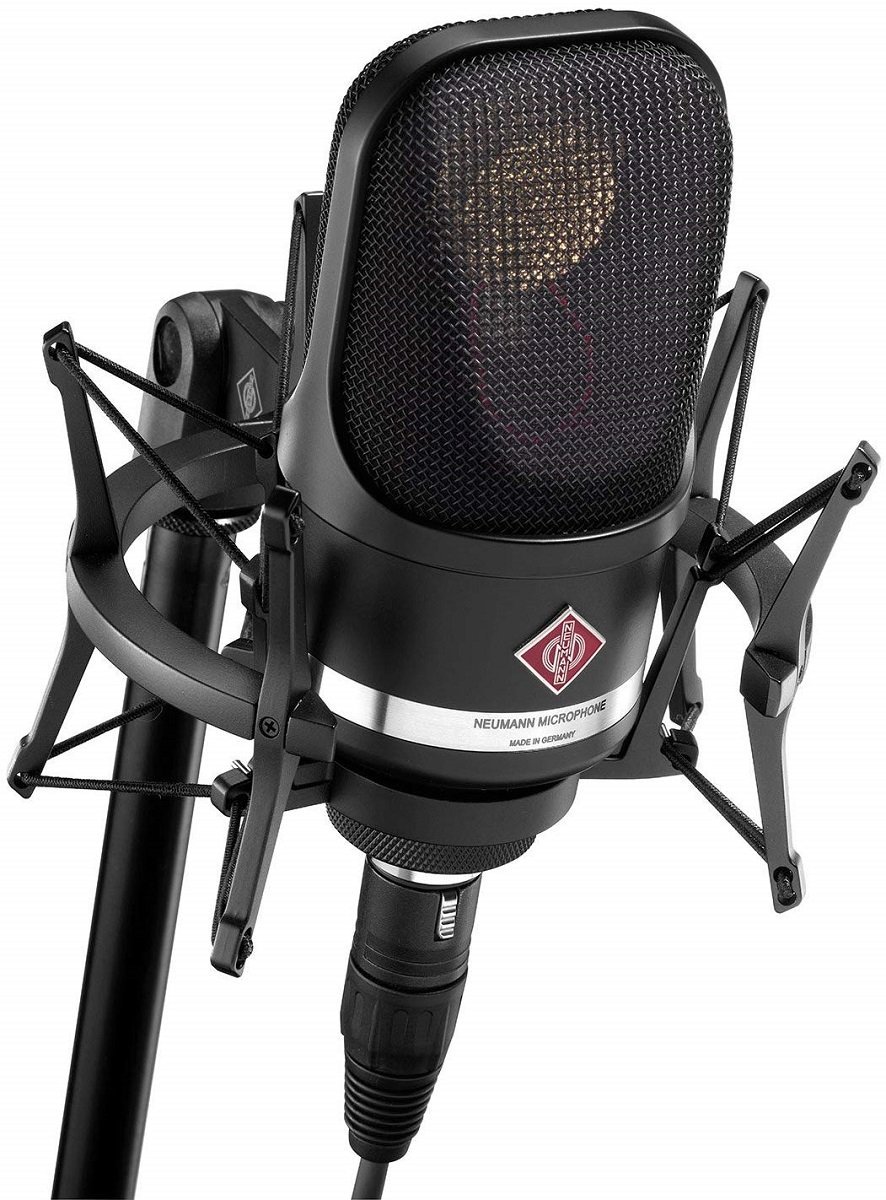

The Neumann TLM 107 is a large-diaphragm condenser microphone that gives professional studio engineers and serious home recording artists access to Neumann's legendary sonic character in a versatile, multi-pattern package. With five selectable polar patterns and transformerless circuit topology, the TLM 107 is one of the most capable and musical microphones available at any price.

Neumann's Legacy of Acoustic Excellence

For over 90 years, Neumann has defined what professional microphone engineering looks like. From the U 47 and M 49 that shaped the sound of mid-century recordings to the U 87 that became the world's most recognised studio microphone, Neumann has consistently delivered tools that capture sound with extraordinary truthfulness. The TLM 107 carries this tradition forward with modern circuit design and manufacturing precision.

Five Polar Patterns for Total Creative Flexibility

Where most condenser microphones offer one or three polar patterns, the TLM 107 provides five: omnidirectional, wide cardioid, cardioid, hypercardioid, and figure-eight. This range gives you the right tool for every recording situation. Use omnidirectional for ambient room capture and natural instrument miking. Engage wide cardioid for a singer who moves slightly. Select hypercardioid when maximum off-axis rejection is critical in a noisy environment. Choose figure-eight for M-S stereo recording or for capturing two performers face to face. Each pattern transitions smoothly from the last, with no abrupt changes in character.

Large-Diaphragm K 107 Capsule

The TLM 107 uses Neumann's purpose-designed K 107 large-diaphragm capsule – a dual-membrane design that achieves its five polar patterns through electronic matrixing of the front and rear capsule elements. The capsule is manufactured to tolerances measured in fractions of a micron, ensuring that the frequency response is consistent from unit to unit. The result is a microphone with an extended high-frequency response, a natural presence lift that adds clarity without harshness, and a low-frequency warmth that gives voices and instruments body and weight.

Transformerless Circuitry for Ultra-Low Noise

The TLM designation – Transformerless Large-diaphragm Microphone – signals Neumann's choice to eliminate the output transformer from the signal path. Traditional transformer-coupled designs can introduce subtle colourations and limitations in transient response. The TLM 107's transformerless circuit achieves an extraordinarily low self-noise figure of just 10dB-A, making it suitable for recording the quietest acoustic instruments, the most delicate vocal passages, and ambient sound at the limits of human hearing. At the same time, it handles extraordinarily high sound pressure levels – up to 141dB SPL – with grace and composure.

Switchable High-Pass Filter and Pad

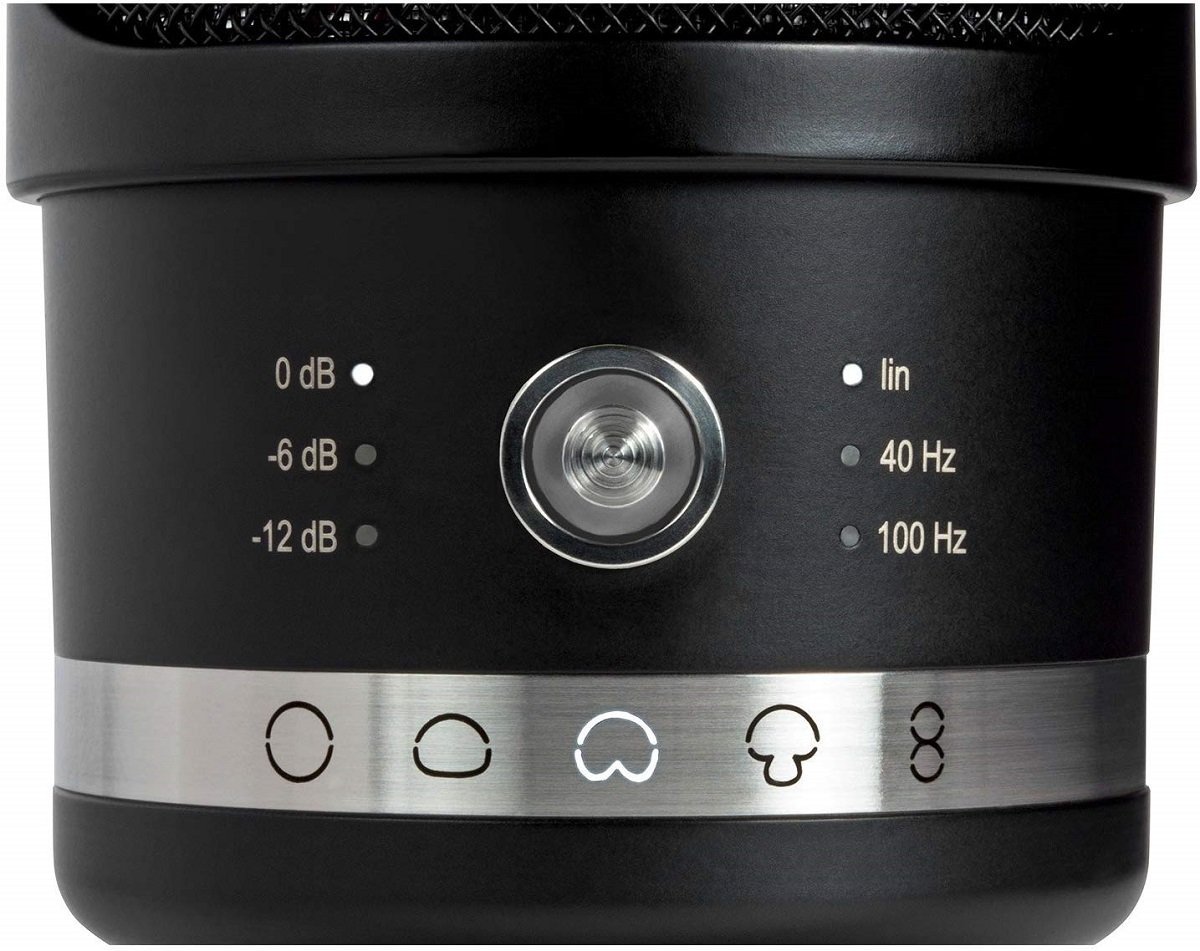

Two switches on the rear of the microphone offer practical tools for common recording scenarios. The 100Hz high-pass filter at -12dB per octave removes low-frequency rumble, HVAC noise, and handling vibration – invaluable in imperfect recording environments. The -12dB pad extends the microphone's usable SPL range to an astonishing 153dB, allowing you to place the TLM 107 directly in front of kick drum ports, snare drums, and loud guitar amplifiers without fear of distortion.

Precision Manufacturing and Long-Term Reliability

Every TLM 107 is assembled and calibrated by hand in Neumann's Berlin facility. The capsule suspension system isolates the diaphragm from structure-borne vibration. The body is machined from solid metal and finished to exacting standards. This is a microphone built to survive decades of professional use while maintaining its performance characteristics – an investment that will serve you throughout your recording career.
