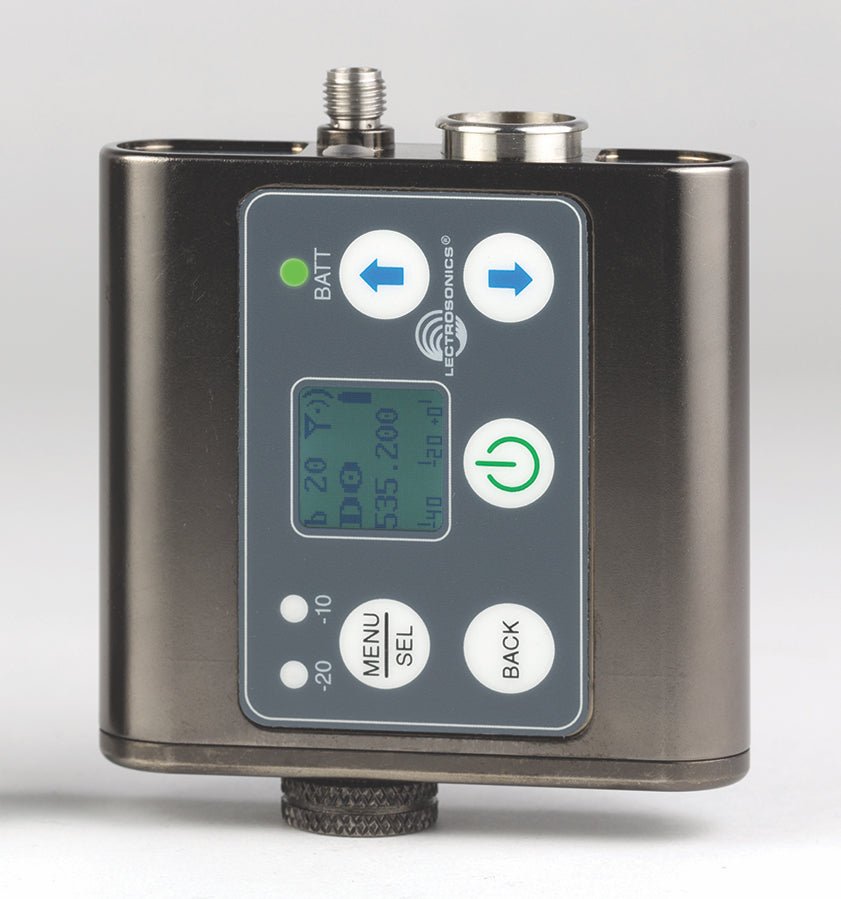

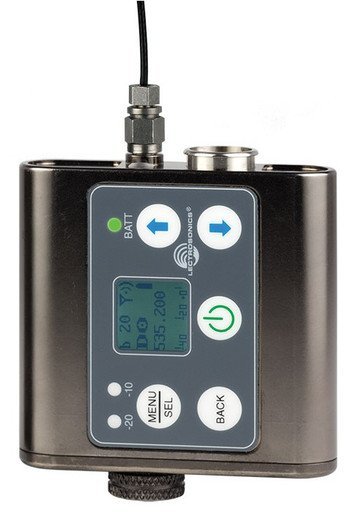

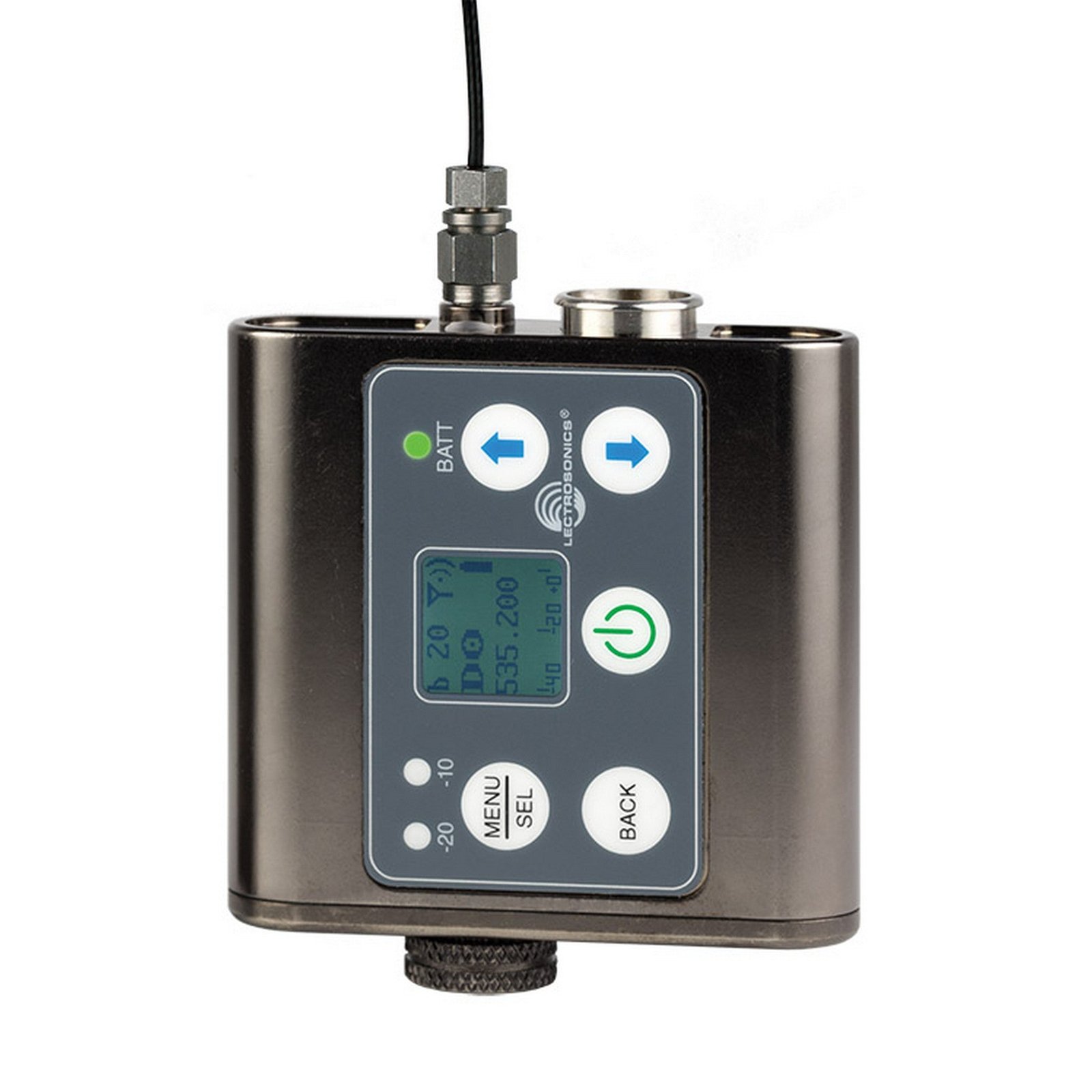

Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder
SKU LECTROSONICS-SMDWB-B1
₹255,000Original price was: ₹255,000.₹215,000Current price is: ₹215,000.Save ₹40,000 (16%)
Price includes GST, invoice provided
Dispatched the same day
Cash on delivery up to ₹45,000
Money-back if it arrives damaged
The Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder is a dual-battery B1 bodypack that transmits Digital Hybrid audio and records 24-bit WAV backup to microSDHC for around 14 hours.
Record 24-bit WAV to microSDHC while transmitting, so a dropout never costs the take.
Two AA batteries deliver around 14 hours, covering full shoot days without a battery change.
Tune across three standard blocks in B1 with selectable 25/50/100 mW output for range or battery life.
The locking TA5 input accepts lavaliers, dynamic microphones and line sources with 44 dB of digital gain control.
A machined aluminium housing and flexible steel-cable antenna stand up to daily field use.
Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder
The Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder is the dual-battery bodypack that ENG, documentary and reality crews trust when the audio simply cannot be lost. It transmits Digital Hybrid Wireless audio in band B1 (537.600–614.375 MHz) while simultaneously recording 24-bit WAV to a microSDHC card, so even a complete RF dropout leaves a pristine backup of the take, and its two AA batteries run for around 14 hours.
Why Choose Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder?
Professionals choose the Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder because it answers the two fears of wireless work — interference and battery death — in one unit. The recorder runs independently of the RF link, the wideband tuning finds clean spectrum, and the machined aluminium body survives the bag, the belt and the weather that field production throws at it.
Key Features
This model packs the features buyers ask for first, in a package that is easy to live with every day.
Transmitter and recorder in one: Record 24-bit WAV to microSDHC while transmitting, so a dropout never costs the take.
Dual-battery endurance: Two AA batteries deliver around 14 hours, covering full shoot days without a battery change.
Wideband B1 coverage: Tune across three standard blocks in B1 with selectable 25/50/100 mW output for range or battery life.
Servo-bias TA5 input: The locking TA5 input accepts lavaliers, dynamic microphones and line sources with 44 dB of digital gain control.
Rugged aluminium body: A machined aluminium housing and flexible steel-cable antenna stand up to daily field use.
Best Suited For
The Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder suits ENG and EFP crews, documentary filmmakers, reality production, wedding videographers and broadcast rental houses. It is the right bodypack for lavalier talent in unpredictable RF environments, for one-take events, and for any shoot where re-recording is impossible.
Setup and Connection Guide
Fit the lavalier to the locking TA5 input, set input gain in 1 dB steps across the 44 dB range, and choose a low-cut filter (30–150 Hz) to tame handling and wind noise. Insert a microSDHC card, enable recording, and IR-sync the transmitter to a free B1 frequency on your receiver. Select 25 or 50 mW for battery life in controlled spaces or 100 mW for maximum range, fit two AA batteries, and after the shoot transfer the WAV files from the card as your safety backup.
Frequently Asked Questions
Does the Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder record as well as transmit?
Yes. It records 24-bit / 44.1 kHz WAV files to a microSDHC card while transmitting, giving a backup of every take.
What frequency band is the Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder?
Band B1, 537.600 to 614.375 MHz (608–614 MHz excluded), with selectable 25, 50 or 100 mW RF output.
How long does the Lectrosonics SMDWB-B1 Digital Hybrid Transmitter Recorder run on batteries?
About 14.5 hours at 50 mW and about 14 hours at 100 mW on two AA batteries.
Technical Specifications
Transmitter type
Wideband Digital Hybrid bodypack transmitter with built-in recorder
Frequency band B1
537.600 – 614.375 MHz (608–614 MHz excluded)
Tuning range
76 MHz across 3 standard blocks
RF power
Selectable 25 / 50 / 100 mW
Frequency response
35 Hz – 20 kHz (±1 dB) as transmitter; 20 Hz – 20 kHz in recorder mode
Input connector
TA5F 5-pin locking (servo-bias mic input)
Gain range
44 dB digital gain control, 1 dB steps
Low-cut filters
30 / 50 / 70 / 120 / 150 Hz selectable
Recorder
24-bit / 44.1 kHz WAV to microSDHC card
Battery
2 × AA
Battery life
About 14.5 hours at 50 mW, about 14 hours at 100 mW (2 × AA)
Compatibility
All Lectrosonics Digital Hybrid receivers; backwards compatible with 100/200 series and IFB
Housing
Machined aluminium
Weight
About 105 g (3.7 oz)
Why It Stands Out
It stands out for its transmitter and recorder in one, which record 24-bit WAV to microSDHC while transmitting, so a dropout never costs the take. It stands out for its dual-battery endurance, which two AA batteries deliver around 14 hours, covering full shoot days without a battery change. It stands out for its wideband b1 coverage, which tune across three standard blocks in B1 with selectable 25/50/100 mW output for range or battery life. It stands out for its servo-bias ta5 input, which the locking TA5 input accepts lavaliers, dynamic microphones and line sources with 44 dB of digital gain control. It stands out for its rugged aluminium body, which a machined aluminium housing and flexible steel-cable antenna stand up to daily field use. Taken together, these points make this model a strong choice in its class, whether it is used at home, at work, or on the move, and they explain why buyers keep coming back to this range.
