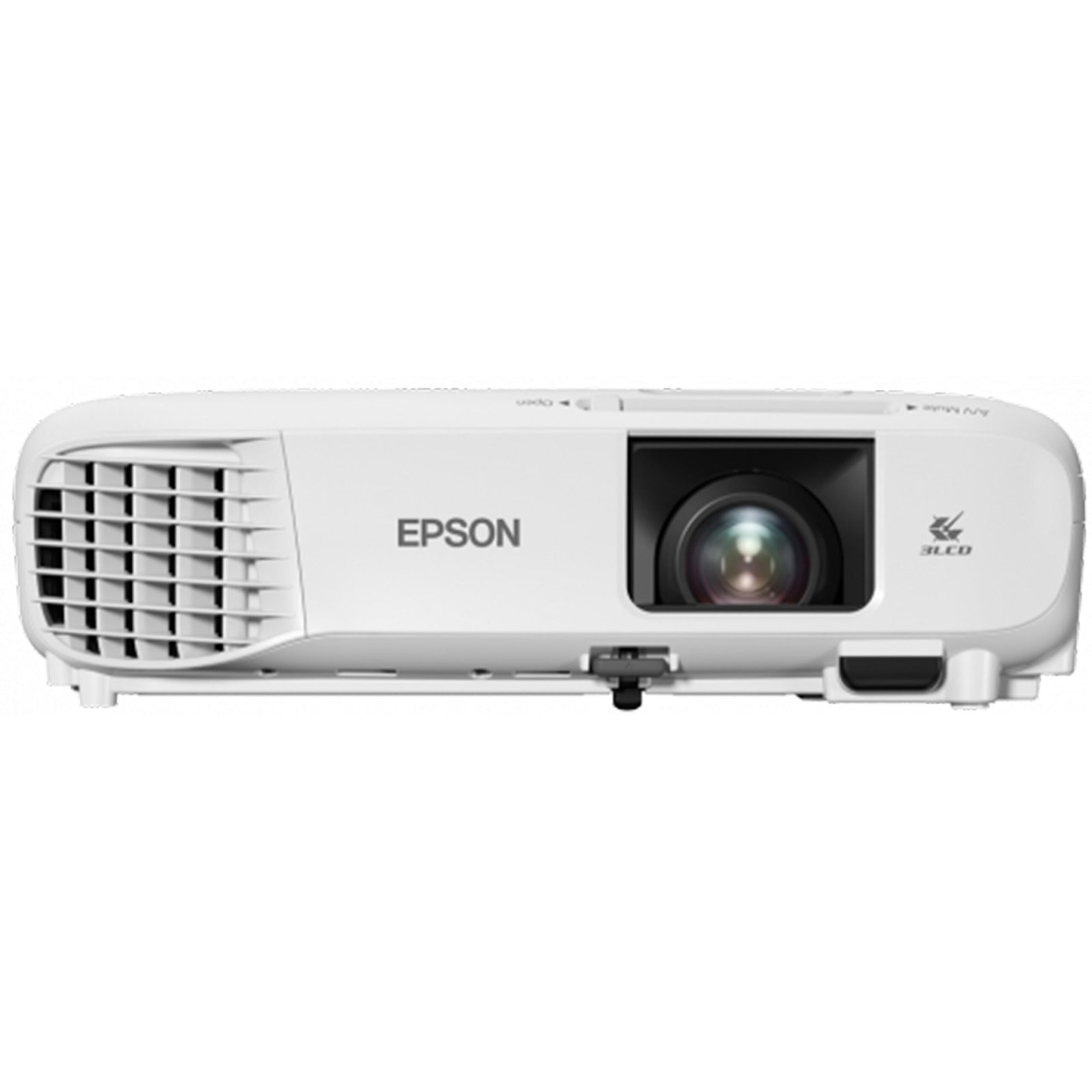

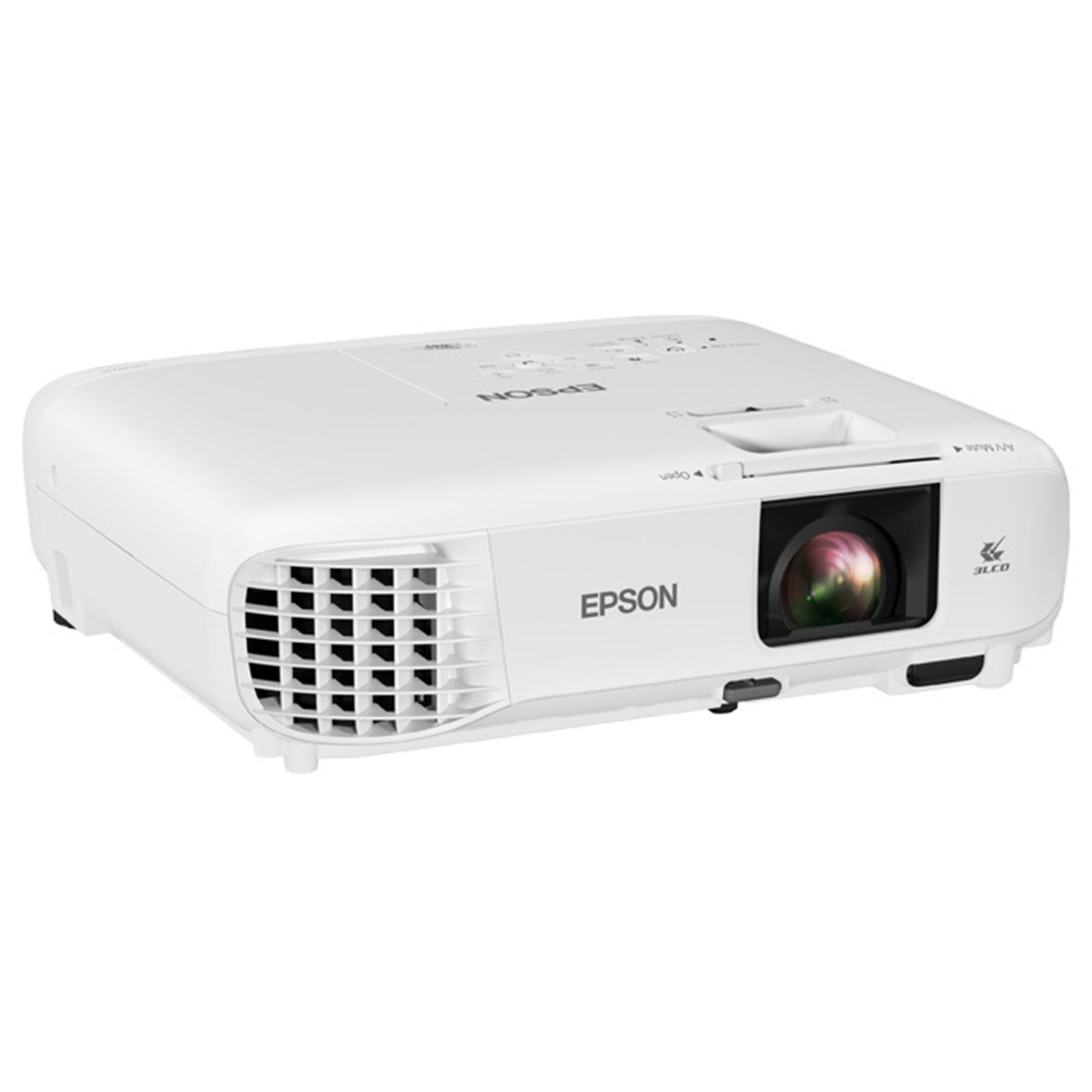

Epson EB-W49 WXGA 3LCD Projector

Epson EB-W49 WXGA 3LCD Projector

The Epson EB-W49 is a WXGA projector built around Epson 3LCD technology for classrooms, meeting rooms, lecture spaces and larger presentation venues where the image has to stay readable with the lights on. Its native resolution is 1280 x 800 in a 16:10 format, a shape that matches widescreen laptop output and presentation slides without awkward scaling. White light output and colour light output are both rated at 3,800 lumens, so colour content does not lose brightness in the way it can on projectors where colour output is lower than white output.

That balance matters for the material these rooms actually show. Charts keep their colours, photographs stay recognisable, and video remains saturated rather than washed out. A 16,000:1 contrast ratio helps separate text from backgrounds and keeps darker slide elements distinct. The 0.59-inch LCD panel uses a three-chip design that displays the full red, green and blue signal for each frame, which also avoids the colour-wheel artefacts some viewers notice on single-chip designs.

Key features

• 3,800 lumens white and colour output: Equal white and colour brightness for presentations, charts and video in lit rooms.
• WXGA native resolution: 1280 x 800 resolution in 16:10 format for sharp text and widescreen slide layouts.
• 3LCD technology: Three-chip RGB liquid crystal shutter system with a 0.59-inch panel and up to 1.07 billion colours.
• Long lamp life: 210 W UHE lamp rated for 8,000 hours in normal mode and 17,000 hours in economy mode.
• Flexible lens: Manual 1.2x optical zoom, 1.30 to 1.56:1 throw ratio and image sizes from 33 to 320 inches.
• Dual HDMI and network connections: Two HDMI inputs, two VGA inputs, Ethernet, USB and RS-232C for installed systems.
• Keystone and Quick Corner: Automatic vertical keystone, manual horizontal keystone and Quick Corner for squaring the image.
• Built-in 5 W speaker: Integrated mono speaker for speech and presentation audio without external equipment.

Image quality in everyday rooms

Brightness is only useful if colour holds up with it, and that is the central idea behind this model. Because colour light output matches white light output, a coloured chart is projected at the brightness the rating suggests, not at a lower effective level. In a lecture theatre or house of worship, that helps lyrics, notices and teaching material stay legible from the back rows. The WXGA pixel count is well suited to slides, documents and standard video, where readability matters more than cinematic detail.

Placement and setup

The manual zoom lens gives a throw ratio range of 1.30 to 1.56:1, so the projector can be positioned with some tolerance rather than at a single exact distance. Screen sizes from 33 to 320 inches cover small meeting rooms through to large halls. Keystone correction handles a projector that cannot sit perfectly centred, and the split-screen function can show content from two sources side by side, which is useful for comparing documents or showing a presenter alongside material.

Connections for installed and portable use

Connectivity is broad for a projector in this class. Alongside the two HDMI inputs there are two VGA computer inputs and a VGA output for passing the signal to a monitor, composite video, stereo audio inputs and an audio output, USB Type A and USB Type B, RS-232C control and a wired Ethernet interface for network projection and management. Wireless projection is supported as an option with a separate wireless LAN unit. That mix suits both a fixed ceiling installation controlled from a network and a projector moved between rooms.

Running costs and daily operation

Lamp life is a major part of ownership cost. In economy mode the rating extends to 17,000 hours, which reduces how often a busy institution needs to schedule a lamp change. Operating noise is rated at 37 dB in normal mode and 28 dB in economy mode, so the quieter setting is appropriate for smaller rooms where the projector sits closer to listeners. The cabinet measures 302 x 249 x 87 mm and weighs 2.7 kg, light enough to move between rooms and compact enough for a standard ceiling mount.

The EB-W49 is a straightforward choice where the requirement is a bright, colour-accurate WXGA image, flexible installation and low day-to-day maintenance.
