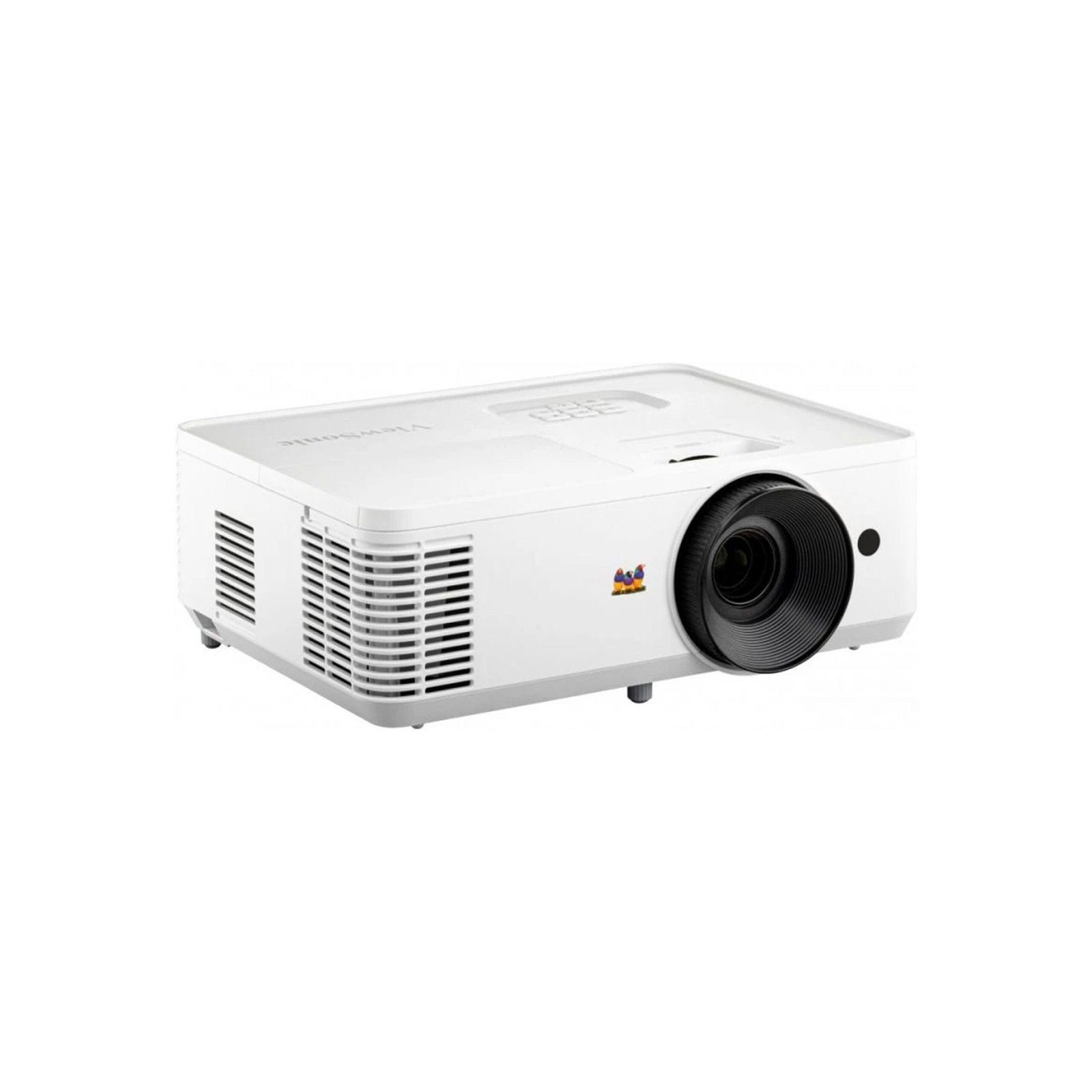

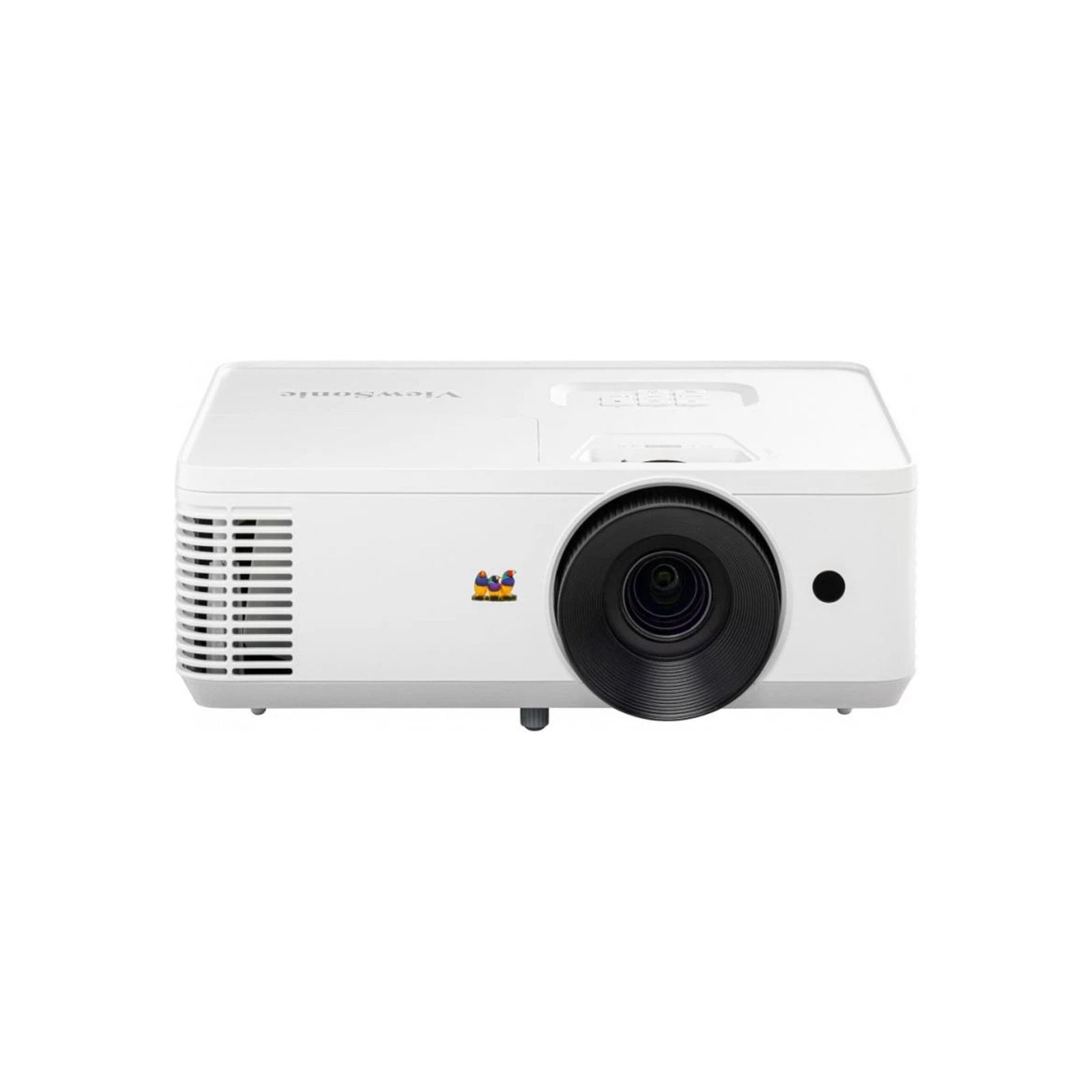

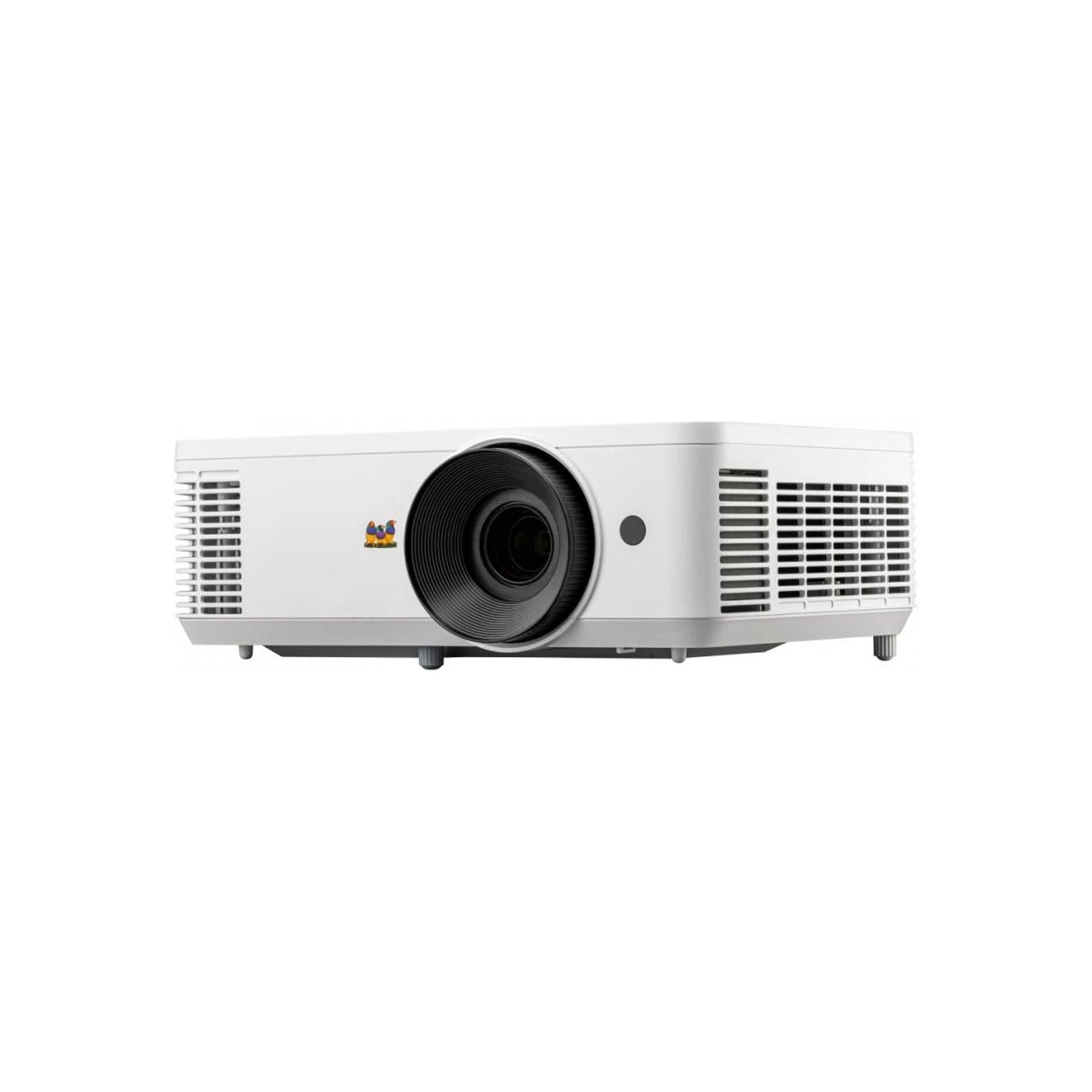

ViewSonic PA700X 4500 Lumens XGA Business Projector

ViewSonic PA700X 4500 Lumens XGA Business Projector

The ViewSonic PA700X is a high-brightness lamp projector aimed at classrooms, boardrooms and larger meeting spaces where ambient light is a fact of life. Its DLP engine produces a native XGA resolution of 1024 x 768 and 4,500 ANSI lumens, with a 12,500:1 contrast ratio and ViewSonic’s SuperColor technology for a wider colour range. That brightness level is the headline: it keeps text legible and images punchy on screens up to 300 inches in rooms where curtains and dimming are not an option.

Connectivity covers the devices actually found in schools and offices. Two HDMI 1.4 ports let a laptop and a media player stay connected for quick switching, VGA inputs cover legacy computers, and a USB Type-A port supplies 5V/1.5A power to HDMI wireless dongles — so a casting stick can run without a separate power adapter dangling from the mount. Audio in and out, RS-232 control for integrated rooms, and a built-in 3W speaker round out a specification designed to be installed and forgotten.

Key Features

• Native XGA 1024 x 768 resolution with 4,500 ANSI lumens brightness
• 12,500:1 contrast ratio and SuperColor technology, 1.07 billion colours
• Screen sizes from 30 to 300 inches; throw ratio 1.94–2.16
• Dual HDMI inputs plus VGA, audio in/out and RS-232 control
• USB Type-A port powers HDMI wireless dongles (5V/1.5A) and applies software updates
• Lamp life up to 12,000 hours in SuperEco mode
• 1.1x optical zoom and ±40-degree vertical keystone correction
• Built-in 3W speaker

Setup in real rooms

The PA700X throws a picture from 1.18 to 13.17 metres, so it covers everything from a huddle room to a hall. The 1.1x optical zoom and 115% projection offset give installers some room to work around ceiling lights, fans and beams, and vertical keystone correction squares the image when the projector cannot sit perfectly level with the screen. Focus and zoom are manual at the lens, as expected at this level — set once during installation.

Ownership costs

The 240W UHP lamp is rated at 4,000 hours in normal mode and up to 12,000 hours in SuperEco, which trades some brightness for lamp life and quieter operation — fan noise drops to about 25 dB in Eco against 34 dB in normal mode. For an institution running the projector daily, SuperEco is the difference between replacing a lamp every couple of years and stretching that interval considerably further. At 2.7 kg the unit is also light enough for cart-based sharing between rooms.

Where it fits

The PA700X suits schools, colleges, training centres, conference halls and houses of worship that need a large, bright image and broad device compatibility at a sensible running cost — particularly where many source devices are older VGA and HDMI laptops. Full specifications are listed in the Additional Information table on this page.
