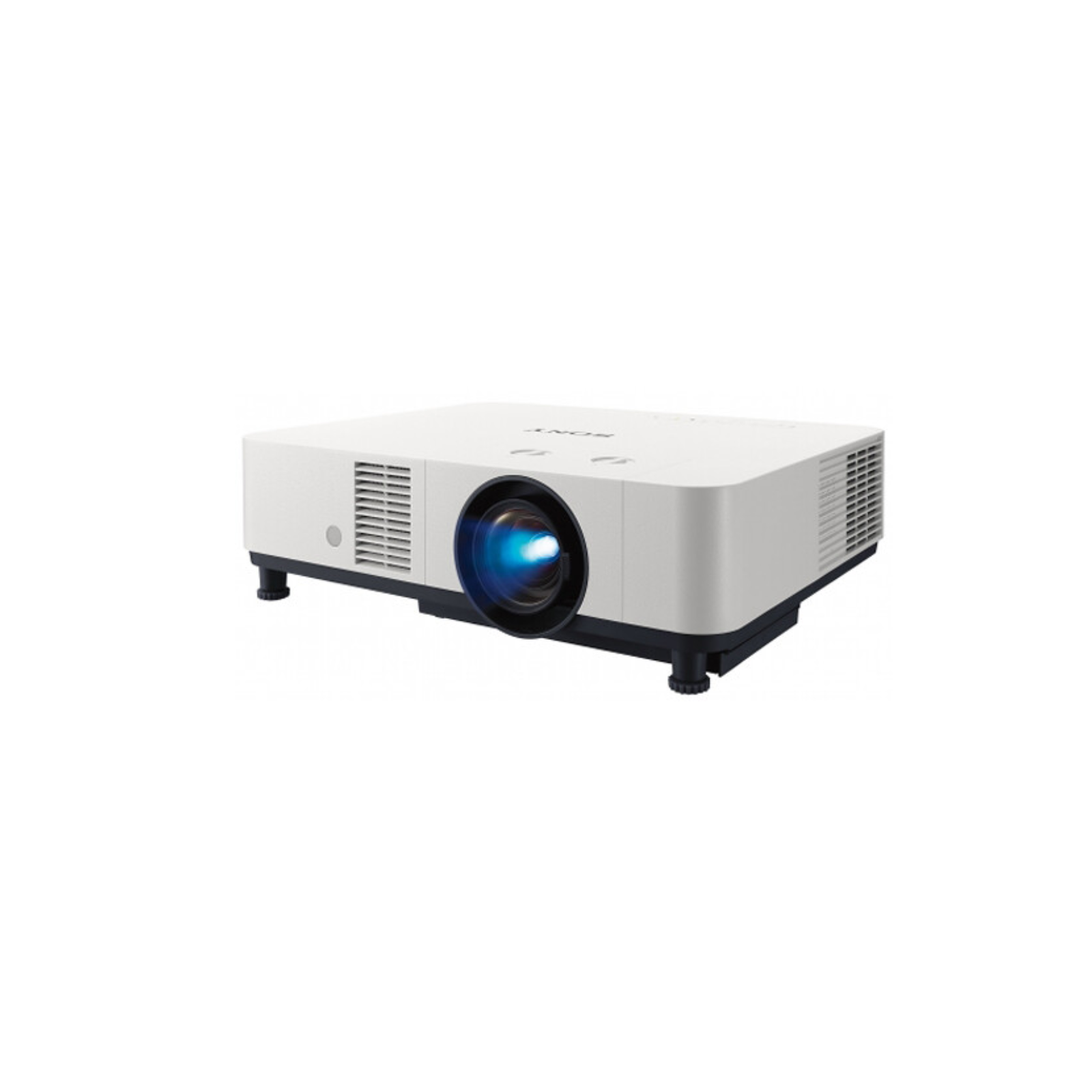

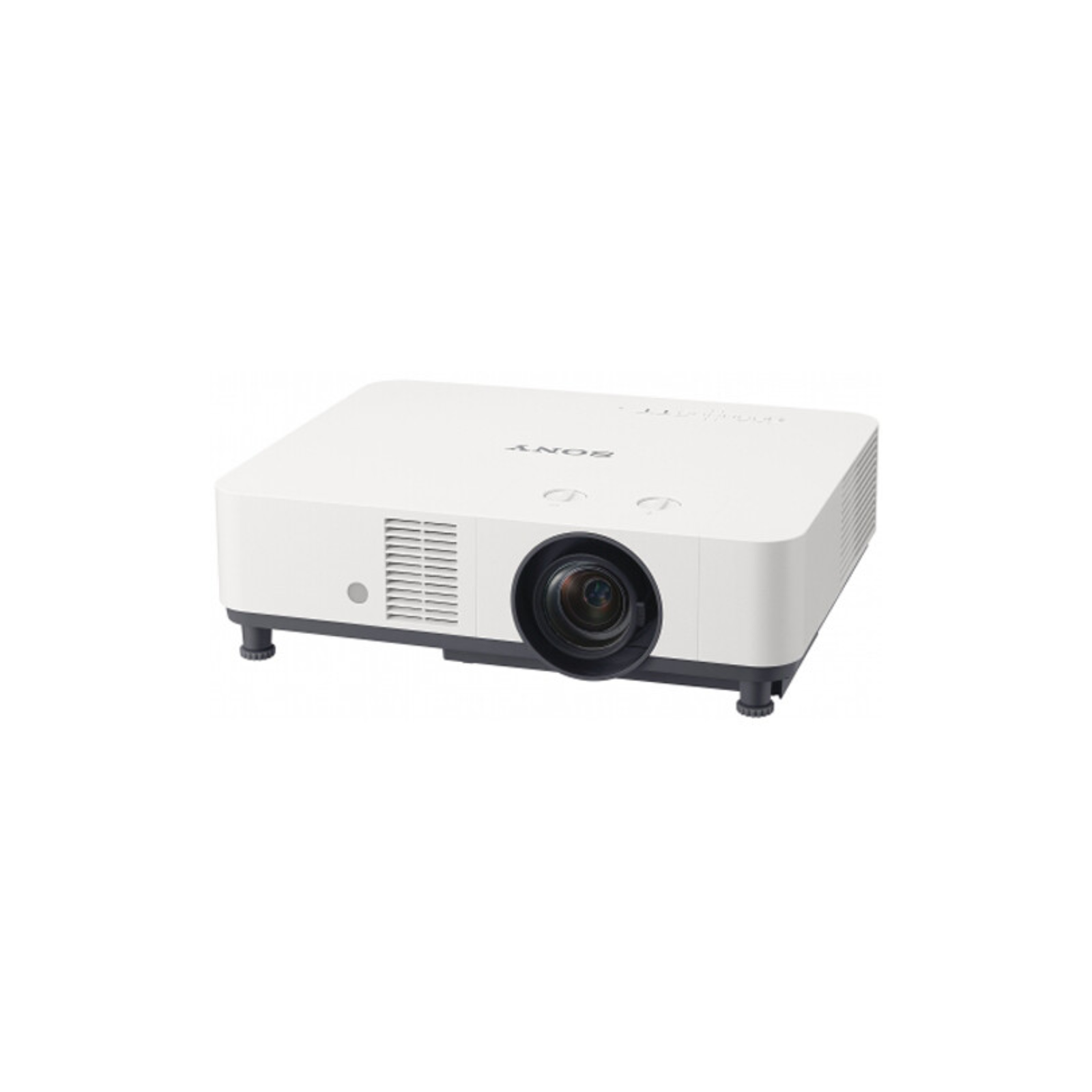

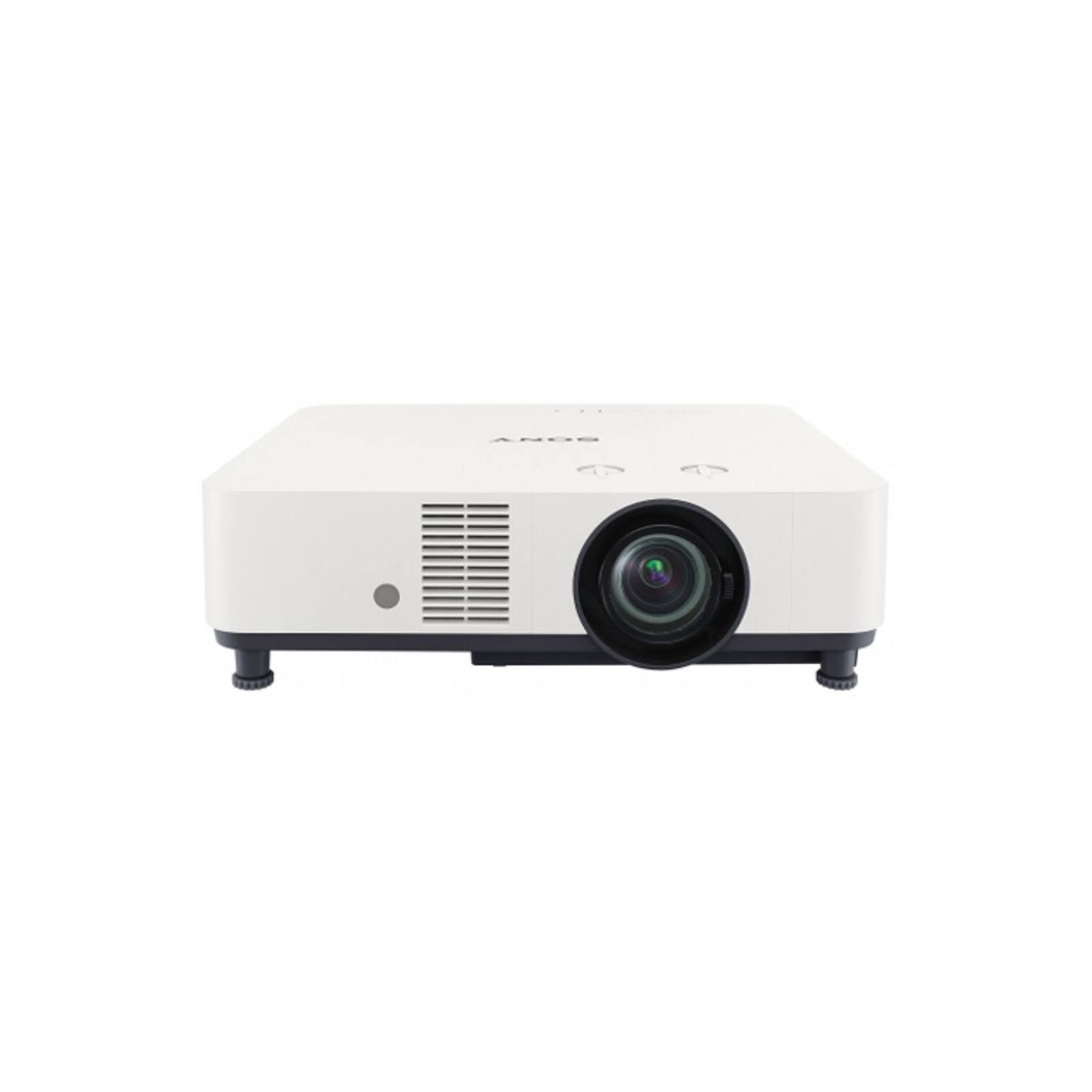

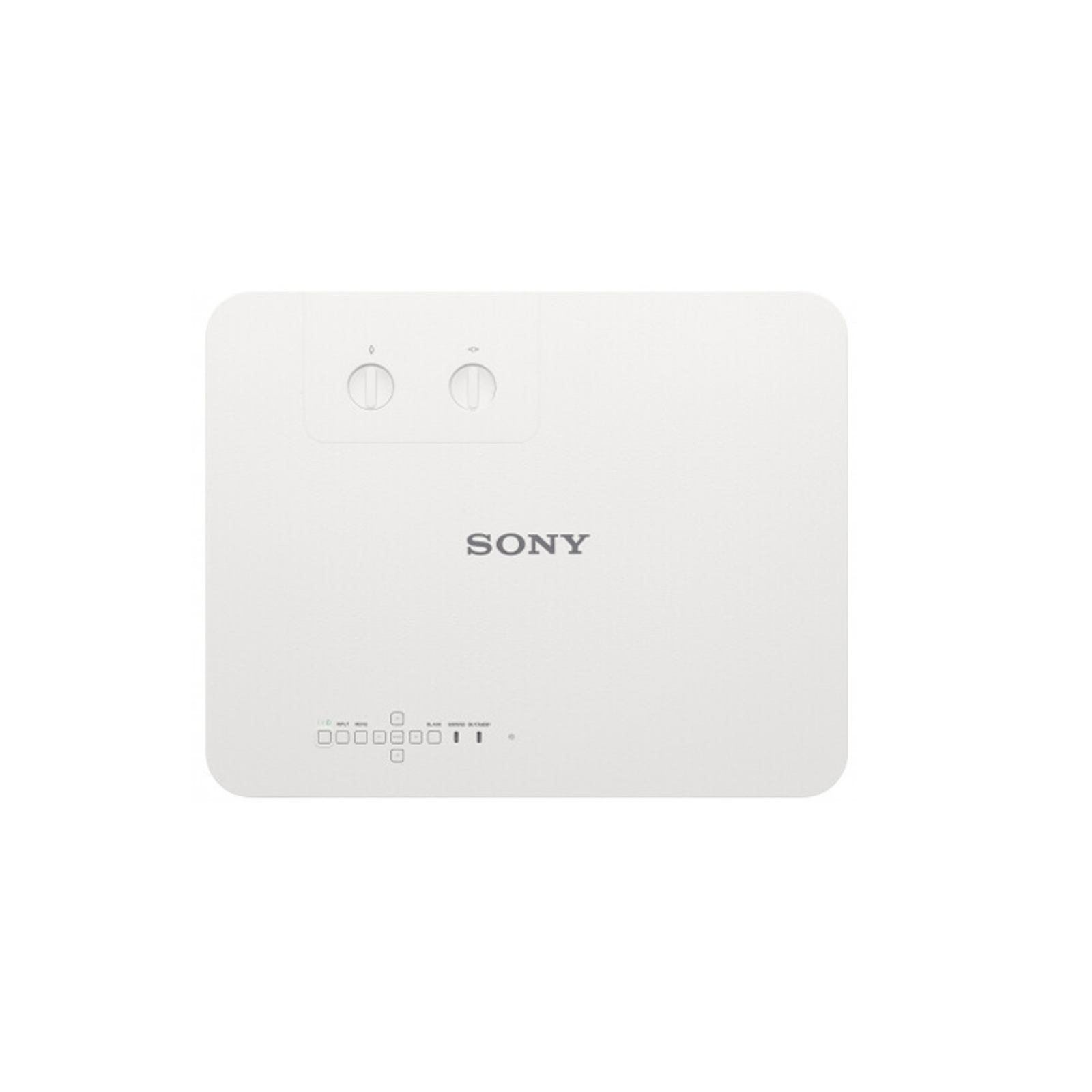

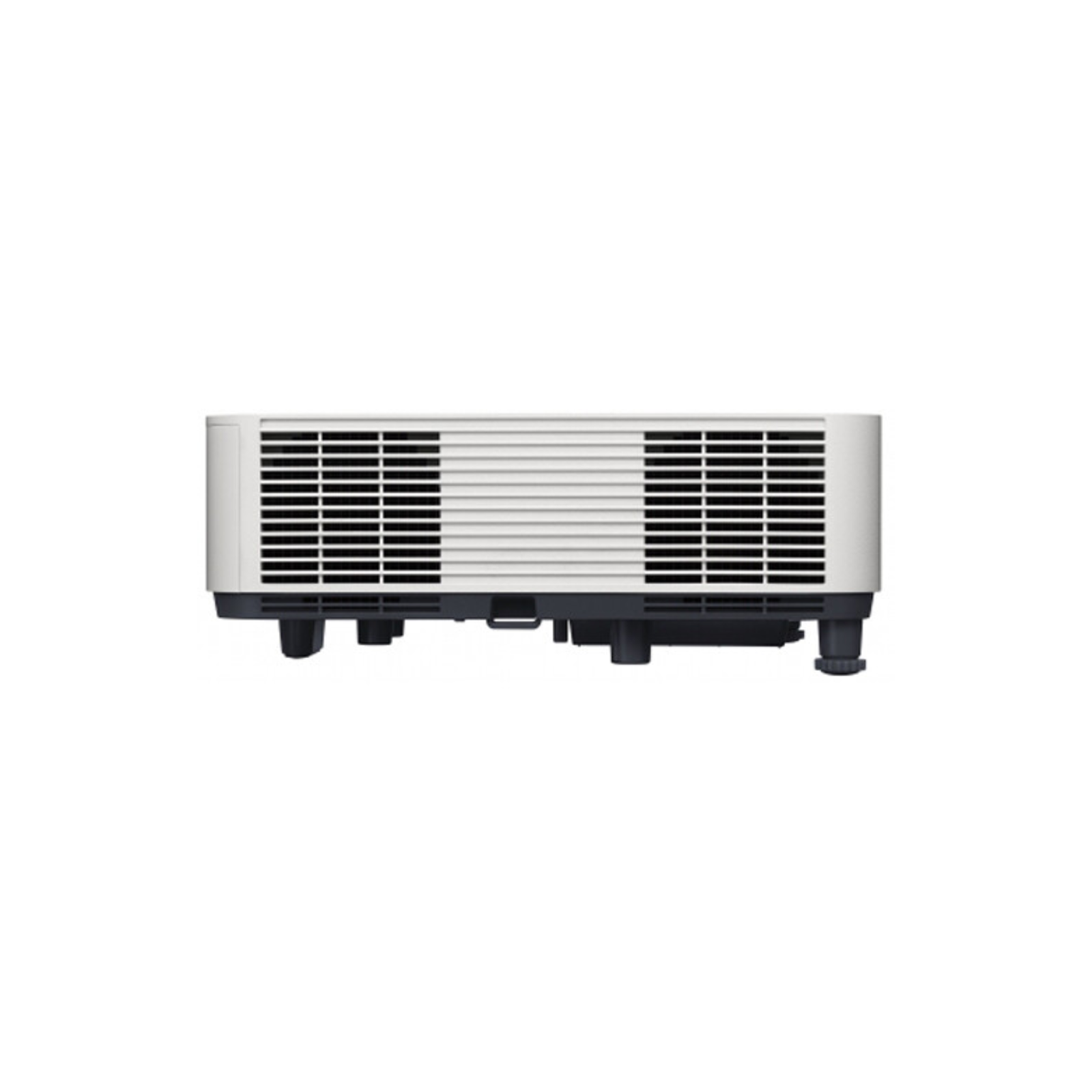

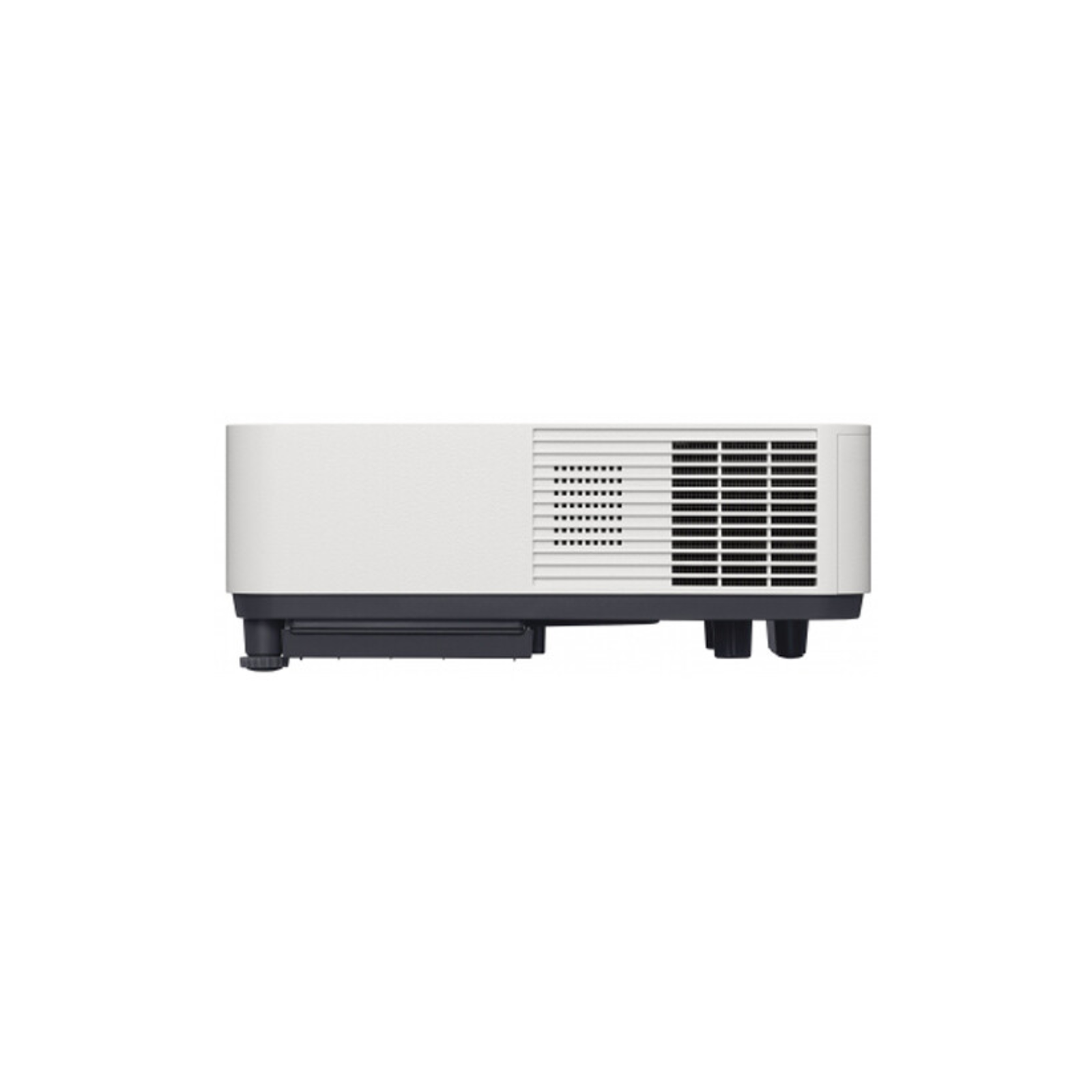

Sony VPL-PHZ61 – 6400 Lumens Wuxga 3LCD Laser Projector

The Sony VPL-PHZ61 is a high-brightness installation projector built for rooms that cannot be darkened: 6,400 lumens of WUXGA (1920 x 1200) output from a 3LCD engine with a long-life laser light source, in a compact chassis made to be mounted, aligned and then left alone. Boardrooms, lecture halls, museums and simulation rooms are its natural habitat, anywhere the picture must stay vivid under real lighting. Because it uses three LCD panels, the full rated brightness applies to colour as well as white, so presentations and video keep their saturation instead of washing out.

Why Choose the Sony VPL-PHZ61?

The Z-Phosphor laser is rated for 20,000 hours, removing the lamp-replacement cycle and the mid-semester failures lamp projectors impose on facilities teams, and holding its brightness far more consistently than a lamp. It accepts 4K 60p input signals and scales them to its native WUXGA resolution, so it slots into modern multi-screen setups, and its 16:10 aspect ratio gives extra vertical room for spreadsheets, CAD and multi-window content compared with Full HD.

Key Features

• 6,400 lumens brightness: Equal white and colour light output from the 3LCD system, with 7,000 lumens at the image centre.
• WUXGA resolution: 1920 x 1200 on 0.64-inch BrightEra LCD panels, in 16:10 for data and video.
• Laser light source: Z-Phosphor laser rated for 20,000 hours, with no lamp changes and consistent brightness.
• Flexible installation: 1.6x manual zoom lens with wide lens shift, so the image can be aligned optically rather than with digital correction.
• 4K 60p input support: Accepts 4K signals and scales them to WUXGA, simplifying multi-screen installations.

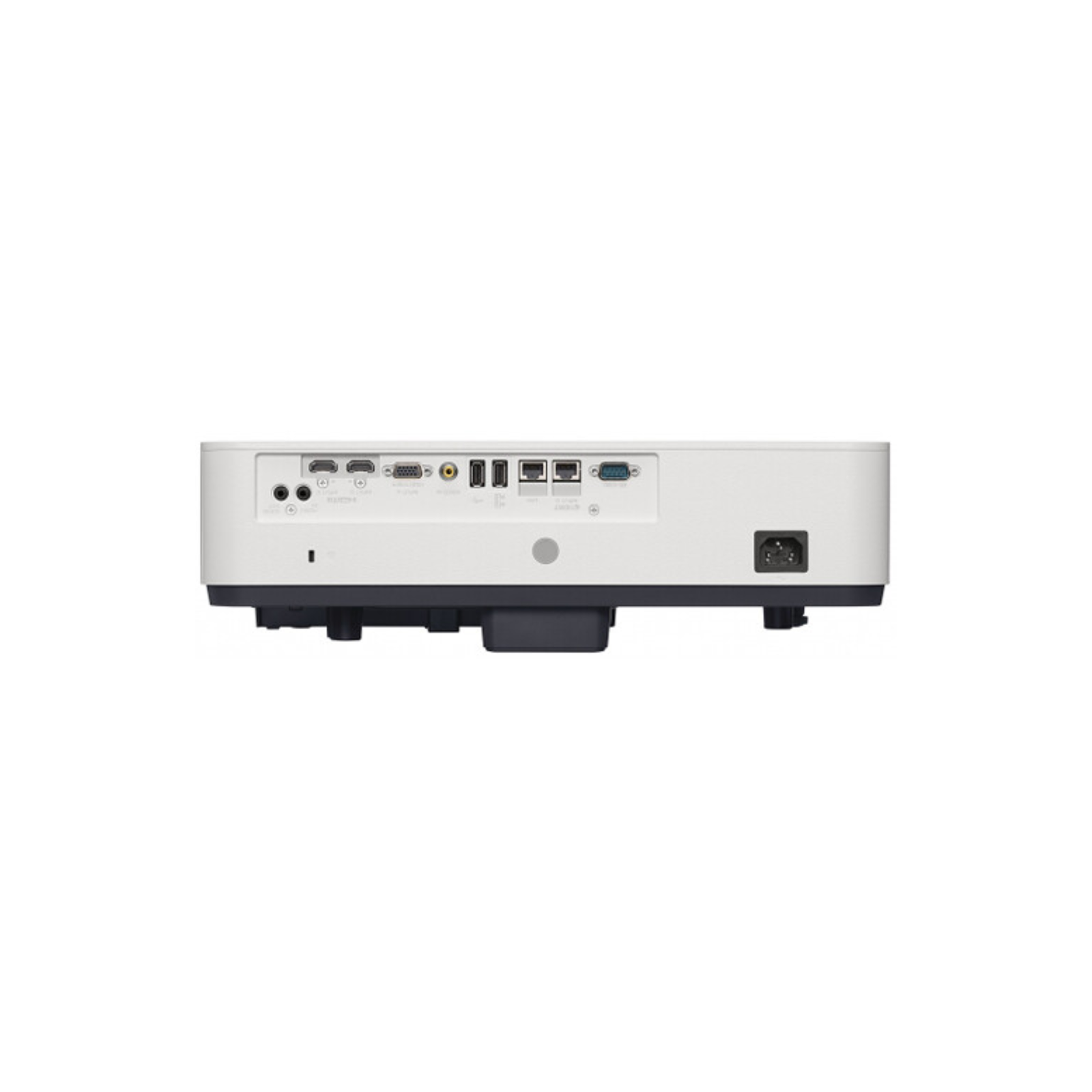

• Comprehensive connectivity: Two HDMI inputs, HDBaseT, VGA, DVI-D, USB, RS-232C and LAN, plus a built-in 16 W speaker.

Best Suited For

The VPL-PHZ61 suits corporate boardrooms, university lecture halls, museums and galleries, houses of worship, and simulation rooms where a bright, dependable image is needed in a lit space. It is an installation projector, meant to be ceiling-mounted and run for years rather than a portable or home-cinema model. Organisations standardising a fleet across many rooms benefit most, since one model and one routine cover the whole estate.

Setup and Connection Guide

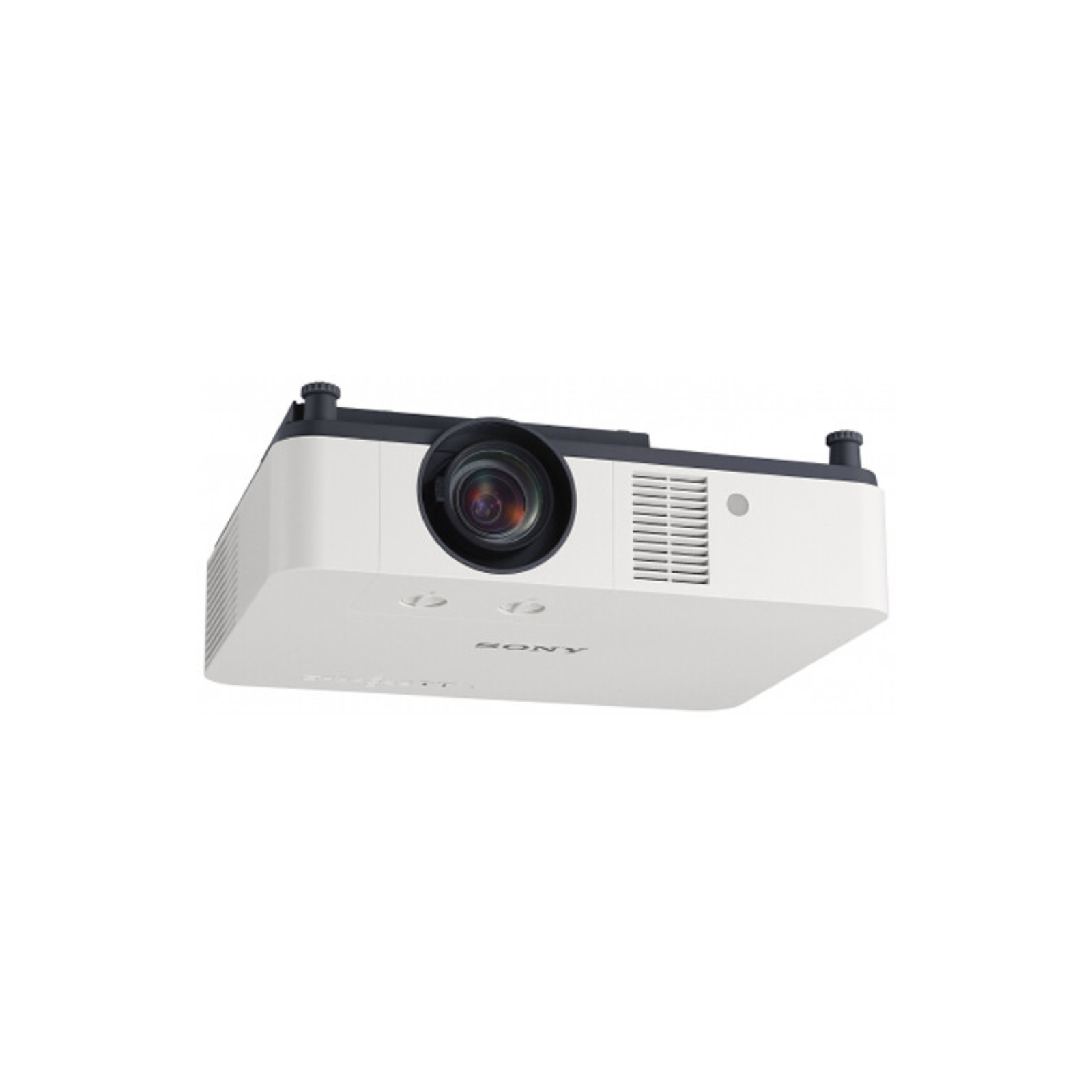

Ceiling-mount it or place it on a table within its throw range of 1.23 to 1.97:1, for screens from 40 to 300 inches, and use the 1.6x zoom and lens shift (plus or minus 55% vertical, plus or minus 15% horizontal) to position the image before touching any digital correction. Connect sources over HDMI or HDBaseT, and control it over LAN or RS-232C for integration with a room-control system. It switches on and off quickly, so rooms that change over every hour are not left waiting, and the dust filter should be vacuumed periodically to protect the 20,000-hour laser life. At 37 dB in standard mode and 34 dB in Eco, it stays quiet enough for meeting and teaching spaces.

Frequently Asked Questions

Will the picture stay bright in a lit room? Yes, that is what it is built for. At 6,400 lumens, with the same output for colour as for white thanks to the 3LCD design, it holds a readable, saturated image under normal room lighting.

How long does the laser last? The Z-Phosphor laser is rated for 20,000 hours, so there are no lamp replacements to plan or budget for, and brightness stays far more consistent than a lamp’s would.

Can it show 4K content? Yes. It accepts 4K 60p input signals and its scaler converts them to its native WUXGA (1920 x 1200) resolution, so it works in multi-screen setups fed by a single 4K source.

Technical Specifications

Complete your setup: Pair the Sony VPL-PHZ61 – 6400 Lumens Wuxga 3LCD Laser Projector with the Elcor Insta Lock Projector Screen 4 ft x 6 ft, 84 Inch Diagonal and the Universal Projector Ceiling Bracket.
