JBL Stage 280CSA Angled In-Ceiling Speaker

JBL Stage 280CSA Angled In-Ceiling Speaker

The JBL Stage 280CSA solves the oldest problem with ceiling speakers: they fire at the floor. Its drivers sit on a baffle angled at 15 degrees, so an 8-inch woofer and 1-inch aluminium dome tweeter point toward the listening position instead of straight down. That makes it a strong choice for Dolby Atmos height channels, front speakers in a screen room, or any seat that sits well off the speaker axis. It belongs to JBL’s Stage architectural series, which brings the brand’s theatre engineering into discreet in-ceiling and in-wall formats.

Key features

• Angled baffle aims the drivers at the listening area, not the floor
• 8-inch (200 mm) polycellulose cone woofer for full, powerful bass
• 1-inch (25 mm) aluminium dome tweeter with acoustic lens waveguide
• Frequency response of 42 Hz to 25 kHz and 90 dB sensitivity
• Recommended amplifier power of 20 to 120 W RMS at 8 ohms
• Acoustically smoothed baffle reduces diffraction and colouration

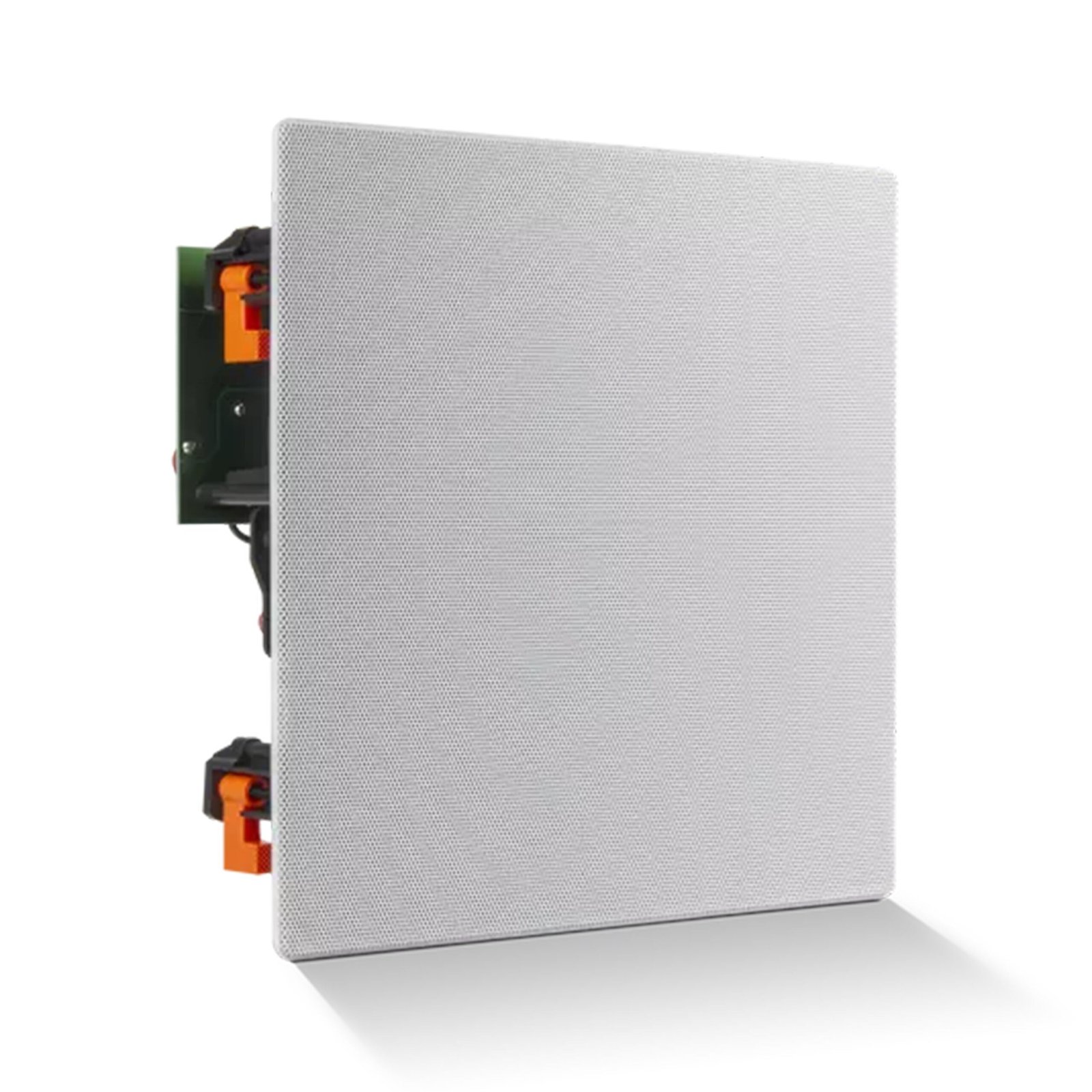

• Zero-bezel magnetic grille presents a near-invisible finish
• Nickel-plated spring-loaded connectors for fast, secure wiring

Why the angle matters

High frequencies are directional. A conventional ceiling speaker puts its best sound on the floor between the seats, so listeners hear a dull, diffuse version of the treble. Tilting the whole driver assembly toward the seats restores clarity, dialogue intelligibility and imaging, which is exactly what height channels need when effects are steered overhead. The acoustic lens in front of the tweeter controls how that energy spreads, widening useful coverage while keeping the on-axis response accurate. In a media room, that focus is the difference between an effect passing overhead and an effect simply sounding loud somewhere above you.

Stage series engineering

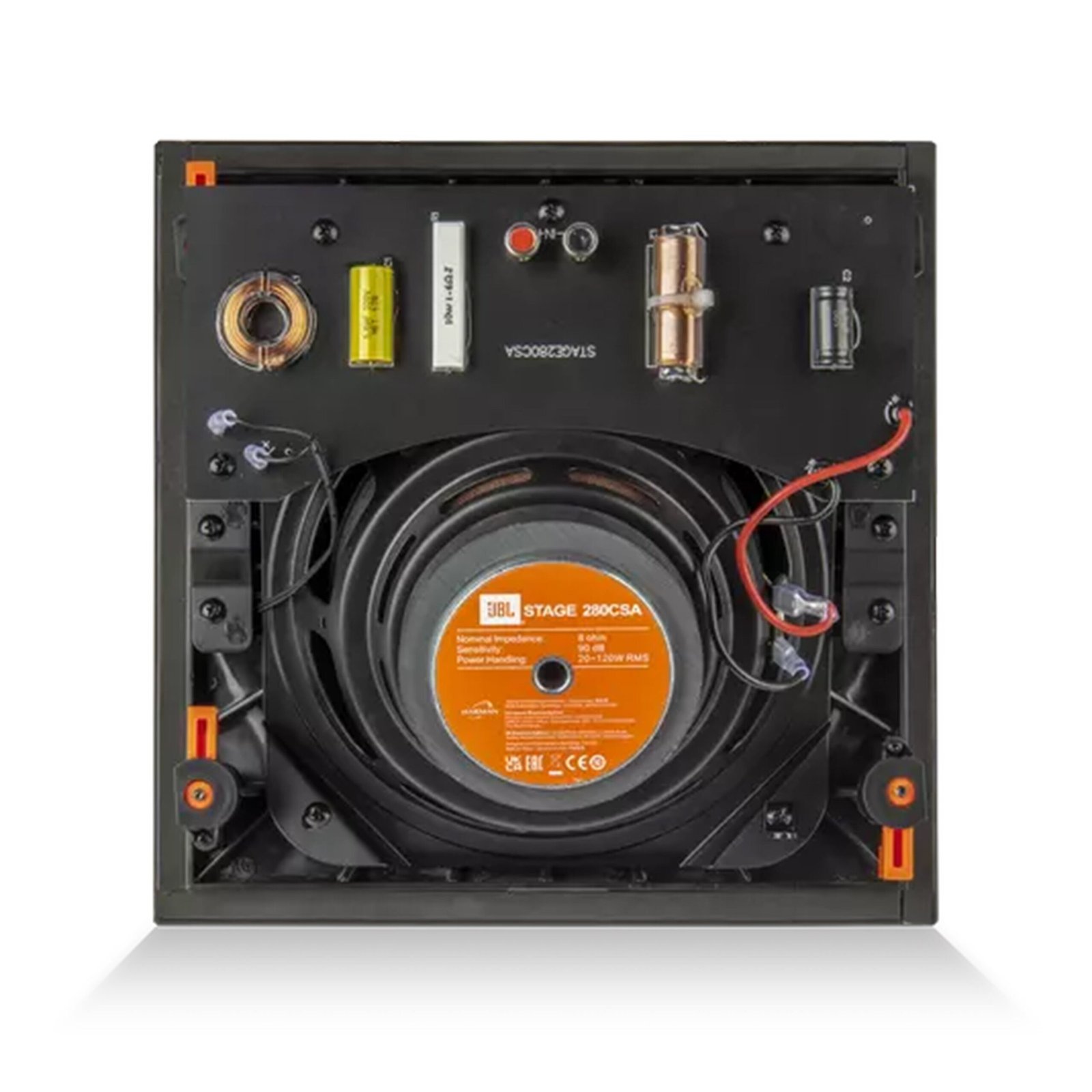

The 8-inch polycellulose woofer gives the 280CSA the cone area to hold its own as a front or effects speaker, with a crossover at 2,900 Hz handing over to the aluminium tweeter. Baffles are shaped with acoustic smoothing to keep the sound clear, and the rigid construction avoids the rattles that plague cheaper ceiling speakers at cinema levels. Sensitivity of 90 dB means modest AV receiver power goes a long way, and the 8-ohm nominal impedance is an easy load for any amplifier. The drivers, crossover and baffle are shared in concept with the rest of the Stage range, so in-wall and in-ceiling models can be mixed in one system without a shift in tonal character from channel to channel.

Fitting and finishing

The square-format speaker needs a 260 x 260 mm cut-out and 138 mm of mounting depth, with a grille measuring 289 x 289 mm that sits bezel-free against the ceiling. JBL offers the JBLCB8SA pre-construction bracket for new-build work, so positions can be fixed before the ceiling is closed. Sold individually, the 280CSA can be deployed in pairs for stereo, in fours for Atmos, or singly where a zone needs one well-aimed speaker. For rooms where seating cannot sit under the speakers, it is the sensible way to keep ceiling convenience without giving up direct, focused sound at the listening position.
