Ahuja ASX-612BT 60 Watts Wall Speaker

Ahuja ASX-612BT Wall Speaker

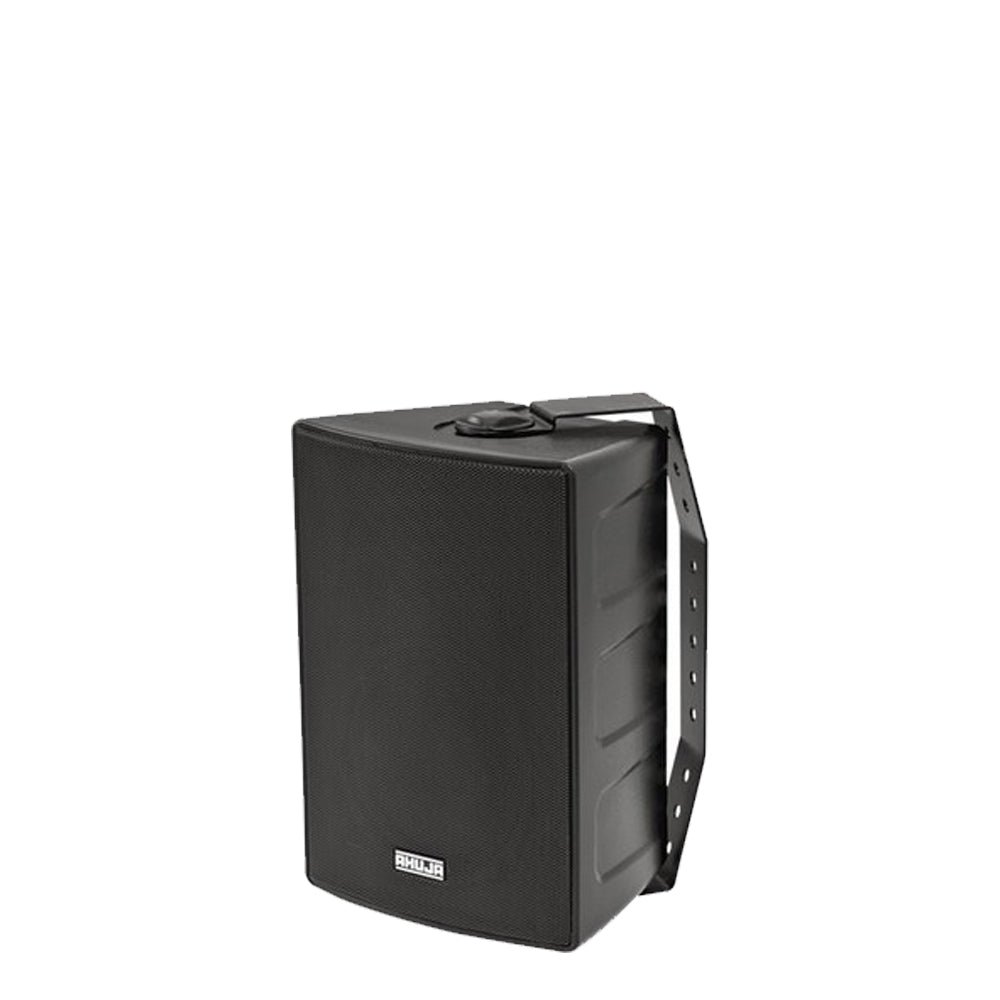

The Ahuja ASX-612BT is a two-way PA wall speaker for 100 V line systems, rated at 60 W RMS with a 90 W maximum. One clarification belongs at the top, because the model name misleads people regularly: the BT suffix on this speaker denotes the 100 V line version in black — it is not a Bluetooth speaker. There is no wireless input and no internal amplifier; this is a passive installation speaker that connects by cable to a 100 V line PA amplifier.

Inside the compact black plastic housing is a proper two-way design: a 163 mm (6.5 inch) woofer with a water-resistant PP-coated cone, a 25 mm titanium dome tweeter, and a two-way crossover network dividing the signal between them. The result is a frequency response of 50 Hz to 20,000 Hz and a sensitivity of 87 dB — a speaker voiced for clear speech and presentable background music rather than the voice-only honk of a basic paging box.

Key features

• Two-way design: 6.5 inch PP-coated woofer and titanium dome tweeter
• 60 W RMS power rating, 90 W maximum
• 100 V line operation with five selectable power taps
• Power taps of 60, 40, 30, 20 and 10 W on a rear rotary switch
• Frequency response of 50 Hz to 20,000 Hz, 87 dB sensitivity
• U-bracket supplied for firm, convenient wall mounting
• Water-resistant woofer cone for humid and semi-exposed areas

How 100 V line tapping works

In a 100 V line system, one amplifier feeds many speakers over long runs of ordinary cable, and each speaker takes only the power its tap selects. The ASX-612BT’s built-in line matching transformer offers 60, 40, 30, 20 and 10 W taps, chosen with a slotted rotary switch on the rear. Set a higher tap where a speaker must hold its own in a noisy lobby or a large hall, and a lower tap for a corridor or office where background level is enough. The installer’s rule is simple: add up the taps of every speaker on the line and keep the total within the amplifier’s rated output, with headroom to spare.

Where it is installed

The type of site this speaker is specified into is consistent: hotels, hospitals, schools, banks, airports, showrooms, offices and retail spaces — buildings that need announcements intelligible everywhere and music that does not embarrass the brand. The U-bracket makes mounting a one-person job and lets the speaker be aimed into the space it covers. At W 215 x H 310 x D 175 mm and about 3.22 kg, it is substantial enough to do its job without dominating a wall.

Planning the system around it

Work out coverage room by room, choose taps for the level each space needs, and confirm the amplifier can carry the summed load before wiring begins. Keep polarity consistent across every speaker on the line so they work together rather than cancelling each other, and set taps before the speaker goes up — the switch is on the rear. Speech intelligibility in a reverberant building owes as much to placement and tap choice as to the amplifier.

For 100 V line public address with genuine two-way sound — titanium dome tweeter, coated woofer, five honest power taps — the ASX-612BT is the complete wall-speaker package for commercial installations.
