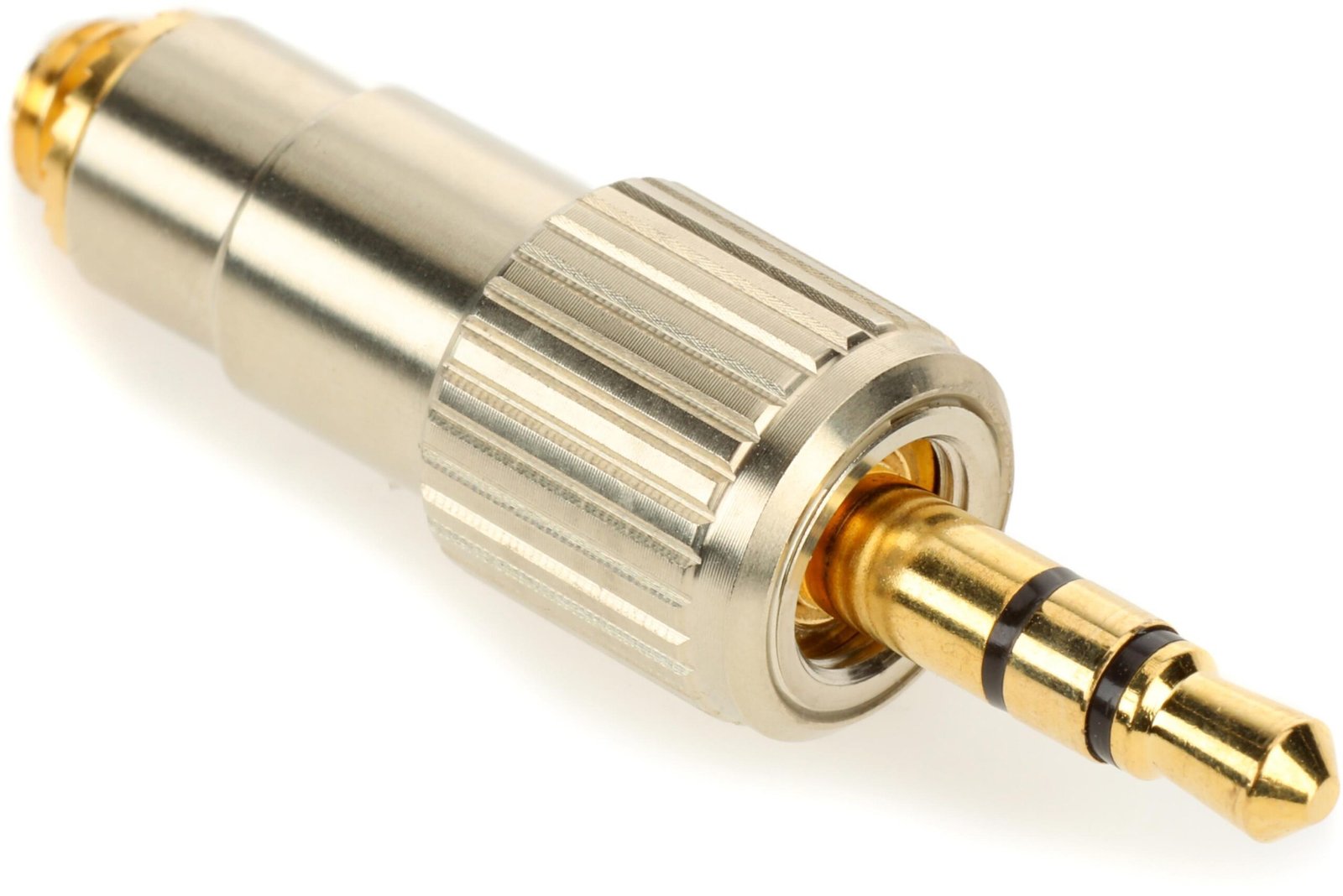

The DPA DAD9034 Adapter connects a DPA microphone with a MicroLock connector to a 3.5 mm locking mini-jack input, and the DPA DAD9034 Adapter is the link between DPA miniature microphones and Sennheiser wireless bodypacks. It fits Sennheiser Evolution, G2, G3 and D1 series transmitters, X2 Digital Wireless and Audio Ltd. En2 transmitters, so one DPA microphone can move between wireless systems instead of being locked to one brand’s connector.
Why Choose DPA DAD9034 Adapter?
Connector lock-in is expensive: a good lavalier should not need replacing when the wireless system changes. The DAD9034 solves that for Sennheiser users by adapting the MicroLock termination to the locking 3.5 mm socket that Sennheiser bodypacks use, with a locking mini-jack that cannot be pulled out mid-performance. The adapter is small, passive and robust, and it preserves the microphone’s sound, since it carries the signal and the bodypack’s bias power without adding electronics in the path.
Key Features
MicroLock to locking 3.5 mm: Adapts DPA MicroLock microphones to locking mini-jack bodypack inputs.
Sennheiser compatibility: Fits Evolution, G2, G3 and D1 series transmitters and X2 Digital Wireless.
Audio Ltd. compatibility: Also fits Audio Ltd. En2 transmitters.
Locking connector: The locking mini-jack stays seated during performance.
Passive design: No battery or extra electronics in the signal path.
System flexibility: Lets one DPA microphone serve multiple wireless systems.
Best Suited For
The DPA DAD9034 Adapter suits theatre, broadcast and event sound engineers who run Sennheiser wireless and own DPA MicroLock microphones, and rental companies that need to cross-hire microphones between systems. It is an adapter, not a microphone, and it fits MicroLock microphones only: MicroDot microphones need a different adapter. It is a small, inexpensive part that prevents a much more expensive mistake on show day.
Setup and Connection Guide
Plug the microphone’s MicroLock connector into the DPA DAD9034 Adapter and push the locking 3.5 mm plug into the bodypack transmitter until it locks. Check the bodypack’s input gain for the microphone, since DPA lavaliers are sensitive, and confirm the lock is engaged before the performer goes on. Keep the adapter on the bodypack side of the cable run, and do not force the locking ring: it should turn freely to lock and unlock. Keep the adapter in a small labelled pouch with the bodypack it belongs to, since MicroLock and MicroDot adapters look alike and are easy to confuse in a kit bag, and check the locking ring for smooth operation before each show so the plug cannot work loose during a performance.
Frequently Asked Questions
Which transmitters does the DAD9034 fit?
Sennheiser Evolution, G2, G3 and D1 series bodypacks, X2 Digital Wireless, and Audio Ltd. En2 transmitters.
Does it fit MicroDot microphones?
No. The DAD9034 is for MicroLock microphones. MicroDot microphones need the MicroDot adapter family, such as the DAD6001-BC for XLR or the DAD6034 for locking 3.5 mm.
Does the adapter need power?
No. It is passive and passes the bodypack’s bias power to the microphone.
