Bose Music Amplifier

Bose Music Amplifier

The Bose Music Amplifier is a streaming amplifier for homes that already have, or plan to install, passive speakers: in-ceiling and in-wall models, bookshelf pairs, or outdoor speakers on a terrace. Rather than asking those speakers to be replaced with powered smart speakers, it gives them a modern source and 125 watts per channel of amplification. Streaming is built in over Wi-Fi through the Bose Music app, with Apple AirPlay 2, Chromecast built-in and Spotify Connect all supported, alongside Bluetooth for direct playback from a phone. Analogue and optical inputs cover a television or a legacy source. The result is a compact, glass-topped unit that can sit in a rack, a cupboard or on a shelf and quietly run the wired speakers of a whole area of the house.

Key features

• 125 W per channel: Rated at 125 watts per channel into 8 ohms across 20 Hz to 20 kHz with no more than 0.1% THD, with 4 ohm stability for demanding speakers.
• Two pairs of speakers: One amplifier powers up to two pairs of passive speakers simultaneously, covering larger or adjoining spaces from a single zone.
• Built-in streaming: Wi-Fi streaming through the Bose Music app, plus AirPlay 2, Chromecast built-in and Spotify Connect for direct playback from music apps.
• Bluetooth playback: A direct Bluetooth connection handles quick playback from phones and tablets without joining the network.
• Wired inputs: An analogue RCA line input and an optical input connect televisions, disc players and other external sources.
• SimpleSync grouping: Compatible Bose Wi-Fi products can be grouped so the wired speakers play in step with other Bose speakers around the home.
• Bass module output: A 3.5 mm analogue output connects a wired bass module where a system needs more low-frequency weight.
• Daisy-chain expansion: Additional Bose Music Amplifiers can be linked as supplemental units to extend the same system into more areas.

Designed for installed speakers

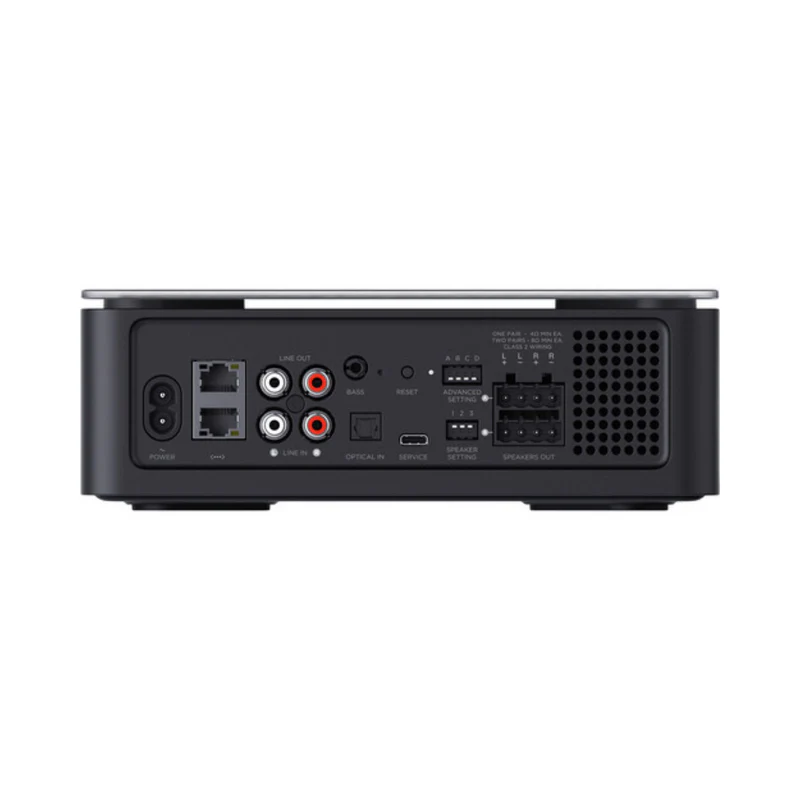

Many homes have good passive speakers already fitted, particularly in ceilings, and until recently those speakers were stranded with ageing sources. This amplifier is built for exactly that situation. Rear-panel switches configure how it behaves: it can run as the main network-connected amplifier or as a supplemental unit fed from another amplifier, it can sum its output to mono for speakers spread far apart, and its line output can be set to fixed or variable level. Preset EQ curves for selected Bose speakers, including the 251 environmental speakers and the 791 in-ceiling speakers, are selectable so installed models are driven with the correction Bose intended for them.

Everyday control

Day-to-day operation runs through the Bose Music app, which handles source selection, volume, grouping and EQ for the zone. Streaming services are reached either inside the app or by casting and AirPlay from the apps listeners already use, and Spotify Connect hands playback to the amplifier so the phone is free. A wired Ethernet connection sits alongside Wi-Fi for installations where the amplifier lives in a rack with structured cabling. Signal-to-noise ratio is rated above 100 dB, keeping background hiss inaudible through sensitive ceiling speakers at low evening volumes.

Form factor and installation

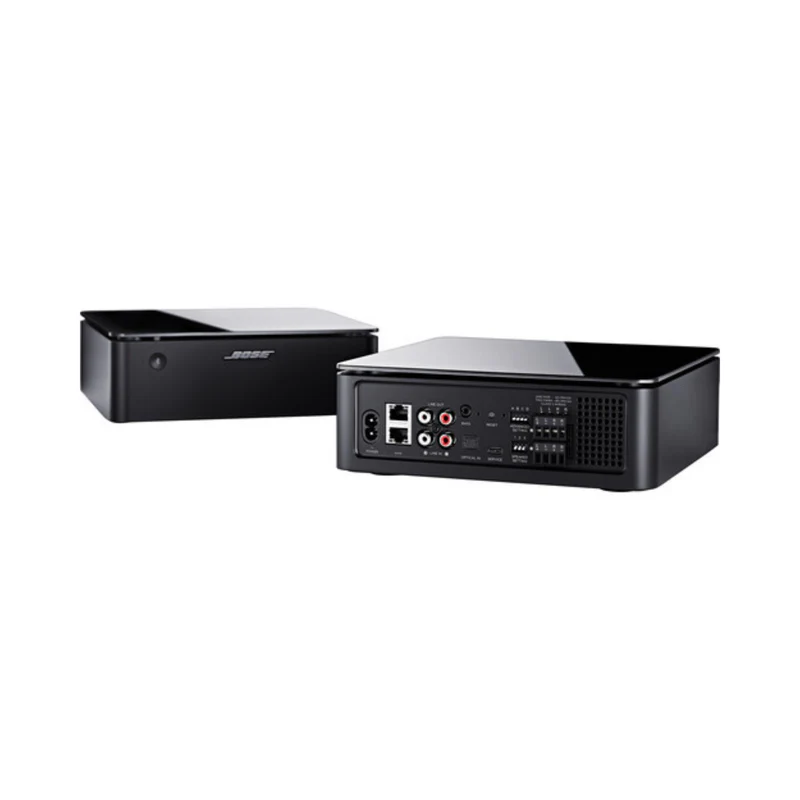

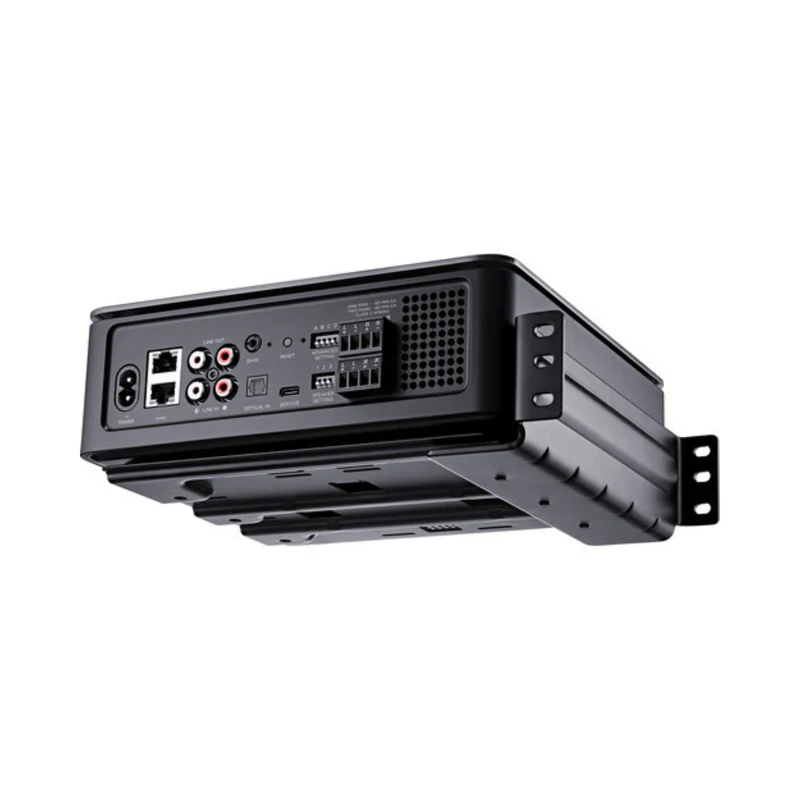

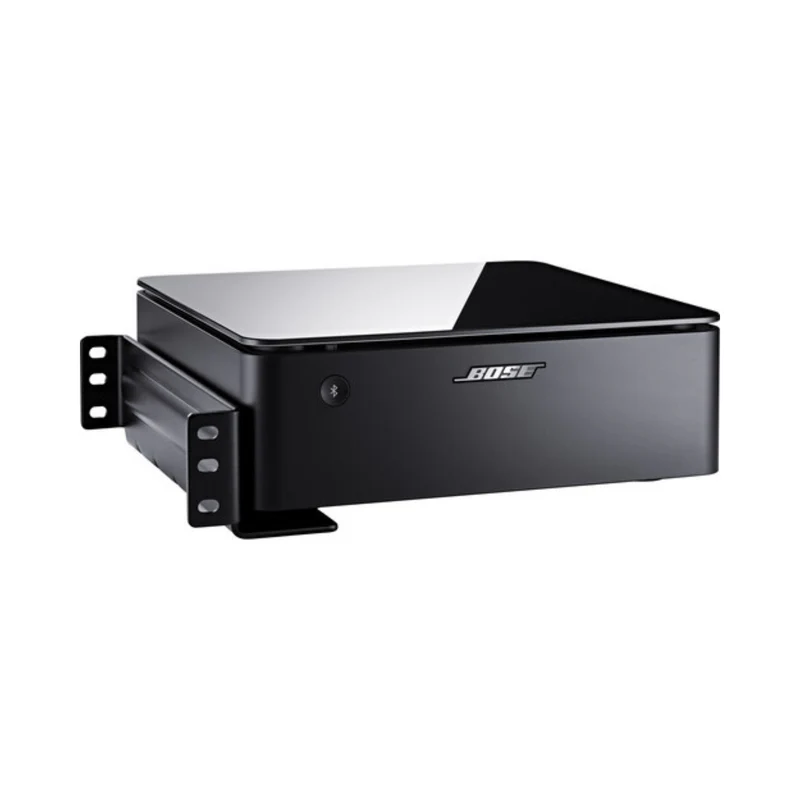

The amplifier measures approximately 21 x 21 x 7.3 cm and is finished with a glass top panel, small enough to stack or to mount in a rack with other units for multi-area installs. Because it is a single zone, both pairs of speakers it powers play the same source at the same volume; homes needing independent areas simply use one amplifier per area, linked through the app or by daisy-chaining. Speaker connections are conventional wired terminals, so existing cable runs are reused rather than replaced.

The Bose Music Amplifier brings passive speakers, including speakers already installed in a home, onto a modern streaming platform with substantial power in reserve: 125 watts per channel, flexible configuration, and control from the phone already in your pocket.
