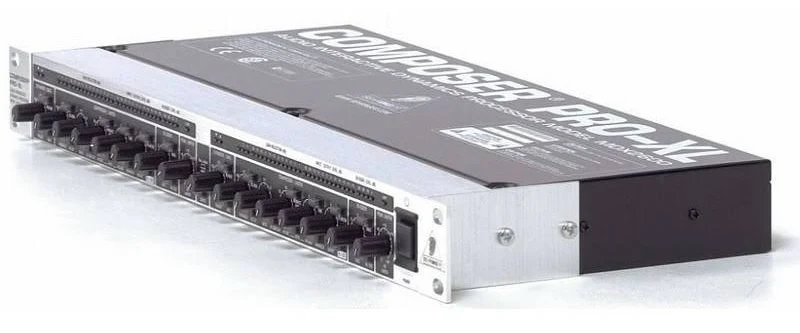

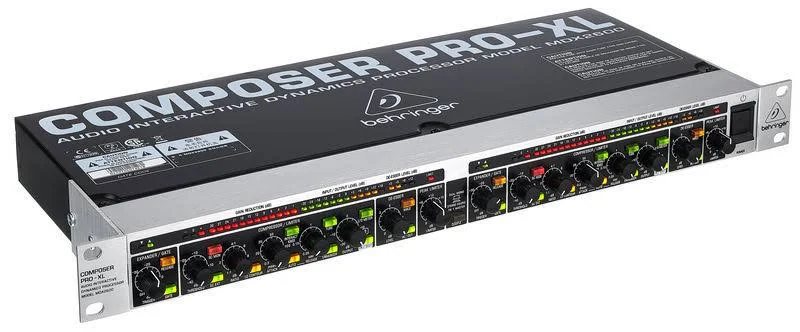

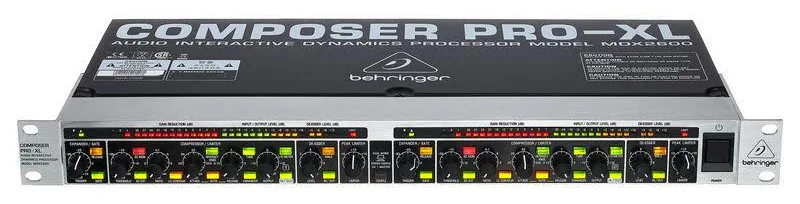

Behringer COMPOSER PRO-XL MDX2600 Compressor

Behringer COMPOSER PRO-XL MDX2600 Compressor
Behringer COMPOSER PRO-XL MDX2600 is a two-channel dynamics processor for compatible line-level audio systems, with compression, limiting and additional signal-control functions. Why Choose Behringer COMPOSER PRO-XL MDX2600? MDX2600 is intended for a mixer insert or another suitable line-level processing route. Its documented dynamics arrangement includes expansion/gating, compression and peak limiting, with de-essing and enhancement functions in the model family. Stereo linking supports appropriate two-channel use. The inventory does not establish a V2 suffix, so confirm the supplied generation before relying on a particular revision’s controls or accessories. Tube-simulation wording describes a processing feature; it should not be used as proof of a physical vacuum-tube signal stage. Set processing by listening and metering rather than applying maximum reduction. Key Features – Two audio channels: supported stereo or separate processing. – Dynamics control: compression and peak limiting. – Additional functions: documented gating and de-essing. – Line-level integration: suitable inserts or signal routes. Best Suited For
Controlling level variation and selected signal characteristics in a suitable recording or live-audio route. Use compression to serve the performance rather than treating more gain reduction as an automatic improvement. A dynamics processor can alter transients and noise audibility, so compare the processed signal with bypass at a similar listening level. Setup and Connection Guide
Connect the processor through a supported line-level or mixer-insert route with levels down. Establish clean input and output levels before enabling dynamics. Start with modest threshold and ratio settings, listen to the loudest expected passage and check the gain-reduction meter. Adjust attack, release and output compensation around the actual source. Use stereo linking where the programme needs coordinated channel behaviour, and verify any sidechain connection separately. Check bypass again after adjustment. Record the working settings for the session and avoid compensating for clipping elsewhere in the chain by changing compression alone. Frequently Asked Questions
Does this compressor add microphone preamps or computer USB recording? Those functions are not established by this listing. Use it in a supported line-level route with suitable upstream gain and a separate recording interface where computer capture is required. Does compression automatically remove background noise? No. Compression reduces selected level differences and can make quiet background sound more apparent when output gain is added. Gating has a different role and should also be adjusted carefully around the source. Will a limiter make any downstream speaker system immune to overload? No. Protection depends on the complete gain structure, amplifier, speaker limits and processing configuration. Use suitable settings and monitor the system; a limiter is not a substitute for correct load and level planning. Technical Specifications Specification
Detail Model
COMPOSER PRO-XL MDX2600 Role
Two-channel dynamics processing Main functions
Compressor, limiter and expander/gate Additional controls
Check supplied revision’s de-esser and enhancement section Stereo operation
Supported linking Generation
V2 suffix not established by inventory Tube simulation
Not a physical-tube claim Explore Related Equipment
