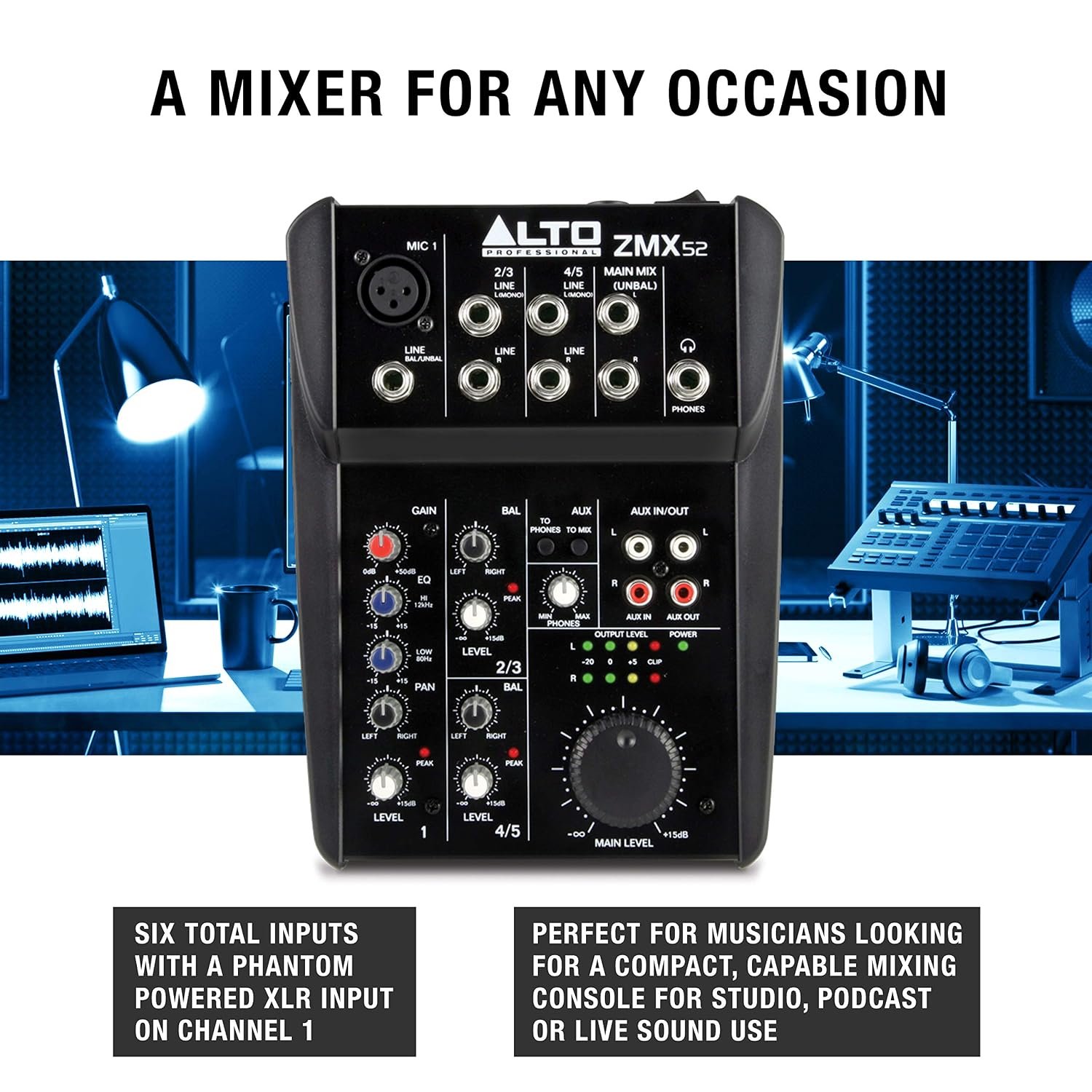

Alto Zephyr ZMX52 Compact 5-Channel Mixer

Alto Professional Zephyr ZMX52 – A Compact 5-Channel Mixer That Keeps Things Simple

The Alto Zephyr ZMX52 is a compact analogue mixer for jobs that need one voice and some music, balanced properly, without a full-size console. It combines one microphone channel with two stereo line channels in a small desktop unit, giving a solo performer, presenter or small venue a single place to set levels, shape tone and send a clean stereo mix to powered speakers or an amplifier.

There is no computer connection and no menu system. Everything is a physical control on the surface, which is precisely the appeal for rehearsals, small performances, presentations and desktop audio where the mixer is set up quickly and used by whoever is in the room.

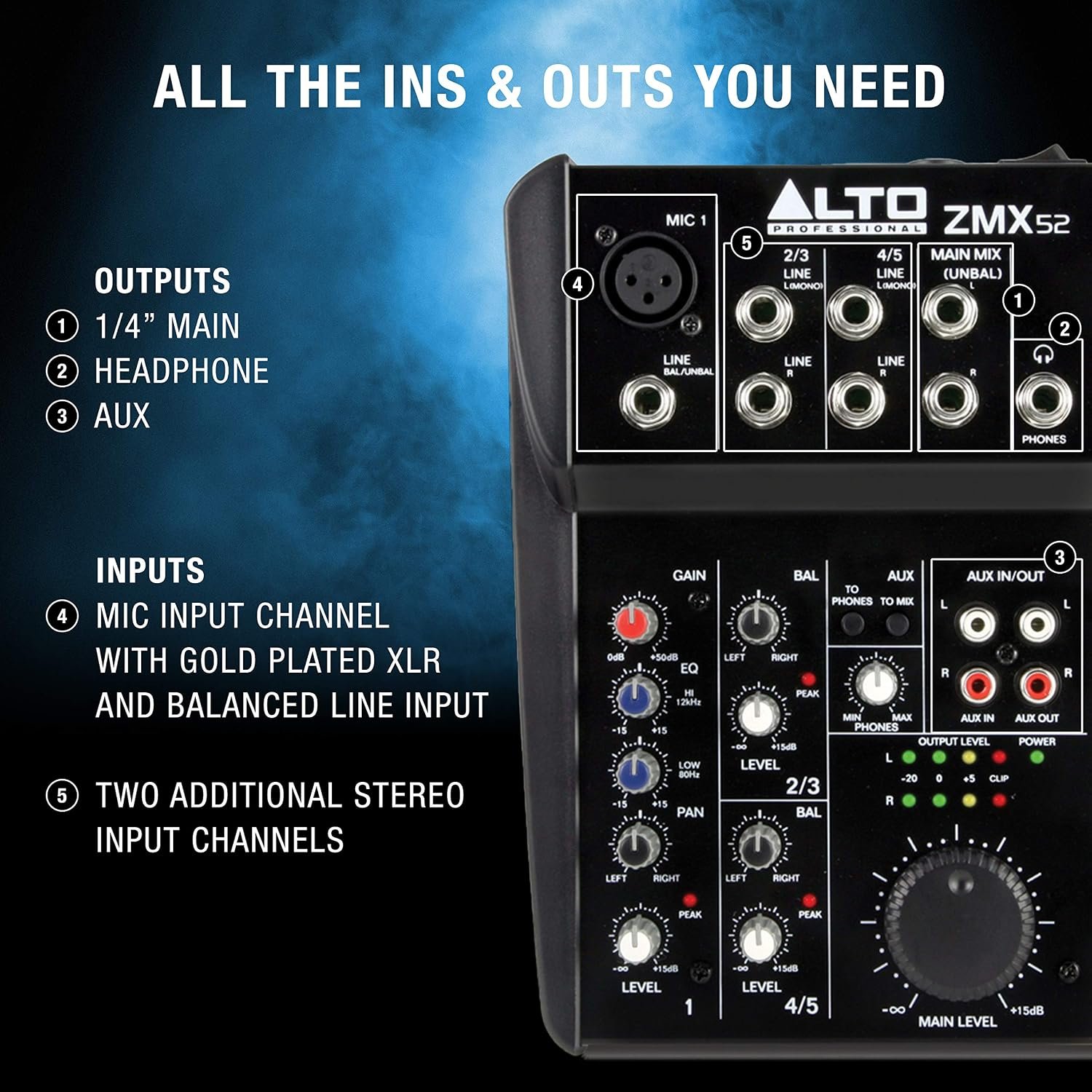

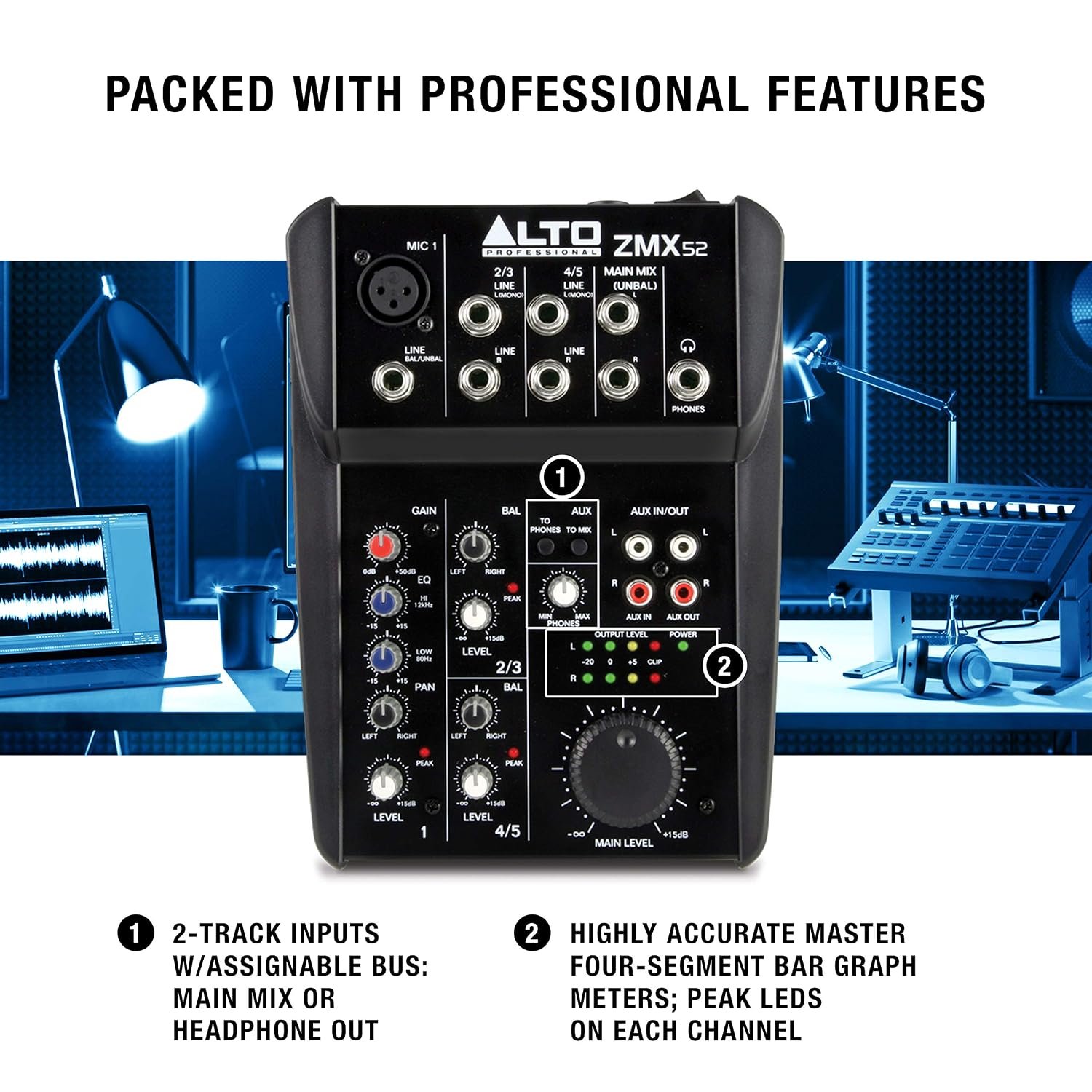

Key features

• 5-channel analogue mixer: one mono channel and two stereo channels
• XLR microphone input on the mono channel for a single voice source
• Two stereo line channels for instruments, players and playback devices
• Two-band EQ on the mono channel to shape vocal tone
• 18 V phantom power on the microphone channel
• Headphone output for checking the mix locally
• RCA input and output for playback and recording connections
• Main stereo output to feed powered speakers or a power amplifier
• No USB audio – a purely analogue signal path

The 18 volt phantom power point, made clear

The microphone channel supplies 18 V phantom power, not the 48 V found on larger consoles. Many microphones work happily within that range, but some condensers specify full 48 V, so check your microphone’s requirement before relying on it. Dynamic microphones, the usual choice for live vocals and presentations, do not need phantom power at all. Knowing this one detail in advance avoids the common disappointment of a condenser microphone performing below its best on a small mixer.

Setting a clean mix

Good results come from gain structure, not from pushing faders. Start with channel and master levels low, raise the microphone gain until strong peaks sit comfortably below clipping, then bring the stereo sources in underneath the voice rather than over it. Use the two-band EQ sparingly: a little less low end often cleans up a voice in a reflective room more effectively than adding brightness. Turning the master down cannot repair an input that is already distorting, so set the input first.

What it connects to, and what it does not do

The main output is line level, so passive speakers still need a power amplifier between the mixer and the cabinets; powered speakers connect directly. The ZMX52 does not record to a computer by itself. If you need a digital copy, feed its output into a separate audio interface or recorder. Judged on its own terms, it is an honest small mixer for one voice and stereo playback.

For small gigs, rehearsal rooms, classrooms and presentation setups that need simple, reliable source balancing, the Zephyr ZMX52 covers the essentials without bulk or complication.
