Antelope Audio Orion Studio Synergy Core Audio Interface

Antelope Audio Orion Studio Synergy Core Audio Interface

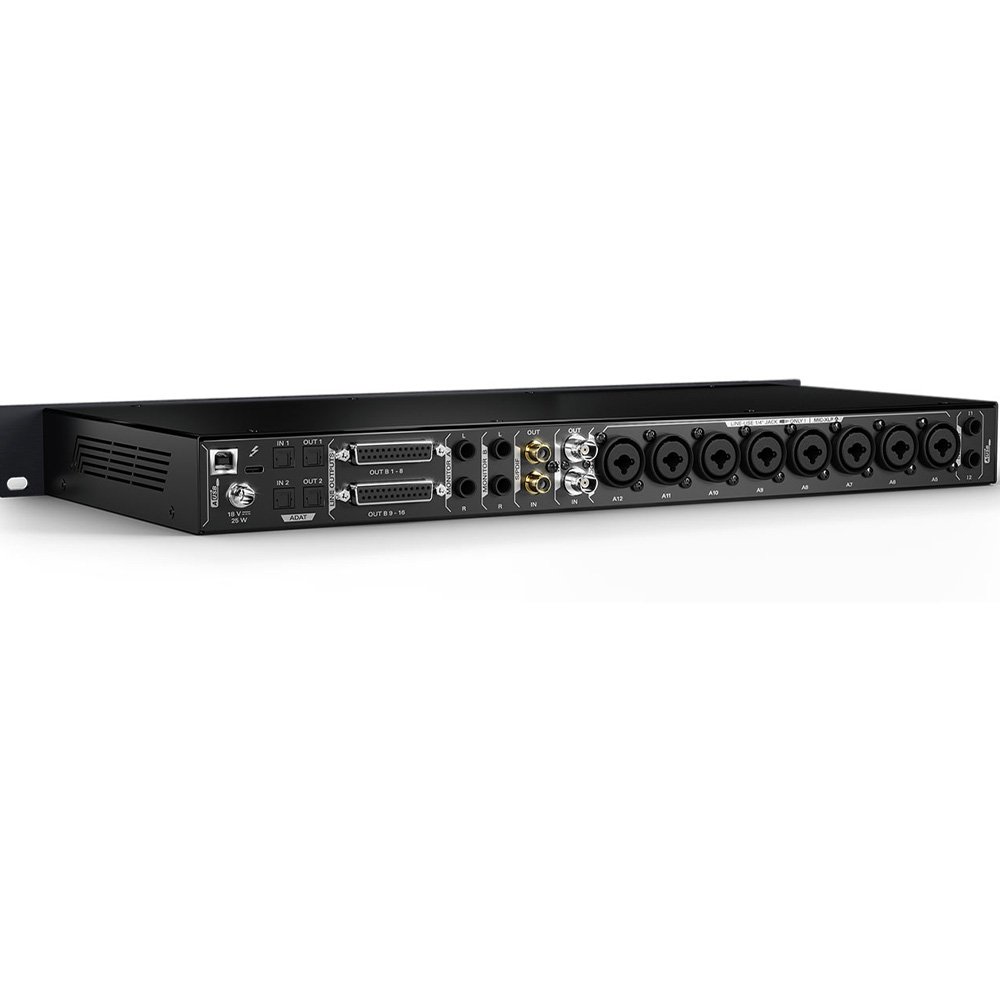

Antelope Audio Orion Studio Synergy Core is a studio audio interface combining 12 microphone preamps with onboard Synergy Core processing. Thunderbolt 3 and USB 2.0 connection options let a compatible computer become the centre of a multi-source recording system. Why Choose Antelope Audio Orion Studio Synergy Core? Its analogue routing includes DB25 line-output connections, dedicated reamp outputs and four instrument-capable inputs. This suits studios recording a group or working with external analogue equipment. Plan the breakout cables, driver support and signal routing around the session rather than assuming every socket creates an additional independent recording channel. Key Features – 12 microphone preamps: support larger recording sessions. – Synergy Core processing: runs compatible onboard effects. – Thunderbolt 3 or USB 2.0: provides computer connection choices. – Dedicated reamp outputs: assist workflows involving guitar amplifiers. Best Suited For
Home and professional recording workflows where microphones, instruments or line sources need a computer audio connection. Choose the number of simultaneous inputs first, then check monitoring, digital expansion and computer support. DSP capability and included software are separate considerations from the physical recording-channel count. Setup and Connection Guide
Check the exact model’s current driver and operating-system requirements before installation. Connect it through the specified port and cable, then select the interface in the recording software. Begin with gain and monitor level low, configure the required input type and test each source. Enable phantom power only for microphones or devices that require and support it. Save a simple working routing setup before adding more complex processing. Frequently Asked Questions
Is a USB-C socket enough for Thunderbolt operation? No. Thunderbolt operation requires a supported Thunderbolt port and cable. USB operation follows the interface’s separate USB requirements. Check current drivers, firmware and host-connection guidance for your computer. Does a USB-C-shaped port always mean Thunderbolt? No. USB-C describes a connector shape, while USB and Thunderbolt are different connection standards. The interface, computer port and cable must all support the required standard. Are extra plug-ins and cables always included? Package contents and software licences vary by edition and registration status. Confirm the supplied cables, breakout accessories and eligible software rather than assuming that every listing includes the same bundle. Technical Specifications Specification
Detail Mic preamps
12 Instrument-capable inputs
4 Line outputs
16 via DB25 Reamp outputs
2 Computer connection
Thunderbolt 3 or USB 2.0 Headphone outputs
2 Explore Related Equipment
Compare the features and connection requirements of Apogee Duet 3 2-In 4-Out USB Audio Interface when planning your setup.
