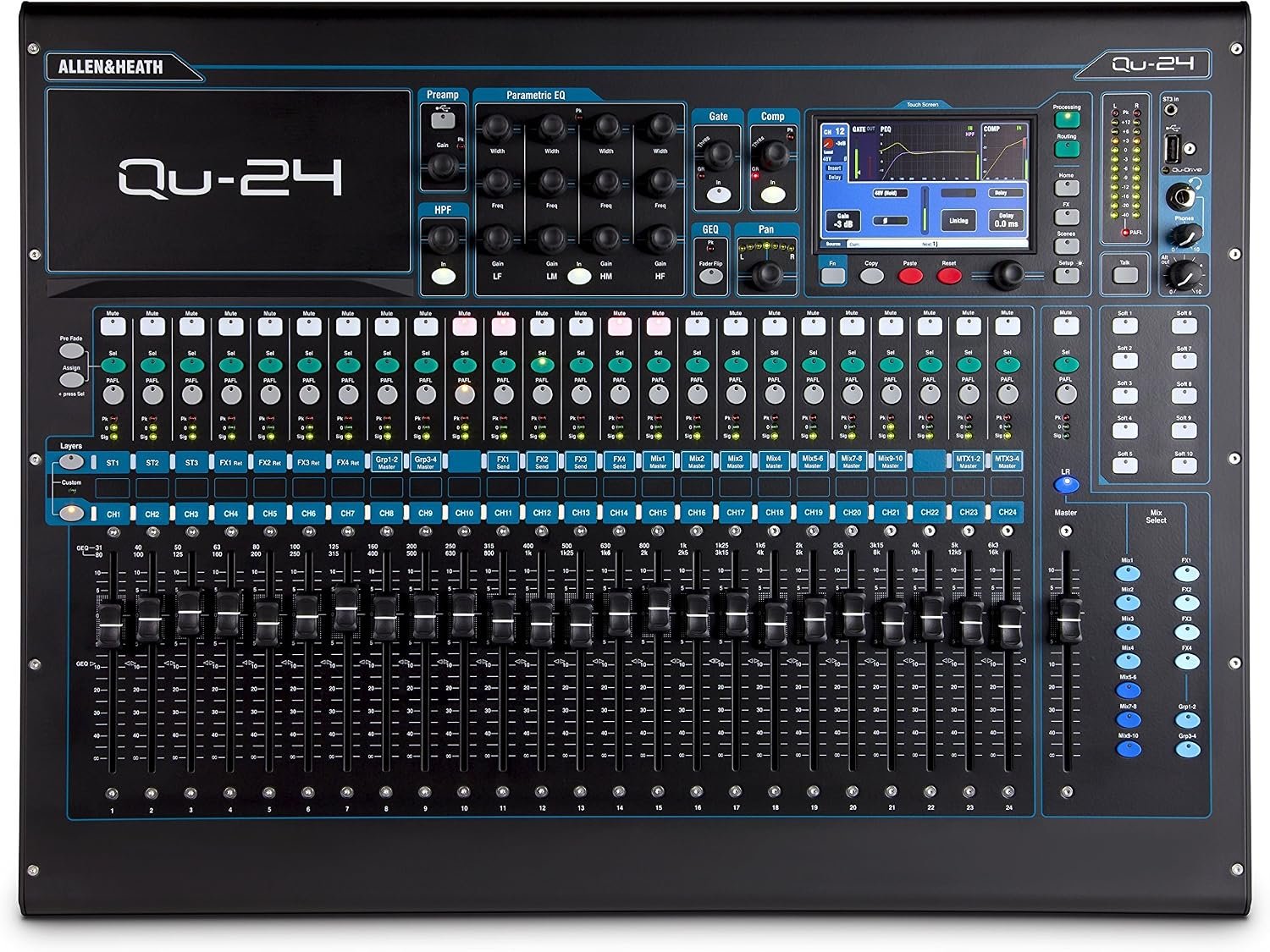

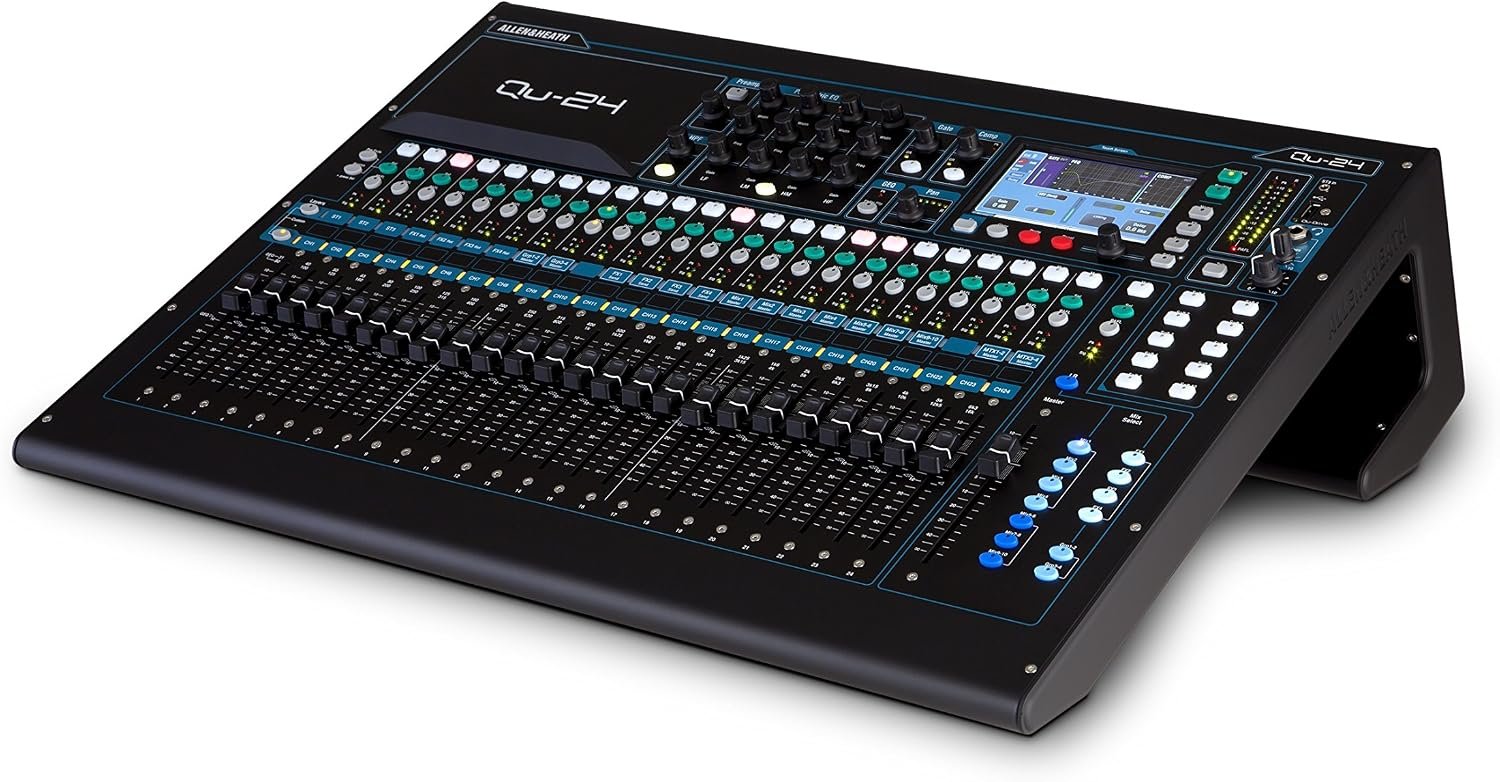

Allen & Heath QU-24 Digital Mixing Console
SKU ALLEN-HEATH-QU-24
Original price was: ₹384,600.₹210,000Current price is: ₹210,000. Save ₹174,600 (45%)
- Price includes GST, invoice provided
- Dispatched the same day
- Cash on delivery up to ₹45,000
- Money-back if it arrives damaged
Allen & Heath Qu-24 is a digital console with 24 recallable AnalogiQ microphone preamps and 25 motorised faders. It combines hands-on live mixing with onboard processing, scene recall and USB recording facilities for bands, venues and installed systems.
Currently out of stock
Tap to send us a WhatsApp message. We’ll reply as soon as it’s back in stock, and can suggest a similar model in the meantime.

Product highlights
- BrandAllen and Heath
- ModelQu-24
- Product TypeDigital Mixing Console
- Mono Mic and Line Inputs24
- Stereo Inputs3
- Mic Preamps24 recallable AnalogiQ preamps
Description
The Allen & Heath Qu-24 is a 30-in / 24-out digital mixing console built for live sound: 24 recallable AnalogiQ microphone preamps, 25 motorised faders and a colour touchscreen put a full band mix, monitor mixes and multitrack recording under one pair of hands. It sits between the Qu-16 and Qu-32 in Allen & Heath’s original Qu range, and suits bands, venues, houses of worship and hire companies that want a self-contained desk rather than a rack of outboard gear.
Why Choose the Allen & Heath Qu-24?
The Qu-24’s strength is that nothing essential is an add-on. The preamps are digitally controlled and fully recallable, so a saved scene restores gain as well as fader positions; the multitrack recorder is built in, so a show can be captured without a computer; and the dSNAKE port lets the inputs live on stage while the console stays at front of house.
Key Features
- 24 AnalogiQ recallable preamps: digitally controlled mic/line inputs with zero-crossing detection and padless 1 dB-step gain.
- 25 motorised ALPS faders: 24 faders across two layers plus a master fader that follows the selected mix, so recalled scenes restore levels exactly.
- Qu-Drive multitrack recording: 18 channels of 48 kHz / 24-bit recording and playback straight to a USB drive, with no computer required.
- 32 x 30 USB audio interface: streams up to 32 selectable tracks to a Mac or PC.
- Four stereo iLive FX engines: reverbs, delays, modulators and flangers derived from Allen & Heath’s iLive touring series.
- Flexible mixing and expansion: up to 9 monitor mixes (4 mono + 5 stereo), 20 mix outputs, 2 stereo groups and 2 stereo matrix mixes, plus a dSNAKE port for remote stageboxes and ME personal mixing.
Best Suited For
Live bands and engineers mixing full input lists, venues and houses of worship, installed systems needing scene recall, and hire companies that want one desk to cover FOH, monitors and recording.
Setup and Connection Guide
Patch the stage to the 24 local mic/line inputs (TRS + XLR) and three stereo inputs, or run a Cat5 cable from the dSNAKE port to an AR2412 or AR84 stagebox for remote inputs. Set preamp gain at performance level with headroom to spare, build monitor mixes before the main mix, and store a starting scene so the desk resets quickly. For recording, plug a USB drive into Qu-Drive for 18-track capture, or connect a Mac or PC for the 32 x 30 USB interface.
Frequently Asked Questions
How many tracks can Qu-Drive record?
Qu-Drive records 18 channels at 48 kHz / 24-bit direct to a USB drive — 16 mono channels plus a selectable stereo pair. The computer USB interface is a separate path that streams up to 32 tracks.
Can the inputs be placed on stage, away from the console?
Yes. The dSNAKE port connects an AR2412 stagebox for 24 remote inputs or an AR84 for 8, over a single Cat5 cable, and the same port supports ME-1 personal mixers so performers can control their own monitor mixes.
Can the console be controlled from an iPad?
Yes. The free Qu-Pad app connects over Wi-Fi and gives full access to live mixing parameters, and user permissions can restrict what an operator is allowed to change.
Technical Specifications
| Specification | Detail |
|---|---|
| Inputs | 24 mono mic/line (TRS + XLR), 3 stereo (TRS) |
| Outputs | 20 mix outputs (XLR), main LR, 2-track, AES digital and ALT outputs |
| Preamps | 24 AnalogiQ total-recall preamps, padless 1 dB-step gain |
| Faders | 25 motorised ALPS faders (24 over 2 layers + master) |
| Display | 800 x 480 colour touchscreen with dedicated data encoder |
| Monitor mixes | Up to 9 (4 mono + 5 stereo); 2 stereo groups; 2 stereo matrix mixes |
| FX | 4 stereo iLive FX engines, 4 dedicated sends and stereo returns |
| Recording | Qu-Drive: 18-track, 48 kHz / 24-bit to USB drive; 32 x 30 USB interface to Mac/PC |
| Remote I/O | dSNAKE port for AR2412 / AR84 stageboxes and ME personal mixing system |
| Scenes | Up to 100 full scenes |
| Sample rate | 48 kHz |
| Remote control | Qu-Pad iPad app over Wi-Fi |
Complete your setup: Pair the Allen & Heath QU-24 Digital Mixing Console with the Sennheiser MD 421-II Dynamic Cardioid Studio Microphone and the JBL IRX ONE All-in-One Powered Column PA System.
Explore Related Products
For a larger channel count in the same Qu family, see the Allen & Heath QU-32 Digital Mixing Console.
Buying guide: Best Audio Mixer in India
Additional Information
Specifications
| Brand | Allen and Heath |
|---|---|
| Model | Qu-24 |
| Product Type | Digital Mixing Console |
| Mono Mic and Line Inputs | 24 |
| Stereo Inputs | 3 |
| Mic Preamps | 24 recallable AnalogiQ preamps |
| Motorised Faders | 25 |
| Mix Outputs | 20 XLR |
| FX Engines | 4 |
| Display | 800 x 480 colour touchscreen |
| USB Audio Interface | 32 x 30 |
| Qu-Drive Recording | 18-track recording and playback to USB drive |
| Remote Audio | dSNAKE port for AR2412 and AR84 AudioRacks |
| Sampling Rate | 48 kHz |
| Scene Memories | 100 |
| Model / SKU | ALLEN-HEATH-QU-24 |
| Category | Audio Mixer |
| Condition | Brand new, sealed box |
| Warranty | Official manufacturer warranty (India) |
| GST invoice | Yes, input credit available |
