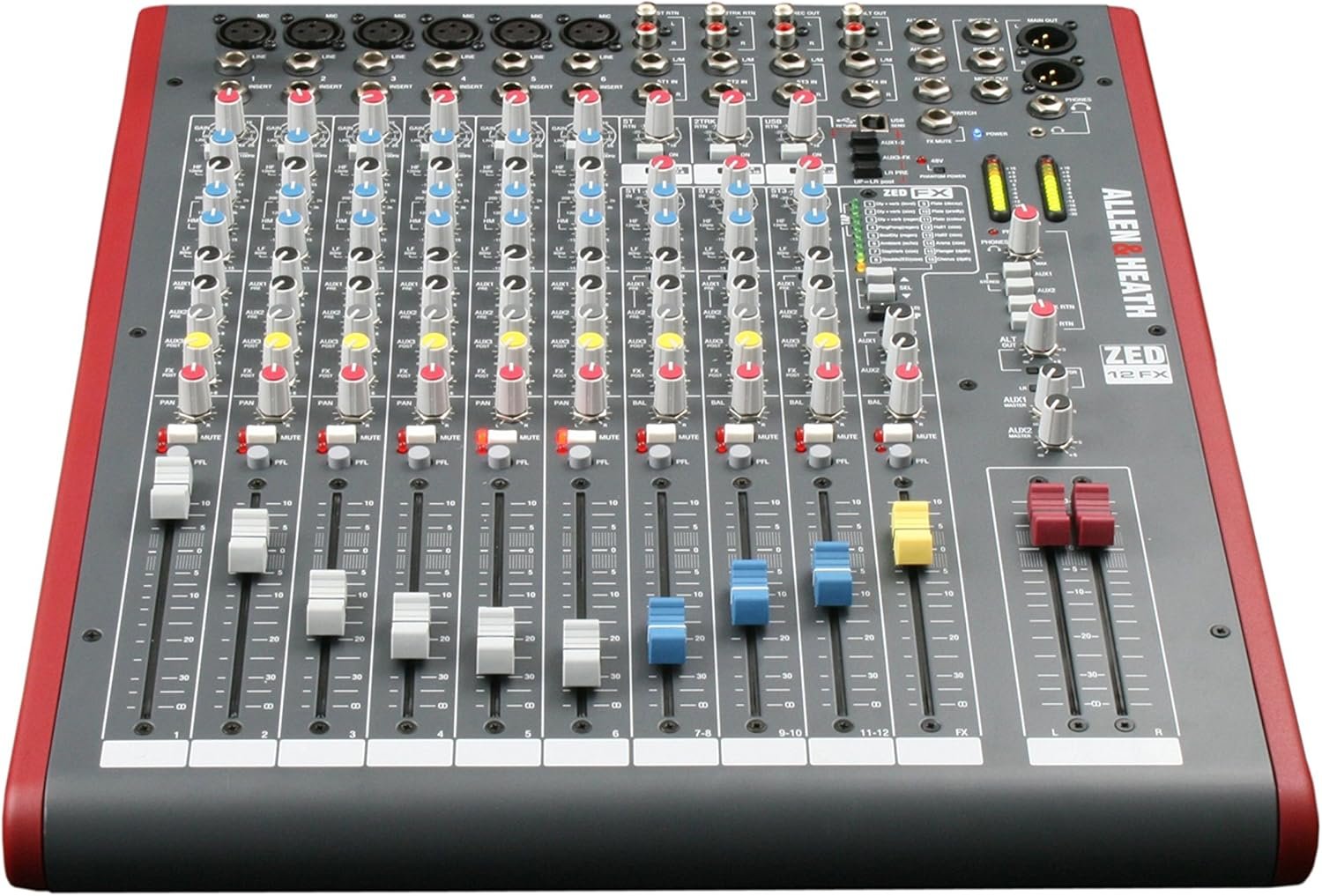

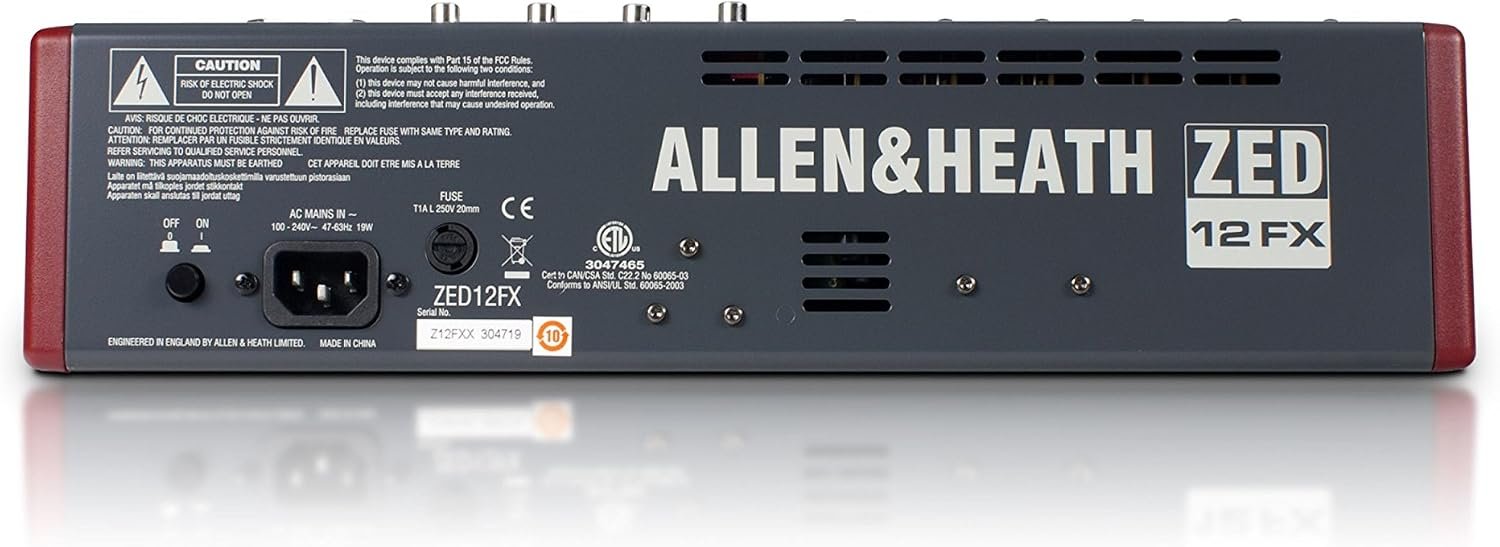

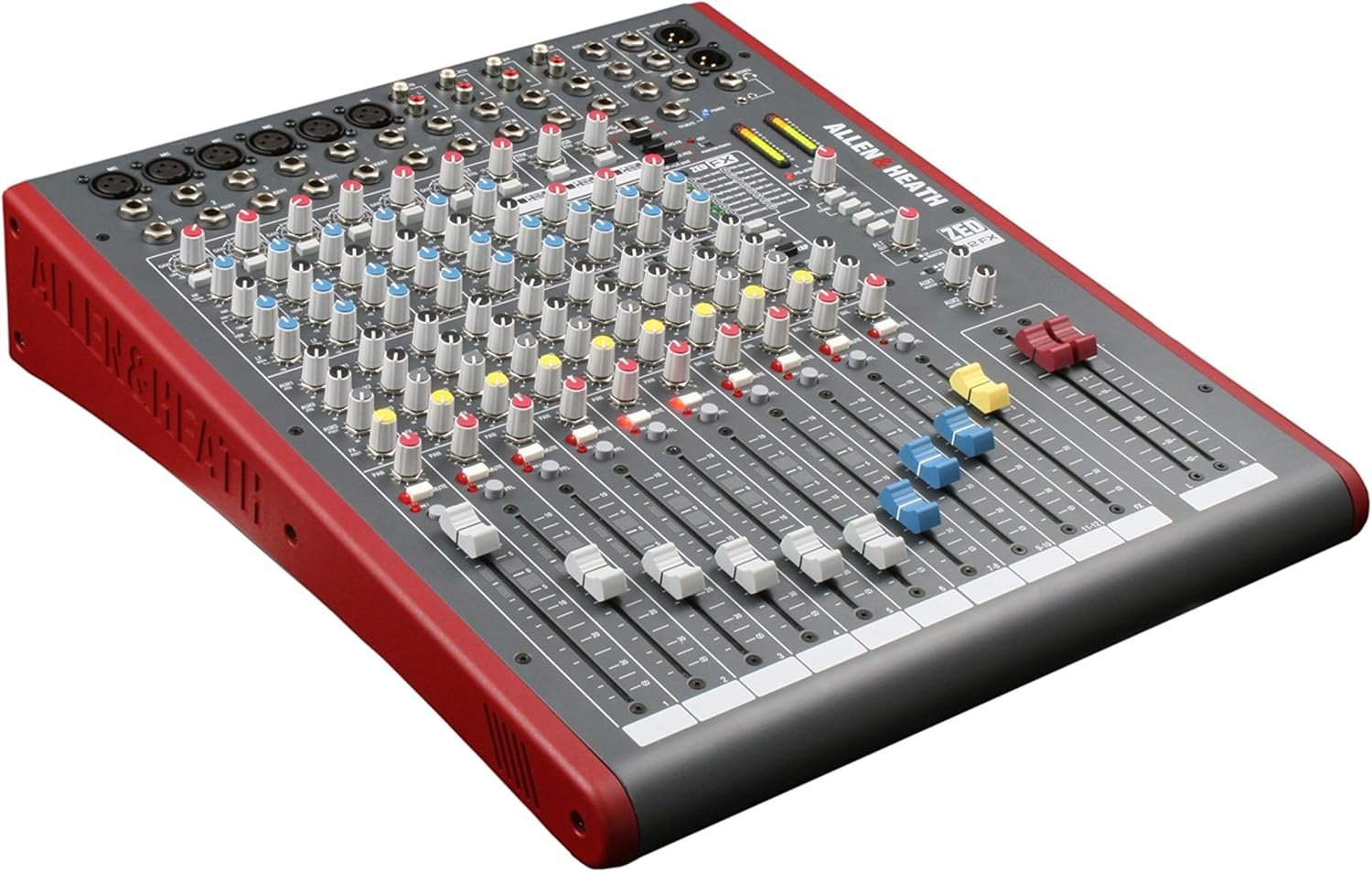

Allen & Heath ZED-12FX USB Analogue Mixer With Effects
SKU ALLEN-HEATH-ZED-12FX
₹75,000Original price was: ₹75,000.₹55,000Current price is: ₹55,000.Save ₹20,000 (27%)
Price includes GST, invoice provided
Dispatched the same day
Cash on delivery up to ₹45,000
Money-back if it arrives damaged
Allen & Heath ZED-12FX is an analogue mixer with six microphone channels, three stereo channels and built-in effects. Its stereo USB audio connection makes it useful for bands, rehearsals and straightforward computer recording without moving to a digital-console workflow.
Allen & Heath ZED-12FX USB Analogue Mixer With Effects
Allen & Heath ZED-12FX USB Analogue Mixer with Effects
Allen & Heath ZED-12FX is an analogue mixer with six microphone channels, three stereo channels and built-in effects. Its stereo USB audio connection makes it useful for bands, rehearsals and straightforward computer recording without moving to a digital-console workflow. Why Choose Allen & Heath ZED-12FX? The channel mix is particularly useful when several microphones must share the desk with keyboards or other stereo sources. Use the auxiliary sends for monitoring and effects, and set the USB routing according to whether you need to record the mix or return computer playback. Key Features – Six mic and three stereo channels: balance vocal and instrument sources. – DuoPre preamps: provide the microphone gain stages. – Onboard effects: add suitable time-based processing without a separate unit. – Stereo USB audio: supports simple recording and playback. Best Suited For
Live bands, rehearsal systems and operators who prefer a visible physical mixing layout. Setup and Connection Guide
Write the input list first, then allocate main outputs, monitor sends and recording feeds. Set each preamp from the loudest expected source and balance channels with the faders. Check the signal level required by connected processors and powered speakers. A mixer prepares the audio signal; passive loudspeakers still need suitable power amplification. Frequently Asked Questions
Will USB record every input separately? No. The USB connection provides stereo audio, not an independent multitrack stream for every channel. Choose an appropriate multichannel interface or digital mixer if isolated tracks are essential. Does the channel count describe USB tracks? No. Physical input count, bus count and computer recording channels are different specifications. Check the specific USB implementation and whether optional hardware is required for the intended recording task. Can I connect condenser microphones? Use appropriate microphone inputs and the phantom-power facilities described in the mixer manual. Check the connected equipment before enabling power and lower monitoring levels during connection changes. Technical Specifications Specification
Detail Microphone channels
Six Stereo channels
Three Effects
16 onboard effects presets USB audio
Stereo recording/playback EQ
Three-band with swept mid on mono channels Explore Related Equipment
Compare the features and connection requirements of Allen & Heath ZED60-14FX Compact USB Effects Mixer when planning your setup.
Key specifications:
Connectivity: USB
Additional Information
Specifications
Mono channels
6 with DuoPre mic/line preamps
Stereo channels
3 with 2-band EQ and additional jack and RCA inputs
Built-in effects
16 internal effects (reverbs, delays and modulation)
USB audio interface
Stereo USB in/out, 16-bit, 32 / 44.1 / 48 kHz
Mono channel EQ
3-band MusiQ with swept mid
Auxiliary sends
4 (2 pre-fade, 1 post-fade, 1 internal FX)
Brand
Allen & Heath
Model
ZED-12FX
Faders
ALPS 100 mm
Phantom power
Global 48 V
Channel inserts
Inserts on all 6 mono channels, plus main L/R inserts
Headphone outputs
6.3 mm and 3.5 mm
Metering
12-bar L/R LED meters
Frequency response
20 Hz to 20 kHz, plus 0.5 / minus 1 dB (mic in to mix out)
Dimensions
385 x 98 x 465 mm (W x H x D)
Weight
6.5 kg (unpacked)
Model / SKU
ALLEN-HEATH-ZED-12FX
Category
Audio Mixer
Condition
Brand new, sealed box
Warranty
Official manufacturer warranty (India)
GST invoice
Yes, input credit available
