Behringer S32 AES50 Digital Stagebox

Behringer S32 AES50 Digital Stagebox

Behringer S32 is a remote digital stagebox with thirty-two microphone preamps and sixteen analogue XLR outputs for compatible AES50 systems.

Why Choose Behringer S32?

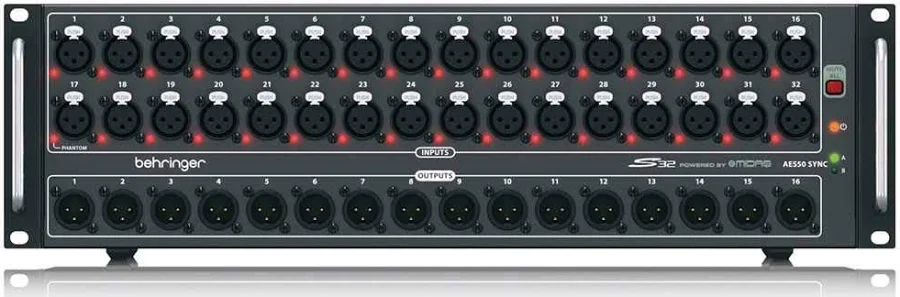

S32 extends the physical connection points of an appropriate host console, keeping stage cabling organised while transporting multichannel audio over AES50. Its thirty-two Midas-designed preamps serve microphone inputs; the sixteen XLR outputs carry the console’s patched return signals to suitable downstream equipment. This is different from a standalone rack mixer with its own complete mixing engine. Compatibility must be established from the transport and host specification, not from the presence of an RJ45-shaped socket. The USB service connection should not be described as a thirty-two-channel recording interface.

Key Features

• Thirty-two preamps: remote microphone input capacity.
• Sixteen XLR outputs: console-patched analogue returns.
• AES50 transport: compatible host connection.
• Stagebox format: remote I/O rather than standalone mixing.

Best Suited For

Moving compatible console inputs and outputs closer to the stage through the documented digital audio transport. Count microphone preamps, analogue returns and transport channels separately. A stagebox supplies remote I/O for a supported host; it does not automatically provide a complete standalone mixer or a direct USB recording system.

Setup and Connection Guide

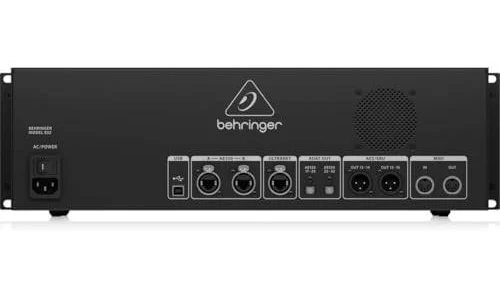

Confirm the host console, transport protocol and supported firmware arrangement before connecting the stagebox. Use the specified shielded cable and grounded connector arrangement for AES50 and follow the documented link topology. Set the clock and synchronisation relationship, then patch the remote inputs and outputs at the console. Begin with outputs quiet, confirm stable synchronisation and test each microphone and return channel independently. Apply phantom power only to appropriate sources. Keep ordinary control networking separate from the stagebox audio link unless the manufacturer explicitly documents an alternative routing method.

Frequently Asked Questions

Can S32 expand XR18 simply through its Ethernet control port?

No. XR18 control networking is not an AES50 stagebox input. S32 requires a compatible AES50 host, such as the appropriately configured console arrangement documented by the manufacturer.

Can an AES50 stagebox be plugged into an ordinary network switch?

Do not assume Ethernet-style plugs make the audio link standard office networking. Follow the supported AES50 cable and topology instructions. Console control networking and AES50 audio transport have different roles.

Does the stagebox USB socket automatically provide multitrack recording?

Check its documented purpose. A service or firmware USB connection is different from a computer audio interface. Use the supported console recording card or interface for the required recording channels.

Technical Specifications
