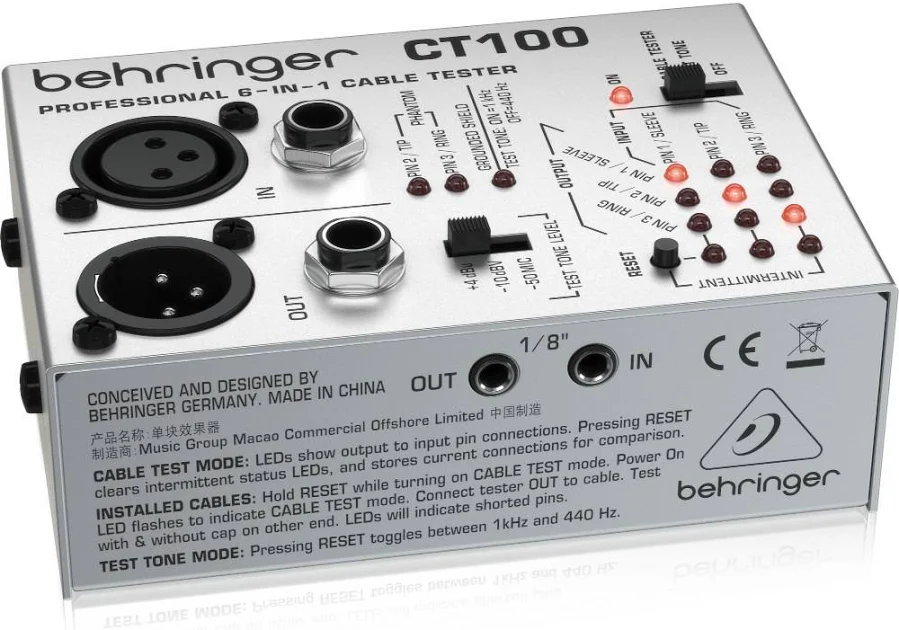

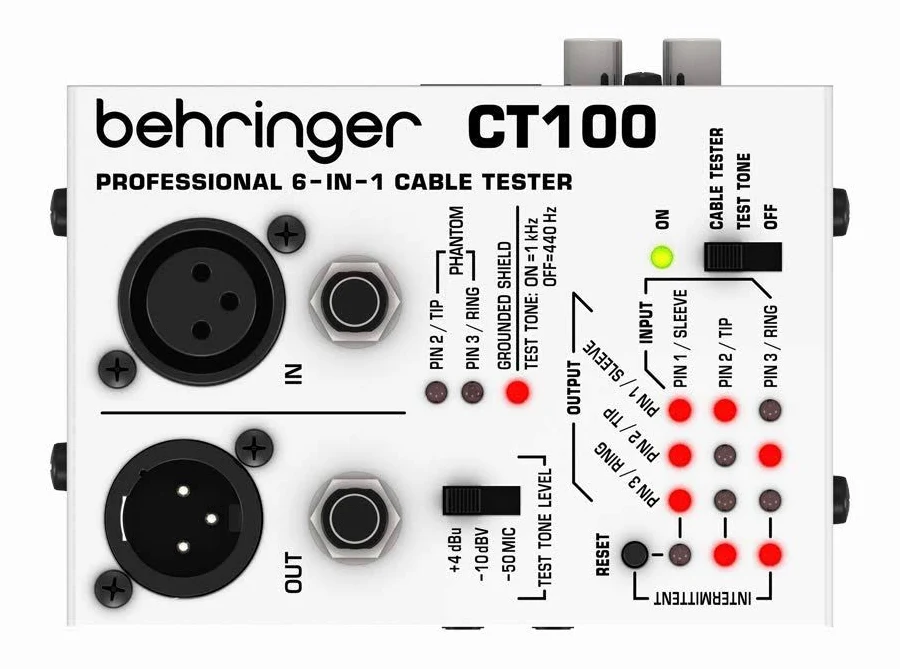

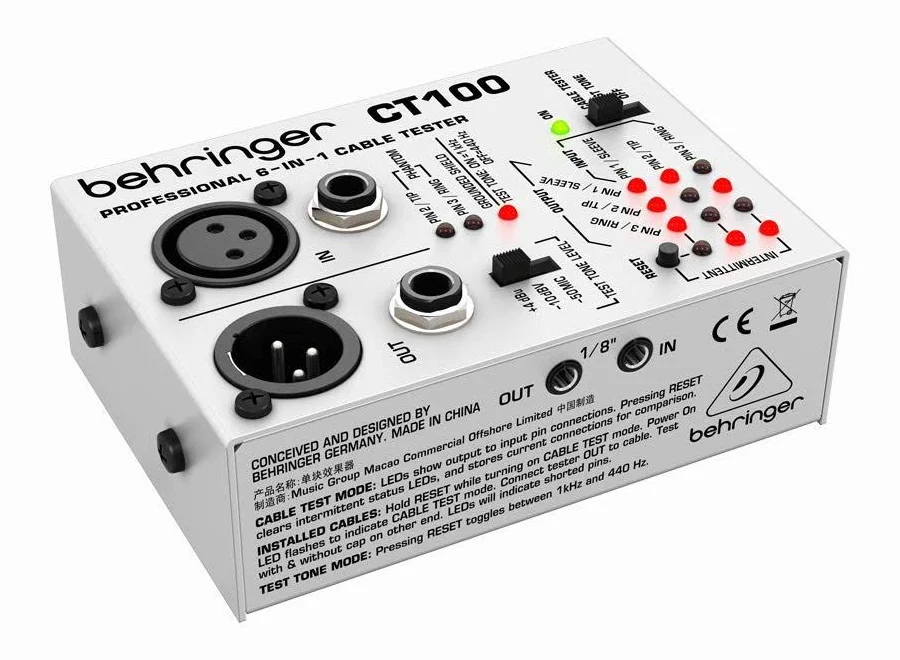

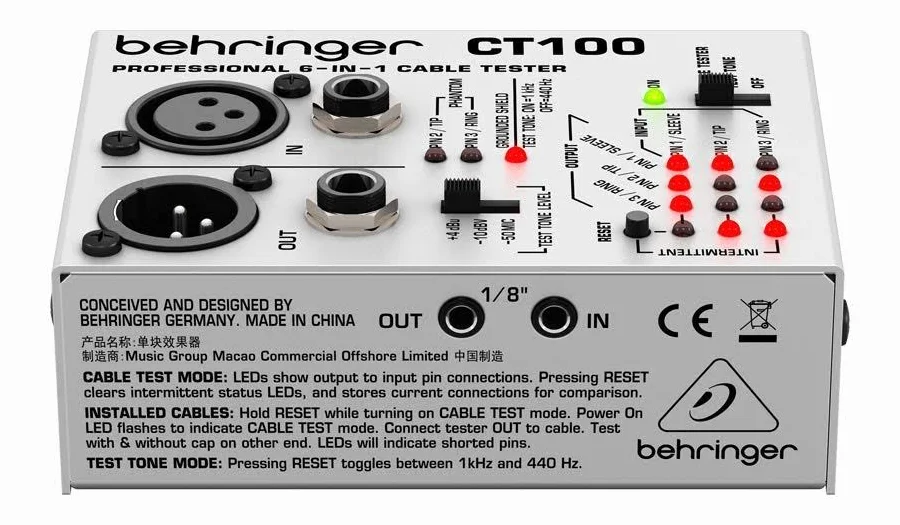

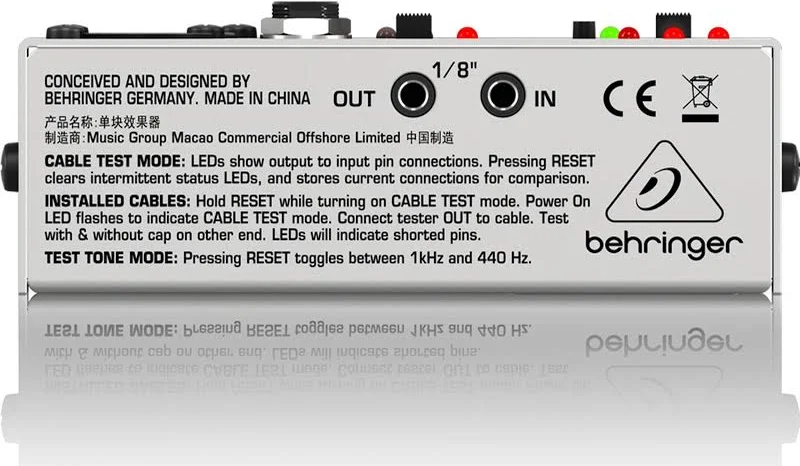

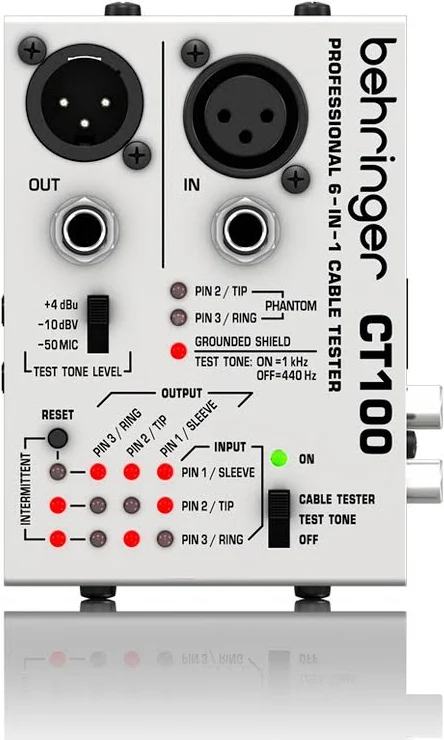

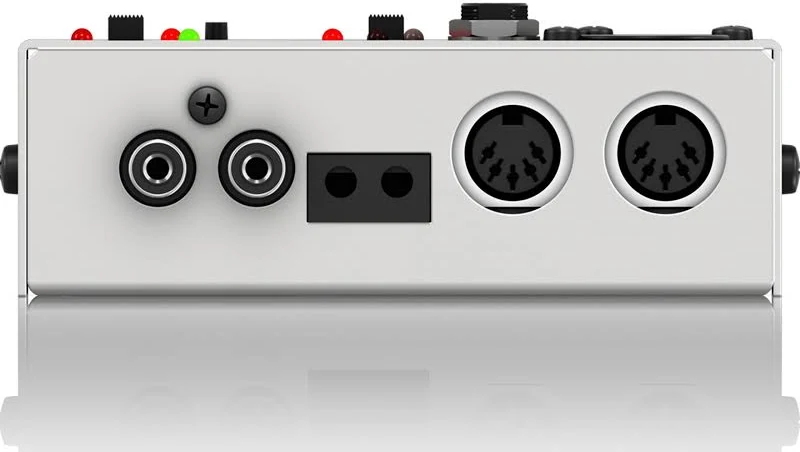

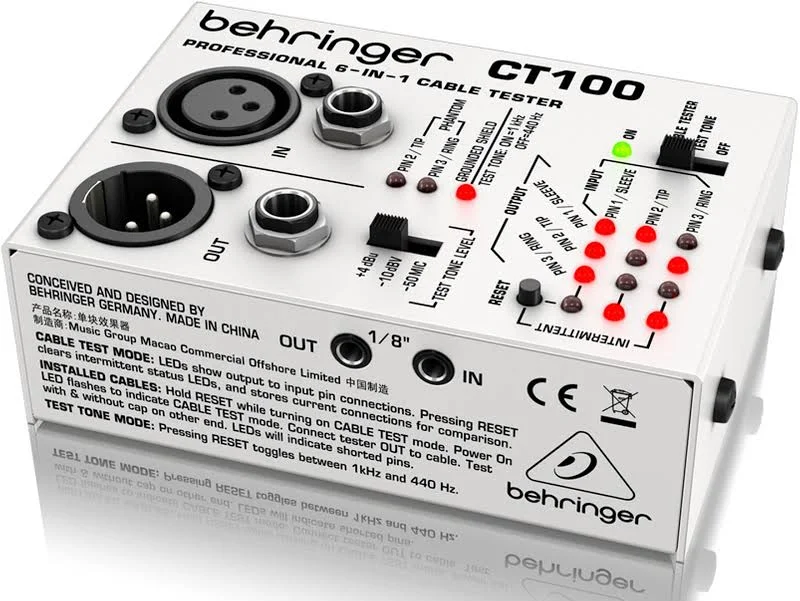

Behringer CT100 Audio Cable Tester

Behringer CT100 Audio Cable Tester

Behringer CT100 Audio Cable Tester
Behringer CT100 is a portable six-in-one cable tester for supported audio and MIDI wiring. Its cable-test, installed-test and tone functions help isolate common connection faults. Why Choose Behringer CT100? CT100 accepts XLR, quarter-inch and smaller phone connectors, RCA and MIDI connections in its documented arrangement. Continuity and intermittent-fault indications help check a cable before it reaches a live stage or recording session. Phantom-power and grounded-shield checks use their own supported procedures, while the battery-powered format is practical for a technician’s kit. A continuity tester does not measure every aspect of an audio cable or establish HDMI bandwidth. Use it alongside an end-to-end listening test when diagnosing the complete audio route. Key Features – Multiple connectors: supported audio and MIDI cable types. – Cable checks: continuity and intermittent faults. – Separate modes: cable, installed test and tone. – Portable power: two AA batteries in the reference design. Best Suited For
Checking supported analogue audio and MIDI cables before recording, rehearsals or events. A small tester can help separate a wiring problem from a source or receiving-equipment fault. Choose its connector and test mode around the actual cable, and follow the exact manual when using installed-cable or powered-circuit checks. Setup and Connection Guide
Begin with the cable disconnected from equipment and connect both ends to the appropriate tester sockets. Select cable-test mode and compare the indicated pin connections with the intended wiring. Move the lead gently near plugs while observing the supported intermittent-fault indication. Test another known-good cable if the result is uncertain. Use tone or phantom-detection modes only according to the manual and the connected equipment’s requirements. Label or repair faulty leads and retest them before returning them to a working system. Frequently Asked Questions
Does a passing CT100 test guarantee an HDMI cable can carry 8K? No. CT100 is designed for its documented audio/MIDI wiring tests. HDMI performance requires a suitable HDMI test or an end-to-end check at the intended video format; analogue continuity is not a bandwidth certification. Does a continuity result prove that a cable supports digital high-speed video? No. Basic analogue wiring tests do not establish HDMI bandwidth, Ethernet performance or every digital signal requirement. Use the appropriate test equipment and end-to-end signal check for those connections. Can I test any connected circuit in the ordinary cable-test mode? Follow the mode-specific instructions. Start ordinary continuity checks with the cable disconnected. Tone injection and phantom detection are separate procedures and should not be treated as permission to connect arbitrary powered outputs. Technical Specifications Specification
Detail Model
CT100 Type
Portable audio/MIDI cable tester Connections
XLR, phone types, RCA and MIDI as documented Checks
Continuity, intermittency, phantom presence and grounded shields Modes
Cable test, installed cable test, tone Power
2 × AA batteries HDMI certification
Not a supported bandwidth test Explore Related Equipment
