Mx 2896 Banana Plug

Mx 2896 Banana Plug

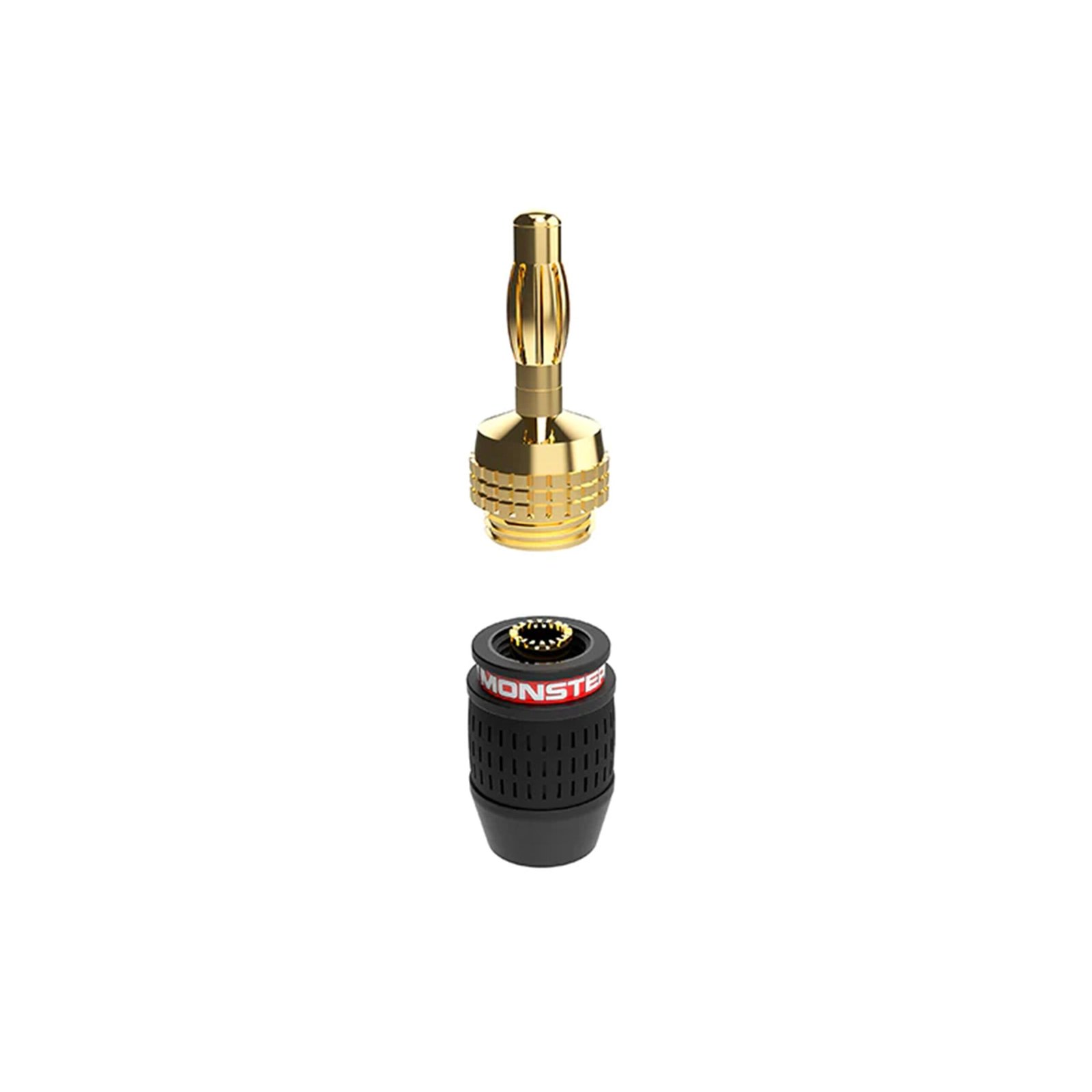

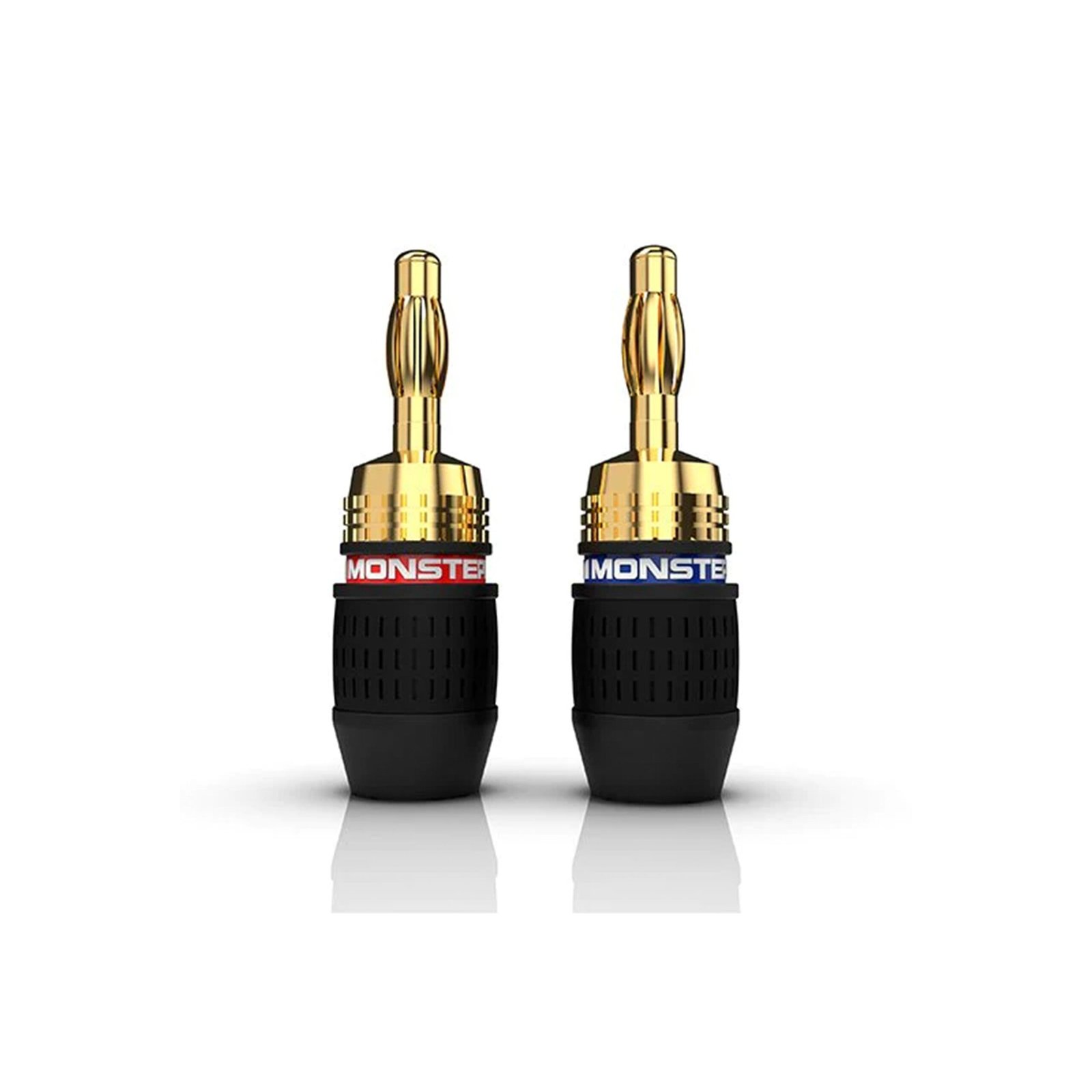

The MX 2896 is a 4 mm banana plug for terminating speaker cable and test leads. The listing describes a gold-plated plug with a beryllium copper contact design, made for secure connections between amplifiers, speakers and test devices. Banana plugs exist to solve a simple problem: bare stranded wire frayed into binding posts makes poor, inconsistent contact and risks stray strands shorting adjacent terminals. A terminated plug gives you a defined, repeatable contact that pushes in and pulls out cleanly every time you change equipment.

Key features

• Standard 4 mm banana plug format for amplifier and speaker binding posts
• Gold-plated contact surface as listed, for corrosion-resistant contact
• Beryllium copper contact design as listed, chosen for spring and contact reliability
• Terminates speaker cable for quick connect and disconnect
• Suits test devices and bench leads as well as hi-fi speaker runs
• Keeps stranded conductors contained instead of fraying at the terminal

Why terminate with banana plugs

A 4 mm banana plug is the near-universal size for hi-fi binding posts, so a cable terminated with the MX 2896 moves easily between amplifiers, AV receivers and speakers without re-twisting wire each time. That matters more than convenience alone: every bare-wire re-termination loses a few strands and oxidises a little more, while a plug keeps the conductor bundle intact and the contact surface consistent. On the test bench the same logic applies — a plug that seats firmly gives repeatable readings instead of measurements that change when a loose lead is knocked. The spring character of the contact is what keeps the plug seated under vibration and cable weight, which is exactly the property a beryllium copper contact is selected for.

Fitting and good practice

Before fitting, check that your amplifier and speaker terminals actually accept 4 mm plugs — some binding posts ship with plastic blanking caps in the centre hole that must be removed first, and some spring-clip terminals do not accept plugs at all. Strip only as much insulation as the plug’s termination requires, keep every strand inside the barrel, and make sure the finished termination grips the conductor firmly with no whiskers escaping. Observe polarity end to end: terminate the positive conductor with the same convention at both the amplifier and speaker ends, and if your plugs or cables are colour marked, keep red to positive throughout. After fitting, give each plug a gentle pull test and a powered test at low volume before running the system hard.

Where it fits

The MX 2896 suits home hi-fi and home theatre speaker wiring, workshop and bench test leads, and any setup where equipment is swapped often enough that bare wire becomes a chore. It is a single plug format for one conductor end, so a stereo pair of speakers with two conductors per side needs four plugs at each end of the run if both ends are to be fully terminated. Buy the count your wiring plan actually needs, terminate carefully once, and the cable set stays tidy, consistent and easy to service for years.
