MX EP 3.5mm Stereo Female Connector

MX EP 3.5mm Stereo Female Connector

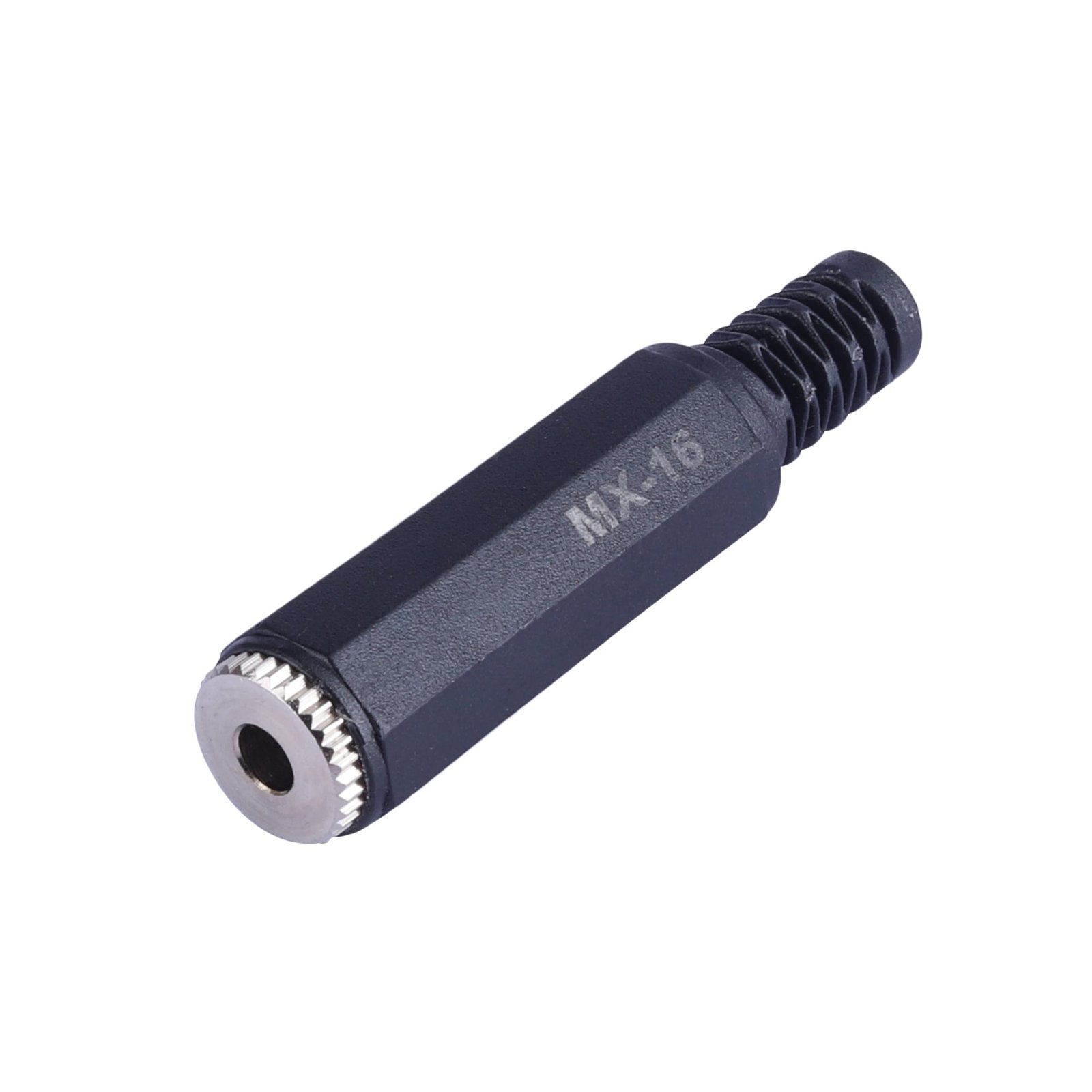

The MX EP 3.5 mm stereo female connector is a cable-mounting jack — an inline socket that fits on the end of a cable rather than in a panel. The listing describes it as a connector for repairs and DIY projects, with copper-plated contacts and a compact body that solders up neatly. Its uses follow from that form: replacing a worn-out headphone socket on an extension or adapter cable, building a custom 3.5 mm extension lead to a specific length, or terminating a home-made cable that needs a stereo socket at one end. Small connectors of this kind are workshop and repair-bench staples, because the socket end of small audio cables wears just as surely as the plug end does, and replacing it returns the whole cable to service.

Key features

• 3.5 mm stereo female jack for cable mounting
• Copper-plated contacts for a corrosion-resistant connection
• Compact body that solders up neatly
• For repairs, extensions and DIY cable projects
• Accepts standard 3.5 mm stereo plugs
• MX EP series connector
• Suitable for repair shops, hobbyists and installers

When the socket is the part that wears out

A 3.5 mm connection has two halves, and fault-finding on an intermittent cable often ends at the socket: its internal contact springs flex every time a plug is inserted, and after enough insertions, or enough side-loading from a plug hanging at an angle, those contacts lose their grip. The result is the familiar crackle, a channel that drops when the cable moves, or a plug that no longer seats with a positive feel. Replacing the socket restores the connection without touching the rest of the cable — the right repair when the cable itself is a good one, is an unusual length, or is already installed where re-running a new cable would be a bigger job than the repair. The same connector serves the opposite situation as well: building a new extension or adapter lead from bulk cable, where the socket is needed as the finishing part.

Contacts and soldering

The listing identifies copper-plated contacts. Contact material and plating matter in a socket because the contact springs are the electrical interface: a plated surface resists corrosion, keeping the connection to the plug’s shaft clean and the contact resistance low, so both stereo channels pass without the noise that oxidised contacts introduce. The connector is terminated by soldering, and the listing notes that the compact body solders up neatly — the three connections, left channel, right channel and common, are made inside the body and then closed in by it. Keep the work tidy: the contact points in a 3.5 mm connector are close together, so conductors should be trimmed short, soldered cleanly and checked for stray strands before the body is assembled. Once closed, a gentle flex test at the cable entry while listening through the finished lead confirms the termination is mechanically sound.

Building an extension or repair lead

An extension lead is the most common project for this connector: a length of suitable stereo cable, a 3.5 mm stereo plug on one end and this female connector on the other produces an extension made to the length the setup actually needs — across a desk to a headphone position, from an amplifier to a listening chair, or inside a small installation where the socket needs to be reachable. Keep the channel assignment consistent when you wire it, left to left and right to right, so the extension passes the stereo image through unchanged. For repairs, cut the old socket off with a short section of cable to remove any conductors damaged by flexing at the entry point, then terminate the fresh cable end in the new connector. In both cases, support the cable at the entry of the connector so everyday bending is not concentrated on the solder joints.

Compatibility and care

Compatibility is defined by the plug: this socket accepts standard 3.5 mm stereo plugs, which covers headphones, portable players, phones and computers with wired audio, small speakers and the wide range of equipment that uses this format. It is a stereo socket, matching stereo plugs and stereo cables; wiring it into a lead preserves both channels end to end. In storage, keep spare connectors dry and together in a parts drawer or kit box — they are small and easily lost, and their value is precisely in being on hand when a socket fails. Insert plugs straight rather than at an angle in daily use, and avoid hanging heavy cable weight directly off the socket, and a fitted connector will give long service.

The MX EP 3.5 mm stereo female connector is a small repair and project part with a clear purpose: a copper-plated, cable-mount stereo socket for fixing cables and building extensions properly.
