ADAM Audio A77H 7-Inch Powered Studio Monitor

ADAM Audio A77H – A Three-Way Midfield Monitor With the X-ART Signature

The ADAM Audio A77H is a three-way powered monitor built for midfield listening: two 7-inch woofers, a dedicated 3.5-inch midrange driver and ADAM’s hand-folded X-ART ribbon tweeter in a wide horizontal cabinet, each driver powered by its own amplifier. It is the successor to the long-running A77X, rebuilt around modern DSP so the monitor can be tuned to the room from the listening position rather than by reaching behind the cabinet.

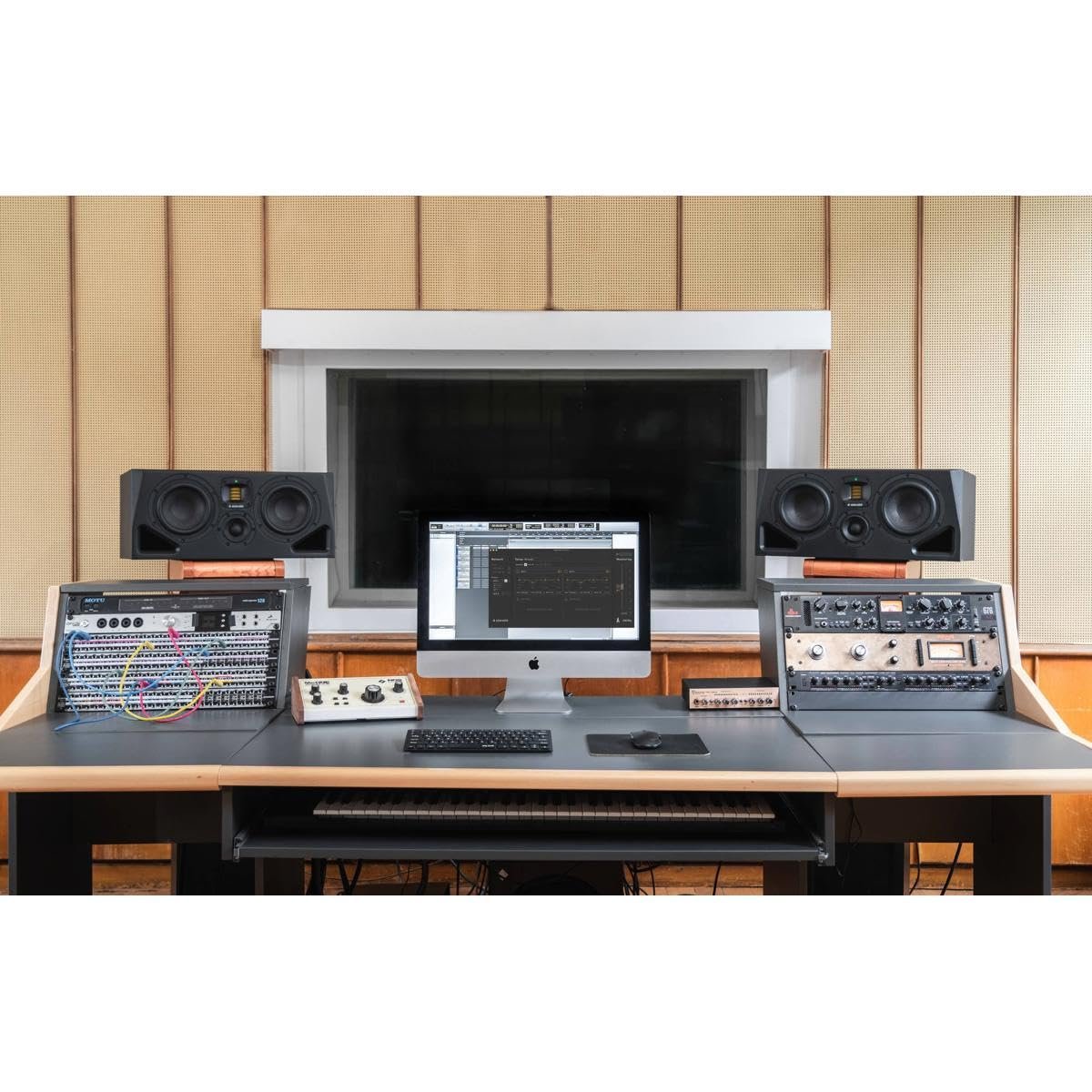

For studios that mix at a distance – larger control rooms, production suites and mastering-leaning setups – the A77H offers the headroom, stereo width and low-frequency extension that smaller nearfields cannot reach, while keeping the detail ADAM monitors are bought for.

Key features

• True three-way design with dual 7-inch woofers, 3.5-inch midrange and X-ART tweeter
• Tri-amped Class D power: 250 W to the woofers, 70 W midrange, 20 W tweeter
• X-ART ribbon tweeter on a rotatable HPS waveguide for controlled dispersion
• Onboard DSP with selectable voicings and five bands of room adaptation EQ
• Remote tuning over Ethernet using the free A Control software
• Sonarworks SoundID Reference integration for measured room correction
• Frequency response extending from 34 Hz to 41 kHz

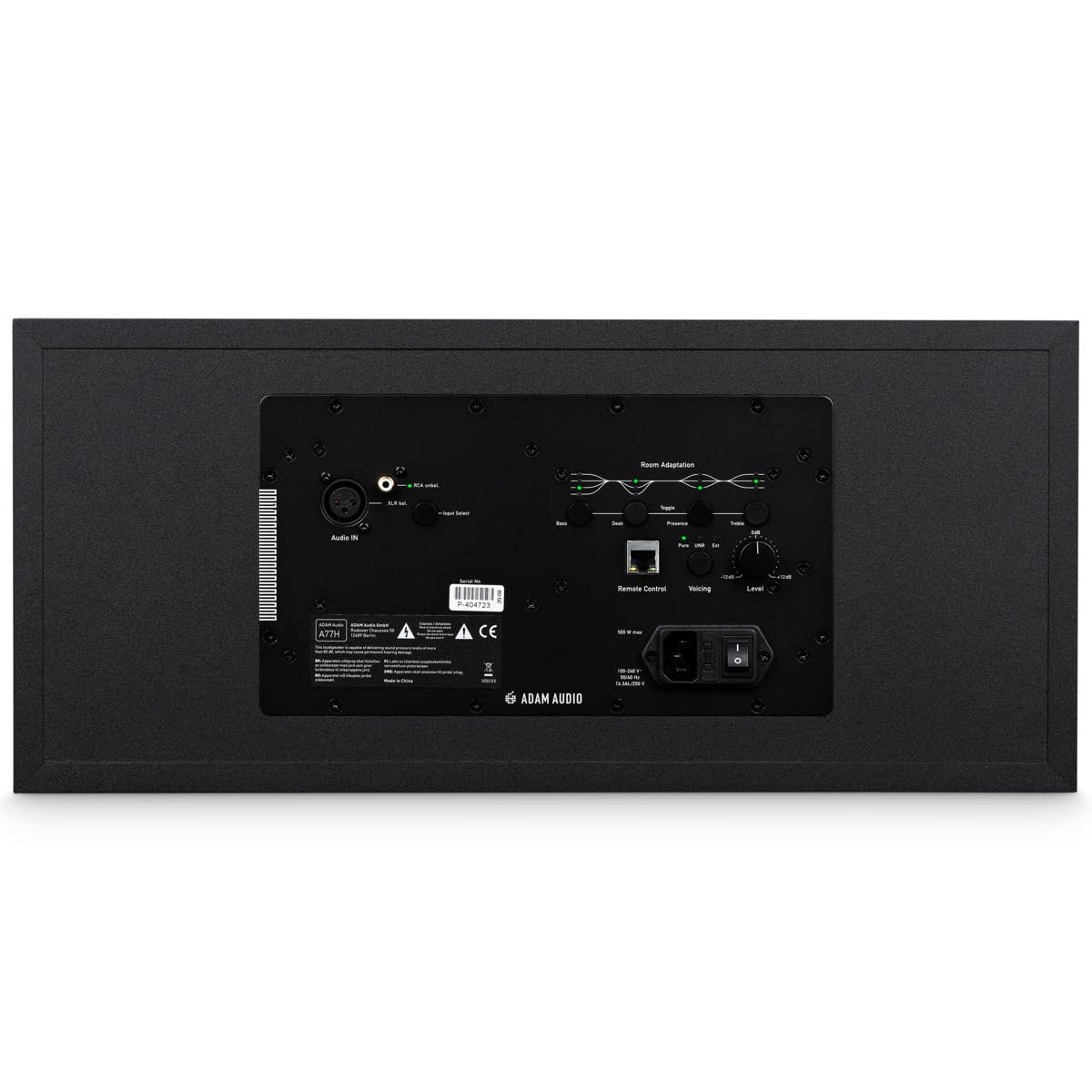

• Balanced XLR and unbalanced RCA inputs
• Cabinet designed for horizontal placement on meter bridges and stands

The X-ART tweeter, explained

ADAM’s X-ART tweeter is a ribbon whose diaphragm is folded like a bellows. When a signal passes through it, the folds squeeze air out at several times the speed of a conventional dome, which gives the tweeter exceptional transient response and an efficiency advantage across its range. Practically, that means reverb tails, string detail and vocal sibilance are rendered with a clarity that makes editing and mix decisions easier – and it is the defining character of every ADAM monitor.

The tweeter sits in an HPS waveguide that controls how that energy spreads into the room, widening the usable sweet spot. The whole assembly rotates, so the A77H keeps correct dispersion if your room forces an unconventional placement.

Why three-way, why dual woofers

In a two-way monitor, one driver covers bass and midrange, and the midrange suffers when the cone is moving far on bass notes. The A77H gives the midrange its own dome driver, so vocals and instruments stay clean at high levels, while the twin woofers share the low-frequency work and move less for the same output – which means less distortion and more headroom. The result is a monitor that stays composed on dense, loud mixes where smaller speakers start to blur.

DSP tuning from the mix position

Four voicings cover different working preferences, and the room adaptation filters handle the bass build-up and boundary effects every real room adds. Connect the monitors to your network and A Control lets you adjust everything from the listening chair, including loading a Sonarworks calibration profile directly into the monitors’ DSP.

For engineers stepping up from nearfields who need midfield scale without giving up ADAM’s ribbon detail, the A77H is the natural move – a serious, long-term monitoring investment.
