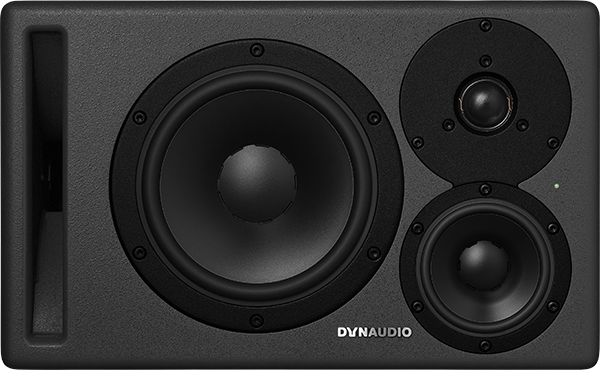

Dynaudio Core 47 Studio Monitor is a compact three-way nearfield that pairs a 7-inch woofer and 4-inch midrange with a 1-inch tweeter for midrange-critical professional work. For buyers comparing similar models, the Dynaudio Core 47 Studio Monitor stands out for its dedicated 4-inch midrange and AES3 digital input.
Why Choose Dynaudio Core 47 Studio Monitor?
The Dynaudio Core 47 Studio Monitor is chosen for a compact three-way monitor with dedicated midrange clarity and serious amplifier headroom. Every figure in the specification table below comes from manufacturer or retailer sources for this exact model, so you can plan your setup around published ratings rather than estimates.
Key Features
The key features of the Dynaudio Core 47 Studio Monitor are:
Three-way precision: a dedicated 4-inch midrange keeps the critical vocal band clean, while the 7-inch woofer and tweeter handle the extremes.
Serious amplifier headroom: 500 W for the woofer, 500 W for the midrange and 150 W for the tweeter keep dynamics effortless at professional levels.
Digital and analogue inputs: AES3 digital in and out sit alongside analogue XLR, so the monitor fits modern digital consoles and classic analogue chains.
DSP boundary correction: desk, wall and corner modes compensate for the placement compromises that real rooms impose.
High-resolution signal path: up to 24-bit / 192 kHz resolution with AES3 passed without sample-rate conversion preserves the source signal.
Best Suited For
It suits professional mixing and mastering rooms, broadcast facilities and demanding project studios where a compact three-way monitor must deliver main-monitor honesty. If your work lives or dies on midrange decisions, the dedicated midrange driver is the reason to step up to this class. That is the buyer the Dynaudio Core 47 Studio Monitor is built for.
Setup and Connection Guide
Setting up the Dynaudio Core 47 Studio Monitor is straightforward.

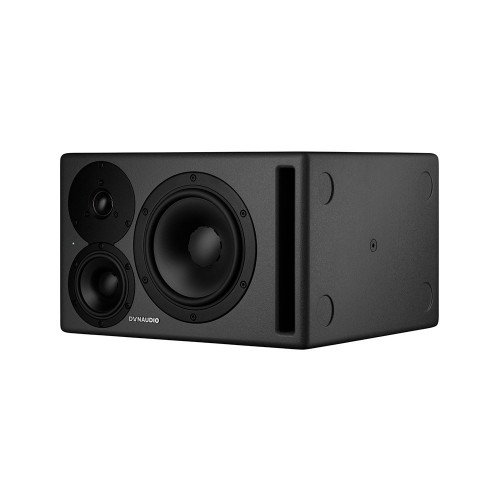

Mount the monitor horizontally or vertically as your room requires, with the tweeter at ear height and aimed at your listening position. Select the DSP boundary mode that matches your placement, connect AES3 digital or analogue XLR from your source, and calibrate level against your other monitors before starting a session.
Match the DSP boundary setting on both monitors so the stereo image stays coherent.
Keep the front slot port clear for consistent low-frequency response.
Calibrate levels with a meter rather than by ear when setting up a pair.
Keep the original packaging for the first few weeks so a return or exchange stays simple if the product does not suit your setup.
Register the product with the manufacturer where a registration option is offered, so warranty and support queries are handled faster.
Read the included manual once before first use; it covers placement, cleaning and safety notes specific to this model.
Check that all items listed in the specification table are present when the box arrives, and keep the invoice with the packaging until you are satisfied.
Frequently Asked Questions
Can it be used vertically as well as horizontally?
Yes, the cabinet is designed for both orientations, and the tweeter and midrange assembly can be rotated for correct dispersion in either position.
What is the advantage of AES3 digital input?
Digital input avoids an extra digital-to-analogue conversion stage and carries the signal at up to 24-bit / 192 kHz without sample-rate conversion.
Is one unit enough for a stereo setup?
No, it is a single monitor; order two for a stereo pair and match their DSP settings for a coherent image.
Technical Specifications
Configuration
3-way active nearfield monitor
Tweeter
1-inch tweeter
Midrange
4-inch midrange driver
Woofer
7-inch woofer
Amplification
Pascal Class-D: 500 W woofer, 500 W midrange, 150 W tweeter
Maximum SPL
113 dB anechoic, 118 dB half-space
Frequency response
37 Hz – 37 kHz (retailer specification)
Inputs
Analogue XLR and AES3 digital input and output
Resolution
Up to 24-bit / 192 kHz, AES3 without sample-rate conversion
DSP
Boundary filters for desk, wall and corner placement
Pascal Class-D: 500 W woofer, 500 W midrange, 150 W tweeter
Maximum SPL
113 dB anechoic, 118 dB half-space
Frequency response
37 Hz - 37 kHz (retailer specification)
Inputs
Analogue XLR and AES3 digital input and output
Resolution
Up to 24-bit / 192 kHz, AES3 without sample-rate conversion
DSP
Boundary filters for desk, wall and corner placement
Model / SKU
DYNAUDIO-CORE-47
Category
Studio Monitors
Condition
Brand new, sealed box
Warranty
Official manufacturer warranty (India)
GST invoice
Yes, input credit available
