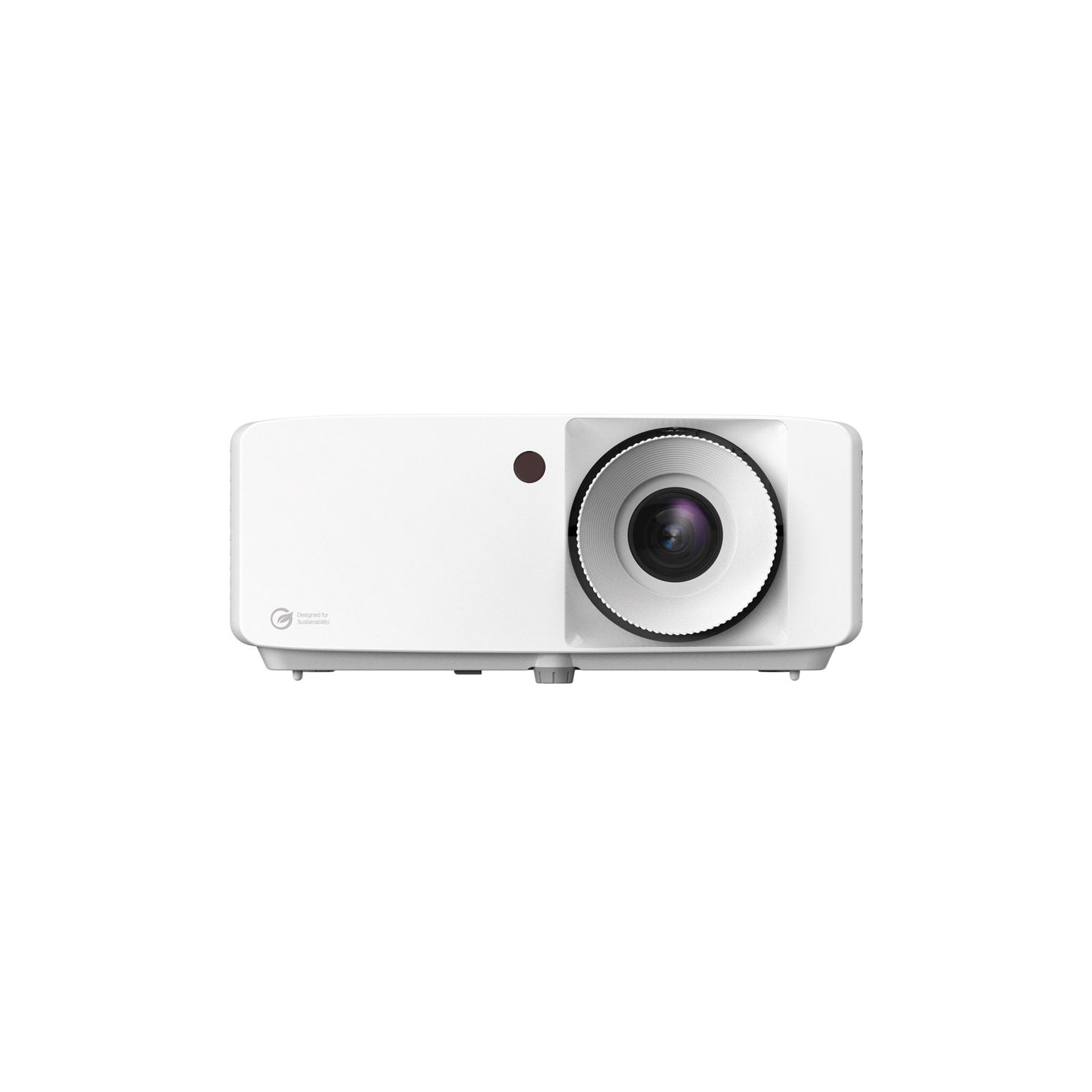

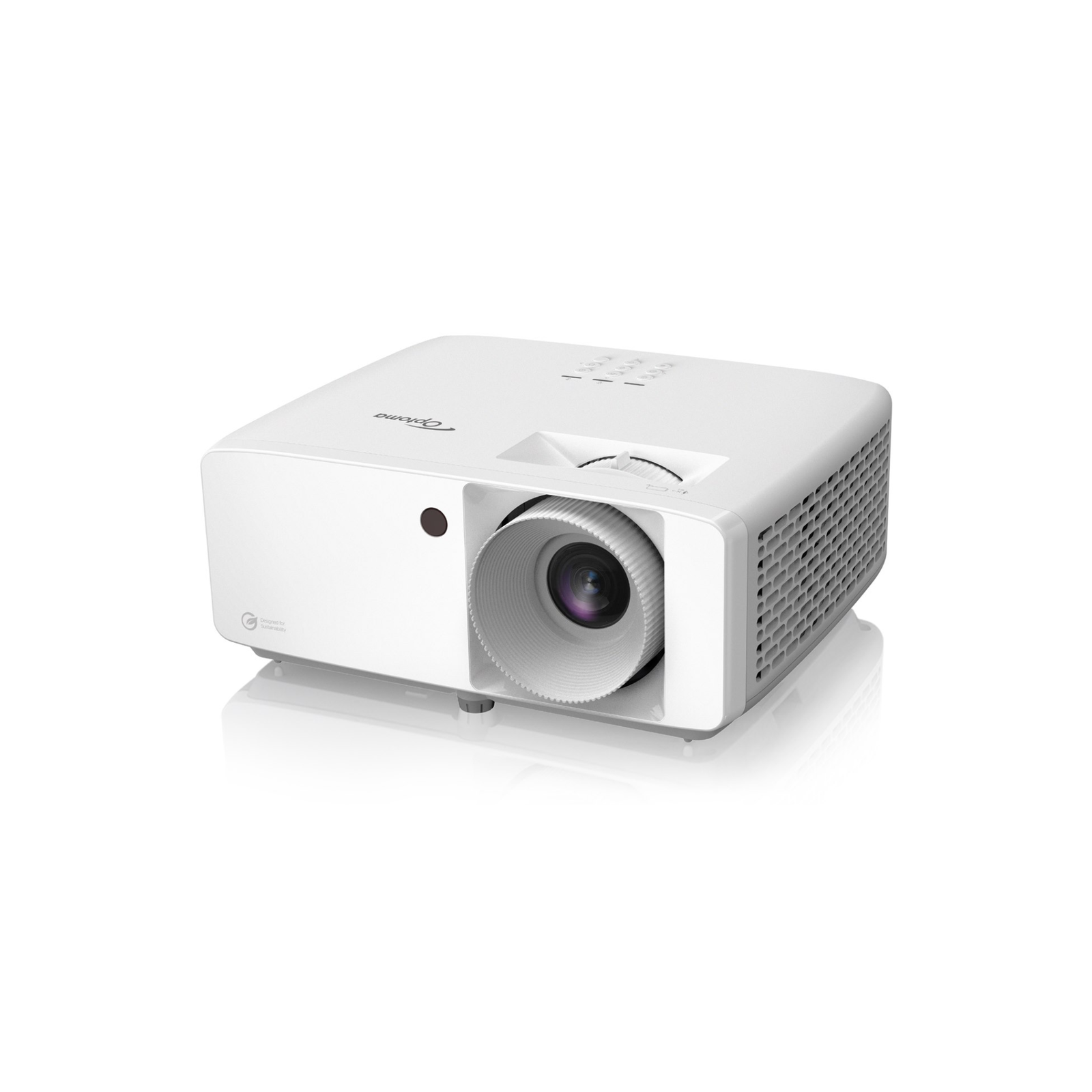

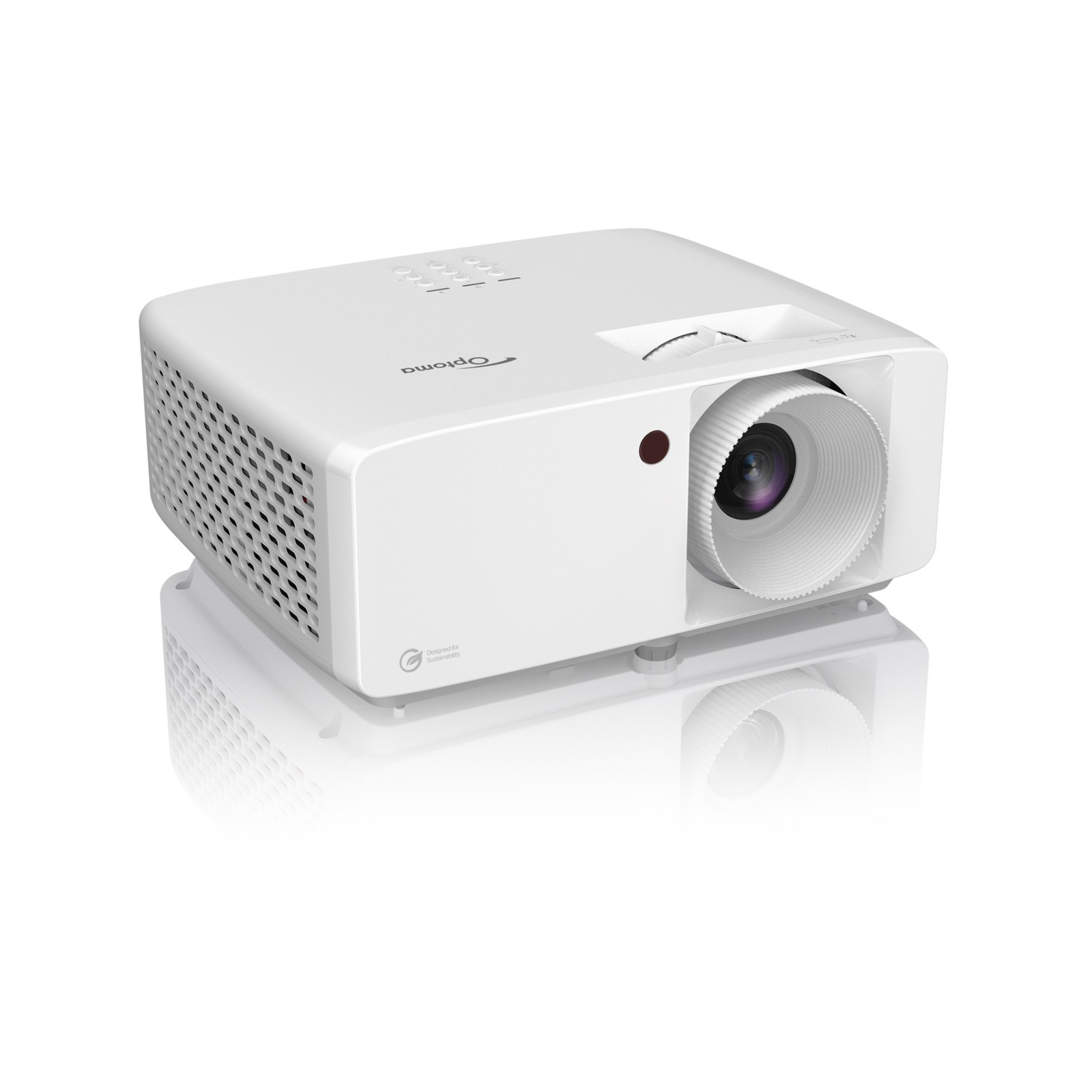

Optoma AZH500 Full HD DLP Laser Projector (5200 Lumens)

Optoma AZH500 Full HD DLP Laser Projector (5200 Lumens)

The Optoma AZH500 is a Full HD DLP laser projector rated at 5,200 lumens, built for medium-sized professional spaces where the lights stay on. It uses Optoma’s DuraCore laser technology in a compact chassis that is smaller than the lamp-based projectors it is intended to replace, and it is designed for continuous, low-maintenance operation rather than occasional home use.

Key features

• 5,200 lumens: high brightness for lit meeting rooms, classrooms and halls
• Full HD resolution: 1920 x 1080 native picture, with 4K input compatibility
• DuraCore laser source: up to 30,000 hours of maintenance-free operation
• IP6X certified sealed engine: dust resistance for demanding environments
• 1.3x zoom: flexible placement without moving mounts for screen size changes
• 360-degree and portrait projection: orientation freedom for signage and events
• Built-in 15 W speaker: onboard audio for presentations and video

Brightness and picture

At 5,200 lumens the AZH500 is specified for rooms where blackout is not an option: training spaces with windows, exhibition areas, houses of worship and larger classrooms. Contrast is quoted at 300,000:1, and the projector displays 1,073.4 million colours. HDR compatibility improves highlight and shadow handling from compatible sources, and 4K input compatibility means a UHD source can be connected even though the native panel is Full HD. Aspect ratio support covers 16:9 native content plus 4:3 and 16:10 compatibility for older presentation material.

Laser running costs

DuraCore laser illumination is rated for up to 30,000 hours without a lamp change, and brightness and colour saturation hold up longer than on a comparable lamp model. Optoma positions this generation as using substantially less power than its lamp-based equivalents, and the laser is mercury-free. An external power supply separates heat and a common failure point from the projector body, which also makes the unit easier to move between venues. For a facilities budget, the saving is mostly in avoided lamps, avoided engineer visits and fewer interruptions.

Installation and control

The compact body measures 274 x 216 x 114 mm and weighs about 3 kg, light for this brightness class. A 1.3x manual zoom, keystone correction of plus or minus 30 degrees horizontally and vertically, 360-degree operation and portrait mode cover most ceiling, wall and floor placements. The chassis is made with up to 50 percent post-consumer recycled plastics according to Optoma. RS-232 and RJ45 provide monitoring and control for managed installations, and 24/7 operation is supported for signage and continuous-use applications.

Connections and audio

Two HDMI inputs handle laptops, media players and document sources, with a 3.5 mm audio output for external speakers and a USB-A port supplying 1.5 A of power for a streaming or wireless dongle. The built-in 15-watt speaker is enough for speech and video in a medium room, so a basic installation can run without a separate audio system. Security features include a Kensington lock slot, a security bar and a password-protected interface.

The AZH500 suits organisations that need a bright Full HD image, long unattended running hours and straightforward control integration. Pair it with a screen sized for the room’s ambient light level, because at this brightness the screen surface has a visible effect on perceived contrast.
