The Sony VPL-CXZ10 is a compact 3LCD laser projector delivering 5,000 lumens of brightness at XGA resolution (1024 x 768), designed for classrooms, meeting rooms, training spaces and houses of worship where presentations must remain legible with the lights on. It pairs Sony’s Z-Phosphor laser light source with the BrightEra 3LCD projection engine, producing detailed images with stable, natural colour. The laser source is rated for up to 20,000 hours of operation without a lamp exchange, and the projector switches on without a lamp warm-up period. At approximately 371 x 100 x 319.3 mm and 5.7 kg, Sony positioned the VPL-CXZ10 as the smallest model in its class at launch, with a flat top surface that sits discreetly when ceiling mounted.

Key features

• 5,000 lumen output: Both light output and colour light output are rated at 5,000 lumens in Standard mode, with a centre measurement of 5,200 lumens.
• Z-Phosphor laser light source: Laser diode illumination rated for up to 20,000 hours of operation, removing routine lamp replacement from the maintenance schedule.
• BrightEra 3LCD engine: Three 0.63-inch BrightEra LCD panels in a 4:3 aspect ratio deliver 2,359,296 pixels (1024 x 768 x 3) with consistent colour brightness.
• Full HD signal handling: An advanced scaler chip presents Full HD input signals at high quality, and the maximum accepted computer signal resolution is 1920 x 1200.
• Intelligent Settings: Three environment presets optimise brightness, cooling and colour settings for the room, simplifying installation and daily use.
• Flexible lens: Manual focus and manual zoom of approximately 1.6x, with a throw ratio of 1.41:1 to 2.27:1 covering screen sizes from 40 to 300 inches.
• Built-in speaker: A 16 W monaural speaker covers speech and presentation audio without external amplification in smaller rooms.
• Networked control: LAN control and monitoring with compatibility for systems such as Crestron Connected, plus RS-232C control via the REMOTE terminal.

Image quality and colour performance

The 3LCD architecture projects all three primary colours simultaneously, so colour brightness matches white brightness at 5,000 lumens and presentations avoid the colour breakup associated with single-chip designs. Sony rates the contrast ratio (full white to full black) as infinity to one under its measurement method, reflecting the laser source’s ability to modulate output for dark scenes. Keystone correction of plus or minus 30 degrees horizontally and vertically helps square the image when the projector cannot be placed perfectly on axis, and the lens offset of plus 33 percent vertical assists ceiling installations.

Connectivity and integration

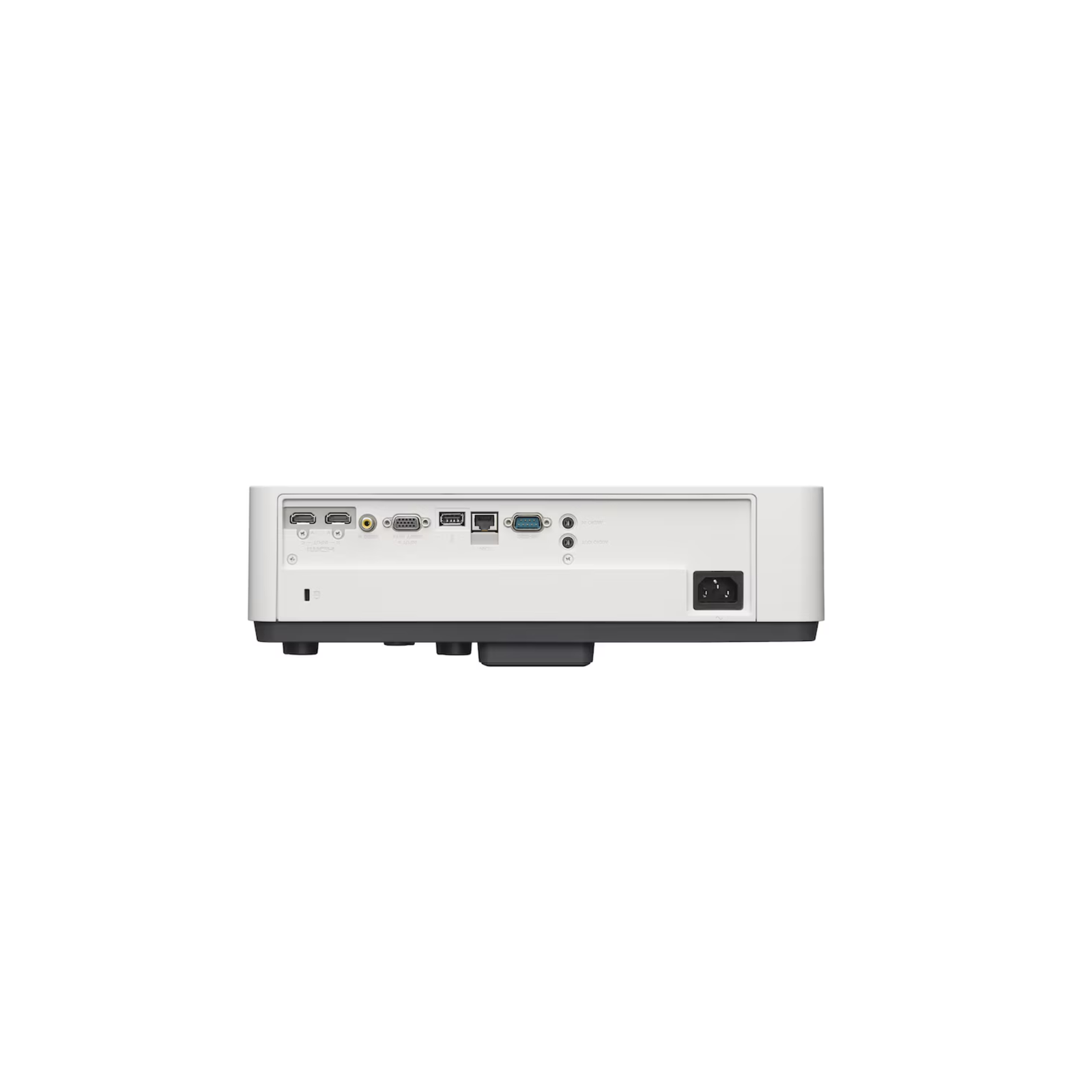

Signal inputs comprise two HDMI inputs (INPUT B and INPUT C) with HDCP support, a Mini D-sub 15-pin RGB and component input (INPUT A) with a stereo mini jack audio input, and a composite video phono input sharing audio with INPUT A. A stereo mini jack provides audio output. Control and service connections include the D-sub 9-pin RS-232C REMOTE terminal, an RJ45 LAN port (10BASE-T/100BASE-TX) and a USB Type-A port used for firmware updates. Displayable scanning frequencies run from 15 kHz to 92 kHz horizontal and 48 Hz to 92 Hz vertical.

Operation, noise and power

Acoustic noise is rated at 36 dB in Standard mode, falling to 32 dB and 28 dB in the Middle and Low modes, which keeps the projector unobtrusive during lessons and meetings. Power consumption in Standard mode is 342 W on 100 to 120 V supplies and 326 W on 220 to 240 V supplies, dropping to 0.5 W in Low standby. The specified operating range is 0 to 40 degrees Celsius at 20 to 80 percent humidity, and the air filter cleaning cycle is 1,000 hours in Standard mode.

Supplied with the RM-PJ8 remote commander, the VPL-CXZ10 is a fit-and-focus installation projector whose long-life laser engine and consistent brightness suit institutions that run projectors daily and measure cost over years of service rather than a single term.
