ViewSonic PA503W 3600 Lumens WXGA Business Projector

ViewSonic PA503W 3600 Lumens WXGA Business Projector

The ViewSonic PA503W is a lamp-based DLP projector built for classrooms, meeting rooms and training spaces that need a bright, dependable image without a complicated setup. Its 0.65-inch DLP engine delivers a native WXGA resolution of 1280 x 800 in a 16:10 aspect ratio, which matches most business laptops and gives presentations, spreadsheets and video more vertical room than older 4:3 machines. With 3,600 ANSI lumens of brightness and a 22,000:1 contrast ratio in SuperEco mode, the PA503W holds up in rooms where the lights stay on — the normal condition for teaching and office work.

ViewSonic’s SuperColor technology is on board to widen the colour range, so charts, brand colours and photographs render closer to how they look on screen. The projector displays 1.07 billion colours and accepts signals from VGA up to Full HD, with HDTV compatibility through 1080p. A low 16ms input latency and support for refresh rates up to 120Hz also make it usable for video playback and interactive content where delay would otherwise be visible.

Key Features

• Native WXGA 1280 x 800 resolution, 16:10 aspect ratio, DLP projection system
• 3,600 ANSI lumens brightness with 22,000:1 contrast ratio (SuperEco mode)
• SuperColor technology and 1.07 billion display colours
• Lamp life up to 15,000 hours in SuperEco mode (5,000 hours normal)
• Throw ratio 1.55–1.70 with 1.1x optical zoom; image size 30 to 300 inches
• Vertical keystone correction of ±40 degrees for off-centre placement

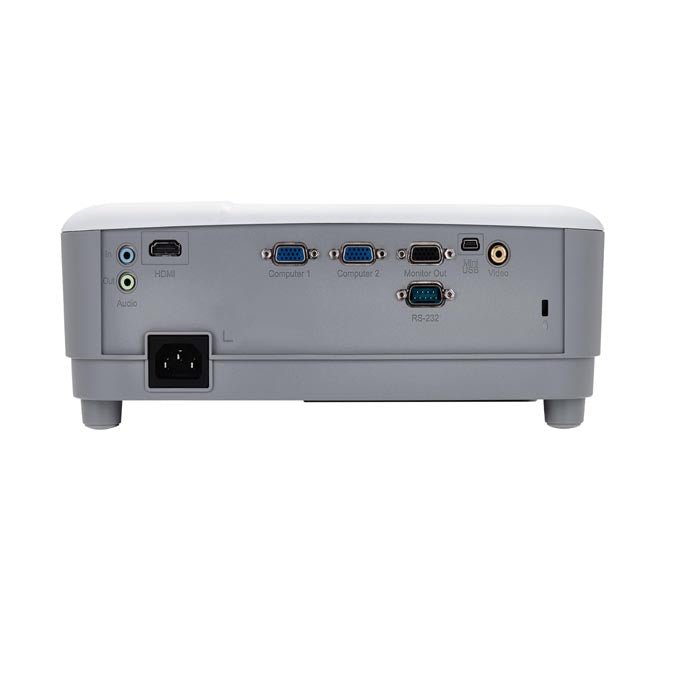

• Dual VGA inputs, HDMI, composite video, audio in/out and monitor out
• Built-in 2W speaker, RS-232 control and 16ms low input latency

Placement and image setup

The PA503W projects a 100-inch image from about 3.34 metres, and its 1.1x zoom gives some freedom to fine-tune image size without moving the mount. Vertical keystone correction of ±40 degrees squares the picture when the projector sits above or below screen centre, which is common with ceiling mounts and table placement in the same room. Projection offset is 100% ±5%, and focus and zoom are manual at the lens — set once at installation and left alone.

Running costs and everyday use

Lamp projectors live or die by lamp economics. The 200W lamp here is rated at 5,000 hours in normal mode and up to 15,000 hours in SuperEco, which dims output to stretch life and cuts fan noise to around 27dB in Eco — quiet enough for a classroom. SuperEco also reduces power draw, and the projector’s presentation tools (an on-screen presentation timer and blank timer) are small touches that help in teaching and meeting routines. At 2.2 kg it can also move between rooms on a cart when a fixed install is not justified.

Where it fits

The PA503W is aimed at schools, colleges, small and mid-size offices, training centres and houses of worship that need widescreen projection on a budget, with connectivity for both modern HDMI sources and legacy VGA laptops still common in institutions. Full technical specifications — lens data, throw distances, input and output lists, scan rates and power requirements — are in the Additional Information table on this page.
