Bowers & Wilkins

Bowers & Wilkins CCM7.5 S2- 2-way In-ceiling Speaker

SKU BOWERS-CCM7-5-S2-

Original price was: ₹127,000.Current price is: ₹110,000. Save ₹17,000 (13%)

  • Price includes GST, invoice provided
  • Dispatched the same day
  • Cash on delivery up to ₹45,000
  • Money-back if it arrives damaged

B&W CCM7.5 S2 in-ceiling speaker with Continuum cone bass/midrange driver, pivoting aluminium dome tweeter, spring-load mounting, and paintable grille for invisible architectural installation.

Currently out of stock

Notify me when in stock

Tap to send us a WhatsApp message. We’ll reply as soon as it’s back in stock, and can suggest a similar model in the meantime.

100% secure checkout · Pay your way
We accept UPI, Google Pay, PhonePe, Paytm, RuPay, Mastercard, Visa and American Express
100% genuine, authorised stock
Official Indian warranty
Same-day dispatch · 7-day returns
Product highlights
  • Driver Configuration2-way in-ceiling system
  • Bass Midrange Driver180 mm (7 in) Continuum cone
  • Tweeter25 mm (1 in) Carbon Dome
  • Frequency Response32 Hz to 28 kHz (plus/minus 3 dB)
  • Sensitivity90 dB (2.83 Vrms, 1 m)
  • Recommended Amplifier Power25 W to 150 W into 8 ohms

Description

Bowers & Wilkins CCM7.5 S2 In-Ceiling Speaker – Reference Sound That Disappears Into the Ceiling

The Bowers & Wilkins CCM7.5 S2 is a two-way in-ceiling loudspeaker from the Reference Series of the Custom Installation range. It is sold individually and installs flush into the ceiling, leaving only a paintable round grille visible. Behind that grille sits a driver array borrowed directly from Bowers & Wilkins hi-fi loudspeakers: a 25 mm Carbon Dome tweeter and a 180 mm Continuum cone bass/midrange driver, angled so sound is directed towards the listening position rather than straight down. The result is an architectural speaker intended for serious stereo and home cinema systems where visible speakers are not wanted but performance cannot be compromised.

Key features

  • Two-way in-ceiling system, supplied individually
  • 180 mm (7 in) Continuum cone bass/midrange driver for clean, uncoloured midrange
  • 25 mm (1 in) Carbon Dome tweeter with angled driver array aimed at the listening area
  • Frequency response of 32 Hz to 28 kHz within plus/minus 3 dB
  • 90 dB sensitivity and 25 W to 150 W recommended amplifier power
  • QuickDogs mounting system and paintable magnetic grille for a flush finish
  • Suitable for left, centre, right, surround and Dolby Atmos overhead channels

Continuum cone and Carbon Dome drivers

The Continuum cone is Bowers & Wilkins proprietary woven composite material, developed to replace Kevlar and used across the company’s hi-fi ranges. It controls cone breakup so the midrange stays pistonic through its working band, which is where voices, dialogue and most instrumental detail live. Paired with it, the Carbon Dome tweeter uses a carbon-coated dome with a reinforced structure that pushes the first breakup mode far above the audible range, keeping treble clean at high levels. Together they give the CCM7.5 S2 the tonal character of a conventional Bowers & Wilkins bookshelf speaker, delivered from the ceiling.

Angled array for real rooms

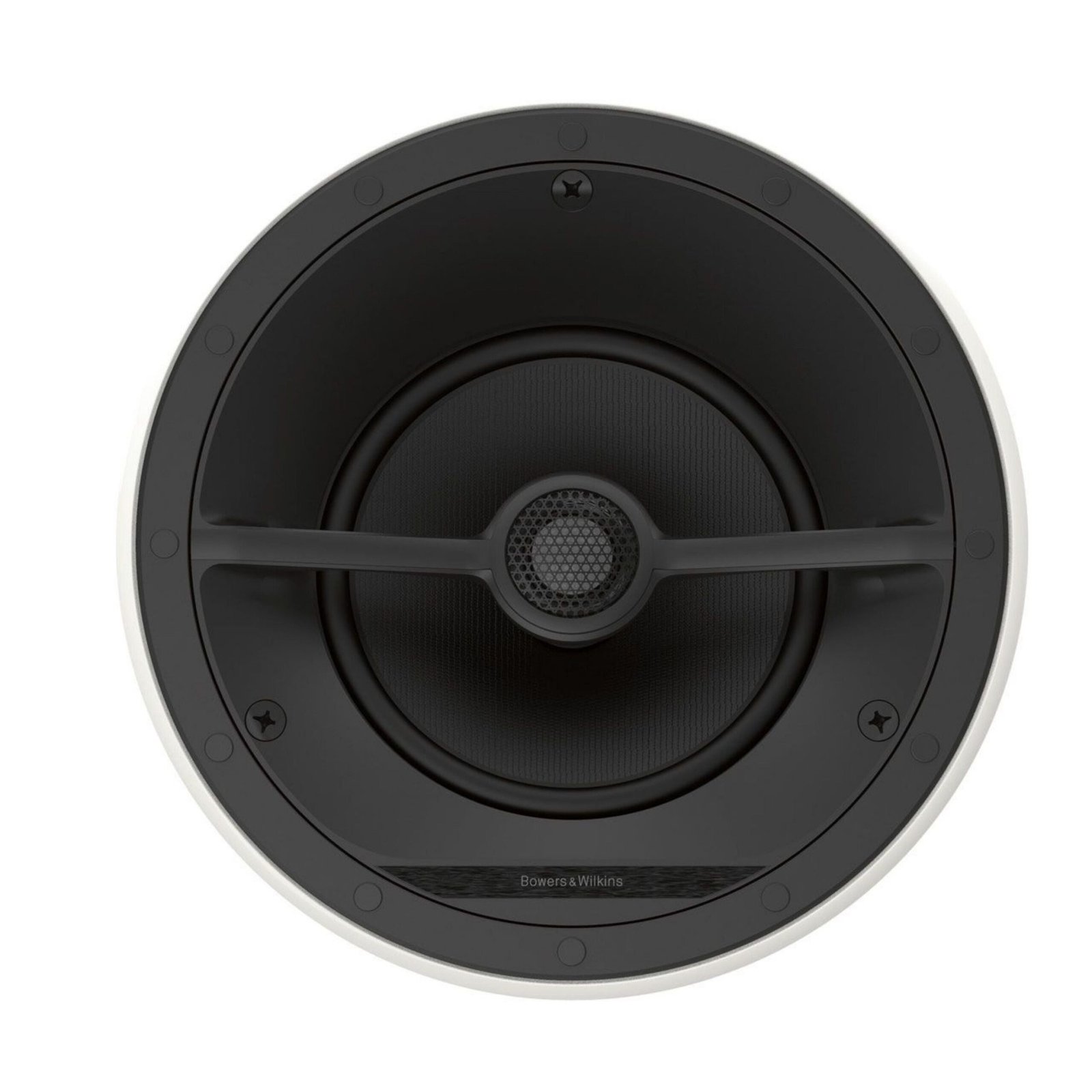

A ceiling speaker that fires straight down wastes its best axis on the floor between seats. The CCM7.5 S2 mounts its tweeter and bass/midrange array at an angle inside the baffle, steering the sound towards the seating position. That improves dialogue clarity and stereo imaging in rooms where listeners sit off to one side of the speaker, and it makes the speaker equally usable as a front left, centre or right channel, as a surround, or as an overhead channel in a Dolby Atmos or DTS:X system. Installers rotate the baffle during fitting to aim the array where the room plan requires.

Installation and finishing

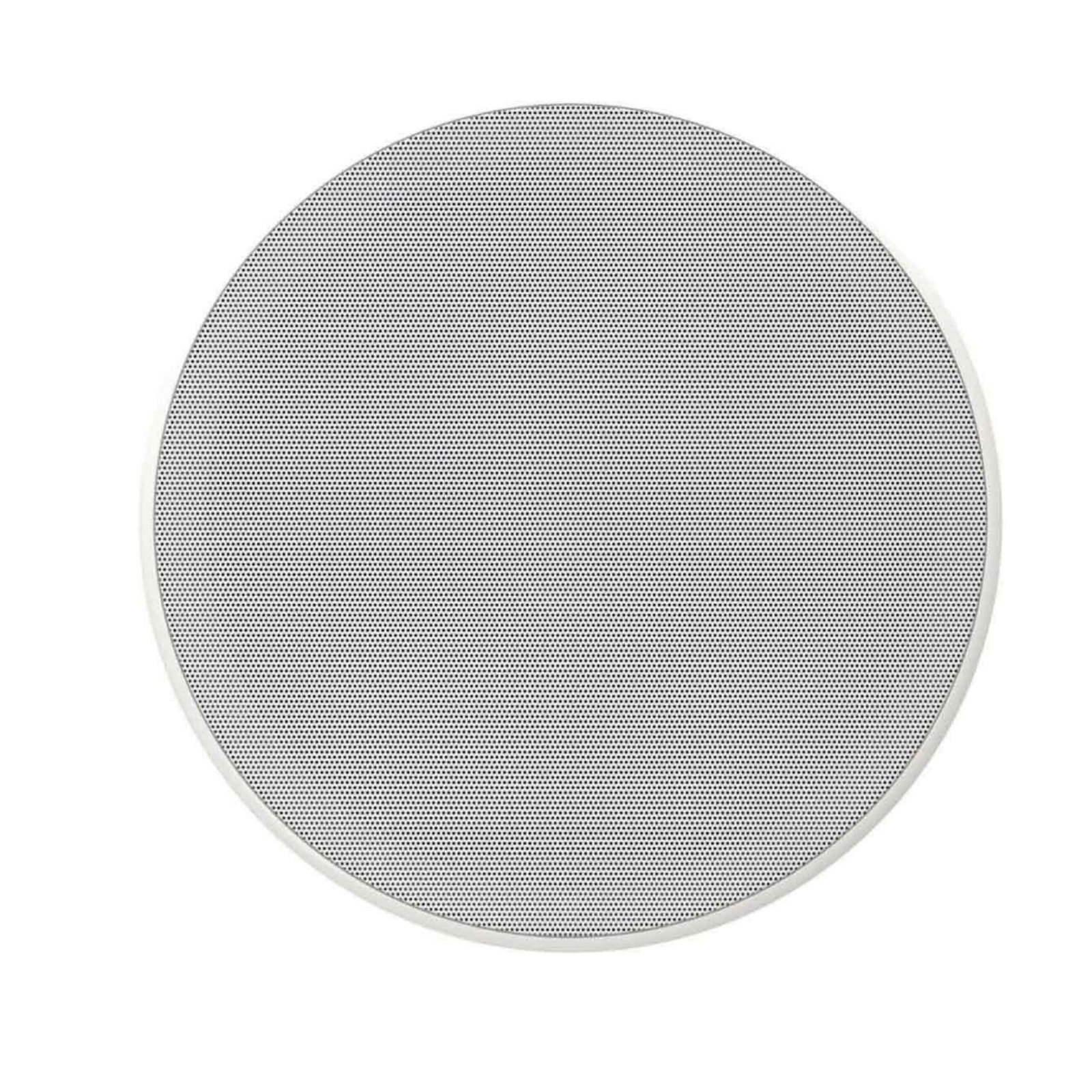

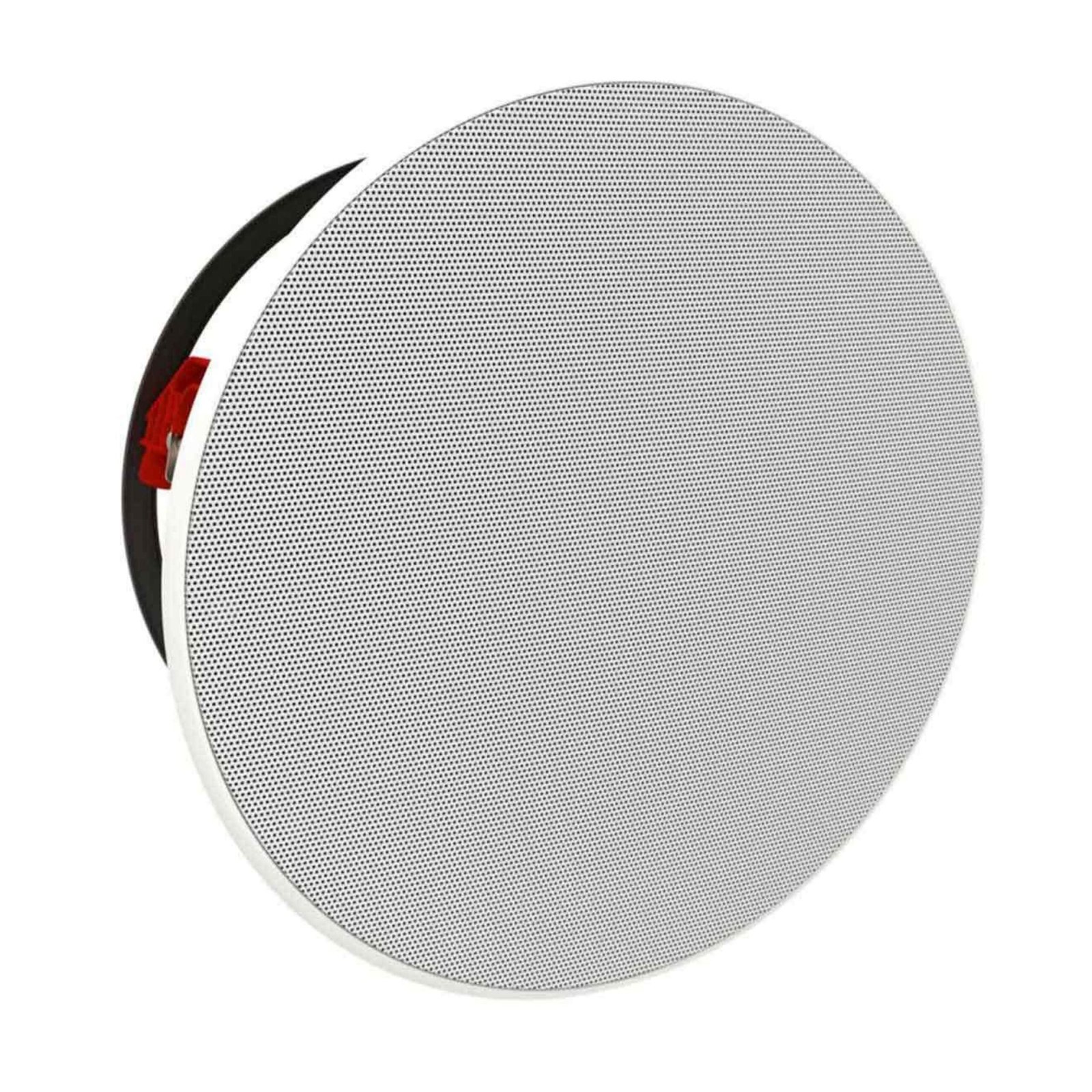

The frame diameter is 290 mm with a 254 mm ceiling cut-out and 128 mm of depth required behind the surface, so joist space should be checked before ordering. The QuickDogs system clamps the speaker from behind the ceiling board without visible fixings, and the grille attaches magnetically and can be painted to match the ceiling colour. An optional BB 6C back box and PMK C8 pre-mount kit support new-build and retrofit projects, and an optional square grille is available where a square trim suits the ceiling design. As a passive design it needs a separate amplifier or AV receiver, with 25 W to 150 W into 8 ohms recommended.

Where it fits

The CCM7.5 S2 suits dedicated cinema rooms that need discreet front or overhead speakers, living rooms where a full system must stay invisible, and multi-room music systems that want hi-fi-grade sound in each space. Because it is priced and supplied per speaker, systems can be built channel by channel and matched across the room with the same model in every position for consistent voicing.

Buying guide: Ceiling Speaker Buying Guide

Complete your setup: Pair the Bowers & Wilkins CCM7.5 S2- 2-way In-ceiling Speaker with the Denon AVR-X550BT and the ELAC SUB1020 120 Watts, 10 Inch Powered Subwoofer – Black.

Additional Information

Specifications

Driver Configuration2-way in-ceiling system
Bass Midrange Driver180 mm (7 in) Continuum cone
Tweeter25 mm (1 in) Carbon Dome
Frequency Response32 Hz to 28 kHz (plus/minus 3 dB)
Sensitivity90 dB (2.83 Vrms, 1 m)
Recommended Amplifier Power25 W to 150 W into 8 ohms
BrandBowers & Wilkins
ModelCCM7.5 S2
Frequency Range25 Hz to 33 kHz (-6 dB)
Nominal Impedance8 ohms (minimum 4.8 ohms)
Harmonic DistortionLess than 1 percent, 70 Hz to 33 kHz (90 dB, 1 m)
Frame Diameter290 mm
Cut-Out Diameter254 mm
Depth Behind Surface128 mm
Protrusion8.5 mm
Weight3.1 kg
FinishWhite grille (paintable)
Supplied AsSingle speaker
Model / SKUBOWERS-CCM7-5-S2-
CategoryCeiling Speakers
ConditionBrand new, sealed box
WarrantyOfficial manufacturer warranty (India)
GST invoiceYes, input credit available
