TAGA Harmony TCW-390R In-Ceiling Speakers (Pair)

TAGA Harmony TCW-390R In-Ceiling Speakers (Pair)

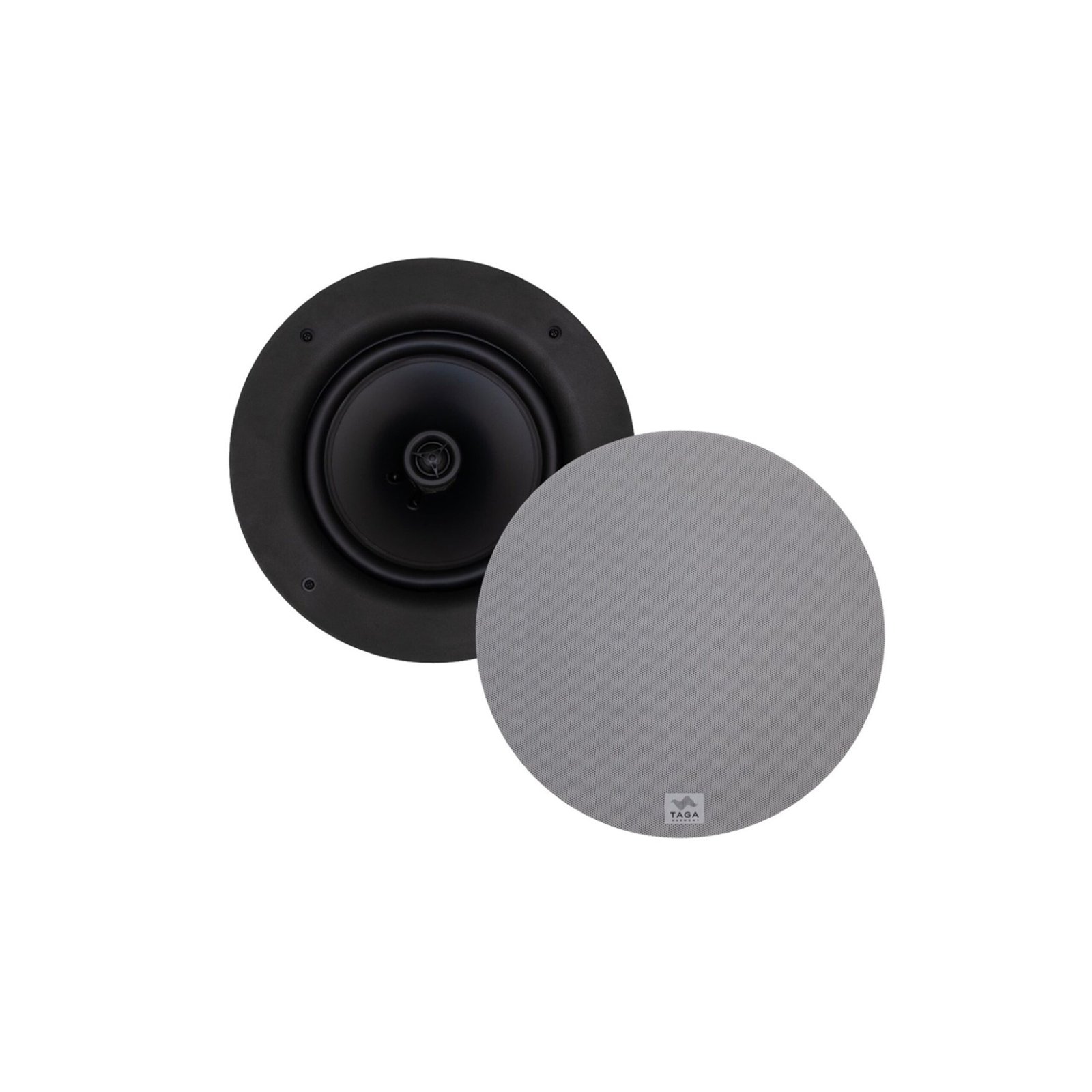

The TAGA Harmony TCW-390R is the largest model in TAGA’s TCW in-ceiling range, built around an 8-inch polypropylene bass-midrange driver that gives it the low-frequency reach smaller ceiling speakers cannot match: response extends down to 37 Hz, so music and film effects carry real weight without leaning on a subwoofer. A 19 mm silk dome tweeter on a swivel mount handles the high frequencies and can be aimed towards the listening area after installation. This listing is for a pair of speakers.

TAGA builds the TCW series on its TIMPC injection-moulded polymer chassis, a rigid structure with a honeycomb front panel that resists the flexing and resonance that cloud the sound of basic installation speakers. The TSLB super low-profile bezel grille mounts magnetically and can be painted, so once fitted the speakers all but disappear into the ceiling.

Key Features

• 8-inch (203 mm) polypropylene bass-midrange driver for full, deep sound
• 0.75-inch (19 mm) silk dome tweeter on a swivel mount
• Strong power handling: 110W RMS, 150W maximum per speaker
• Wide frequency response from 37 Hz to 20 kHz
• 90 dB sensitivity and 8 ohm impedance: an easy load for AV receivers and multi-room amplifiers

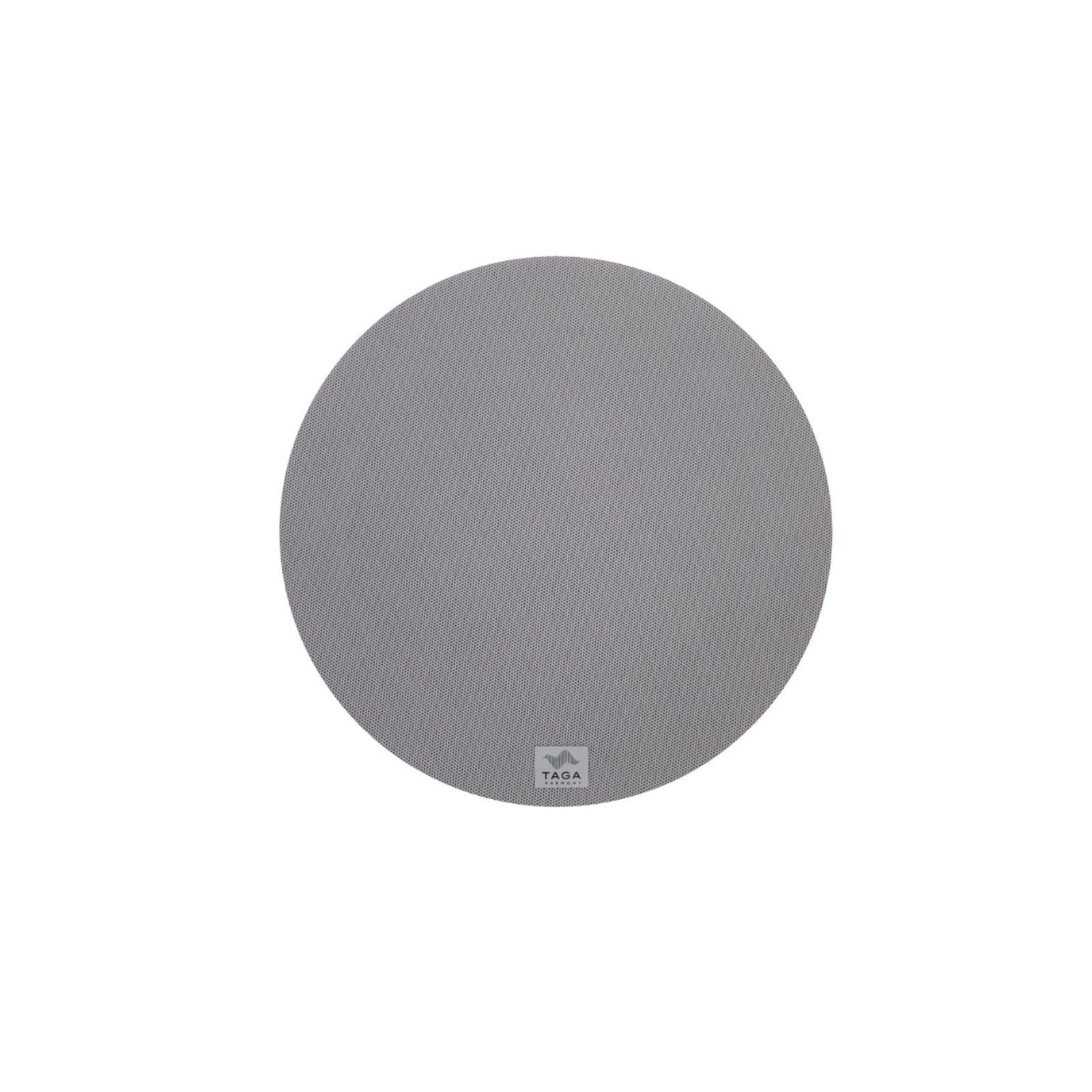

• TSLB low-profile magnetic grille, paintable to match the ceiling

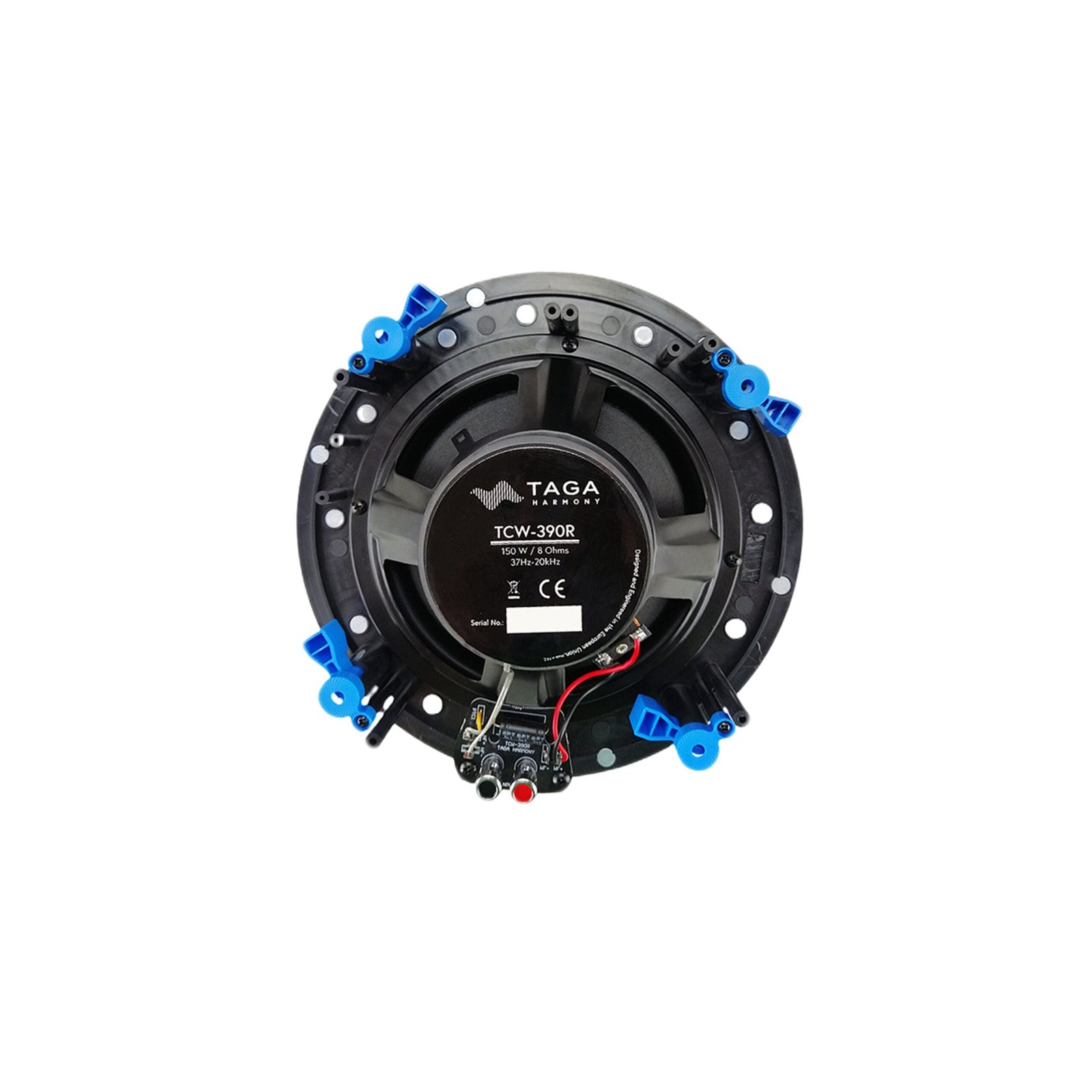

• TEI Easy Install brackets with visible blue ABS clamps for fast, safe fitting
• TEC push-in binding posts accept speaker cable up to 10AWG

Why the Swivel Tweeter Matters

A ceiling speaker’s woofer can fill a room from above, but high frequencies are directional: if the tweeter points straight down, listeners off to the side hear a duller sound. The TCW-390R’s tweeter sits on a swivel mount, so the installer can tilt it towards the sofa, the dining table or the bed after the speaker is in the ceiling. In a home theatre, aiming the tweeters of the front pair at the main seats sharpens dialogue and effects placement; for background music, aiming them at the centre of the room evens out coverage.

Installation Notes

Each speaker needs a 255 mm circular cutout and at least 11 cm of mounting depth. The TEI bracket system clamps the speaker firmly against the ceiling board, and the blue ABS clamps are easy to spot in dark ceiling voids. The 90 dB sensitivity means modest amplifiers drive the pair to comfortable levels, making the TCW-390R suitable for stereo music zones, Atmos height channels and surround positions driven by typical AV receivers.

Who the TCW-390R Suits

Pick the TCW-390R pair for larger living rooms, open-plan spaces and media rooms where ceiling speakers must produce full-range sound without a subwoofer, or as high-output height and surround channels in a Dolby Atmos system.

Full technical specifications for the TAGA Harmony TCW-390R are listed in the Additional Information table on this page.
