Pure Acoustics Iq 612

Pure Acoustics IQ 612 In-Ceiling Speaker

The Pure Acoustics IQ 612 is a 2-way in-ceiling speaker designed to deliver clear, well-balanced sound from a low-profile fitting that sits almost flush with the ceiling. Sold as a pair, it is intended for home theatres, living spaces, offices and multi-room audio systems where visible loudspeakers are not wanted but full-range sound still matters. A 6-inch woofer handles the low and mid frequencies while a separate 1-inch tweeter covers the highs, giving the IQ 612 a more complete presentation than a single full-range ceiling driver can manage.

Key features

• 2-way in-ceiling design for clear, well-balanced audio
• 6-inch polypropylene woofer for bass and midrange
• 1-inch swivel titanium dome tweeter for detailed high frequencies
• 120 W peak power handling
• Swivel tweeter can be aimed toward the listening area
• Paintable grille to match the ceiling colour
• Built-in mounting tabs for straightforward installation

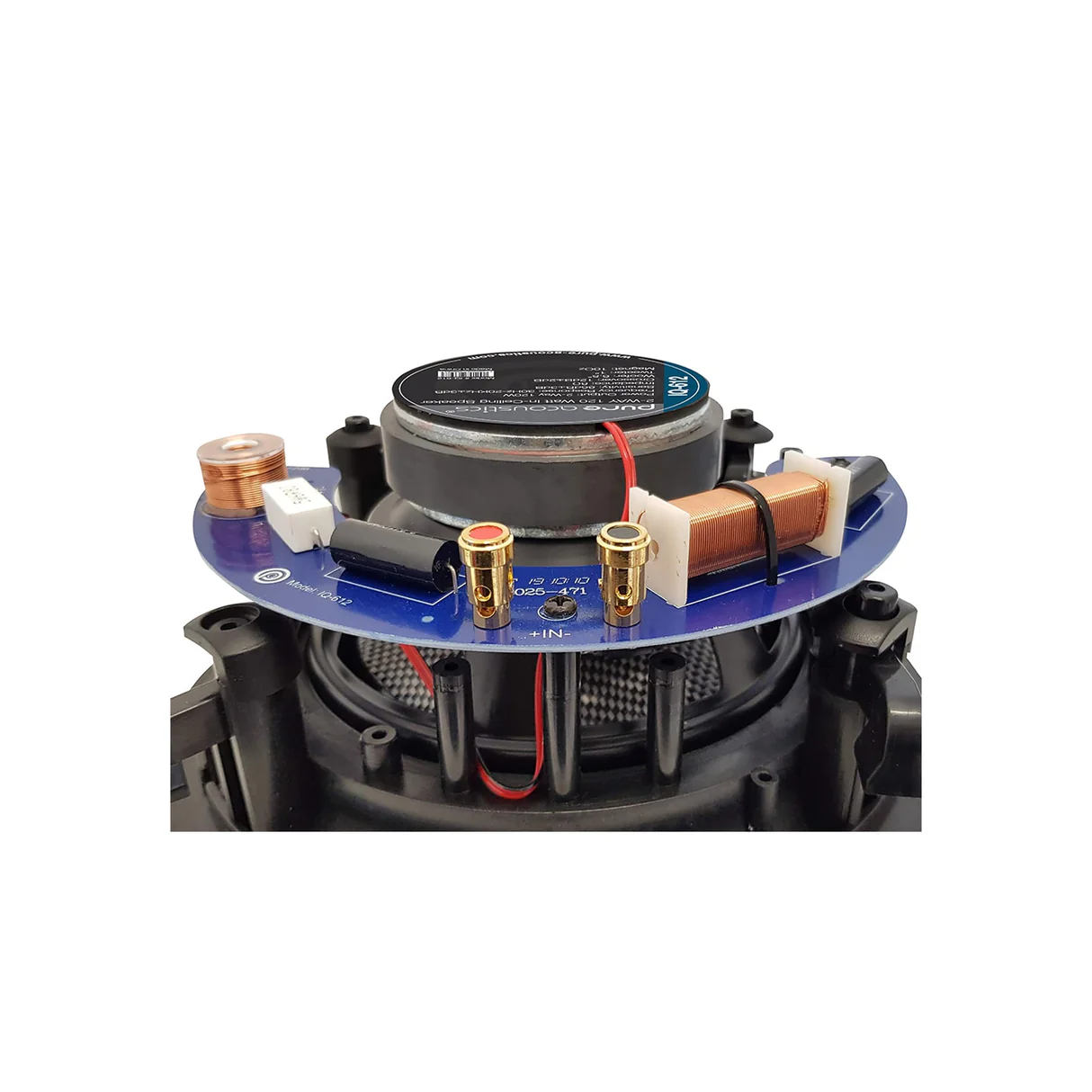

• Spring-loaded speaker terminals

Two-way driver arrangement

Splitting the work between two drivers lets each one operate in the range it handles best. The 6-inch polypropylene woofer provides the cone area needed for believable bass weight and clear vocal midrange, and polypropylene is a practical cone material for an in-ceiling fitting because it is light, stiff and unaffected by the humidity that can gather above a ceiling. The 1-inch titanium dome tweeter reproduces the upper frequencies with the crispness needed for dialogue clarity, cymbals and the fine detail in music. Because the tweeter swivels, the installer can angle the high frequencies toward the main seating or listening position instead of firing them straight down, which noticeably helps in rooms where the speakers cannot be placed directly above the listeners.

Where the IQ 612 works well

In a home theatre, a pair of IQ 612 speakers can serve as front, surround or height-position speakers depending on the layout, and their discreet appearance keeps attention on the screen. In multi-room and background music systems, ceiling mounting spreads sound evenly through kitchens, dining areas, hallways and offices without taking up shelf or floor space. Commercial spaces such as retail units, cafes and meeting rooms also suit this format, since the speakers stay out of sight and out of reach while covering a wide area. With 120 W peak power handling, the IQ 612 pairs comfortably with the AV receivers and multi-room amplifiers typically used in these installations.

Installation and finishing

The speaker installs into a circular ceiling cutout of approximately 8.3 inches, with a mounting depth of about 3.3 inches, and built-in mounting tabs secure it in place without a separate bracket. Spring-loaded terminals accept the speaker cable and make the electrical connection quick once the speaker is offered up to the cutout. Each speaker weighs approximately 1.8 kg. The grille can be painted to match the ceiling colour, so once installed the fitting blends into the room rather than drawing the eye. As with any in-ceiling installation, correct polarity on both speakers, a suitable cable run back to the amplifier and sensible placement relative to the listening area are what turn a neat fitting into a good-sounding system.

The IQ 612 is a practical choice where the brief is simple: tidy, ceiling-mounted speakers that handle music and film sound with clarity, install without fuss and disappear into the room once the work is done.
