Klipsch RP-140D On-Wall Speaker (Black)

Klipsch RP-140D On-Wall Speaker (Black)

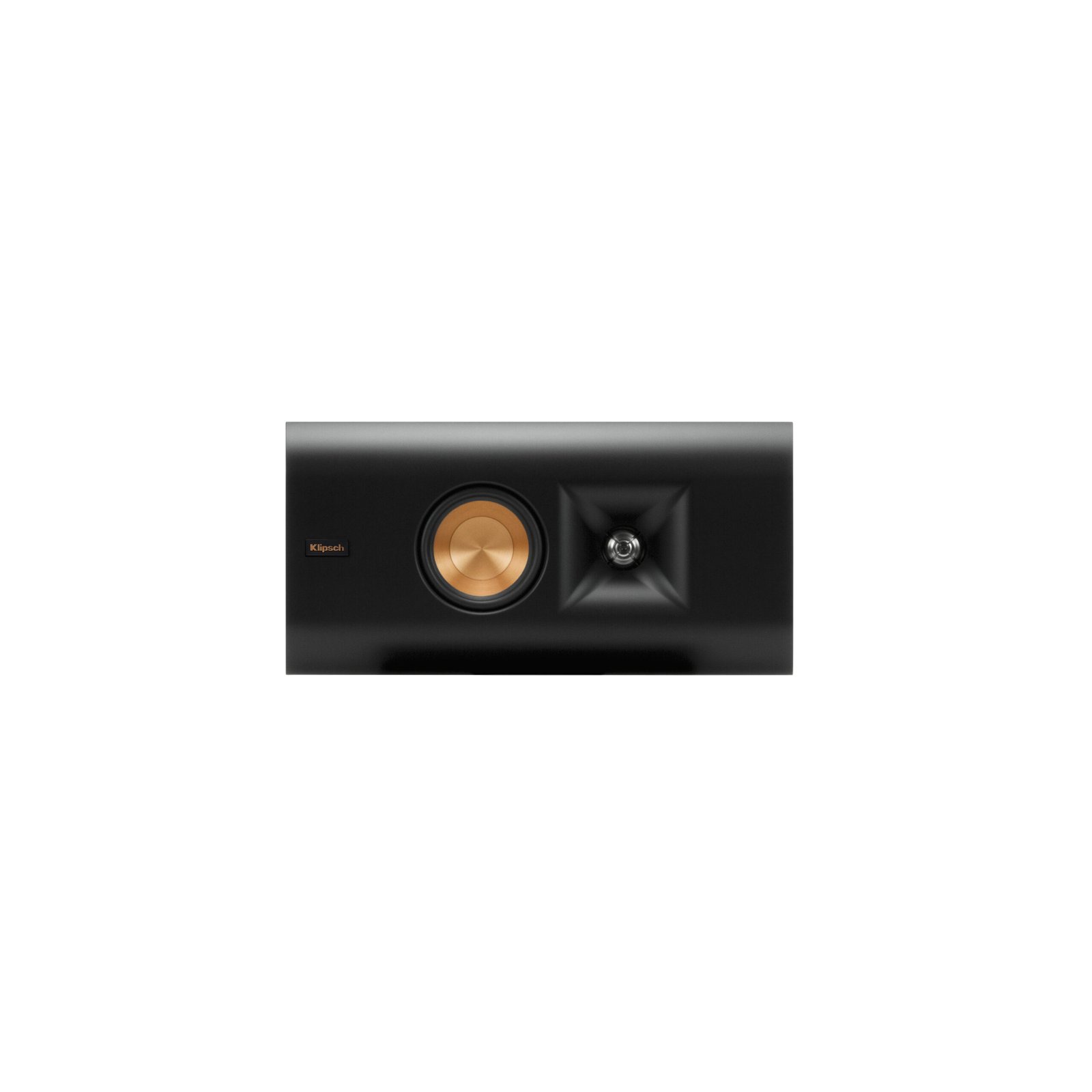

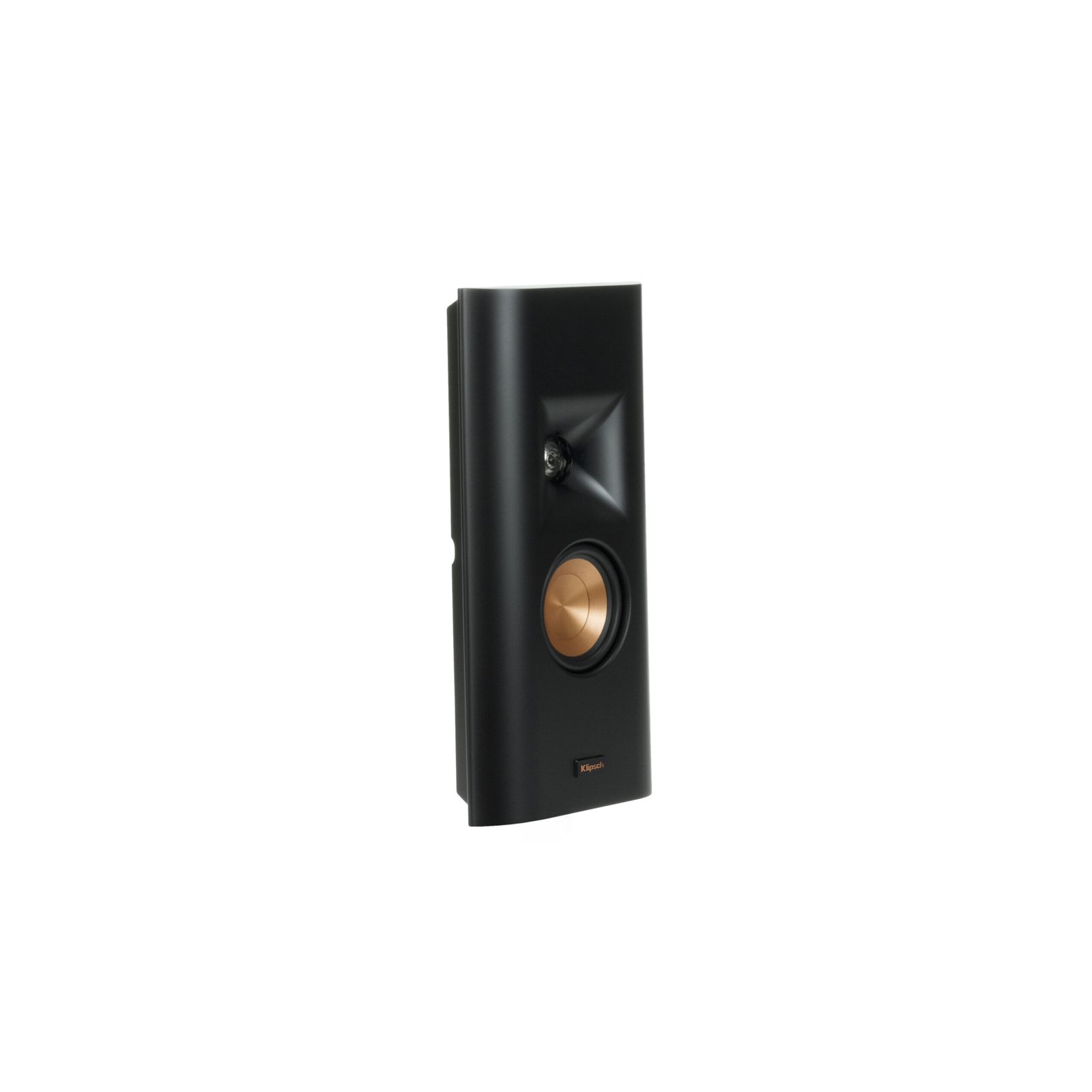

The Klipsch RP-140D is the smallest model in the Reference Premiere Designer on-wall series, built for rooms where a conventional cabinet speaker will not fit but proper horn-loaded sound is still wanted. The enclosure is just 2.4 inches deep, so it sits almost flat against the wall beside or below a wall-mounted television, closer in profile to a picture frame than to a bookshelf speaker. Inside that slim ABS cabinet, Klipsch fits the same acoustic ingredients used across the Reference Premiere range: a 1-inch titanium dome tweeter with Linear Travel Suspension loaded by a 90 by 90 degree Tractrix horn, and a 3.5-inch Cerametallic cone woofer in a bass-reflex enclosure. The result is a passive speaker that can serve vertically as a left, right or surround channel, or horizontally as a centre channel, and it can also stand on a surface using the tempered glass base supplied in the box. Finished in matte black paint with a wrap-around magnetic grille, it is designed to disappear visually while keeping the direct, efficient character Klipsch is known for.

Key features

• Slim on-wall enclosure only 2.4 inches deep, matched to flat-panel televisions
• 1-inch titanium dome LTS tweeter in a 90 by 90 degree Tractrix horn
• 3.5-inch Cerametallic cone woofer in a bass-reflex ABS cabinet
• 91 dB sensitivity, so modest amplifier power produces healthy levels
• Mounts vertically or horizontally via dual four-way keyholes
• Wrap-around magnetic grille and included glass base for table-top use

Horn-loaded tweeter and Cerametallic woofer

The high frequencies are handled by a 1-inch titanium dome tweeter using Klipsch Linear Travel Suspension, which minimises distortion by controlling the diaphragm’s movement. The tweeter fires through a square 90 by 90 degree Tractrix horn that widens dispersion while keeping directivity controlled, so dialogue and detail stay clear across a sofa rather than only in one seat. Below the 2,200 Hz crossover, a single 3.5-inch Cerametallic woofer covers the midrange and bass. Cerametallic cones are stiff and light, which helps the small driver stay composed at higher levels. The bass-reflex loading extends the low end to a rated 69 Hz, respectable for a cabinet this shallow, although a subwoofer remains the sensible partner for full-range film soundtracks in larger rooms.

Flexible placement on wall or table

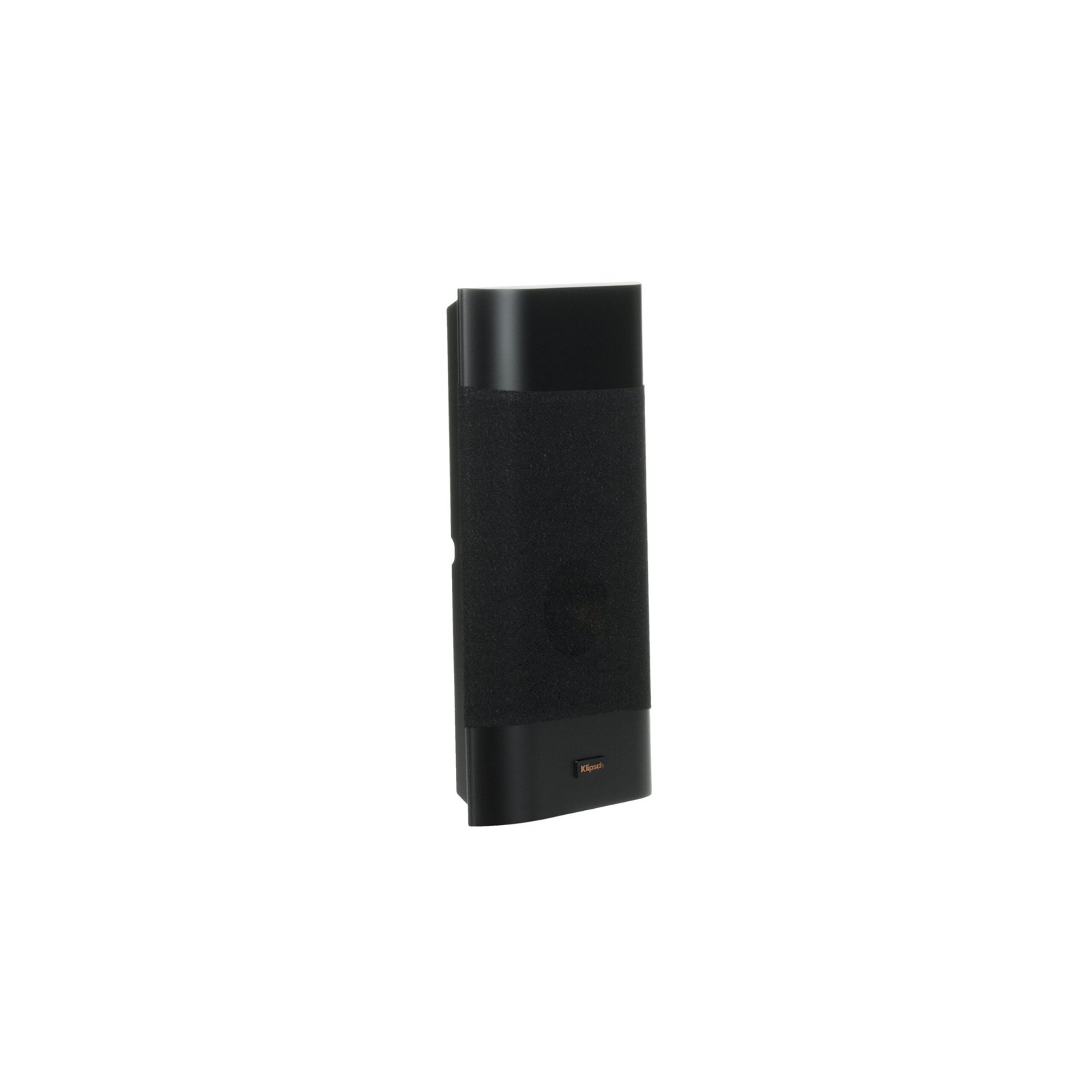

Dual four-way keyholes on the rear panel allow tight-to-the-wall mounting in either orientation without a separate bracket. Run one RP-140D horizontally under the screen as a centre channel and two more vertically at the sides, or use a pair as surrounds where floor space and depth are limited. When wall mounting is not possible, the included glass base converts the speaker for table-top or bookshelf placement, using threaded inserts on the rear of the cabinet. The wrap-around grille attaches magnetically and wraps the front and sides, giving a clean transition from the cabinet to the room. Single binding post inputs keep wiring simple: one run of speaker cable from any channel of a compatible AV receiver or stereo amplifier rated for 8-ohm-compatible loads.

Power handling and system matching

Klipsch rates the RP-140D at 50 watts continuous and 200 watts peak, with a nominal impedance described as 8 ohms compatible, so it pairs comfortably with mainstream AV receivers. The 91 dB sensitivity rating, measured at 2.83 volts at one metre, is high for a speaker of this size and means the RP-140D plays louder per watt than most slim on-wall rivals. That efficiency suits multi-channel systems where several compact speakers share one receiver. For best results, set the receiver’s crossover to redirect deep bass to a subwoofer, keep the speaker at least an inch clear of the television as Klipsch advises in the manual, and angle seating rather than the speaker, since the horn’s wide pattern is designed to cover a broad listening area from a flat wall position.

Where it fits best

The RP-140D suits living rooms built around a wall-mounted television, media walls in apartments, bedroom systems and surround positions in compact home theatres. It is also a practical choice for commercial spaces such as meeting rooms and showrooms that need tidy, wall-hugging speakers with intelligible speech reproduction. Because each speaker is sold and wired as a single passive channel, systems can grow one speaker at a time: start with a stereo pair, add a third horizontally for centre duty, then add surrounds as the room allows. Anyone expecting deep bass from the speaker alone should plan for a subwoofer from the outset; the RP-140D’s brief is clarity, efficiency and minimal visual footprint, and within that brief the specifications show a carefully judged balance of size and output.

In short, the Klipsch RP-140D brings genuine Reference Premiere horn technology into a cabinet shallow enough to hang beside a modern television. Its combination of a titanium LTS tweeter, Cerametallic woofer, high sensitivity and genuinely flexible mounting makes it a straightforward way to build a discreet multi-channel system without giving up the lively, detailed presentation that defines the Klipsch sound.
