Bowers & Wilkins Formation Bar Wireless Soundbar

Bowers & Wilkins Formation Bar Wireless Soundbar

Bowers & Wilkins Formation Bar Wireless Soundbar
Bowers & Wilkins Formation Bar is an active network soundbar with an optical television-audio input. Its nine-driver arrangement handles front-stage playback, while supported Formation products can extend a correctly configured system. Why Choose Bowers & Wilkins Formation Bar? Formation Bar combines three Double Dome tweeters and six woven glass-fibre bass/midrange drivers with 240W of total amplification. The documented TV connection is Toslink optical, which differs from the HDMI eARC route on Panorama 3. Supported network music and compatible Formation expansion provide additional roles beyond television sound. Choose the source output and audio format deliberately, then configure the speaker through the supported Bowers & Wilkins workflow. The presence of wireless audio does not remove the mains requirement or establish HDMI or Dolby Atmos capability. Key Features – Nine-driver array: three tweeters and six bass/midrange units. – Built-in amplification: six 40W amplifier channels. – TV audio input: Toslink optical connection. – Formation system role: supported network and companion-speaker setup. Best Suited For
Television dialogue, film sound and network music in a room with a compatible optical audio source. Choose the front-of-room position around seating and a clear path for the driver array. Supported Formation expansion requires its documented companion products and configuration; ordinary Bluetooth playback is a separate source function. Setup and Connection Guide
Position the soundbar securely without obstructing its drivers and connect the television’s supported optical output to the Toslink input. Select an output format the soundbar accepts, starting with a simple supported signal while checking dialogue and picture synchronisation. Connect mains power and configure the speaker through the supported Bowers & Wilkins app and network workflow. Test music and television separately before adding compatible Formation products. Check their documented channel roles and setup rather than connecting accessories as if the soundbar were a conventional AV receiver. Frequently Asked Questions
Does Formation Bar provide the HDMI eARC and Atmos route of Panorama 3? No. Formation Bar specifies an optical TV input and Dolby Digital support. Panorama 3 is a different soundbar with HDMI eARC and its own Dolby Atmos design. Match the television output and required formats to the actual model. Does a Toslink connection provide the same connection as HDMI eARC? No. Formation Bar uses optical TV audio. Select a supported optical format on the television and check synchronisation. HDMI eARC and its associated format handling belong to a different connection route and are not added by changing a cable plug. Can I use any Bluetooth speaker as a Formation rear channel? Use the documented Formation companion products and supported channel arrangement. Bluetooth source playback does not establish the speaker-to-speaker link required for configured rear channels. Check the complete system before selecting expansion speakers. Technical Specifications Specification
Detail Model
Formation Bar Type
Active wireless soundbar Tweeters
3 × 25mm Double Dome Bass/midrange
6 × 65mm woven glass-fibre Amplifier output
6 × 40W TV input
Toslink optical; no HDMI input specified Network
Wi-Fi or Ethernet Supported audio
Dolby Digital USB
Service only Power
Mains Explore Related Equipment

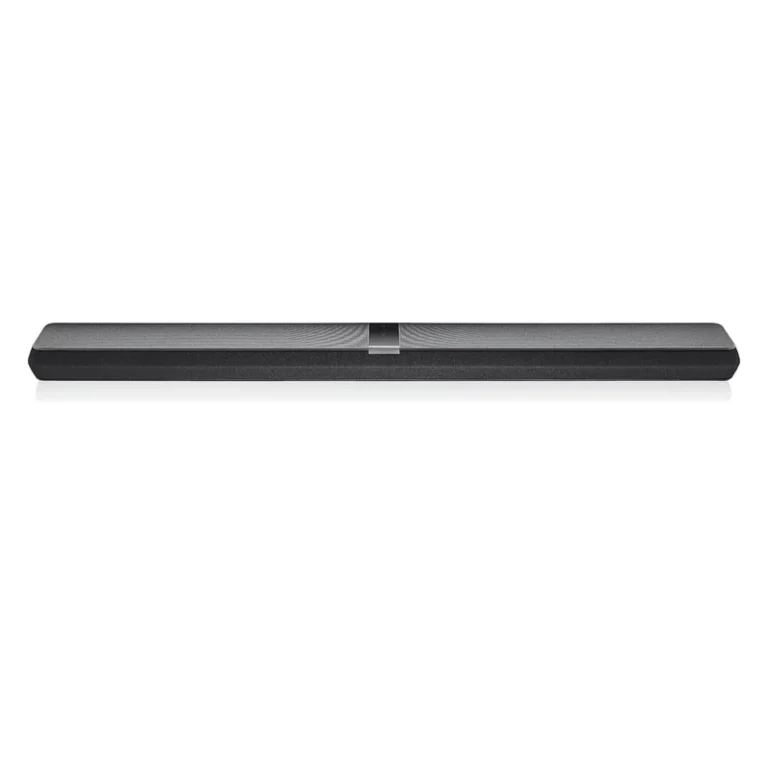

Explore Bowers & Wilkins Panorama 3 Dolby Atmos Soundbar and compare its role, connections and compatibility with the setup you are planning.
