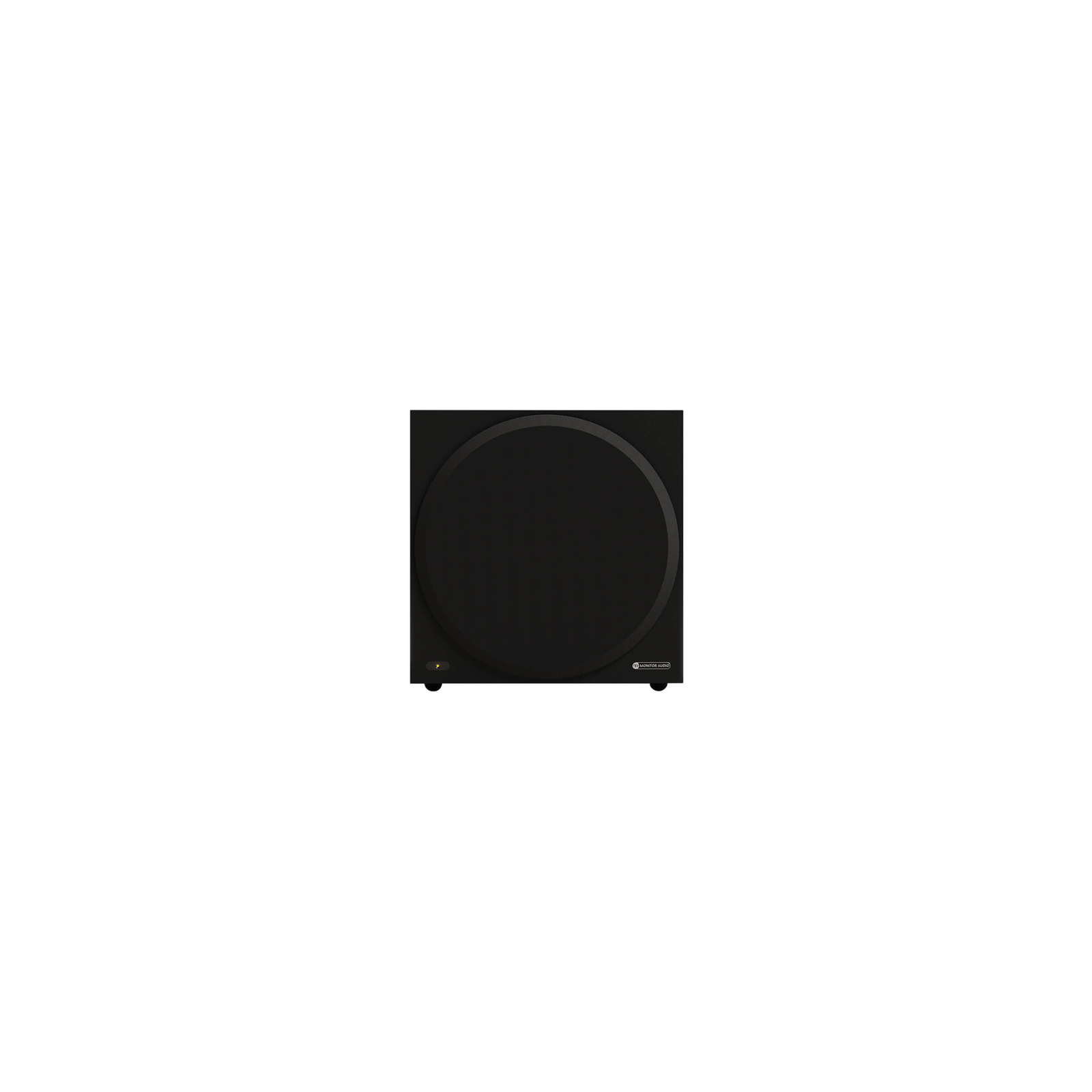

Monitor Audio Vestra W12 – 12 Inches 500 Watts Subwoofer

Monitor Audio Vestra W12 Subwoofer: Controlled 500W Bass From a 12-Inch C-CAM Driver

The Monitor Audio Vestra W12 is an active subwoofer built around a single job: adding deep, controlled low frequencies to a home theatre or hi-fi system without the boom and overhang that give bass a bad name. It pairs a 12-inch (305 mm) C-CAM driver with a 500-watt high-efficiency Class D amplifier inside a sealed cabinet. The sealed alignment is a deliberate choice. With no port contributing output, the roll-off is gradual and the driver stays tightly controlled, which suits music as much as film soundtracks. Monitor Audio rates the in-room response at 17 Hz to 200 Hz at -6 dB, with a maximum peak output of 115 dB, so the W12 has the extension and headroom to handle demanding effects and full-range music in medium to large rooms.

Key features

• 500W high-efficiency Class D amplifier driving a 12-inch C-CAM cone
• High linear-excursion driver design with triple suspension for control at high output
• Sealed cabinet for fast, articulate bass that integrates cleanly with main speakers
• In-room response of 17 Hz to 200 Hz (-6 dB) and 115 dB maximum peak SPL
• Three DSP EQ presets – Impact, Movie and Music – for quick voicing changes
• Stereo RCA and LFE RCA inputs, plus a 12V trigger input for system integration
• Adjustable low-pass filter from 32 Hz to 200 Hz and a 0/180-degree phase switch

The driver and amplifier

The 12-inch driver uses Monitor Audio’s C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material, chosen for its combination of low mass and high rigidity. A light, stiff cone starts and stops quickly, which is what keeps bass notes distinct instead of blurring into one another. The driver is built for high linear excursion and uses a triple suspension arrangement to keep the cone centred and controlled when the amplifier asks for large movements at low frequencies. That 500-watt Class D amplifier provides the current behind those movements. Class D efficiency means the power is delivered without the heat of a comparable conventional design, and the available headroom is what lets a loud effects peak or a sustained organ note play cleanly rather than compressing.

Tuning the W12 to your room and system

Three DSP presets give a sensible starting point before any fine adjustment: Impact for maximum effect with film soundtracks, Movie for a balanced cinema presentation, and Music for a tighter voicing with stereo material. The low-pass filter adjusts from 32 Hz to 200 Hz, so the handover point can be set low with large floorstanding speakers or higher with compact satellites. The phase toggle aligns the subwoofer’s output in time with the main speakers at the listening position; the correct setting is simply the one that gives the fuller, more even bass through the crossover region. Auto sensing switches the W12 on when a line-level signal above 3 mV arrives and returns it to standby after 20 minutes without signal, and a 12V trigger input is provided for systems that prefer hard-wired control from an AV receiver or processor.

Connections and placement

Stereo unbalanced RCA inputs suit two-channel amplifiers and preamplifiers, while the LFE unbalanced RCA input takes the dedicated effects channel from an AV receiver. Input impedance is 47 kohms, a straightforward match for standard line-level outputs. Because the cabinet is sealed, placement is more forgiving than with a ported design: there is no rear port airflow to keep clear, although corner placement will still reinforce output and may need the level or preset adjusted to compensate. The cabinet measures 385 x 371 x 401 mm with accessories fitted and weighs 18.3 kg, so it needs a firm, level floor position rather than a shelf. A cloth-covered grille keeps the driver protected and the appearance understated.

Who the Vestra W12 suits

The W12 suits home theatre owners who want effects weight that stays composed at reference-style levels, and hi-fi listeners who want a subwoofer that can follow the timing of their main speakers rather than adding a separate layer of rumble. It works as a single unit in most rooms, and the Vestra range is designed so that multiple subwoofers can be used where smoother in-room bass across several seats is the goal.

In the Vestra W12, Monitor Audio has built a subwoofer around control first and output second: a rigid, fast driver, generous Class D power, a sealed cabinet and practical DSP presets. The result is bass that supports the rest of the system instead of competing with it.
