Bowers & Wilkins 702 S3 Mocha Floorstanding Speaker

Bowers & Wilkins 702 S3 Mocha Floorstanding Speaker

Bowers & Wilkins 702 S3 Mocha Floorstanding Speaker

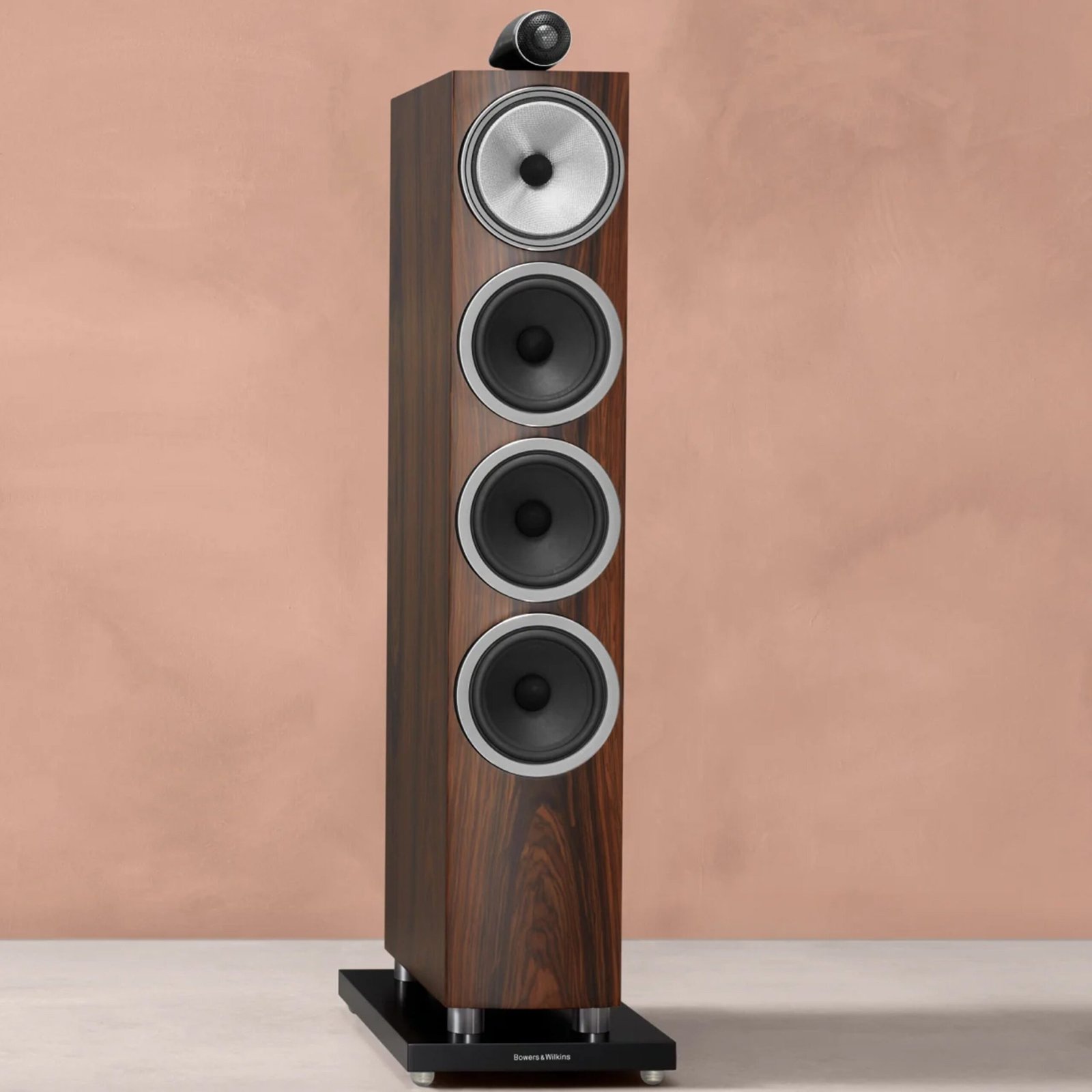

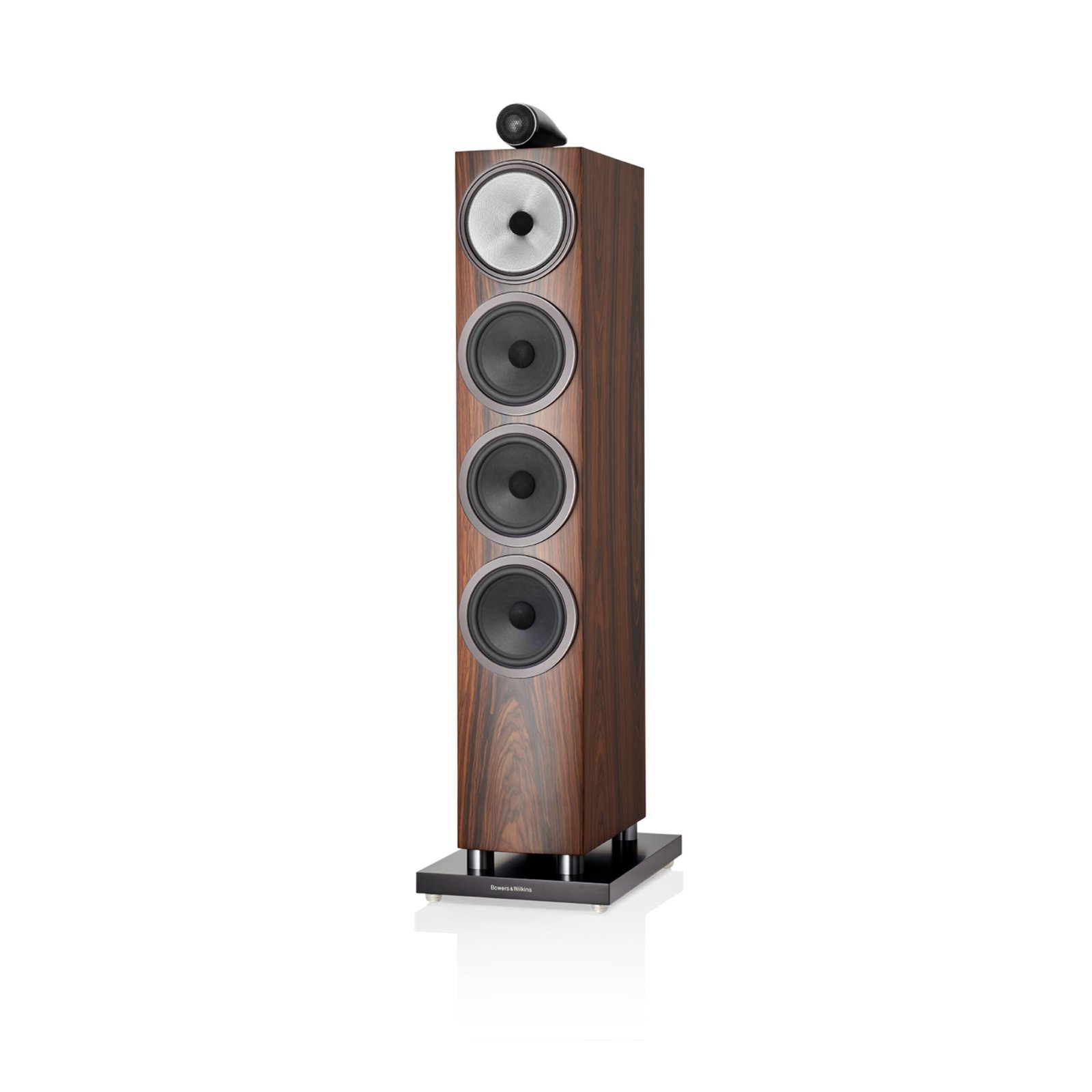

Bowers & Wilkins 702 S3 Mocha is a passive three-way 700 Series floorstanding loudspeaker in the Mocha finish. It combines a top-mounted Carbon Dome tweeter, dedicated Continuum FST midrange and three Aerofoil Profile bass drivers. Why Choose Bowers & Wilkins 702 S3 Mocha? The 702 S3 places its high-frequency unit in a separate Solid Body Tweeter-on-Top housing, while the 150mm midrange and triple 165mm bass array divide the other frequency duties. This makes cabinet clearance, room placement and amplifier matching central to a complete system plan. The listed Mocha finish changes the visual presentation rather than the connection method. Consider the speaker footprint and the listening distance before selecting the front-channel layout, and confirm the number supplied because the inventory uses an individual-piece unit. Key Features – Tweeter-on-Top: separate Carbon Dome housing. – Continuum FST midrange: dedicated 150mm driver. – Triple bass array: three 165mm Aerofoil Profile units. – Mocha finish: listed floorstanding option. Best Suited For
Stereo music listening and appropriately planned home-cinema channels using a suitable external amplifier. Choose speaker positions around the main listening seat, usable floor space and furniture. A loudspeaker is one part of the system: the source, amplifier and room influence the result, while secure placement helps maintain a consistent listening arrangement. Setup and Connection Guide
Switch the amplifier off before connecting suitable speaker cable and maintain matching positive and negative polarity at both ends. Follow the exact terminal and link instructions, especially where bi-wiring connections are provided. Position the speakers on stable support, allow the recommended cabinet clearance and start with a balanced distance from the listening seat. Test familiar music quietly, then adjust spacing and angle in small steps. In a receiver-based system, assign channels and run the supported calibration before checking crossover and playback levels. Frequently Asked Questions
Is the 300W amplifier recommendation a built-in speaker amplifier? No. 702 S3 is passive. The manufacturer gives 30–300W into 8Ω on unclipped programme as an external-amplifier matching range. It does not mean the cabinet contains a 300W power amplifier. Can these speakers play music directly from a phone without an amplifier? These are passive loudspeakers. A phone supplies a source signal, while an appropriate amplifier provides the power for the speaker terminals. Add compatible source equipment for Bluetooth or network music rather than assuming those functions are built into the cabinet. Does the amplifier recommendation mean that much power is always used? No. It is a matching guideline under the manufacturer’s stated conditions. Actual output varies with the signal and listening level. Check the amplifier’s load capability and avoid clipping; a higher numerical rating alone does not establish a safe or useful pairing. Technical Specifications Specification
Detail Model
702 S3 Finish
Mocha Type
Passive three-way vented floorstanding speaker Tweeter
25mm Carbon Dome, Tweeter-on-Top Midrange
150mm Continuum FST Bass drivers
3 × 165mm Aerofoil Profile Nominal impedance
8Ω; minimum 3.1Ω Recommended amplifier
30–300W into 8Ω, unclipped programme Sale quantity
Confirm package; inventory unit Pcs. Explore Related Equipment
Explore Bowers & Wilkins 702 S3 White Floorstanding Speaker and compare its role, connections and compatibility with the setup you are planning.
