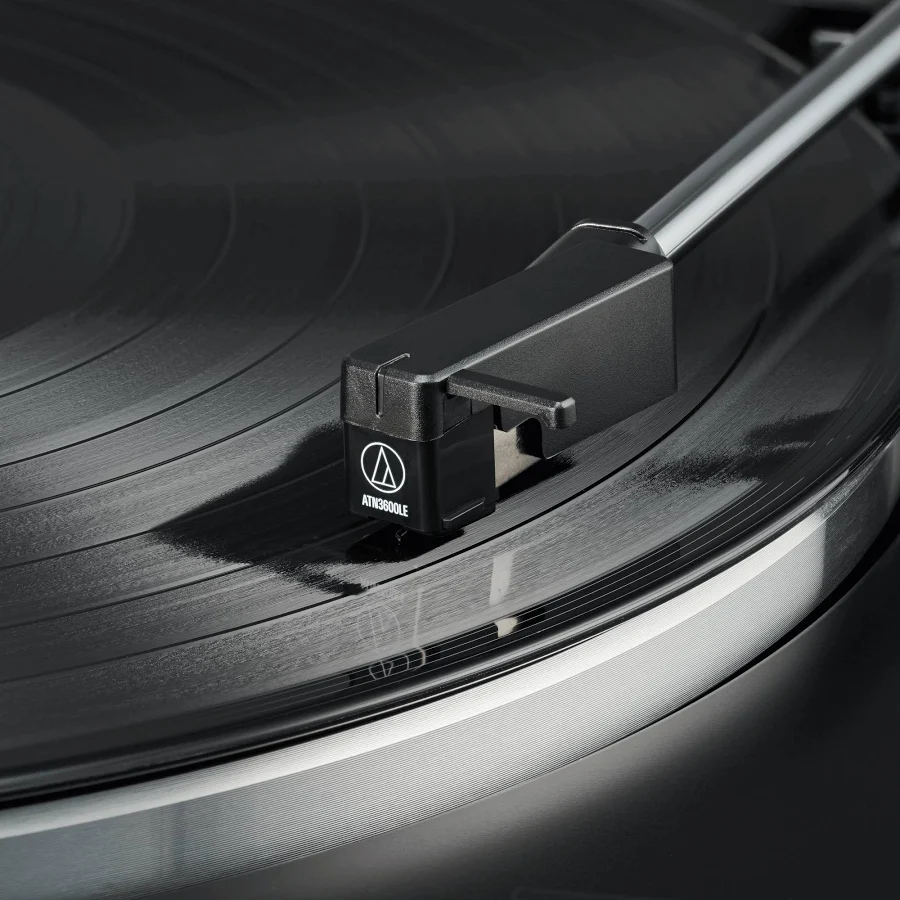

Audio-Technica ATN3600LE Elliptical Replacement Stylus

Audio-Technica ATN3600LE Elliptical Replacement Stylus

The Audio-Technica ATN3600LE is a replacement stylus for the AT3600L cartridge family, and it is the upgrade option in that family: where the original ATN3600L and the ATN3600LC use a conical tip, the LE uses a bonded elliptical diamond with a 0.3 x 0.7 mil profile. It fits turntables equipped with an ATN3600L or ATN3600LC stylus, including the AT-LP60X and AT-LP60 series, the AT-PL300 series, the AT-LP2D series and the Sound Burger models AT-SB727 and AT-SB2022, swapping in with the same push-on mounting as the stylus it replaces.

Key features

• Bonded elliptical diamond stylus, 0.3 x 0.7 mil profile
• Upgrade replacement for ATN3600L and ATN3600LC conical styli
• For the AT3600L cartridge mounting arrangement

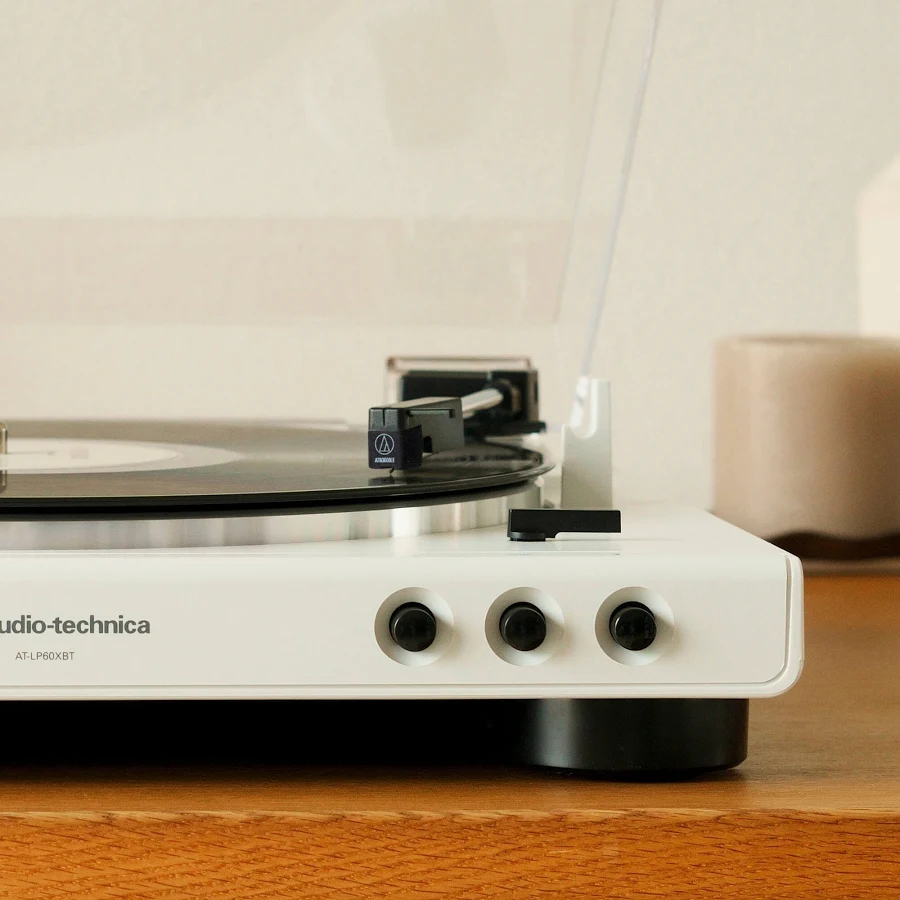

• Fits AT-LP60X, AT-LP60, AT-PL300 and AT-LP2D series turntables

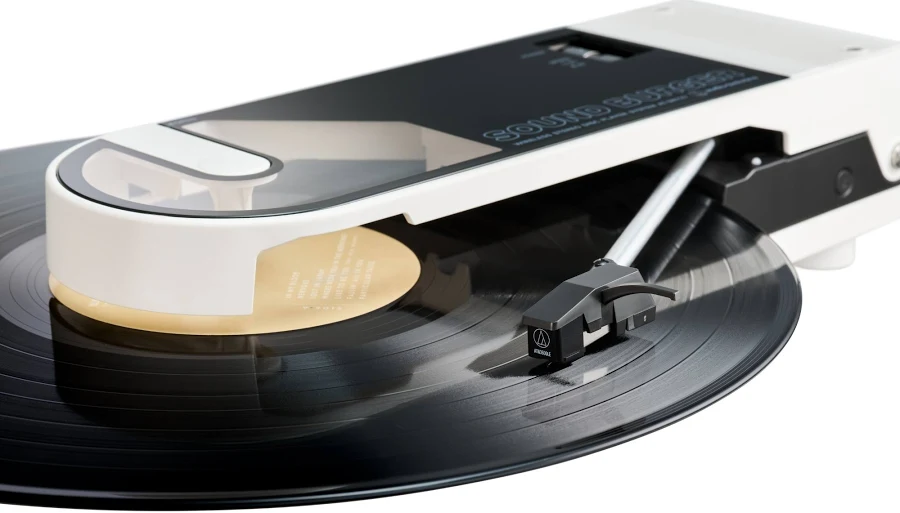

• Also fits Sound Burger AT-SB727 and AT-SB2022
• Tool-free push-on replacement, stylus life approx. 300 hours

Elliptical versus conical, in practice

A conical tip is a rounded point that rides relatively high in the groove. An elliptical tip is shaped to sit lower and presents a narrower contact edge across the groove while keeping a broader contact area along it, so it follows the fine, high-frequency undulations cut into the groove walls more closely. Audio-Technica positions the ATN3600LE on exactly that basis: higher frequency response, more retrieved detail and less sensitivity to surface scratches than the conical styli in the same family. On a familiar record the difference shows up as cleaner cymbals, clearer sibilants and better separation of instruments that a worn or basic conical tip smears together.

When to choose the LE

There are two good reasons to fit this stylus. The first is maintenance: every stylus wears, Audio-Technica rates the life of this one at approximately 300 hours, and a worn tip both sounds dull and can damage records, so a deck that has played for years on its original stylus is due a replacement regardless. The second is the upgrade itself: if your turntable came with the conical ATN3600L, the LE is the manufacturer’s own step up for that exact cartridge, with no change of cartridge, alignment or counterweight arrangement needed beyond checking the setup after fitting.

Fitting and setup

Stop the turntable, secure the tonearm and keep fingers and sleeves away from the cantilever. The stylus assembly pulls off its mounting and the replacement pushes on in its place; hold the plastic housing, never the cantilever or tip, and seat the new assembly fully so it sits square. Audio-Technica specifies a tracking force range of 3.0 to 4.0 grams for this cartridge family, with 3.5 grams standard; turntables such as the AT-LP60X are preset at the factory, while decks with an adjustable counterweight should be checked after the swap. Play a clean, familiar record first at modest volume and listen for distortion or mistracking before working through the collection.

Compatibility, stated precisely

This stylus is for the AT3600L cartridge system only. It does not fit Audio-Technica’s VM95, VM or other cartridge families, which use their own stylus mountings, and the LE suffix matters: ATN3600L and ATN3600LC are the conical versions, ATN3600LE is this elliptical one. Match the full model code on the packaging to the stylus your cartridge carries.

As the genuine elliptical option for one of the most widely fitted cartridge families ever made, the ATN3600LE is both the correct service part and a real, audible upgrade for LP60-series and Sound Burger owners.
