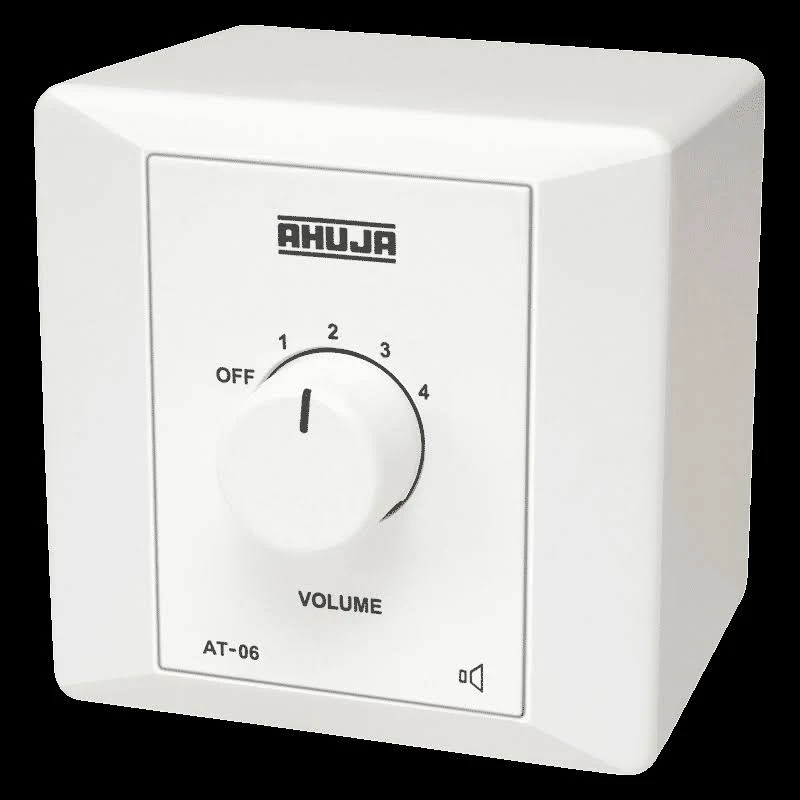

Ahuja AT-06 Volume Controller

Ahuja AT-06: 6 W Speaker Volume Controller for 100 V Lines
A compact 6 W volume controller for 100 V line systems, with a five-position rotary switch. Built for Hotels, Offices and Showrooms
Individual rooms in a PA system often need their own volume control. The AT-06 provides simple local control for a single low-power speaker. What It Is
The Ahuja AT-06 is a compact volume controller for 100 V line systems. It is rated 6 W and has a reliable rotary switch with 5 positions: maximum, three attenuated positions in 3 dB steps, and OFF. Key Features – 6 W rating: For single speakers up to 6 W. – 5-position rotary switch: Max, three 3 dB steps and OFF. – 100 V line operation: Compatible with Ahuja wall and ceiling speakers with a 100 V line matching transformer. – White plastic housing: An elegant, compact design. – Easy installation: On walls, partitions and panels, even after wiring. – Tiny and light: 87 x 87 x 78 mm, 0.15 kg. Why the Ahuja AT-06 Stands Out
A simple control that lets occupants of hotel rooms, office cabins and showrooms adjust or mute a speaker without touching the main amplifier. Installation Notes
Check that the speaker connected to the controller does not exceed 6 W, and wire it in series on the 100 V speaker line as the instructions describe. Switch the amplifier off before wiring and use a qualified installer where needed. Mount it at a convenient height on the wall or panel. Mount it at a comfortable height so guests can find it easily, and check that the wall box or panel opening is large enough before you start. Test each step after installation to confirm the speaker responds as expected, and label the control with the room name if several are installed. The controller only reduces the level; it does not add power, so plan the amplifier load and speaker taps carefully before you wire the system. Need Help Choosing? If you are unsure whether this product suits your setup, send us a message before you order. Tell us which equipment you already own and how you plan to use it, and our team will confirm compatibility and suggest any cables, stands or accessories you may need. Perfect For – Hotel rooms and offices – Showrooms and green rooms – Waiting areas Best Suited For
100 V line systems with low-power speakers needing local volume control. Frequently Asked Questions
What is the rated power? 6 W. How many positions? Five, including OFF. What are the dimensions? W87 x H87 x D78 mm. Technical Specifications Specification
Detail Type
Speaker volume controller Rated power
6 W Input voltage
100 V Positions
5: max, 3 x 3 dB steps, OFF Housing
White plastic Dimensions
W87 x H87 x D78 mm Weight
0.15 kg
