Ahuja WS-661T PA Wall Speaker

Ahuja WS-661T PA Wall Speaker

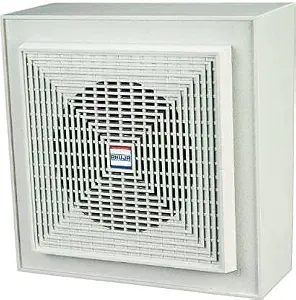

The Ahuja WS-661T is a wall mounting box speaker for indoor public address and background music. It uses a 6 inch full range driver in a high quality ABS cabinet, is rated 6W RMS on a 100V line, and offers power taps of 6W, 3W and 1.5W selected through a push-fit female receptacle. Ahuja lists it for schools, offices, BPOs, hospitals, banks, restaurants, showrooms and hotels, where clear speech and low level music need to reach many rooms from one amplifier.

Key features

• 6 inch full range driver for speech and background music
• 6W RMS power rating, 9W maximum, on a 100V line
• Power taps of 6W, 3W and 1.5W on 100V

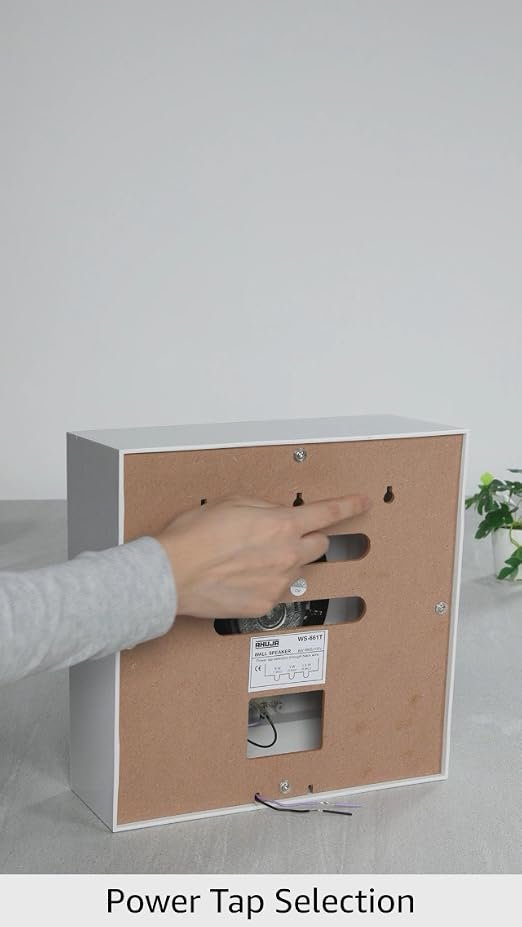

• Tap selection through a push-fit female receptacle
• Frequency response of 60Hz to 15,000Hz
• ABS wall mounting cabinet with key holes for easy fitting

Built for 100V line systems

In a 100V line installation, one amplifier feeds many speakers over long cable runs, and each speaker draws only the power set by its tap. That is why the WS-661T provides three taps: use 6W where a corridor or canteen needs more level, 3W for a typical office or classroom, and 1.5W where only gentle background coverage is wanted. The corresponding impedances are 1.6k ohm, 3.3k ohm and 6.6k ohm. When planning a system, add up the tap wattages of every speaker on the line and keep the total comfortably below the rated output of the amplifier, leaving headroom for announcements.

Sound character and coverage

A single 6 inch full range driver keeps the design simple and well matched to its job: intelligible announcements, paging and background music rather than high fidelity stereo. The rated response of 60Hz to 15,000Hz covers the speech band with room to spare. One wall speaker covers a modest room; larger or noisier spaces need several speakers spaced evenly so listeners are never far from one. Even spacing at a lower tap usually sounds clearer than a single speaker driven hard from one end of a room.

Installation

The cabinet measures 262mm wide by 262mm high by 128mm deep and mounts on the wall using the key holes provided, which keeps fitting quick across a large building. Select the tap on the push-fit receptacle before final fixing, connect the 100V line with consistent polarity at every speaker, and switch the amplifier off while wiring or changing a tap. The WS-661T is an indoor speaker, so it should not be fitted where it will be exposed to rain or wash-down. Ceiling height, wall material and local electrical rules all affect an installation, and a qualified installer should carry out permanent wiring.

Where it fits best

The WS-661T suits the everyday PA duties of schools and colleges, offices and BPOs, hospitals, banks, restaurants, showrooms and hotels: announcements, bell and paging signals, and background music at a controlled level. It pairs with any 100V line PA amplifier of suitable total power, and multiples can be mixed with other 100V speakers on the same line as long as the combined tap load stays within the amplifier rating.

For installers who need a simple, repeatable wall speaker across many rooms, the WS-661T offers a standard 6 inch format, three usable taps and a tidy ABS cabinet that blends into commercial interiors.
