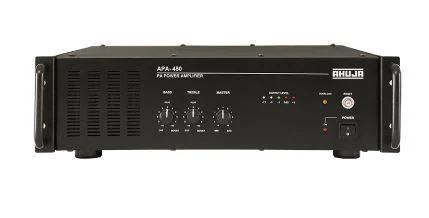

Ahuja APA-480 Installation Amplifier – 600 W RMS for Public Address That Cannot Stop
The Ahuja APA-480 is an installation PA power amplifier rated at 600 W RMS, built to sit in a rack behind a mixer or processor and drive a public address system day after day. It accepts one 200 mV unbalanced line input and two 1 V balanced line inputs on XLR connectors, includes a priority input so announcements can take precedence over background music, and can transfer instantly to 24 V DC battery power if the mains fails.
That combination – real power, balanced inputs, priority handling and battery changeover – is aimed squarely at schools, places of worship, hotels, offices, factories and halls in India, where an announcement system is expected to work during a power cut, not just between them.
Key features
600 W RMS output, 750 W maximum
Two 1 V balanced line inputs on XLR, one 200 mV unbalanced line input
Priority input system for announcements over background music
Speaker outputs for 4 ohm, 8 ohm, 70 V and 100 V systems
Ground lift switch to reduce hum from ground loops
Loop-through output to daisy-chain further amplifiers
Instant changeover to 24 V DC car battery power on AC failure
Tone controls, plus or minus 10 dB at 100 Hz and 10 kHz
19-inch rack mounting with resettable circuit breaker protection
Low impedance and line systems, in one amplifier
Short runs to a few nearby speakers suit direct 4 ohm or 8 ohm outputs. Long runs to many speakers spread across a building do not: cable losses and load matching become a problem. Constant-voltage 70 V and 100 V outputs solve that by letting each speaker tap a small amount of power through its own transformer, so a corridor, a floor or a whole campus can be covered from one amplifier. The APA-480 offers both approaches, so the same unit fits a single hall or a distributed installation.
Why balanced inputs and ground lift matter
In a large building, the mixer and amplifier may sit far apart, and long unbalanced cable runs collect hum and interference along the way. Balanced XLR inputs reject much of that noise, and the ground lift switch breaks the hum loop that appears when equipment is powered from different points. These are unglamorous features that decide whether a system sounds clean on its first day and its five hundredth.
Installation notes
Mount the amplifier in a ventilated rack with clear space around its vents, match every speaker load to the correct output terminal, and keep the total connected load within the rated power. Route line cables away from mains cabling, and switch the unit off before changing speaker connections. At 32.2 kg, plan the rack position and support accordingly.
For institutions that need announcements and music to keep going through anything, the APA-480 is a heavy, serious and well-proven answer.
Additional Information

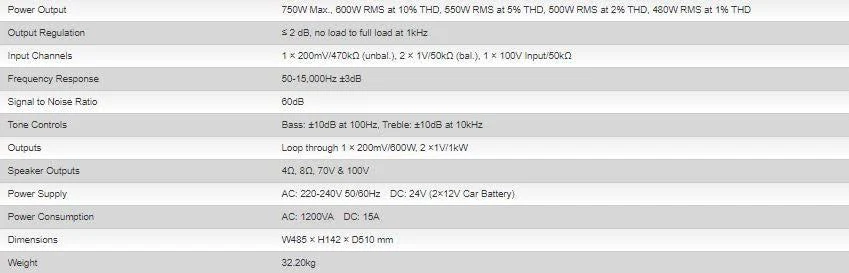

Specifications
Product Type
Installation PA Power Amplifier
Power Output
600 W RMS, 750 W Maximum
Inputs
1 x 200 mV Unbalanced Line, 2 x 1 V Balanced Line (XLR)
Frequency Response
50 - 15,000 Hz, plus or minus 3 dB
Signal to Noise Ratio
60 dB
Tone Controls
plus or minus 10 dB at 100 Hz and 10 kHz
Speaker Outputs
4 Ohms, 8 Ohms, 70 V, 100 V
Priority Input
Yes
Ground Lift
Yes
Loop-Through Output
Yes
Power Supply
AC 220 - 240 V, 50/60 Hz; DC 24 V Car Battery Changeover
Power Consumption
AC 1200 VA, DC 15 A
Form Factor
19-inch Rack Mount
Dimensions
485 x 142 x 510 mm (W x H x D)
Weight
32.2 kg
Brand
Ahuja
Model / SKU
AHUJA-APA-480
Category
Amplifier
Condition
Brand new, sealed box
Warranty
Official manufacturer warranty (India)
GST invoice
Yes, input credit available
